Fein BLS 1.6 E (50/60Hz 220/230V) / 72303400230 Spare Parts

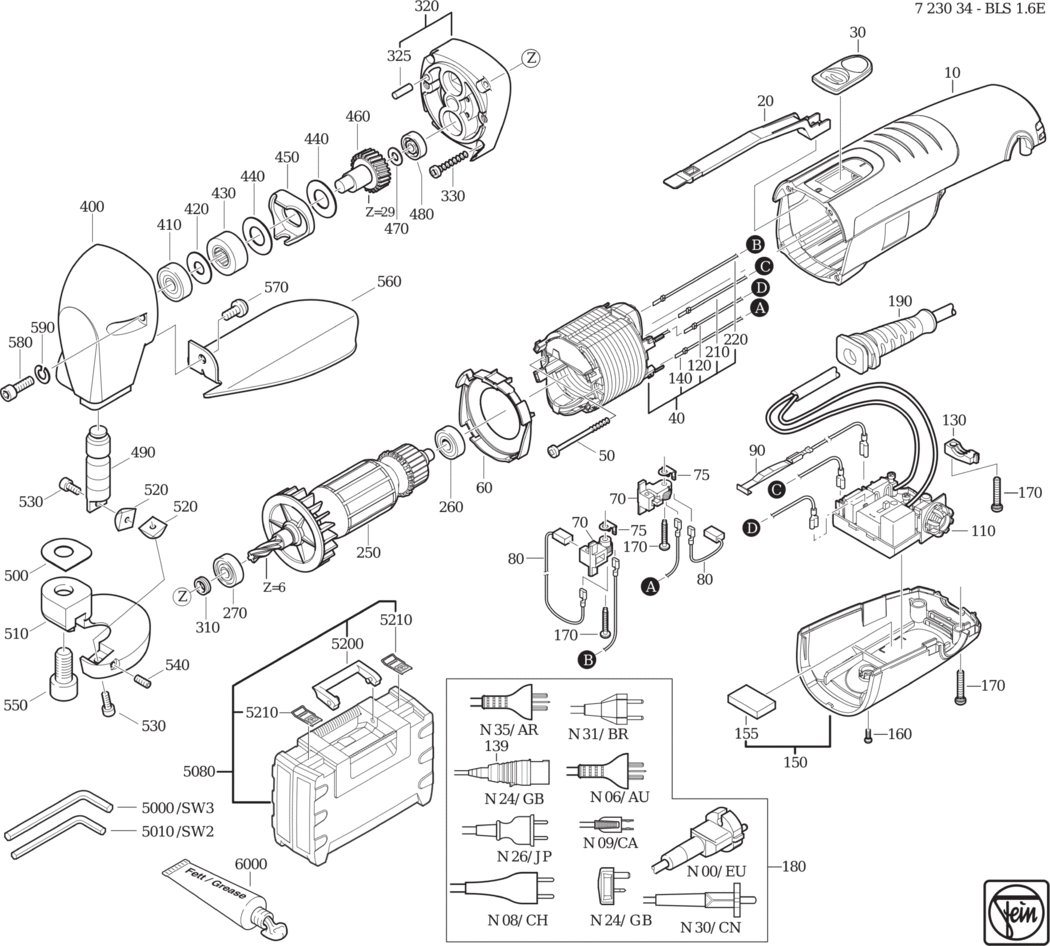

An exploded diagram and spare parts listing for the Fein BLS 1.6 E (50/60Hz 220/230V) / 72303400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A13 31901172000	-
20 - CONTROL ROD FEI-32816066000.A4 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A17 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004230.A1 51278004230	£67.46	£80.95
50 - SCREW FEI-43074005000.A63 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A32 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A9 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A59 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A20 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019010.A30 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A26 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A24 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A38 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A27 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A4 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A25 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A51 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A2 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A6 30707373014	£19.11	£22.93
190 - PROTECTIVE HOSE FEI-31413251000.A2 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A23 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A28 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 220/230V 50HZ FEI-53278004230.A14 53278004230	£110.31	£132.37
260 - GROOVED BALL BEARING FEI-41701001032.A29 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A127 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A41 32612125000	£2.39	£2.87
320 - FLANGE FEI-31506394010.A7 31506394010	-
325 - PIN FEI-40242006007.A70 40242006007	-
330 - SCREW FEI-43074004000.A2 43074004000	£1.60	£1.92
400 - HOUSING FEI-31308167003.A7 31308167003	£188.89	£226.67
410 - GROOVED BALL BEARING FEI-41701004021.A3 41701004021	£11.73	£14.08
420 - SHIM FEI-31308177002.A7 31308177002	£1.60	£1.92
430 - ROLLER FEI-41724001005.A18 41724001005	£40.15	£48.18
440 - SHIM FEI-31308178000.A0 31308178000	£1.60	£1.92
450 - HOLDER FEI-31308168001.A1 31308168001	£18.55	£22.26
460 - ECCENTRIC SHAFT FEI-31308169014.A7 31308169014	£115.51	£138.61
470 - DISC FEI-31308170007.A1 31308170007	£1.60	£1.92
480 - GROOVED BALL BEARING FEI-41701202018.A18 41701202018	£6.92	£8.30
490 - PLUNGER FEI-31308171006.A7 31308171006	£62.25	£74.70
500 - DISC FEI-31308173003.A7 31308173003	-
500 - DISC FEI-31308172009.A1 31308172009	£2.32	£2.79
500 - DISC FEI-31308174001.A1 31308174001	£2.52	£3.02
510 - CUTTING TABLE FEI-31308175005.A7 31308175005	-
520 - PLUNGER BLADE AND FIXED BLADE FEI-31308072000.A3 31308072000	£48.11	£57.73
530 - CYLINDER HEAD SCREW FEI-43035004041.A22 43035004041	£1.60	£1.92
540 - SET SCREW FEI-43058013047.A10 43058013047	-
550 - CYLINDER HEAD SCREW FEI-43035123102.A3 43035123102	£3.11	£3.73
560 - HAND GUARD FEI-31308176008.A1 31308176008	£57.82	£69.39
570 - FILLISTER HEAD SCREW FEI-43064017051.A7 43064017051	-
580 - CYLINDER HEAD SCREW FEI-43035016053.A25 43035016053	-
590 - SPRING WASHER FEI-42445002053.A27 42445002053	-
5000 - ALLEN KEY SW3 FEI-62907013006.A9 62907013006	£3.29	£3.95
5010 - ALLEN KEY SW2 FEI-62907029006.A3 62907029006	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A17 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A154 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A232 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A29 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A597 34130054061	-
