Fein MOt 6-18-2 / 75340700004 Spare Parts

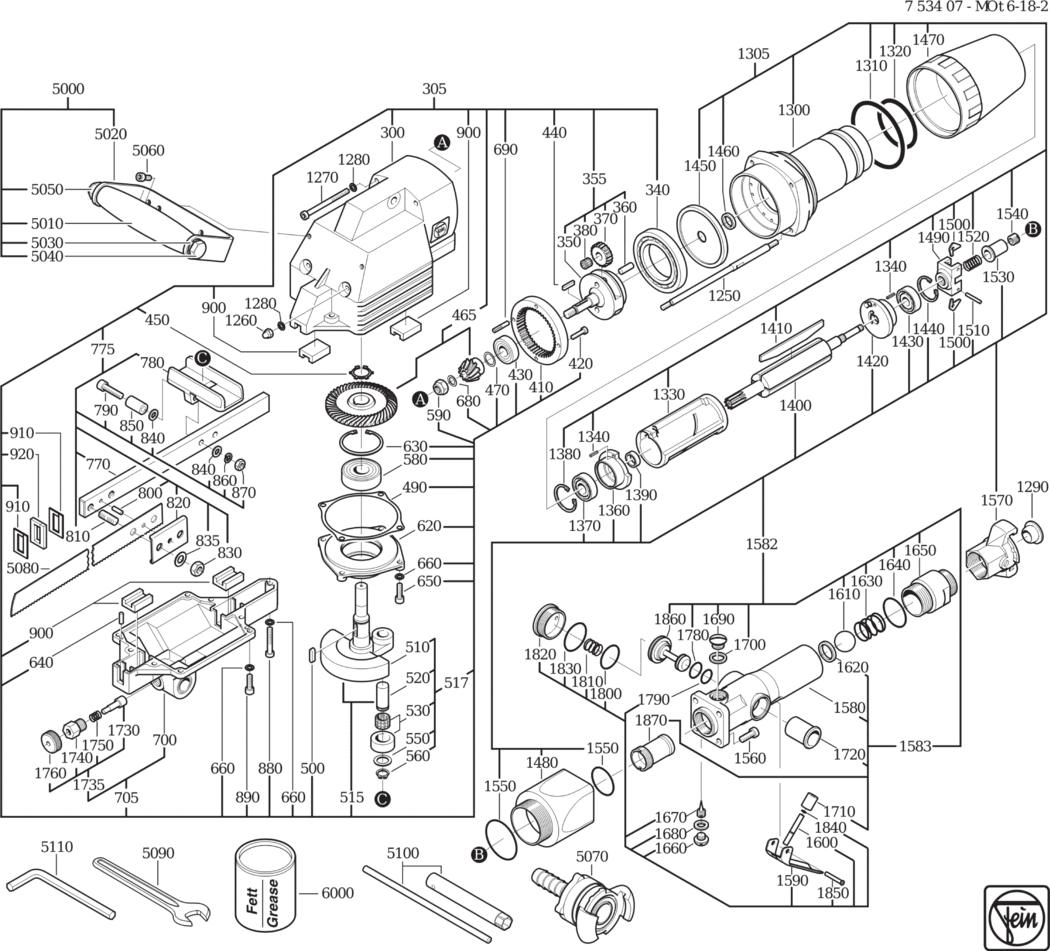

An exploded diagram and spare parts listing for the Fein MOt 6-18-2 / 75340700004

	Ex VAT	Inc VAT
300 - GEARBOX HOUSING FEI-31209013002.A0 31209013002	£394.95	£473.94
305 - TOOL HEAD FEI-31209013049.A1 31209013049	£1456.43	£1747.72
340 - GROOVED BALL BEARING FEI-41701607012.A10 41701607012	£41.89	£50.27
350 - DRIVE BLOCK FEI-30110021009.A1 30110021009	£289.31	£347.17
355 - DRIVE BLOCK FEI-30110021018.A1 30110021018	£389.08	£466.89
360 - BOLT FEI-30216099006.A2 30216099006	£1.60	£1.92
370 - GEAR-WHEEL FEI-33613075003.A1 33613075003	£71.57	£85.88
380 - NEEDLE CAGE FEI-41715017008.A6 41715017008	£7.50	£9.00
410 - GEAR-WHEEL FEI-33804015005.A3 33804015005	£151.36	£181.63
420 - CYLINDER HEAD SCREW FEI-43002108997.A3 43002108997	-
430 - GROOVED BALL BEARING FEI-41701010032.A39 41701010032	£13.90	£16.68
440 - FEATHER KEY FEI-40221008003.A18 40221008003	£4.63	£5.56
450 - CIRCLIP FEI-42641001002.A43 42641001002	£1.60	£1.92
465 - BEVEL GEAR Z=11/39 FEI-33809142019.A5 33809142019	£218.36	£262.03
470 - DISC FEI-32624087034.A5 32624087034	£4.76	£5.71
470 - DISC FEI-32624087028.A5 32624087028	£1.60	£1.92
490 - DISC FEI-32624086024.A5 32624086024	£10.39	£12.47
490 - DISC FEI-32624086030.A5 32624086030	£11.13	£13.36
500 - FEATHER KEY FEI-40221017004.A10 40221017004	£1.60	£1.92
510 - ECCENTRIC SHAFT FEI-33405022003.A0 33405022003	£176.28	£211.53
515 - ECCENTRIC SHAFT FEI-33405022012.A3 33405022012	£189.62	£227.54
517 - ECCENTRIC SHAFT FEI-33405022028.A0 33405022028	£359.12	£430.95
520 - BOLT FEI-30217200004.A9 30217200004	£19.18	£23.02
530 - ROLLER FEI-41724001005.A1 41724001005	£40.15	£48.18
550 - SHIM FEI-32408212006.A4 32408212006	£1.60	£1.92
560 - CIRCLIP FEI-42616006007.A30 42616006007	£1.60	£1.92
580 - GROOVED BALL BEARING FEI-41701222038.A10 41701222038	£22.46	£26.95
590 - NUT FEI-42019006080.A11 42019006080	£1.60	£1.92
620 - BEARING PLATE FEI-32419063000.A8 32419063000	£83.03	£99.64
630 - CIRCLIP FEI-42616003002.A7 42616003002	£1.60	£1.92
640 - PIN FEI-40247006002.A5 40247006002	£1.60	£1.92
650 - CYLINDER HEAD SCREW FEI-43035073052.A2 43035073052	£1.60	£1.92
660 - CIRCLIP M5 FEI-42443004057.A24 42443004057	£1.60	£1.92
680 - DISC FEI-32408232004.A1 32408232004	£3.11	£3.73
690 - PIN FEI-40247007006.A5 40247007006	-
700 - COVER FEI-32429068000.A1 32429068000	£142.52	£171.02
705 - COVER FEI-32429068019.A9 32429068019	£190.75	£228.90
770 - ROD FEI-32714057002.A1 32714057002	£106.28	£127.54
775 - ROD FEI-32714057011.A9 32714057011	£279.68	£335.61
780 - LINK FEI-32714059004.A10 32714059004	£158.96	£190.75
790 - CYLINDER HEAD SCREW FEI-43035080068.A10 43035080068	£1.60	£1.92
800 - STRAIGHT PIN FEI-40201036006.A0 40201036006	£1.60	£1.92
810 - STUD BOLT FEI-43007038088.A1 43007038088	£6.12	£7.34
820 - PLATE FEI-32714011000.A6 32714011000	£21.53	£25.84
830 - HEX NUT FEI-42001009080.A5 42001009080	£1.60	£1.92
835 - DISC FEI-42401019085.A88 42401019085	£1.60	£1.92
840 - DISC FEI-42401018069.A5 42401018069	£1.60	£1.92
850 - CLAMPING SLEEVE FEI-40238041005.A5 40238041005	£1.60	£1.92
860 - SPRING WASHER FEI-42445003060.A14 42445003060	£1.60	£1.92
870 - HEX NUT FEI-42001029066.A3 42001029066	£1.60	£1.92
880 - CYLINDER HEAD SCREW FEI-43033015052.A22 43033015052	£1.60	£1.92
890 - CYLINDER HEAD SCREW FEI-43035073052.A5 43035073052	£1.60	£1.92
900 - BEARING FEI-31604008001.A9 31604008001	£10.05	£12.06
910 - WIPER FEI-32714058000.A1 32714058000	£1.60	£1.92
920 - FELT RING FEI-30604042007.A4 30604042007	£4.18	£5.01
1250 - BOLT FEI-33023060005.A3 33023060005	£13.67	£16.40
1260 - NUT FEI-42019005052.A4 42019005052	£1.60	£1.92
1270 - CYLINDER HEAD SCREW FEI-43035024055.A2 43035024055	£1.60	£1.92
1280 - CIRCLIP M5 FEI-42443004057.A25 42443004057	£1.60	£1.92
1290 - CAP FEI-31420067000.A0 31420067000	£1.75	£2.10
1300 - MOTOR HOUSING FEI-31305176014.A0 31305176014	-
1305 - N.A. FEI-75752500017.A1 75752500017	-
1310 - SEALING RING FEI-40612058005.A0 40612058005	£4.80	£5.76
1320 - SEALING RING FEI-40612059009.A1 40612059009	£10.56	£12.67
1330 - BUSH FEI-31305180003.A1 31305180003	£764.45	£917.34
1340 - CLAMPING SLEEVE FEI-40238042008.A0 40238042008	£1.60	£1.92
1360 - DISC FEI-31305182005.A0 31305182005	£298.92	£358.71
1370 - GROOVED BALL BEARING FEI-41701010054.A219 41701010054	£8.25	£9.90
1380 - CIRCLIP FEI-42616027009.A29 42616027009	£1.60	£1.92
1390 - RING FEI-31305183009.A1 31305183009	£37.86	£45.43
1400 - ROTOR FEI-31305265009.A0 31305265009	£770.11	£924.13
1410 - FLAP FEI-31305185001.A0 31305185001	£36.61	£43.93
1420 - DISC FEI-31305186004.A1 31305186004	£333.06	£399.67
1430 - GROOVED BALL BEARING FEI-41701007050.A49 41701007050	£15.15	£18.18
1440 - CIRCLIP FEI-42616001005.A16 42616001005	£1.60	£1.92
1450 - DISC FEI-31305187008.A0 31305187008	£155.01	£186.01
1460 - FELT RING FEI-31305188006.A1 31305188006	£12.02	£14.43
1470 - SLEEVE FEI-31305189000.A0 31305189000	£103.47	£124.16
1480 - HOUSING FEI-31305272002.A1 31305272002	-
1490 - HOLDER FEI-31305266002.A1 31305266002	£211.95	£254.34
1500 - GOVERNOR WEIGHT FEI-31305267006.A0 31305267006	-
1510 - STRAIGHT PIN FEI-31305268004.A1 31305268004	-
1520 - SPIRAL SPRING FEI-31305269008.A0 31305269008	£15.05	£18.06
1530 - SLEEVE FEI-31305270000.A1 31305270000	-
1540 - NUT FEI-31305271009.A0 31305271009	£43.88	£52.66
1550 - SEALING RING FEI-40612060001.A0 40612060001	£2.60	£3.12
1560 - CYLINDER HEAD SCREW FEI-43033064066.A86 43033064066	£1.60	£1.92
1570 - CLUTCH PART FEI-41140007008.A0 41140007008	-
1580 - HOUSING FEI-31305332002.A0 31305332002	-
1582 - VALVE FEI-31305332027.A0 31305332027	£1318.80	£1582.56
1583 - HOUSING FEI-31305332011.A1 31305332011	-
1590 - LEVER FEI-31305340009.A0 31305340009	£62.87	£75.44
1600 - PIN FEI-31305336001.A0 31305336001	£40.30	£48.36
1610 - BALL FEI-31305337005.A1 31305337005	£15.99	£19.19
1620 - RING FEI-31305333006.A1 31305333006	£47.70	£57.24
1630 - SPIRAL SPRING FEI-31305338003.A0 31305338003	£10.96	£13.15
1640 - SEALING RING FEI-40612155009.A1 40612155009	£9.17	£11.00
1650 - NIPPLE FEI-31305339007.A1 31305339007	-
1660 - SCREW FEI-31305208000.A1 31305208000	£4.80	£5.76
1670 - SCREW FEI-31305209004.A0 31305209004	-
1680 - SEALING RING FEI-31305210006.A1 31305210006	£10.50	£12.60
1690 - SCREW FEI-31305211005.A0 31305211005	-
1700 - SEALING RING FEI-31305212008.A1 31305212008	£6.20	£7.44
1710 - BUSH FEI-31305334004.A0 31305334004	£18.94	£22.73
1720 - BUSH FEI-31305335008.A1 31305335008	£44.42	£53.31
1730 - BOLT FEI-33412015000.A5 33412015000	£18.48	£22.17
1735 - BOLT FEI-33412015019.A5 33412015019	£63.10	£75.72
1740 - SLEEVE FEI-30510025004.A7 30510025004	£71.59	£85.91
1750 - SPIRAL SPRING FEI-30901113008.A10 30901113008	-
1760 - RING FEI-32601193008.A6 32601193008	£16.16	£19.39
1780 - SEALING RING FEI-40612156002.A0 40612156002	£14.31	£17.17
1790 - SEALING RING FEI-40612113001.A0 40612113001	£8.34	£10.01
1800 - SEALING RING FEI-40612157006.A1 40612157006	£19.78	£23.74
1810 - SPIRAL SPRING FEI-31305343005.A1 31305343005	£14.80	£17.76
1820 - BUSH FEI-31305344003.A0 31305344003	£166.46	£199.75
1830 - SEALING RING FEI-40612158004.A0 40612158004	£7.76	£9.31
1840 - SEALING RING FEI-40612065009.A1 40612065009	£8.50	£10.20
1850 - PIN FEI-31305341008.A1 31305341008	£7.56	£9.07
1860 - PISTON FEI-31305342001.A0 31305342001	£117.80	£141.36
1870 - SLEEVE FEI-31305345007.A1 31305345007	£29.12	£34.94
5000 - HANDLE FEI-32119044012.A8 32119044012	£40.02	£48.02
5010 - HANDLE FEI-32119044003.A2 32119044003	£16.78	£20.13
5020 - CLAMP FEI-33211022001.A8 33211022001	£21.63	£25.96
5030 - DISC FEI-42401017104.A18 42401017104	-
5040 - HEXAGON SOCKET SCREW FEI-43001059102.A1 43001059102	-
5050 - NUT FEI-42019007105.A4 42019007105	-
5060 - CYLINDER HEAD SCREW FEI-43035014056.A4 43035014056	£1.60	£1.92
5070 - HOSE COUPLING FEI-41140004007.A0 41140004007	£45.41	£54.49
5080 - SAW BLADES FEI-63503063007.A1 63503063007	£17.00	£20.40
5090 - JAW SPANNER SW13 FEI-62901007007.A8 62901007007	£11.61	£13.93
5100 - SOCKET SPANNER SW 8 FEI-62906009007.A0 62906009007	£6.38	£7.66
5110 - ALLEN KEY SW4 FEI-62907010000.A3 62907010000	£3.35	£4.02
6000 - LUBRICANT CAN 0.850 kg FEI-32132007011.A25 32132007011	-
