Fein AStx 649-1 (50Hz 110V) / 72342200110 Spare Parts

Fein AStx 649-1 ⡐Hz 110V) / 72342200110 Spare Parts

Home Details Reviews Delivery

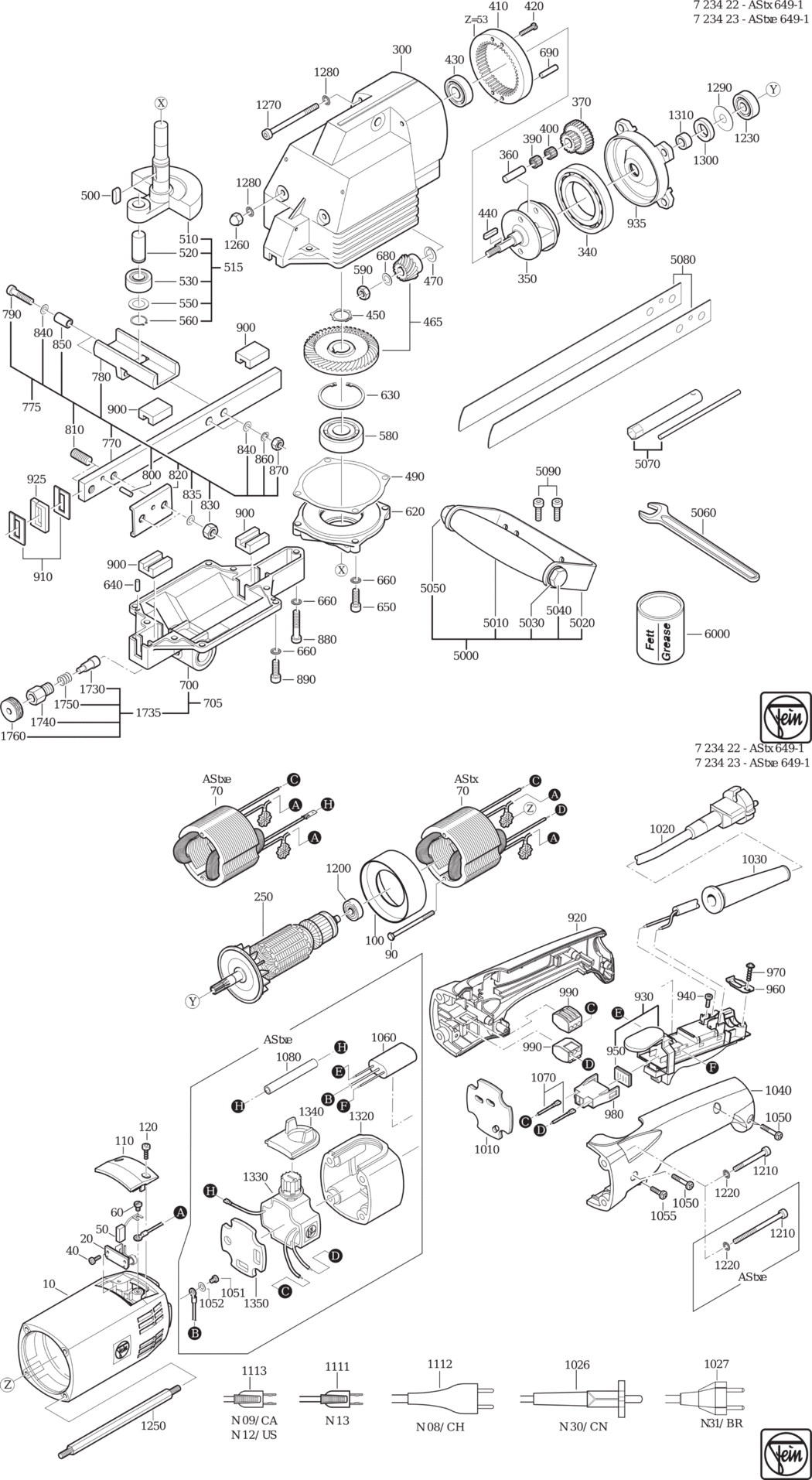

An exploded diagram and spare parts listing for the Fein AStx 649-1 (50Hz 110V) / 72342200110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A3 31903099006	£150.31	£180.37
20 - BRUSH HOLDER FEI-30712067017.A6 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A103 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A40 30711067004	£7.87	£9.44
60 - FILLISTER HEAD SCREW FEI-43041016042.A24 43041016042	-
70 - STATOR FEI-51215022110.A1 51215022110	£94.33	£113.20
90 - HEXAGON SOCKET SCREW FEI-43001004042.A15 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A23 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A21 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A39 43046001002	-
250 - ARMATURE 50HZ110V FEI-53215007115.A0 53215007115	£200.01	£240.01
300 - GEARBOX HOUSING FEI-31209013002.A4 31209013002	£394.95	£473.94
340 - GROOVED BALL BEARING FEI-41701607012.A6 41701607012	£41.89	£50.27
350 - DRIVE BLOCK FEI-30110022002.A3 30110022002	£312.55	£375.06
360 - BOLT FEI-30216098002.A0 30216098002	£1.60	£1.92
370 - GEAR-WHEEL FEI-33811030002.A4 33811030002	£92.98	£111.58
390 - NEEDLE CAGE FEI-41715017008.A4 41715017008	£7.50	£9.00
400 - NEEDLE CAGE FEI-41715013009.A4 41715013009	£16.25	£19.50
410 - GEAR-WHEEL FEI-33804015005.A9 33804015005	£151.36	£181.63
420 - CYLINDER HEAD SCREW FEI-43002108997.A7 43002108997	-
430 - GROOVED BALL BEARING FEI-41701010032.A58 41701010032	£13.90	£16.68
440 - FEATHER KEY FEI-40221008003.A11 40221008003	£4.63	£5.56
450 - CIRCLIP FEI-42641001002.A30 42641001002	£1.60	£1.92
465 - BEVEL GEAR Z=11/39 FEI-33809142019.A8 33809142019	£218.36	£262.03
470 - DISC FEI-32624087034.A3 32624087034	£4.76	£5.71
470 - DISC FEI-32624087028.A7 32624087028	£1.60	£1.92
490 - DISC FEI-32624086024.A7 32624086024	£10.39	£12.47
490 - DISC FEI-32624086030.A3 32624086030	£11.13	£13.36
500 - FEATHER KEY FEI-40221017004.A3 40221017004	£1.60	£1.92
510 - ECCENTRIC SHAFT FEI-33405022003.A7 33405022003	£176.28	£211.53
515 - ECCENTRIC SHAFT FEI-33405022028.A5 33405022028	£359.12	£430.95
520 - BOLT FEI-30217200004.A6 30217200004	£19.18	£23.02
530 - ROLLER FEI-41724001005.A8 41724001005	£40.15	£48.18
550 - SHIM FEI-32408212006.A9 32408212006	£1.60	£1.92
560 - CIRCLIP FEI-42616006007.A6 42616006007	£1.60	£1.92
580 - GROOVED BALL BEARING FEI-41701222038.A15 41701222038	£22.46	£26.95
590 - NUT FEI-42019006080.A2 42019006080	£1.60	£1.92
620 - BEARING PLATE FEI-32419063000.A6 32419063000	£83.03	£99.64
630 - CIRCLIP FEI-42616003002.A2 42616003002	£1.60	£1.92
640 - PIN FEI-40247006002.A9 40247006002	£1.60	£1.92
650 - CYLINDER HEAD SCREW FEI-43035073052.A12 43035073052	£1.60	£1.92
660 - CIRCLIP M5 FEI-42443004057.A126 42443004057	£1.60	£1.92
680 - DISC FEI-32408232004.A10 32408232004	£3.11	£3.73
690 - PIN FEI-40247007006.A1 40247007006	-
700 - COVER FEI-32429068000.A5 32429068000	£142.52	£171.02
705 - COVER FEI-32429068019.A5 32429068019	£190.75	£228.90
770 - ROD FEI-32714057002.A6 32714057002	£106.28	£127.54
775 - ROD FEI-32714057011.A4 32714057011	£279.68	£335.61
780 - LINK FEI-32714059004.A4 32714059004	£158.96	£190.75
790 - CYLINDER HEAD SCREW FEI-43035080068.A6 43035080068	£1.60	£1.92
800 - STRAIGHT PIN FEI-40201036006.A6 40201036006	£1.60	£1.92
810 - STUD BOLT FEI-43007038088.A5 43007038088	£6.12	£7.34
820 - PLATE FEI-32714011000.A1 32714011000	£21.53	£25.84
830 - HEX NUT FEI-42001009080.A10 42001009080	£1.60	£1.92
835 - DISC FEI-42401019085.A63 42401019085	£1.60	£1.92
840 - DISC FEI-42401018069.A20 42401018069	£1.60	£1.92
850 - CLAMPING SLEEVE FEI-40238041005.A7 40238041005	£1.60	£1.92
860 - SPRING WASHER FEI-42445003060.A17 42445003060	£1.60	£1.92
870 - HEX NUT FEI-42001029066.A8 42001029066	£1.60	£1.92
880 - CYLINDER HEAD SCREW FEI-43033015052.A37 43033015052	£1.60	£1.92
890 - CYLINDER HEAD SCREW FEI-43035073052.A11 43035073052	£1.60	£1.92
900 - BEARING FEI-31604008001.A7 31604008001	£10.05	£12.06
910 - WIPER FEI-32714058000.A5 32714058000	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179000.A13 31204179000	£22.62	£27.15
925 - FELT RING FEI-30604042007.A7 30604042007	£4.18	£5.01
930 - SWITCH FEI-30701274010.A1 30701274010	£83.45	£100.14
935 - INTERMEDIATE GEAR BOX FEI-31506209007.A5 31506209007	£68.51	£82.21
940 - FILLISTER HEAD SCREW FEI-43041035047.A86 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A43 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A74 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A59 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A64 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A81 31412063000	£3.93	£4.72
1010 - PLATE FEI-30605041005.A1 30605041005	£4.80	£5.76
1020 - CABLE WITH PLUG FEI-30707373014.A24 30707373014	£19.11	£22.93
1030 - CABLE GROMMET FEI-31413094007.A81 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A73 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A90 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A74 43070038007	£1.60	£1.92
1070 - CONNECTING CABLE FEI-30719655010.A9 30719655010	£2.74	£3.29
1200 - GROOVED BALL BEARING FEI-41701204131.A30 41701204131	£9.10	£10.92
1210 - CYLINDER HEAD SCREW FEI-43035019059.A14 43035019059	-
1220 - CIRCLIP M5 FEI-42443004057.A128 42443004057	£1.60	£1.92
1230 - GROOVED BALL BEARING FEI-41701207033.A17 41701207033	£10.15	£12.18
1250 - BOLT FEI-33023059003.A3 33023059003	£5.02	£6.03
1260 - NUT FEI-42019005052.A8 42019005052	£1.60	£1.92
1270 - CYLINDER HEAD SCREW FEI-43035025059.A5 43035025059	£1.60	£1.92
1280 - CIRCLIP M5 FEI-42443004057.A127 42443004057	£1.60	£1.92
1290 - DISC FEI-32411069004.A1 32411069004	£1.60	£1.92
1300 - FELT RING FEI-30601082001.A2 30601082001	£1.60	£1.92
1310 - SEALING RING FEI-32612077003.A3 32612077003	£7.07	£8.48
1730 - BOLT FEI-33412015000.A3 33412015000	£18.48	£22.17
1735 - BOLT FEI-33412015019.A7 33412015019	£63.10	£75.72
1740 - SLEEVE FEI-30510025004.A3 30510025004	£71.59	£85.91
1750 - SPIRAL SPRING FEI-30901113008.A7 30901113008	-
1760 - RING FEI-32601193008.A2 32601193008	£16.16	£19.39
5000 - HANDLE FEI-32119044012.A4 32119044012	£40.02	£48.02
5010 - HANDLE FEI-32119044003.A6 32119044003	£16.78	£20.13
5020 - CLAMP FEI-33211022001.A5 33211022001	£21.63	£25.96
5030 - DISC FEI-42401017104.A16 42401017104	-
5040 - HEXAGON SOCKET SCREW FEI-43001059102.A7 43001059102	-
5050 - NUT FEI-42019007105.A7 42019007105	-
5060 - JAW SPANNER SW13 FEI-62901007007.A33 62901007007	£11.61	£13.93
5070 - SOCKET SPANNER SW 8 FEI-62906009007.A6 62906009007	£6.38	£7.66
5080 - SAW BLADES FEI-63503063007.A6 63503063007	£17.00	£20.40
5090 - CYLINDER HEAD SCREW FEI-43035014056.A15 43035014056	£1.60	£1.92
6000 - LUBRICANT CAN 0.850 kg FEI-32132007011.A20 32132007011	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A382 34130054061	-

Attribute Name	Value
Brand	Fein
