Fein ASte 649-1 (50Hz 230V) / 72340600228 Spare Parts

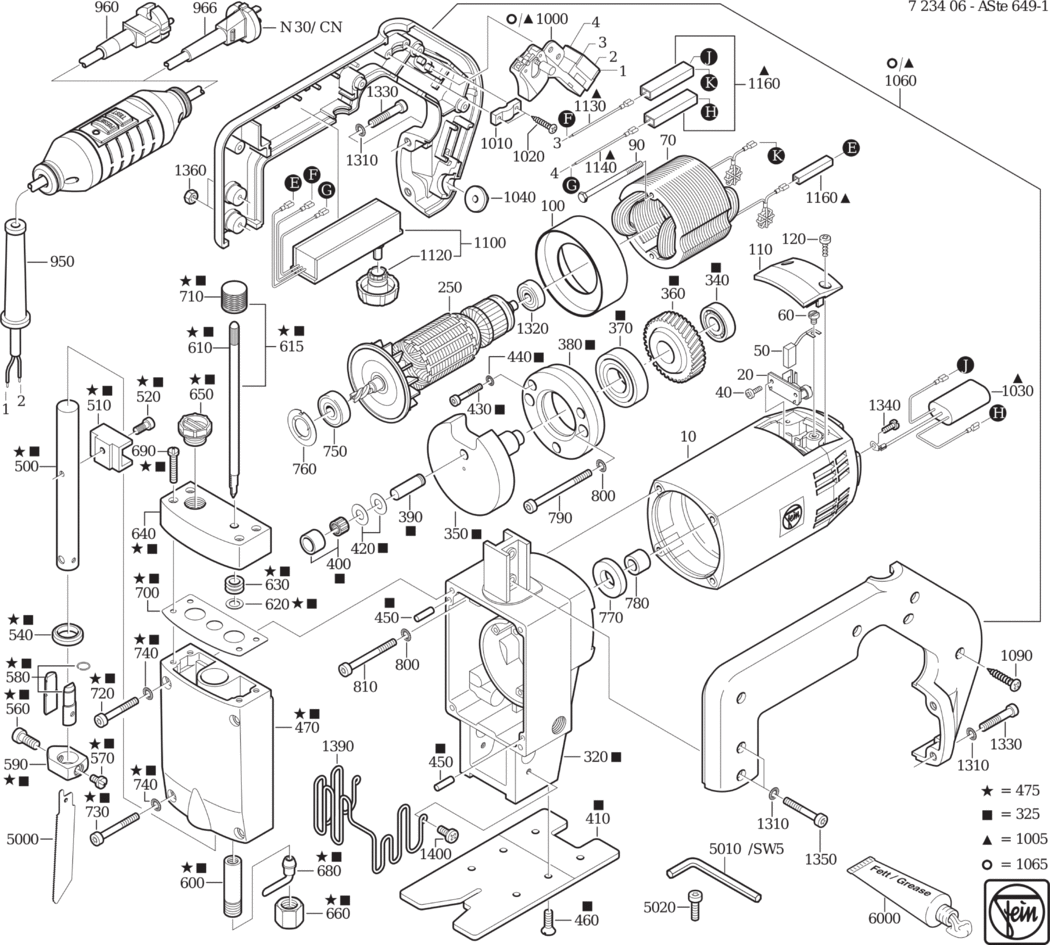

An exploded diagram and spare parts listing for the Fein ASte 649-1 (50Hz 230V) / 72340600228

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A2 31903099006	£150.31	£180.37
20 - BRUSH HOLDER FEI-30712067017.A23 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A63 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A39 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A116 43003029048	-
70 - STATOR FEI-51215012229.A0 51215012229	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A16 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A35 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A24 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A58 43046001002	-
250 - ARMATURE 50HZ220V FEI-53215002222.A0 53215002222	£214.41	£257.29
320 - GEARBOX HOUSING FEI-31209009004.A0 31209009004	£281.82	£338.18
325 - TOOL HEAD FEI-31209009041.A0 31209009041	-
340 - GROOVED BALL BEARING FEI-41701010010.A41 41701010010	£8.58	£10.30
350 - ECCENTRIC SHAFT FEI-33405019009.A0 33405019009	£152.96	£183.55
360 - GEAR-WHEEL FEI-33663041009.A0 33663041009	£105.09	£126.11
370 - GROOVED BALL BEARING FEI-41701016011.A12 41701016011	-
380 - BEARING PLATE FEI-32419058008.A0 32419058008	£87.87	£105.44
390 - BOLT FEI-30216094003.A0 30216094003	£7.43	£8.92
400 - NEEDLE BEARING FEI-41706018002.A0 41706018002	£23.12	£27.75
410 - PLATE FEI-32714047003.A0 32714047003	£33.95	£40.74
420 - DISC FEI-32624065023.A0 32624065023	£3.70	£4.44
420 - DISC FEI-32624065039.A0 32624065039	£3.71	£4.45
430 - CYLINDER HEAD SCREW M4X25 FEI-43033006040.A0 43033006040	£1.60	£1.92
440 - CIRCLIP M4 FEI-42443003043.A324 42443003043	£1.60	£1.92
450 - STRAIGHT PIN FEI-40201037000.A3 40201037000	-
460 - COUNTERSUNK SCREW FEI-43059013054.A0 43059013054	-
470 - COVER FEI-32429062009.A0 32429062009	£283.21	£339.85
475 - TOOL HEAD FEI-31209009041.A1 31209009041	-
500 - PLUNGER FEI-30109125004.A0 30109125004	£183.91	£220.69
510 - LINK FEI-32714080004.A0 32714080004	£98.82	£118.59
520 - CYLINDER HEAD SCREW FEI-43033009052.A1 43033009052	£1.60	£1.92
540 - SEALING RING FEI-40608028001.A0 40608028001	£14.22	£17.07
560 - CYLINDER HEAD SCREW FEI-43033061061.A2 43033061061	-
570 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A11 43002033045	£1.60	£1.92
580 - CLAMPING JAW FEI-32714071013.A0 32714071013	£63.58	£76.29
590 - CLAMPING RING FEI-32607042009.A0 32607042009	£55.25	£66.30
600 - SLEEVE FEI-32714050007.A0 32714050007	£23.42	£28.11
610 - ROD FEI-32714051006.A0 32714051006	£41.51	£49.81
615 - ROD FEI-32714051015.A0 32714051015	£37.88	£45.46
620 - DISC FEI-32408152006.A1 32408152006	£1.60	£1.92
630 - SEALING RING FEI-40612119002.A0 40612119002	-
640 - COVER FEI-32429050008.A0 32429050008	£47.30	£56.76
650 - PLUG FEI-30241006006.A0 30241006006	£4.03	£4.84
660 - NUT FEI-32714053003.A0 32714053003	-
680 - PIPE FEI-32714052009.A0 32714052009	£20.93	£25.12
690 - CYLINDER HEAD SCREW FEI-43002041047.A0 43002041047	£1.60	£1.92
700 - SEAL FEI-30610005005.A0 30610005005	£1.60	£1.92
710 - HANDLE FEI-32119040009.A0 32119040009	£11.73	£14.08
720 - CYLINDER HEAD SCREW FEI-43033017059.A3 43033017059	-
730 - CYLINDER HEAD SCREW FEI-43033016055.A35 43033016055	£1.60	£1.92
740 - CIRCLIP M5 FEI-42443004057.A17 42443004057	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701210021.A29 41701210021	£8.89	£10.67
760 - DISC FEI-32411063003.A0 32411063003	£7.91	£9.49
770 - FELT RING FEI-30601078003.A0 30601078003	£3.43	£4.12
780 - SEALING RING FEI-32612071007.A0 32612071007	£4.88	£5.86
790 - CYLINDER HEAD SCREW FEI-43033021052.A3 43033021052	£1.60	£1.92
800 - CIRCLIP M5 FEI-42443004057.A18 42443004057	£1.60	£1.92
810 - CYLINDER HEAD SCREW FEI-43033018057.A5 43033018057	£1.60	£1.92
950 - CABLE GROMMET FEI-31413090003.A68 31413090003	£3.40	£4.08
960 - CABLE WITH PLUG FEI-30707435010.A0 30707435010	-
1000 - SWITCH FEI-30701289000.A0 30701289000	£30.48	£36.57
1005 - SWITCH UMBAUSATZ / REPAIR KIT FEI-30701254019.A0 30701254019	£114.18	£137.02
1010 - CABLE CLAMPING PIECE FEI-32431021007.A7 32431021007	£1.60	£1.92
1020 - SHEET METAL SCREW FEI-43046022003.A8 43046022003	-
1030 - CAPACITOR FEI-30722185001.A0 30722185001	£14.37	£17.24
1040 - PLUG FEI-30241010004.A0 30241010004	£3.46	£4.15
1060 - HANDLE FEI-31204181010.A0 31204181010	-
1065 - HANDLE UMBAUSATZ / REPAIR KIT FEI-31204181020.A0 31204181020	-
1090 - SHEET METAL SCREW FEI-43046008006.A0 43046008006	-
1100 - SPEED SETTING SWITCH FEI-30762361014.A0 30762361014	-
1120 - LEVER FEI-32805060007.A0 32805060007	£14.06	£16.87
1130 - CONNECTING CABLE FEI-30719627001.A0 30719627001	-
1140 - CONNECTING CABLE FEI-30719626007.A0 30719626007	-
1160 - CONNECTOR FEI-30717215006.A0 30717215006	-
1310 - CIRCLIP M5 FEI-42443004057.A20 42443004057	£1.60	£1.92
1320 - GROOVED BALL BEARING FEI-41701204095.A0 41701204095	£17.68	£21.22
1330 - CYLINDER HEAD SCREW FEI-43033011053.A1 43033011053	£1.60	£1.92
1340 - FLAT HEADED SCREW FEI-43003029048.A115 43003029048	-
1350 - CYLINDER HEAD SCREW FEI-43033015052.A19 43033015052	£1.60	£1.92
1360 - HEX NUT FEI-42001007053.A7 42001007053	£1.60	£1.92
1390 - PROTECTIVE CAGE FEI-32174003000.A0 32174003000	£21.07	£25.28
1400 - FILLISTER HEAD SCREW FEI-43064002043.A67 43064002043	£1.60	£1.92
5000 - SAW BLADES FEI-63503042014.A0 63503042014	£24.91	£29.89
5010 - ALLEN KEY SW5 FEI-62907011009.A29 62907011009	£3.29	£3.95
5020 - CYLINDER HEAD SCREW FEI-43033061061.A3 43033061061	-
6000 - LUBRICANT TUBE MZ60-4/SST1 FEI-32160004012.A0 32160004012	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A380 34130054061	-
