Fein MF 12-180 (50Hz 230V) / 72381200231 Spare Parts

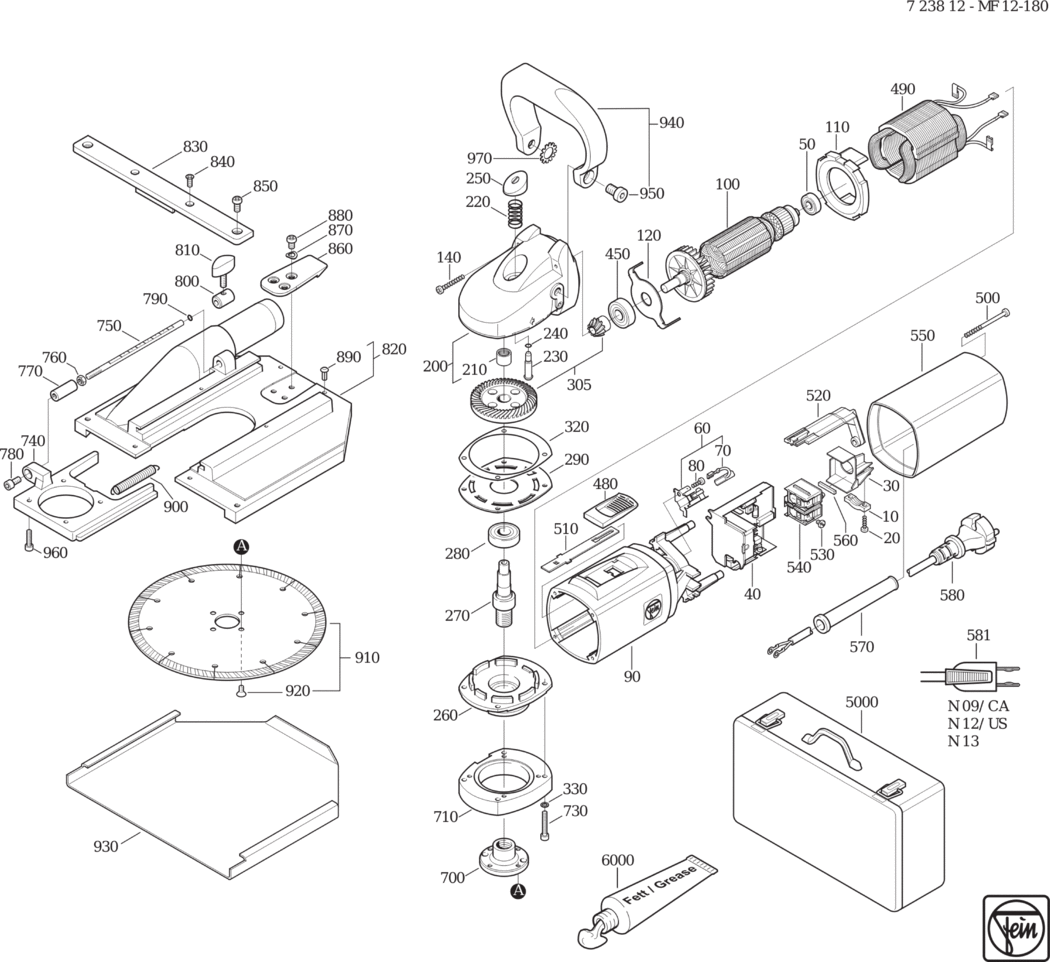

An exploded diagram and spare parts listing for the Fein MF 12-180 (50Hz 230V) / 72381200231

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A70 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A76 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A44 32431040006	£2.78	£3.33
40 - ELECTRONICS FEI-30762206997.A4 30762206997	£103.19	£123.83
50 - GROOVED BALL BEARING FEI-41701001172.A38 41701001172	£9.63	£11.56
60 - BRUSH HOLDER FEI-30712088013.A3 30712088013	£17.61	£21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A16 30711132003	£10.52	£12.63
80 - SCREW FEI-43070018009.A65 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A21 31901114014	£46.03	£55.24
100 - ARMATURE FEI-53273001233.A3 53273001233	£133.28	£159.93
110 - AIR GUIDE RING FEI-31428118007.A0 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A119 32416098005	£1.60	£1.92
140 - SCREW FEI-43070007002.A66 43070007002	£1.60	£1.92
200 - GEARBOX HOUSING FEI-31206133019.A1 31206133019	-
210 - NEEDLE SLEEVE FEI-41705019001.A30 41705019001	£9.49	£11.39
220 - SPIRAL SPRING FEI-30901032003.A18 30901032003	£3.23	£3.88
230 - BOLT FEI-30217327003.A15 30217327003	£17.44	£20.93
240 - SEALING RING FEI-40612137008.A142 40612137008	£1.60	£1.92
250 - PUSHBUTTON FEI-32805185002.A28 32805185002	£2.69	£3.23
260 - BEARING PLATE FEI-32419115006.A25 32419115006	£44.60	£53.52
270 - SHAFT FEI-33406284009.A0 33406284009	£33.58	£40.29
280 - GROOVED BALL BEARING FEI-41701010054.A128 41701010054	£8.25	£9.90
290 - PLATE FEI-32416101009.A72 32416101009	£3.11	£3.73
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A20 33809229012	£57.88	£69.46
320 - DISC FEI-32624117009.A40 32624117009	£1.60	£1.92
330 - CIRCLIP M4 FEI-42443003043.A230 42443003043	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701007266.A19 41701007266	£10.67	£12.80
480 - SLIDE SWITCH FEI-32805156008.A1 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001231.A3 51273001231	£103.33	£124.00
500 - SCREW FEI-43070017001.A21 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A4 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A1 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A64 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A6 30701285000	£17.50	£21.00
550 - COVER FEI-31201100009.A28 31201100009	£9.43	£11.32
560 - PRESSURE PIECE FEI-31415082004.A23 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A31 31413007007	£1.60	£1.92
580 - CABLE WITH PLUG FEI-30707336013.A0 30707336013	£19.38	£23.25
700 - ADAPTER FEI-63801178004.A1 63801178004	£38.82	£46.58
710 - SPACER FEI-31336017007.A2 31336017007	-
730 - CYLINDER HEAD SCREW FEI-43035010046.A1 43035010046	£1.60	£1.92
740 - GUIDE FEI-31336010002.A1 31336010002	-
750 - ROD FEI-31336011001.A1 31336011001	£53.10	£63.72
765 - HEX NUT FEI-42001007053.A2 42001007053	£1.60	£1.92
770 - THREAD RING FEI-31336012004.A1 31336012004	£16.21	£19.45
780 - CYLINDER HEAD SCREW FEI-43035013058.A0 43035013058	£1.60	£1.92
790 - SEALING RING FEI-31336013008.A1 31336013008	£6.12	£7.34
800 - SLEEVE FEI-31336014006.A1 31336014006	£40.39	£48.47
810 - SCREW FEI-31336015000.A1 31336015000	£21.29	£25.55
820 - BASE PLATE FEI-31336002014.A0 31336002014	-
830 - STOP FEI-31336006004.A1 31336006004	£34.12	£40.94
840 - COUNTERSUNK SCREW FEI-31336007008.A1 31336007008	£1.60	£1.92
850 - CYLINDER HEAD SCREW FEI-31336008006.A1 31336008006	-
860 - HOOK FEI-31336003009.A2 31336003009	-
870 - CIRCLIP FEI-31336020001.A0 31336020001	-
880 - CYLINDER HEAD SCREW FEI-31336005001.A2 31336005001	-
890 - RIVET FEI-31336004007.A0 31336004007	-
900 - SPIRAL SPRING FEI-31336016003.A0 31336016003	£7.78	£9.34
910 - DIAMOND WHEEL FEI-63502146011.A2 63502146011	£162.91	£195.49
920 - COUNTERSUNK SCREW FEI-43069005044.A2 43069005044	£1.60	£1.92
930 - PLATE FEI-31336009000.A1 31336009000	-
940 - HANDLE FEI-31336018014.A0 31336018014	£44.80	£53.76
950 - CYLINDER HEAD SCREW FEI-31336019009.A2 31336019009	£5.58	£6.70
960 - CYLINDER HEAD SCREW FEI-43035008040.A2 43035008040	-
970 - LOCK WASHER M8 FEI-42439006083.A1 42439006083	-
5000 - TOOL CASE FEI-33901108016.A1 33901108016	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A425 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101041060.A0 34101041060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A384 34130054061	-

Attribute Name	Value
Brand	Fein
