Fein KBU 35 PQ / 72707100230 Spare Parts

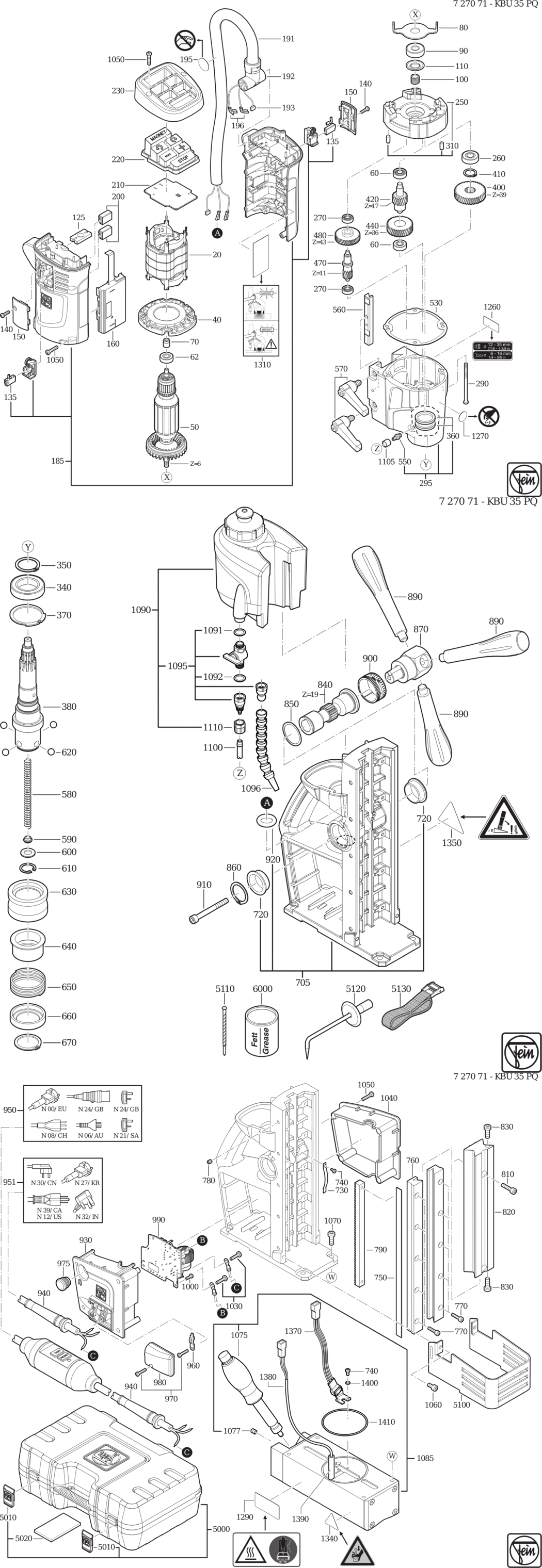

An exploded diagram and spare parts listing for the Fein KBU 35 PQ / 72707100230

	Ex VAT	Inc VAT
20 - STATOR 50HZ 230V FEI-51282002230.A11 51282002230	£71.61	£85.93
40 - AIR GUIDE RING FEI-31428196000.A5 31428196000	-
50 - ARMATURE 50/60H220/230V FEI-53281007230.A11 53281007230	£142.73	£171.28
60 - GROOVED BALL BEARING FEI-41701001172.A76 41701001172	£9.63	£11.56
62 - GROOVED BALL BEARING FEI-41701001260.A121 41701001260	£7.11	£8.53
70 - MAGNET FEI-32172014010.A37 32172014010	£8.85	£10.62
80 - PLATE FEI-32416098005.A82 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701207260.A127 41701207260	£7.41	£8.89
100 - SEALING RING FEI-32612135000.A67 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A6 42639028003	£5.74	£6.89
125 - COVER FEI-32411089000.A11 32411089000	-
135 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A37 30711158000	£8.15	£9.78
140 - SCREW FEI-43072000000.A125 43072000000	£1.60	£1.92
150 - COVER FEI-32427157000.A66 32427157000	£4.97	£5.96
160 - ELECTRONICS FEI-30762562990.A6 30762562990	-
185 - MOTOR HOUSING U 230V FEI-31901202030.A2 31901202030	-
191 - PROTECTIVE HOSE FEI-31414072000.A6 31414072000	-
192 - CONNECTING PIECE FEI-32429146010.A2 32429146010	-
193 - CONNECTING CABLE FEI-30719936010.A5 30719936010	-
195 - STICKER FEI-32217468060.A5 32217468060	-
196 - CABLE HARNESS FEI-30719943010.A19 30719943010	-
200 - TERMINAL FEI-30728445000.A34 30728445000	-
210 - ELECTRONICS FEI-30762560990.A8 30762560990	-
220 - SWITCH INSERT FEI-32816078000.A4 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A49 32429141000	£14.66	£17.59
250 - INTERMEDIATE GEAR BOX FEI-31506412010.A21 31506412010	-
260 - GROOVED BALL BEARING FEI-41701006034.A10 41701006034	£11.83	£14.20
270 - GROOVED BALL BEARING FEI-41701202018.A163 41701202018	£6.92	£8.30
290 - SCREW FEI-43072006001.A29 43072006001	-
295 - GEARBOX HOUSING FEI-31508311020.A6 31508311020	-
310 - PIN FEI-40242058004.A8 40242058004	-
340 - GROOVED BALL BEARING FEI-41701000015.A20 41701000015	-
350 - CIRCLIP FEI-42616014009.A16 42616014009	£1.60	£1.92
360 - SEALING RING FEI-40608000005.A9 40608000005	-
370 - CIRCLIP FEI-42644019001.A18 42644019001	-
380 - SHAFT FEI-33403133000.A2 33403133000	-
400 - GEAR-WHEEL Z=39 FEI-33663174000.A23 33663174000	-
410 - CIRCLIP FEI-42616007001.A49 42616007001	£1.60	£1.92
420 - SHAFT TOOTHED Z=17 FEI-33763064000.A6 33763064000	-
440 - GEAR-WHEEL Z=36 FEI-33661002000.A26 33661002000	-
470 - SHAFT TOOTHED FEI-33761002000.A2 33761002000	-
480 - GEAR-WHEEL FEI-33657190000.A8 33657190000	£38.05	£45.66
530 - SEAL FEI-30610048000.A22 30610048000	-
550 - HOSE SOCKET FEI-41138025006.A57 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A45 33218134000	-
570 - LEVER FEI-32170025000.A49 32170025000	£26.84	£32.21
580 - SPIRAL SPRING FEI-30901341000.A63 30901341000	£5.99	£7.19
590 - SEALING RING FEI-30503145006.A77 30503145006	£3.52	£4.23
600 - DISC FEI-32408389000.A3 32408389000	£1.60	£1.92
610 - CIRCLIP FEI-42616075007.A2 42616075007	-
620 - BALL FEI-41708025004.A34 41708025004	£1.60	£1.92
630 - CLAMPING SLEEVE FEI-30503163000.A6 30503163000	-
640 - BUSH FEI-30510089000.A6 30510089000	-
650 - SPRING FEI-30901391000.A0 30901391000	-
660 - SLEEVE FEI-30503164000.A9 30503164000	-
670 - CIRCLIP 28X1 5 FEI-42616076000.A48 42616076000	-
705 - HOUSING FEI-31207320020.A17 31207320020	-
720 - BUSH FEI-31602089009.A57 31602089009	-
730 - LEAF SPRING FEI-30904047000.A5 30904047000	-
740 - SCREW FEI-43076001030.A20 43076001030	-
750 - PRESSURE PIECE FEI-33216047000.A30 33216047000	£5.35	£6.42
760 - GUIDE STRIP FEI-34300000002.A13 34300000002	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A12 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A84 43058008051	-
790 - GEAR RACK FEI-33812007004.A56 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A61 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000003.A16 34300000003	-
830 - FILLISTER HEAD SCREW FEI-43041041053.A32 43041041053	£1.60	£1.92
840 - SHAFT TOOTHED FEI-33713073000.A28 33713073000	-
850 - DISC FEI-42446003009.A1 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A47 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A10 30109201010	-
890 - HANDLE FEI-32119114014.A75 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A3 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A60 43035084062	-
920 - SEALING RING FEI-40612171000.A20 40612171000	-
930 - COVER LEFT FEI-32424040000.A4 32424040000	-
940 - PROTECTIVE HOSE FEI-31413237000.A19 31413237000	£2.74	£3.29
950 - CABLE PRCD FEI-30707579010.A8 30707579010	£78.74	£94.49
960 - CABLE CLAMPING PIECE FEI-32431043002.A18 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A127 43074010000	£1.60	£1.92
975 - PLUG FEI-31420128000.A8 31420128000	-
980 - COVER FEI-32424031000.A40 32424031000	£12.77	£15.32
990 - ELECTRONICS FEI-30762612990.A0 30762612990	£150.22	£180.27
1000 - SCREW FEI-43074013000.A91 43074013000	-
1030 - FILLISTER HEAD SCREW FEI-43064023045.A6 43064023045	£1.60	£1.92
1040 - COVER FEI-32424033000.A18 32424033000	-
1050 - SCREW FEI-43074008000.A154 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A48 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A109 43033064066	£1.60	£1.92
1075 - LEVER FEI-32172032020.A4 32172032020	-
1077 - SET SCREW FEI-43045000002.A4 43045000002	-
1085 - MAGNETIC FOOT FEI-32172032000.A0 32172032000	-
1090 - CONTAINER FEI-32132035010.A3 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A10 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A10 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A45 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A26 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414073000.A20 31414073000	-
1105 - SLEEVE FEI-30501377000.A26 30501377000	-
1110 - NUT FEI-42015000000.A58 42015000000	£6.83	£8.20
1260 - INFORMATION SIGN FEI-32217514000.A1 32217514000	-
1270 - STICKER FEI-32217406002.A5 32217406002	£1.60	£1.92
1290 - STICKER FEI-32217407000.A35 32217407000	-
1310 - INFORMATION SIGN FEI-32217466060.A2 32217466060	-
1340 - INFORMATION SIGN FEI-32217523000.A0 32217523000	-
1350 - INFORMATION SIGN FEI-32217552000.A23 32217552000	£1.60	£1.92
1370 - SWITCH FEI-30701317010.A1 30701317010	£37.27	£44.72
1380 - SENSOR FEI-30767143000.A1 30767143000	-
1390 - HOSE FEI-31413264000.A0 31413264000	-
1400 - CIRCLIP M3 FEI-42443001030.A5 42443001030	-
1410 - SEALING RING FEI-40612049000.A17 40612049000	£7.56	£9.07
5000 - N.A. FEI-33901174060.A4 33901174060	£131.31	£157.57
5010 - WIRE CLAMP FEI-30232050000.A82 30232050000	£10.78	£12.94
5020 - INSERT FEI-33904576000.A18 33904576000	-
5100 - PROTECTIVE GRILLE FEI-31810307000.A5 31810307000	-
5110 - CENTERING PIN FEI-63134998310.A47 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A35 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A48 32174008007	£33.23	£39.88
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A53 32132041000	-
