Fein KBU 110-4 M / 72706000230 Spare Parts

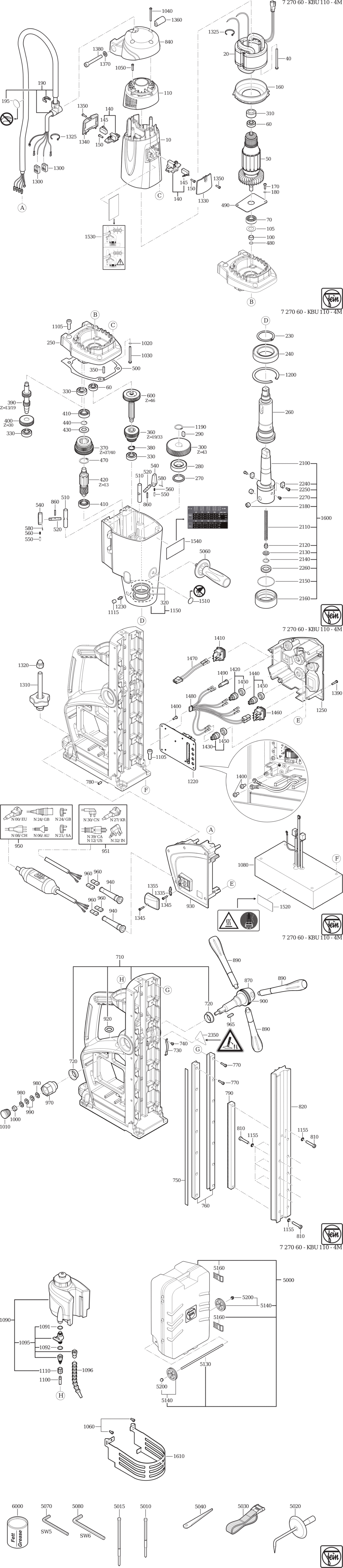

An exploded diagram and spare parts listing for the Fein KBU 110-4 M / 72706000230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903210030.A0 31903210030	-
20 - STATOR 50/60HZ220/230V FEI-51275006230.A0 51275006230	-
40 - SCREW FEI-43072001009.A11 43072001009	-
50 - ARMATURE 50/60HZ110/120V FEI-53275007230.A0 53275007230	-
60 - GROOVED BALL BEARING FEI-41701207033.A22 41701207033	£10.15	£12.18
70 - GROOVED BALL BEARING FEI-41701213220.A2 41701213220	£10.67	£12.80
100 - SPACER SLEEVE FEI-30501402000.A0 30501402000	-
105 - SEALING RING FEI-42639031008.A0 42639031008	-
110 - HOUSING FEI-31207242002.A11 31207242002	£18.58	£22.29
140 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A13 30712090019	£23.51	£28.21
145 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A10 30711137006	£14.48	£17.37
150 - SCREW FEI-43070027000.A10 43070027000	-
160 - AIR GUIDE RING FEI-31428133008.A11 31428133008	£6.37	£7.64
170 - FILLISTER HEAD SCREW FEI-43041023046.A51 43041023046	£1.60	£1.92
180 - CIRCLIP M4 FEI-42443003043.A214 42443003043	£1.60	£1.92
190 - PROTECTIVE HOSE FEI-31414076010.A0 31414076010	-
195 - STICKER FEI-32217468060.A12 32217468060	-
230 - CIRCLIP FEI-42616000001.A0 42616000001	-
240 - GROOVED BALL BEARING FEI-41701000011.A0 41701000011	-
250 - INTERMEDIATE GEAR BOX FEI-31506415000.A0 31506415000	-
260 - SHAFT FEI-33402057000.A0 33402057000	-
270 - SEALING RING FEI-40608000000.A5 40608000000	£7.02	£8.43
280 - GROOVED BALL BEARING FEI-41701017059.A2 41701017059	£35.10	£42.12
290 - FEATHER KEY FEI-40221040006.A10 40221040006	£1.60	£1.92
300 - GEAR-WHEEL FEI-33667007003.A0 33667007003	£99.59	£119.51
310 - BUSH FEI-30507168003.A42 30507168003	£2.74	£3.29
320 - SEALING RING FEI-40608000009.A0 40608000009	-
330 - GROOVED BALL BEARING FEI-41701210037.A0 41701210037	£20.18	£24.21
350 - STRAIGHT PIN FEI-40201050003.A0 40201050003	-
360 - GEAR-WHEEL FEI-33665010010.A3 33665010010	£169.51	£203.41
370 - GEAR-WHEEL FEI-33615025015.A0 33615025015	£195.87	£235.04
380 - CIRCLIP FEI-42616023000.A32 42616023000	-
390 - SHAFT TOOTHED Z=13/19 FEI-33765022000.A0 33765022000	-
400 - GEAR-WHEEL FEI-33665009009.A0 33665009009	£50.90	£61.08
410 - GROOVED BALL BEARING FEI-41701213011.A19 41701213011	£8.92	£10.70
420 - SHAFT TOOTHED FEI-33767005005.A0 33767005005	-
430 - DISC M14 FEI-42401007142.A0 42401007142	£1.60	£1.92
440 - CIRCLIP FEI-42643003004.A12 42643003004	-
470 - CIRCLIP FEI-42616043008.A0 42616043008	-
480 - CIRCLIP FEI-42615081002.A59 42615081002	£1.60	£1.92
490 - PLATE FEI-32411088000.A0 32411088000	-
500 - SEAL FEI-30610058000.A0 30610058000	-
510 - BOLT FEI-30217177006.A7 30217177006	£24.01	£28.81
520 - BOLT FEI-30217192001.A8 30217192001	£31.91	£38.29
540 - LEVER FEI-32805045007.A0 32805045007	£22.92	£27.50
550 - BOLT FEI-30216086001.A15 30216086001	£7.56	£9.07
560 - SPIRAL SPRING FEI-30901202001.A15 30901202001	£1.60	£1.92
580 - CLAMPING SLEEVE FEI-40238007005.A36 40238007005	£1.60	£1.92
600 - CLUTCH FEI-33412049020.A0 33412049020	-
710 - HOUSING FEI-31207337020.A0 31207337020	-
720 - BUSH FEI-31602089009.A74 31602089009	-
730 - LEAF SPRING FEI-30904041001.A17 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A50 43041026994	-
750 - PRESSURE PIECE FEI-30229446000.A0 30229446000	-
760 - GUIDE STRIP FEI-34300000040.A0 34300000040	-
770 - CYLINDER HEAD SCREW FEI-43035009044.A3 43035009044	-
780 - SET SCREW FEI-43058005056.A5 43058005056	-
790 - GEAR RACK FEI-33812011000.A0 33812011000	-
810 - CYLINDER HEAD SCREW FEI-43033074065.A1 43033074065	-
820 - GUIDE FEI-34300000037.A0 34300000037	-
840 - COVER FEI-32424046000.A0 32424046000	-
860 - CLAMPING SLEEVE FEI-40238012001.A14 40238012001	-
870 - SHAFT FEI-33717040000.A1 33717040000	-
890 - HANDLE FEI-32119114036.A0 32119114036	-
900 - SCALE FEI-33213007001.A2 33213007001	£3.43	£4.12
920 - SEALING RING FEI-40612171000.A4 40612171000	-
930 - COVER FEI-32424048000.A0 32424048000	-
940 - PROTECTIVE HOSE FEI-31413237000.A51 31413237000	£2.74	£3.29
950 - CABLE WITH PLUG FEI-30707556010.A0 30707556010	-
960 - PROTECTIVE CAP FEI-31413177009.A1 31413177009	-
965 - FEATHER KEY FEI-40221032009.A2 40221032009	-
970 - CLUTCH PART FEI-33412042000.A0 33412042000	-
980 - DISC FEI-42401019085.A66 42401019085	£1.60	£1.92
990 - CUP SPRING FEI-30905055000.A20 30905055000	-
1000 - HEX NUT FEI-42001009080.A17 42001009080	£1.60	£1.92
1010 - PLUG FEI-31420123000.A8 31420123000	-
1020 - SEALING RING FEI-40611012000.A6 40611012000	-
1030 - SCREW FEI-43072011008.A13 43072011008	-
1040 - SCREW FEI-43070012008.A1 43070012008	£1.60	£1.92
1050 - SCREW FEI-43070031003.A70 43070031003	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A15 43035013058	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-32172034000.A0 32172034000	-
1090 - CONTAINER FEI-32132035010.A26 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A26 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A25 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A51 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A10 31414070010	£25.70	£30.84
1100 - REPLACEMENT HOSE FEI-31414054008.A14 31414054008	£6.47	£7.76
1105 - CYLINDER HEAD SCREW M8X22 FEI-43035074085.A9 43035074085	£1.60	£1.92
1110 - NUT FEI-42015000000.A43 42015000000	£6.83	£8.20
1115 - SLEEVE FEI-30501377000.A20 30501377000	-
1150 - GEARBOX HOUSING FEI-31508316010.A0 31508316010	-
1155 - CIRCLIP M6 FEI-42443005064.A44 42443005064	£1.60	£1.92
1190 - CIRCLIP FEI-42616009003.A79 42616009003	£1.60	£1.92
1200 - CIRCLIP FEI-42616000003.A0 42616000003	-
1220 - ELECTRONICS 50/60HZ 220/230V FEI-30762590990.A0 30762590990	-
1230 - HOSE SOCKET FEI-41138025006.A80 41138025006	£8.40	£10.08
1250 - COVER FEI-32424047000.A0 32424047000	-
1300 - TERMINAL FEI-30728445000.A29 30728445000	-
1310 - SCREW FEI-33024081000.A0 33024081000	-
1320 - NUT FEI-42019019121.A7 42019019121	-
1325 - CABLE TIE FEI-30234026008.A28 30234026008	£1.60	£1.92
1330 - COVER FEI-32427113009.A5 32427113009	£6.24	£7.49
1335 - CABLE CLAMPING PIECE FEI-32431043002.A74 32431043002	£1.60	£1.92
1340 - COVER FEI-32427115001.A6 32427115001	£7.15	£8.58
1345 - SCREW FEI-43074010000.A99 43074010000	£1.60	£1.92
1350 - SCREW FEI-43070027000.A0 43070027000	-
1355 - COVER FEI-32424031000.A5 32424031000	£12.77	£15.32
1360 - BOLT FEI-30217347001.A7 30217347001	£48.72	£58.46
1370 - DISC FEI-42401019085.A23 42401019085	£1.60	£1.92
1380 - CYLINDER HEAD SCREW FEI-43035138087.A2 43035138087	-
1390 - SCREW FEI-43074008000.A36 43074008000	£1.60	£1.92
1400 - FILLISTER HEAD SCREW FEI-43064002043.A14 43064002043	£1.60	£1.92
1410 - SWITCH FEI-30701281000.A28 30701281000	£34.57	£41.48
1420 - BUTTON FEI-30701223005.A20 30701223005	£14.97	£17.96
1430 - BUTTON FEI-30701311000.A16 30701311000	-
1440 - BUTTON FEI-30701315000.A0 30701315000	-
1450 - CAP FEI-30701224003.A28 30701224003	£5.50	£6.60
1460 - SWITCH FEI-30701314010.A0 30701314010	-
1470 - CONNECTING CABLE FEI-30720001010.A0 30720001010	-
1480 - CABLE HARNESS FEI-30720000010.A0 30720000010	-
1490 - LED FEI-30759306000.A0 30759306000	-
1510 - STICKER FEI-32217406002.A83 32217406002	£1.60	£1.92
1520 - INFORMATION SIGN FEI-32217507060.A29 32217507060	-
1530 - INFORMATION SIGN FEI-32217466060.A27 32217466060	-
1540 - INFORMATION SIGN FEI-32217524000.A0 32217524000	-
1600 - WELDON 32 MOUNTING SHAFT FEI-63901072020.A0 63901072020	-
1610 - PROTECTIVE GRILLE FEI-31810308000.A0 31810308000	-
2110 - SPIRAL SPRING FEI-30901341000.A10 30901341000	£5.99	£7.19
2120 - SLEEVE FEI-30503168000.A0 30503168000	-
2130 - DISC FEI-32408389000.A79 32408389000	£1.60	£1.92
2140 - CIRCLIP FEI-42616075007.A39 42616075007	-
2150 - SEALING RING FEI-40612000003.A36 40612000003	£1.60	£1.92
2160 - NUT FEI-42015070000.A0 42015070000	-
2180 - SET SCREW FEI-43045000003.A0 43045000003	-
2240 - DRIVER FEI-30240374000.A0 30240374000	-
2250 - CYLINDER HEAD SCREW FEI-43035004041.A18 43035004041	£1.60	£1.92
2260 - SEALING RING FEI-40608080000.A6 40608080000	-
2270 - CYLINDER HEAD SCREW FEI-43033089048.A0 43033089048	-
2350 - INFORMATION SIGN FEI-32217552000.A0 32217552000	£1.60	£1.92
5000 - CASE FEI-33901604020.A0 33901604020	-
5010 - CENTERING PIN FEI-63134998330.A17 63134998330	£25.68	£30.81
5015 - CENTERING PIN FEI-30217362010.A0 30217362010	-
5020 - HOOK F. CHIP REMOVAL FEI-64201001000.A40 64201001000	£61.87	£74.24
5030 - RATCHET BUCKLE W/ STRAP FEI-32174007009.A3 32174007009	£33.80	£40.56
5040 - DRIFT KEYS FEI-63305004001.A8 63305004001	£12.32	£14.78
5060 - ANTI-VIBRATION HANDLE FEI-32119124010.A122 32119124010	£17.68	£21.22
5070 - ALLEN KEY SW5 FEI-62907011009.A6 62907011009	£3.29	£3.95
5080 - ALLEN KEY SW6 FEI-62907004005.A53 62907004005	£3.35	£4.02
5130 - ROD FEI-33413064000.A4 33413064000	-
5140 - WHEEL SET FEI-32103043010.A4 32103043010	-
5160 - WIRE CLAMP FEI-30232050000.A196 30232050000	£10.78	£12.94
5200 - DISC FEI-30240319000.A4 30240319000	-
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A16 32132041000	-
9020 - SAFETY INSTRUCTION FEI-34130465060.A4 34130465060	-
