Fein KBM 65 U (50Hz 110V) / 72704324110 Spare Parts

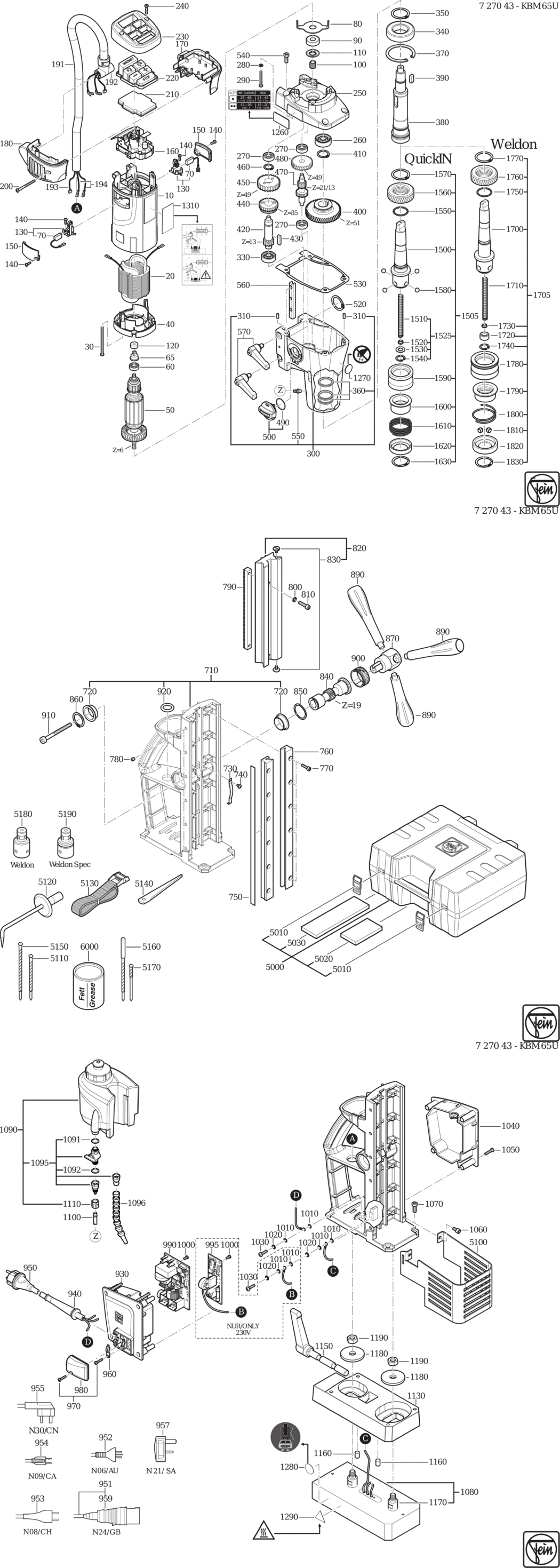

An exploded diagram and spare parts listing for the Fein KBM 65 U (50Hz 110V) / 72704324110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903223000.A1 31903223000	£45.41	£54.49
20 - STATOR 110-120V FEI-51273007110.A0 51273007110	£142.25	£170.70
30 - SCREW FEI-43072012001.A37 43072012001	-
40 - AIR GUIDE RING FEI-31428168000.A24 31428168000	-
50 - ARMATURE 50/60HZ 110-120V Z=6 FEI-53273010110.A8 53273010110	£139.87	£167.84
60 - GROOVED BALL BEARING FEI-41701001260.A386 41701001260	£7.11	£8.53
65 - SLEEVE FEI-31406053007.A4 31406053007	£3.42	£4.10
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711136002.A12 30711136002	£13.10	£15.72
80 - PLATE FEI-32416098005.A10 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701007050.A32 41701007050	£15.15	£18.18
100 - SEALING RING FEI-32612135000.A31 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A68 42639028003	£5.74	£6.89
120 - RING MAGNET FEI-32172010005.A16 32172010005	£22.34	£26.81
130 - BRUSH HOLDER FEI-30712088029.A13 30712088029	£17.88	£21.45
140 - SCREW FEI-43074013000.A43 43074013000	-
150 - COVER FEI-32424029000.A14 32424029000	-
160 - ELECTRONICS 100-230V 50/60H FEI-30762441990.A14 30762441990	£180.61	£216.73
170 - COVER FEI-32429144000.A10 32429144000	£14.66	£17.59
180 - COVER FEI-32429145000.A9 32429145000	£14.66	£17.59
191 - PROTECTIVE HOSE FEI-31414068000.A13 31414068000	-
192 - CONNECTING PIECE FEI-32429146010.A22 32429146010	-
193 - CONNECTING CABLE FEI-30719861010.A16 30719861010	-
194 - CONNECTING CABLE FEI-30719864010.A3 30719864010	-
200 - SCREW FEI-43072013005.A5 43072013005	£1.60	£1.92
210 - ELECTRONICS 100-230V 50/60HZ FEI-30762443990.A6 30762443990	£52.15	£62.58
220 - SWITCH INSERT FEI-32816078000.A26 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A17 32429141000	£14.66	£17.59
240 - SCREW FEI-43074008000.A66 43074008000	£1.60	£1.92
250 - INTERMEDIATE GEAR BOX FEI-31506393000.A4 31506393000	-
260 - GROOVED BALL BEARING FEI-41701213011.A34 41701213011	£8.92	£10.70
270 - GROOVED BALL BEARING FEI-41701204010.A49 41701204010	£6.37	£7.64
280 - SEALING RING FEI-40611000000.A10 40611000000	-
290 - SCREW FEI-43072010009.A46 43072010009	£1.60	£1.92
300 - GEARBOX HOUSING FEI-31508288020.A3 31508288020	£256.90	£308.28
310 - STRAIGHT PIN FEI-40201035003.A2 40201035003	-
330 - GROOVED BALL BEARING FEI-41701010010.A23 41701010010	£8.58	£10.30
340 - GROOVED BALL BEARING FEI-41701025051.A23 41701025051	£34.83	£41.80
350 - CIRCLIP FEI-42616015003.A13 42616015003	£1.60	£1.92
360 - SEALING RING FEI-40608000000.A22 40608000000	£7.02	£8.43
370 - CIRCLIP FEI-42616074003.A10 42616074003	£1.60	£1.92
380 - SHAFT MK3 FEI-33402055000.A1 33402055000	-
390 - FEATHER KEY FEI-40221061003.A21 40221061003	-
400 - GEAR-WHEEL Z=51 FEI-33665060000.A8 33665060000	-
410 - CIRCLIP FEI-42616009003.A26 42616009003	£1.60	£1.92
420 - SHAFT TOOTHED Z=13 FEI-33765019007.A16 33765019007	£90.30	£108.36
430 - FEATHER KEY FEI-40221067009.A8 40221067009	£5.66	£6.79
440 - GEAR-WHEEL Z=35 FEI-33613128002.A33 33613128002	£81.20	£97.44
450 - GEAR-WHEEL Z=49 FEI-33611001010.A3 33611001010	-
460 - CIRCLIP FEI-42616007001.A36 42616007001	£1.60	£1.92
470 - GEAR-WHEEL Z=21/13 FEI-33811069000.A4 33811069000	-
480 - GEAR-WHEEL Z=49 FEI-33657169005.A8 33657169005	£42.31	£50.77
490 - SEALING RING FEI-40612115003.A39 40612115003	£1.60	£1.92
500 - SWITCH PUSHBUTTON FEI-32805310010.A20 32805310010	£21.60	£25.92
520 - CIRCLIP FEI-42644003001.A5 42644003001	-
530 - SEAL FEI-30610047000.A23 30610047000	£9.92	£11.91
540 - CYLINDER HEAD SCREW FEI-43033064066.A43 43033064066	£1.60	£1.92
550 - HOSE SOCKET FEI-41138025006.A34 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A19 33218134000	-
570 - LEVER FEI-32170025000.A13 32170025000	£26.84	£32.21
710 - HOUSING FEI-31207295010.A3 31207295010	-
720 - BUSH FEI-31602089009.A6 31602089009	-
730 - LEAF SPRING FEI-30904041001.A39 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A23 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A28 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A28 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A99 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A32 43058008051	-
790 - GEAR RACK FEI-33812007004.A26 33812007004	£101.03	£121.24
800 - CIRCLIP M5 FEI-42443004057.A387 42443004057	£1.60	£1.92
810 - CYLINDER HEAD SCREW FEI-43035017057.A29 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A37 34300000047	-
830 - FLAT HEADED SCREW FEI-33218118010.A33 33218118010	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A9 33713071000	-
850 - DISC FEI-42446003009.A57 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A22 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A36 30109201010	-
890 - HANDLE FEI-32119114014.A10 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A33 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A30 43035084062	-
920 - SEALING RING FEI-40612171000.A34 40612171000	-
930 - COVER FEI-32429142000.A13 32429142000	-
940 - PROTECTIVE HOSE FEI-31413237000.A72 31413237000	£2.74	£3.29
951 - CABLE WITH PLUG FEI-30707507010.A0 30707507010	-
959 - PLUG CEE 16A/110V FEI-30728288004.A63 30728288004	£14.25	£17.10
960 - CABLE CLAMPING PIECE FEI-32431043002.A257 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A78 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A30 32424031000	£12.77	£15.32
990 - ELECTRONICS 100-120V 50/60HZ FEI-30762442980.A2 30762442980	£173.58	£208.30
1000 - SCREW FEI-43074013000.A42 43074013000	-
1010 - DISC FEI-42404005048.A158 42404005048	£1.60	£1.92
1020 - LOCK WASHER FEI-42439013046.A44 42439013046	£1.60	£1.92
1030 - FILLISTER HEAD SCREW FEI-43064024043.A14 43064024043	-
1040 - COVER FEI-32429143000.A3 32429143000	-
1050 - SCREW FEI-43074008000.A67 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A63 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A44 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216057010.A1 33216057010	-
1090 - CONTAINER FEI-32132035010.A31 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A48 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A53 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A4 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A35 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414069000.A8 31414069000	£2.65	£3.18
1110 - NUT FEI-42015000000.A3 42015000000	£6.83	£8.20
1130 - INTERMEDIATE GEAR BOX FEI-32432079010.A4 32432079010	-
1150 - LEVER FEI-32170020000.A10 32170020000	-
1160 - ROLLER FEI-41709041004.A8 41709041004	-
1170 - BOLT FEI-30217353000.A1 30217353000	-
1180 - DISC FEI-32408419000.A2 32408419000	-
1190 - HEX NUT FEI-42001010103.A10 42001010103	-
1260 - INFORMATION SIGN FEI-32217469060.A0 32217469060	-
1270 - STICKER FEI-32217406002.A102 32217406002	£1.60	£1.92
1290 - INFORMATION SIGN FEI-32217507060.A48 32217507060	-
1310 - INFORMATION SIGN FEI-32217466060.A42 32217466060	-
1525 - SPIRAL SPRING FEI-30901341019.A20 30901341019	£14.90	£17.88
1700 - SHAFT FEI-33401095000.A1 33401095000	-
1705 - 3/4 IN WELDON MOUNTING SHAFT FEI-63901050020.A3 63901050020	£249.30	£299.16
1710 - SPIRAL SPRING FEI-30901341000.A28 30901341000	£5.99	£7.19
1720 - BUSH FEI-30510091000.A6 30510091000	-
1730 - SEALING RING FEI-30503145006.A12 30503145006	£3.52	£4.23
1740 - CIRCLIP FEI-42616033009.A67 42616033009	£1.60	£1.92
1750 - SEALING RING FEI-40612038007.A38 40612038007	£10.08	£12.10
1760 - NUT FEI-42015000010.A17 42015000010	-
1770 - CIRCLIP FEI-42643016008.A6 42643016008	£2.59	£3.11
1780 - CLAMPING SLEEVE FEI-30503166000.A8 30503166000	-
1790 - BUSH FEI-30510090000.A2 30510090000	-
1800 - SPRING FEI-30901396000.A8 30901396000	-
1810 - PIN FEI-30240312000.A2 30240312000	-
1820 - SLEEVE FEI-30503167000.A3 30503167000	-
1830 - CIRCLIP 28X1 5 FEI-42616076000.A21 42616076000	-
5000 - CASE FEI-33901142140.A17 33901142140	£127.98	£153.57
5010 - WIRE CLAMP FEI-30232050000.A135 30232050000	£10.78	£12.94
5020 - PLATE FEI-33904486000.A11 33904486000	-
5030 - PLATE FEI-33904487000.A21 33904487000	-
5100 - PROTECTIVE GRILLE FEI-31810186000.A4 31810186000	-
5110 - CENTERING PIN FEI-63134998310.A90 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A67 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A9 32174008007	£33.23	£39.88
5140 - DRIFT KEYS FEI-63305003003.A13 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A30 32132041000	-
