Fein KBM 65 Q (50/60Hz 220/230V) / 72702900237 Spare Parts

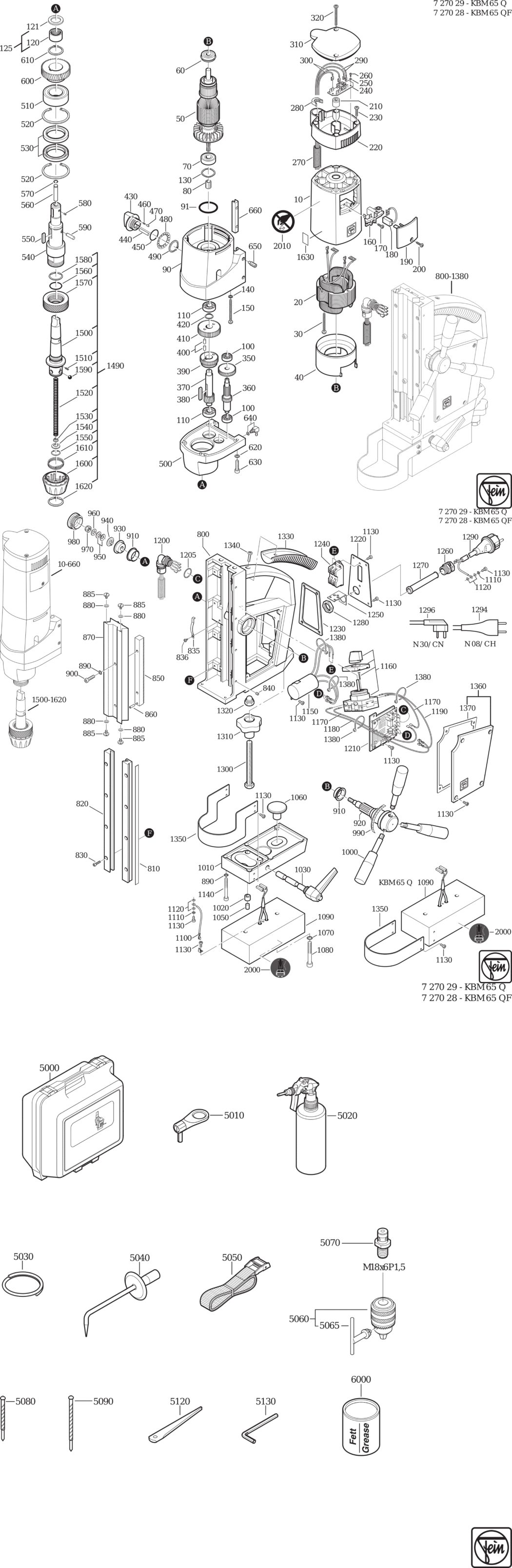

An exploded diagram and spare parts listing for the Fein KBM 65 Q (50/60Hz 220/230V) / 72702900237

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903208015.A0 31903208015	£133.38	£160.06
20 - STATOR FEI-51269002232.A0 51269002232	-
30 - SHEET METAL SCREW FEI-43046030000.A1 43046030000	-
40 - AIR GUIDE RING FEI-31428110004.A0 31428110004	£12.30	£14.76
50 - ARMATURE FEI-53269005230.A1 53269005230	£299.74	£359.69
60 - GROOVED BALL BEARING FEI-41701210230.A5 41701210230	£13.94	£16.73
70 - GROOVED BALL BEARING FEI-41701242058.A0 41701242058	£40.58	£48.70
80 - SEALING RING FEI-32612135000.A9 32612135000	£9.45	£11.34
90 - INTERMEDIATE GEAR BOX FEI-31506347007.A0 31506347007	£596.21	£715.45
91 - SEALING RING FEI-40612128007.A1 40612128007	£1.60	£1.92
100 - GROOVED BALL BEARING FEI-41701004015.A3 41701004015	£6.83	£8.20
110 - GROOVED BALL BEARING FEI-41701010010.A11 41701010010	£8.58	£10.30
120 - NEEDLE SLEEVE FEI-41705040001.A0 41705040001	£25.08	£30.09
121 - SEALING RING FEI-40608073009.A1 40608073009	£22.22	£26.66
125 - NEEDLE SLEEVE FEI-41705040010.A1 41705040010	£40.56	£48.67
130 - DISC FEI-42446003009.A49 42446003009	£1.60	£1.92
140 - SEALING RING FEI-30605083008.A0 30605083008	-
150 - SHEET METAL SCREW FEI-43046014006.A1 43046014006	-
160 - BRUSH HOLDER FEI-30712076012.A8 30712076012	-
170 - SHEET METAL SCREW FEI-43046001002.A18 43046001002	-
180 - CARBON BRUSH (SOLD SINGLY) FEI-30711096007.A6 30711096007	£15.12	£18.14
190 - COVER FEI-32427066000.A23 32427066000	£5.27	£6.32
200 - SHEET METAL SCREW FEI-43046020001.A1 43046020001	-
210 - MAGNET FEI-31428070018.A1 31428070018	£38.56	£46.27
220 - HOUSING FEI-31207236002.A0 31207236002	£12.72	£15.27
230 - SHEET METAL SCREW FEI-43046015000.A0 43046015000	-
240 - ELECTRONICS FEI-30762212007.A0 30762212007	£56.35	£67.62
250 - DISC FEI-42401015976.A2 42401015976	-
260 - SCREW FEI-43070008000.A0 43070008000	-
270 - PROTECTIVE HOSE FEI-31414056005.A1 31414056005	£19.48	£23.37
280 - TERMINAL FEI-30240218003.A0 30240218003	-
290 - CONNECTING CABLE FEI-30719521011.A0 30719521011	£1.60	£1.92
300 - CONNECTING CABLE FEI-30719522014.A1 30719522014	£2.84	£3.41
310 - COVER FEI-32429121009.A1 32429121009	£7.35	£8.82
320 - SHEET METAL SCREW FEI-43046030000.A0 43046030000	-
350 - GEAR-WHEEL FEI-33657162000.A0 33657162000	£58.61	£70.33
360 - SHAFT TOOTHED FEI-33811067004.A0 33811067004	-
370 - SHAFT TOOTHED Z=15 FEI-33765018003.A1 33765018003	-
380 - FEATHER KEY FEI-40221033003.A9 40221033003	-
390 - GEAR-WHEEL FEI-33613122001.A0 33613122001	£101.88	£122.26
400 - PIN FEI-40242058004.A24 40242058004	-
410 - GEAR-WHEEL FEI-33613123005.A1 33613123005	£87.94	£105.53
420 - CIRCLIP FEI-42616007001.A13 42616007001	£1.60	£1.92
430 - SWITCH PUSHBUTTON FEI-32805160006.A0 32805160006	£3.93	£4.72
440 - PIN FEI-40242060000.A0 40242060000	-
450 - SEALING RING FEI-40612011005.A1 40612011005	-
460 - SPIRAL SPRING FEI-30901305003.A1 30901305003	£1.60	£1.92
470 - STRAIGHT PIN FEI-40201022008.A20 40201022008	-
480 - CUP SPRING FEI-30905072002.A0 30905072002	-
490 - CIRCLIP FEI-42616014009.A53 42616014009	£1.60	£1.92
500 - GEARBOX HOUSING FEI-31509081005.A1 31509081005	£287.48	£344.98
510 - INCLINED BALL BEARING FEI-41711022001.A1 41711022001	£90.86	£109.03
520 - CIRCLIP FEI-42616074003.A1 42616074003	£1.60	£1.92
530 - SEALING RING FEI-40608069001.A3 40608069001	£5.56	£6.67
540 - SHAFT FEI-33403103000.A1 33403103000	£337.84	£405.41
550 - FEATHER KEY FEI-40221062006.A0 40221062006	-
560 - BOLT FEI-30217321007.A1 30217321007	£5.78	£6.94
570 - CIRCLIP FEI-42615062007.A0 42615062007	-
580 - SET SCREW FEI-43058017046.A1 43058017046	-
590 - PIN FEI-40242059008.A1 40242059008	-
600 - GEAR-WHEEL FEI-33665053003.A0 33665053003	£118.79	£142.55
610 - CIRCLIP FEI-42616015003.A3 42616015003	£1.60	£1.92
620 - SEALING RING FEI-30605111007.A1 30605111007	-
630 - CYLINDER HEAD SCREW FEI-43035136063.A1 43035136063	-
640 - SCREW CONNECTION FEI-41137045007.A1 41137045007	-
650 - SET SCREW FEI-43045045080.A2 43045045080	-
660 - PRESSURE PIECE FEI-30240216001.A1 30240216001	£41.50	£49.80
800 - HOUSING FEI-31207244004.A1 31207244004	£697.41	£836.89
810 - PRESSURE PIECE FEI-33216041004.A0 33216041004	£6.59	£7.91
820 - GUIDE STRIP FEI-33218111004.A0 33218111004	£51.68	£62.02
830 - CYLINDER HEAD SCREW FEI-43035076041.A70 43035076041	£1.60	£1.92
835 - LEAF SPRING FEI-30904041001.A55 30904041001	£5.78	£6.94
836 - FILLISTER HEAD SCREW FEI-43041026994.A5 43041026994	-
840 - SET SCREW FEI-43058008051.A5 43058008051	-
850 - GEAR RACK FEI-33812008002.A4 33812008002	-
860 - CLAMPING SLEEVE FEI-40238051004.A1 40238051004	-
870 - GUIDE FEI-33218112007.A4 33218112007	£101.26	£121.51
880 - DISC FEI-42402017040.A1 42402017040	-
885 - CYLINDER HEAD SCREW FEI-43035006048.A10 43035006048	-
890 - CIRCLIP M6 FEI-42443005064.A10 42443005064	£1.60	£1.92
900 - CYLINDER HEAD SCREW FEI-43058021068.A6 43058021068	-
910 - BUSH FEI-31602089009.A21 31602089009	-
920 - SHAFT FEI-33717037007.A1 33717037007	-
930 - BUSH FEI-30510085008.A0 30510085008	£33.17	£39.80
940 - DISC FEI-42402012084.A1 42402012084	-
950 - CUP SPRING FEI-30905055000.A15 30905055000	-
960 - DISC FEI-42401019085.A17 42401019085	£1.60	£1.92
970 - NUT FEI-42019006080.A21 42019006080	£1.60	£1.92
980 - PLUG FEI-31420109007.A5 31420109007	£3.12	£3.75
990 - SCALE FEI-33213007001.A5 33213007001	£3.43	£4.12
1000 - HANDLE FEI-32119114014.A24 32119114014	£19.35	£23.22
1090 - MAGNETIC FOOT FEI-33216042022.A0 33216042022	£567.65	£681.18
1110 - LOCK WASHER FEI-42439013046.A18 42439013046	£1.60	£1.92
1120 - DISC FEI-42404005048.A106 42404005048	£1.60	£1.92
1130 - FILLISTER HEAD SCREW FEI-43064023045.A68 43064023045	£1.60	£1.92
1140 - CYLINDER HEAD SCREW FEI-43035084062.A11 43035084062	-
1150 - CAPACITOR FEI-30722180012.A0 30722180012	£58.97	£70.77
1160 - SWITCH FEI-30701221008.A0 30701221008	£171.12	£205.34
1170 - CONNECTING CABLE FEI-30719524016.A1 30719524016	£1.60	£1.92
1180 - CONNECTING CABLE FEI-30719525010.A0 30719525010	£1.60	£1.92
1190 - CONNECTING CABLE FEI-30719523018.A0 30719523018	£1.60	£1.92
1200 - SCREW CONNECTION FEI-30723046019.A2 30723046019	£39.90	£47.88
1205 - SEALING RING FEI-40612024009.A0 40612024009	£1.60	£1.92
1210 - ELECTRONICS FEI-30762211994.A1 30762211994	£207.21	£248.65
1220 - PLATE FEI-32422298009.A0 32422298009	£20.10	£24.12
1230 - SEAL FEI-30605108002.A2 30605108002	£2.88	£3.46
1240 - SWITCH FEI-30701173004.A1 30701173004	-
1250 - PLATE FEI-31408086007.A8 31408086007	£6.68	£8.01
1260 - SCREW CONNECTION FEI-30723044003.A4 30723044003	£28.66	£34.39
1270 - CABLE GROMMET FEI-31413007007.A92 31413007007	£1.60	£1.92
1280 - NUT FEI-30723043005.A17 30723043005	£2.73	£3.28
1290 - CABLE WITH PLUG FEI-30707302017.A1 30707302017	£25.84	£31.01
1300 - HEXAGON SOCKET SCREW FEI-43048066120.A3 43048066120	-
1310 - NUT FEI-42010034120.A0 42010034120	-
1320 - NUT FEI-42019019121.A2 42019019121	-
1330 - HANDLE FEI-32119108005.A6 32119108005	£39.65	£47.58
1340 - FILLISTER HEAD SCREW FEI-43041037050.A6 43041037050	-
1350 - PROTECTIVE GRILLE FEI-31810236007.A0 31810236007	£21.53	£25.84
1360 - COVER FEI-32429126010.A1 32429126010	£57.35	£68.82
1370 - SEAL FEI-30605107004.A3 30605107004	£4.94	£5.93
1380 - CABLE TIE FEI-30234026008.A7 30234026008	£1.60	£1.92
1490 - QUICKIN-ADAPTORS FEI-63901048020.A9 63901048020	£230.31	£276.37
1500 - SHAFT FEI-33401090001.A1 33401090001	£232.93	£279.52
1510 - CLAMPING SLEEVE FEI-40238065002.A0 40238065002	£1.60	£1.92
1520 - SPIRAL SPRING FEI-30901341000.A9 30901341000	£5.99	£7.19
1530 - SEALING RING FEI-30503145006.A34 30503145006	£3.52	£4.23
1540 - DISC FEI-32408389000.A70 32408389000	£1.60	£1.92
1550 - CIRCLIP FEI-42616075007.A37 42616075007	-
1560 - SEALING RING FEI-40612073006.A4 40612073006	£1.60	£1.92
1570 - NUT FEI-42015067006.A1 42015067006	-
1580 - CIRCLIP FEI-42643016008.A2 42643016008	£2.59	£3.11
1590 - BALL FEI-41708025004.A64 41708025004	£1.60	£1.92
1600 - CLAMPING SLEEVE FEI-30232045005.A9 30232045005	£37.81	£45.37
1610 - SPIRAL SPRING FEI-30907063003.A17 30907063003	£6.76	£8.11
1620 - CIRCLIP FEI-42643009005.A26 42643009005	£3.40	£4.08
2000 - STICKER FEI-32217407000.A14 32217407000	-
2010 - STICKER FEI-32217406002.A82 32217406002	£1.60	£1.92
5000 - TOOL CASE FEI-33901096016.A0 33901096016	£278.71	£334.45
5010 - BOTTLE HOLDER FEI-30240247002.A8 30240247002	£31.07	£37.28
5020 - PUMP FEI-32132022007.A14 32132022007	£19.91	£23.89
5030 - REPLACEMENT HOSE FEI-31414054008.A9 31414054008	£6.47	£7.76
5040 - HOOK F. CHIP REMOVAL FEI-64201001000.A41 64201001000	£61.87	£74.24
5050 - STRAP SAFETY FEI-32174008007.A24 32174008007	£33.23	£39.88
5060 - KEY-TYPE DRILL CHUCKS FEI-63203050014.A4 63203050014	£78.38	£94.05
5065 - CHUCK KEY FEI-62914002005.A22 62914002005	£4.30	£5.16
5070 - QUICKIN-ADAPTOR FEI-63901020006.A11 63901020006	£36.00	£43.20
5080 - CENTERING PIN FEI-63134998310.A66 63134998310	£25.18	£30.21
5090 - CENTERING PIN FEI-63134998330.A16 63134998330	£25.68	£30.81
5120 - DRIFT KEYS FEI-63305003003.A2 63305003003	£10.56	£12.67
5130 - ALLEN KEY SW4 FEI-62907010000.A25 62907010000	£3.35	£4.02
6000 - LUBRICANT CAN 0.850KG FEI-32132007189.A0 32132007189	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A584 34130054061	-
