Fein KBM 50 U (A) / 72707424110 Spare Parts

Fein KBM 50 U ʊ) / 72707424110 Spare Parts

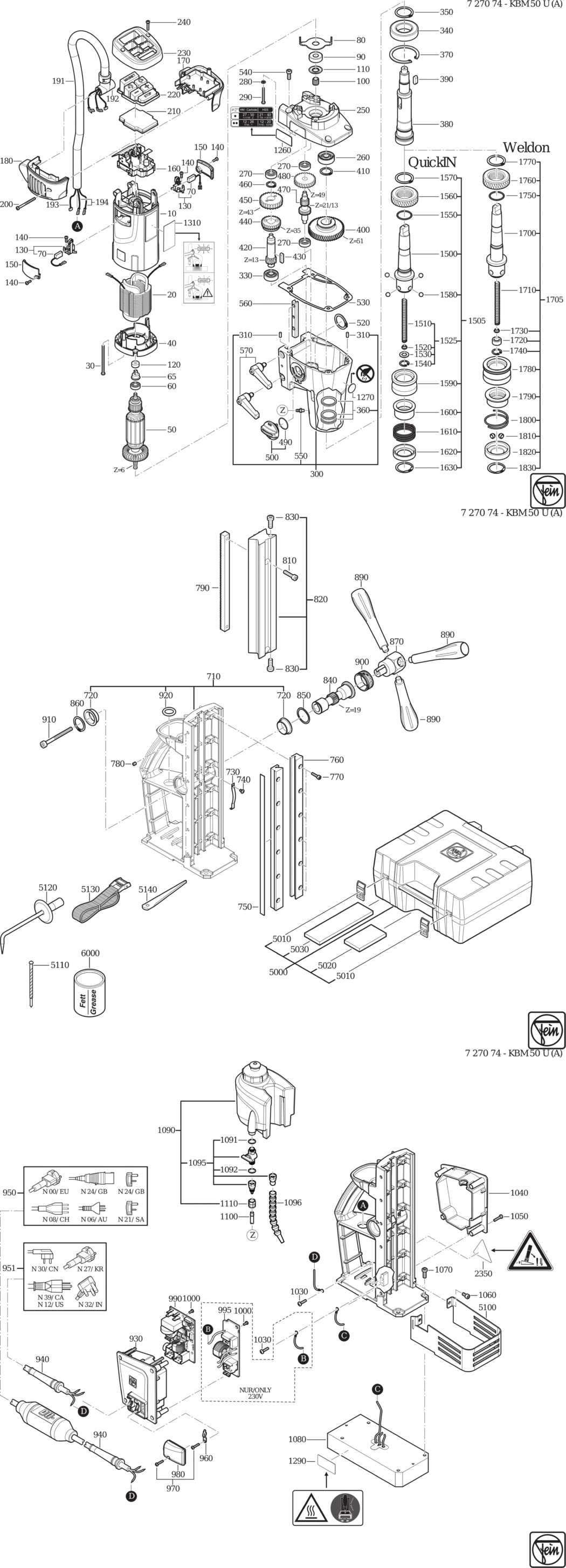

An exploded diagram and spare parts listing for the Fein KBM 50 U (A) / 72707424110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903223000.A13 31903223000	£45.41	£54.49
20 - STATOR 110-120V FEI-51273007110.A11 51273007110	£142.25	£170.70
30 - SCREW FEI-43072012001.A10 43072012001	-
40 - AIR GUIDE RING FEI-31428168000.A1 31428168000	-
50 - ARMATURE 50/60HZ 110-120V Z=6 FEI-53273010110.A0 53273010110	£139.87	£167.84
60 - GROOVED BALL BEARING FEI-41701001260.A9 41701001260	£7.11	£8.53
65 - SLEEVE FEI-31406053007.A33 31406053007	£3.42	£4.10
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711136002.A24 30711136002	£13.10	£15.72
80 - PLATE FEI-32416098005.A115 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701007050.A63 41701007050	£15.15	£18.18
100 - SEALING RING FEI-32612135000.A51 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A21 42639028003	£5.74	£6.89
120 - RING MAGNET FEI-32172010005.A34 32172010005	£22.34	£26.81
130 - BRUSH HOLDER FEI-30712088029.A46 30712088029	£17.88	£21.45
140 - SCREW FEI-43074013000.A62 43074013000	-
150 - COVER FEI-32424029000.A0 32424029000	-
160 - ELECTRONICS 100-230V 50/60H FEI-30762441990.A8 30762441990	£180.61	£216.73
170 - COVER FEI-32429144000.A8 32429144000	£14.66	£17.59
180 - COVER FEI-32429145000.A11 32429145000	£14.66	£17.59
191 - PROTECTIVE HOSE FEI-31414068000.A0 31414068000	-
192 - CONNECTING PIECE FEI-32429146010.A16 32429146010	-
193 - CONNECTING CABLE FEI-30719861010.A0 30719861010	-
194 - CONNECTING CABLE FEI-30719864010.A19 30719864010	-
200 - SCREW FEI-43072013005.A49 43072013005	£1.60	£1.92
210 - ELECTRONICS 100-230V 50/60HZ FEI-30762443990.A12 30762443990	£52.15	£62.58
220 - SWITCH INSERT FEI-32816078000.A20 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A26 32429141000	£14.66	£17.59
240 - SCREW FEI-43074008000.A114 43074008000	£1.60	£1.92
250 - INTERMEDIATE GEAR BOX FEI-31506393000.A17 31506393000	-
260 - GROOVED BALL BEARING FEI-41701213011.A17 41701213011	£8.92	£10.70
270 - GROOVED BALL BEARING FEI-41701204010.A22 41701204010	£6.37	£7.64
280 - SEALING RING FEI-40611000000.A21 40611000000	-
290 - SCREW FEI-43072010009.A22 43072010009	£1.60	£1.92
300 - GEARBOX HOUSING FEI-31508288020.A12 31508288020	£256.90	£308.28
310 - STRAIGHT PIN FEI-40201035003.A19 40201035003	-
330 - GROOVED BALL BEARING FEI-41701010010.A75 41701010010	£8.58	£10.30
340 - GROOVED BALL BEARING FEI-41701025051.A10 41701025051	£34.83	£41.80
350 - CIRCLIP FEI-42616015003.A39 42616015003	£1.60	£1.92
360 - SEALING RING FEI-40608000000.A2 40608000000	£7.02	£8.43
370 - CIRCLIP FEI-42616074003.A21 42616074003	£1.60	£1.92
380 - SHAFT MK3 FEI-33402055000.A19 33402055000	-
390 - FEATHER KEY FEI-40221061003.A2 40221061003	-
400 - GEAR-WHEEL Z=51 FEI-33665060000.A15 33665060000	-
410 - CIRCLIP FEI-42616009003.A76 42616009003	£1.60	£1.92
420 - SHAFT TOOTHED Z=13 FEI-33765019007.A24 33765019007	£90.30	£108.36
430 - FEATHER KEY FEI-40221067009.A37 40221067009	£5.66	£6.79
440 - GEAR-WHEEL Z=35 FEI-33613128002.A14 33613128002	£81.20	£97.44
450 - GEAR-WHEEL Z=43 FEI-33613127004.A20 33613127004	£68.43	£82.12
460 - CIRCLIP FEI-42616007001.A70 42616007001	£1.60	£1.92
470 - SHAFT TOOTHED Z=21/13 FEI-33811068002.A25 33811068002	£99.99	£119.99
480 - GEAR-WHEEL Z=49 FEI-33657169005.A31 33657169005	£42.31	£50.77
490 - SEALING RING FEI-40612115003.A15 40612115003	£1.60	£1.92
500 - SWITCH PUSHBUTTON FEI-32805310010.A1 32805310010	£21.60	£25.92
520 - CIRCLIP FEI-42644003001.A25 42644003001	-
530 - SEAL FEI-30610047000.A0 30610047000	£9.92	£11.91
540 - CYLINDER HEAD SCREW FEI-43033064066.A76 43033064066	£1.60	£1.92
550 - HOSE SOCKET FEI-41138025006.A74 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A57 33218134000	-
570 - LEVER FEI-32170025000.A26 32170025000	£26.84	£32.21
710 - HOUSING FEI-31207295010.A14 31207295010	-
720 - BUSH FEI-31602089009.A61 31602089009	-
730 - LEAF SPRING FEI-30904041001.A23 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A58 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A7 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A4 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A43 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A48 43058008051	-
790 - GEAR RACK FEI-33812007004.A68 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A71 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A7 34300000047	-
830 - FLAT HEADED SCREW FEI-33218118010.A5 33218118010	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A16 33713071000	-
850 - DISC FEI-42446003009.A19 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A34 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A25 30109201010	-
890 - HANDLE FEI-32119114014.A56 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A20 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A44 43035084062	-
920 - SEALING RING FEI-40612171000.A9 40612171000	-
930 - COVER FEI-32429142000.A10 32429142000	-
940 - PROTECTIVE HOSE FEI-31413237000.A56 31413237000	£2.74	£3.29
950 - CABLE PRCD FEI-30707584010.A0 30707584010	£99.51	£119.41
959 - PLUG CEE 16A/110V FEI-30728288004.A46 30728288004	£14.25	£17.10
960 - CABLE CLAMPING PIECE FEI-32431043002.A81 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A104 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A57 32424031000	£12.77	£15.32
990 - ELECTRONICS 100-120V 50/60HZ FEI-30762442980.A6 30762442980	£173.58	£208.30
1000 - SCREW FEI-43074013000.A60 43074013000	-
1030 - FILLISTER HEAD SCREW FEI-43064023045.A44 43064023045	£1.60	£1.92
1040 - COVER FEI-32429143000.A4 32429143000	-
1050 - SCREW FEI-43074008000.A115 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A27 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A77 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216056000.A1 33216056000	£420.00	£504.00
1090 - CONTAINER FEI-32132035010.A16 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A32 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A20 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A57 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A4 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414069000.A28 31414069000	£2.65	£3.18
1110 - NUT FEI-42015000000.A37 42015000000	£6.83	£8.20
1260 - INFORMATION SIGN FEI-32217470060.A9 32217470060	-
1270 - STICKER FEI-32217406002.A31 32217406002	£1.60	£1.92
1290 - INFORMATION SIGN FEI-32217507060.A14 32217507060	-
1310 - INFORMATION SIGN FEI-32217466060.A17 32217466060	-
1525 - SPIRAL SPRING FEI-30901341019.A8 30901341019	£14.90	£17.88
1700 - SHAFT FEI-33401095000.A8 33401095000	-
1705 - 3/4 IN WELDON MOUNTING SHAFT FEI-63901050020.A4 63901050020	£249.30	£299.16
1710 - SPIRAL SPRING FEI-30901341000.A59 30901341000	£5.99	£7.19
1720 - BUSH FEI-30510091000.A0 30510091000	-
1730 - SEALING RING FEI-30503145006.A58 30503145006	£3.52	£4.23
1740 - CIRCLIP FEI-42616033009.A13 42616033009	£1.60	£1.92
1750 - SEALING RING FEI-40612038007.A4 40612038007	£10.08	£12.10
1760 - NUT FEI-42015000010.A10 42015000010	-
1770 - CIRCLIP FEI-42643016008.A16 42643016008	£2.59	£3.11
1780 - CLAMPING SLEEVE FEI-30503166000.A6 30503166000	-
1790 - BUSH FEI-30510090000.A11 30510090000	-
1800 - SPRING FEI-30901396000.A6 30901396000	-
1810 - PIN FEI-30240312000.A10 30240312000	-
1820 - SLEEVE FEI-30503167000.A5 30503167000	-
1830 - CIRCLIP 28X1 5 FEI-42616076000.A33 42616076000	-
2350 - INFORMATION SIGN FEI-32217552000.A16 32217552000	£1.60	£1.92
5000 - CASE FEI-33901142140.A14 33901142140	£127.98	£153.57
5010 - WIRE CLAMP FEI-30232050000.A28 30232050000	£10.78	£12.94
5020 - PLATE FEI-33904486000.A28 33904486000	-
5030 - PLATE FEI-33904487000.A4 33904487000	-
5100 - PROTECTIVE GRILLE FEI-31810286000.A15 31810286000	-
5110 - CENTERING PIN FEI-63134998310.A16 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A4 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A83 32174008007	£33.23	£39.88
5140 - DRIFT KEYS FEI-63305003003.A42 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A43 32132041000	-
