Fein KBM 32 Q (50Hz 230V) / 72702700235 Spare Parts

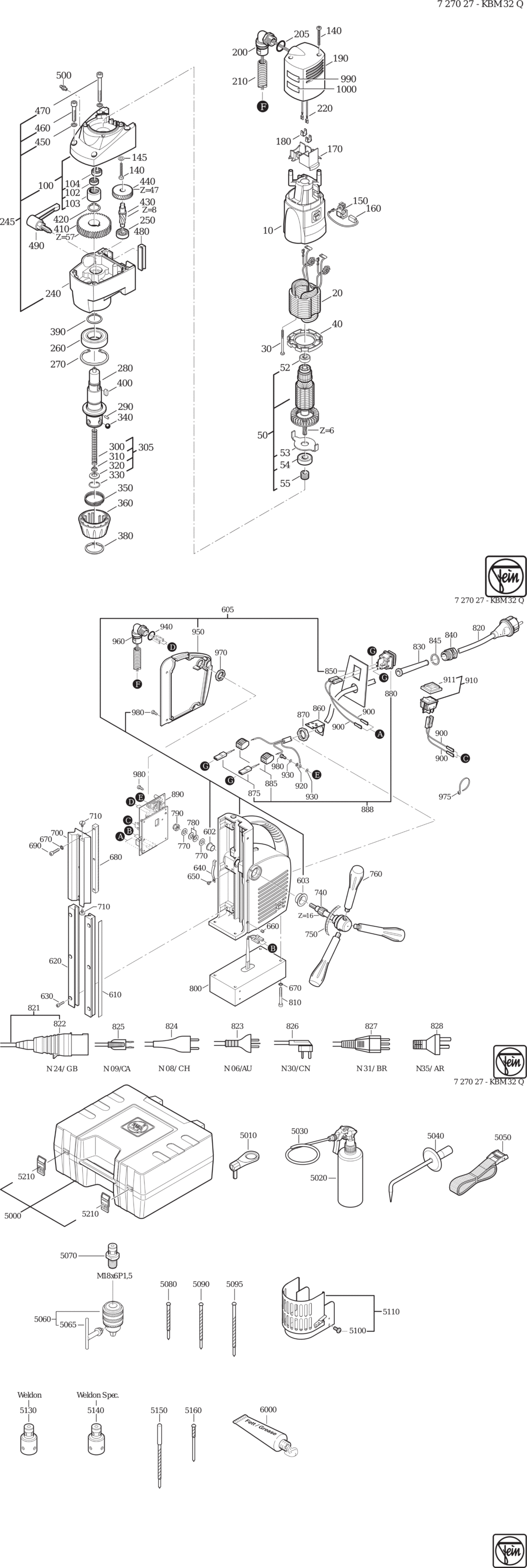

An exploded diagram and spare parts listing for the Fein KBM 32 Q (50Hz 230V) / 72702700235

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901107022.A3 31901107022	£44.81	£53.77
20 - STATOR FEI-51271001236.A2 51271001236	£88.73	£106.48
30 - SCREW FEI-43070004001.A51 43070004001	£1.60	£1.92
40 - AIR GUIDE RING FEI-31428112006.A10 31428112006	£3.33	£4.00
50 - ARMATURE FEI-53271007234.A0 53271007234	£183.52	£220.22
52 - GROOVED BALL BEARING FEI-41701001172.A77 41701001172	£9.63	£11.56
53 - PLATE FEI-32416100000.A0 32416100000	£1.60	£1.92
54 - GROOVED BALL BEARING FEI-41701007050.A59 41701007050	£15.15	£18.18
55 - SEALING RING FEI-32612062001.A0 32612062001	£5.46	£6.55
100 - INTERMEDIATE GEAR BOX FEI-31506370018.A4 31506370018	£162.12	£194.54
102 - SEALING RING FEI-40608066005.A10 40608066005	-
103 - NEEDLE SLEEVE FEI-41705038005.A6 41705038005	-
104 - GROOVED BALL BEARING FEI-41701001010.A1 41701001010	£7.35	£8.82
140 - SCREW FEI-43070007002.A35 43070007002	£1.60	£1.92
145 - SEALING RING FEI-40611007008.A0 40611007008	£4.05	£4.86
150 - BRUSH HOLDER FEI-30712086027.A0 30712086027	£7.48	£8.97
160 - CARBON BRUSH (SOLD SINGLY) FEI-30711128005.A7 30711128005	£12.18	£14.62
170 - HOLDER FEI-31428138005.A1 31428138005	£11.03	£13.24
180 - CONNECTOR FEI-30717189002.A3 30717189002	£1.60	£1.92
190 - COVER FEI-31201114002.A3 31201114002	£12.93	£15.52
200 - SCREW CONNECTION FEI-30723046019.A10 30723046019	£39.90	£47.88
205 - SEALING RING FEI-40612024009.A33 40612024009	£1.60	£1.92
210 - PROTECTIVE HOSE FEI-31414060012.A3 31414060012	£30.92	£37.11
220 - CONNECTING CABLE FEI-30719482012.A0 30719482012	£8.25	£9.90
240 - GEARBOX HOUSING FEI-31509083002.A3 31509083002	£147.78	£177.34
245 - GEARBOX HOUSING FEI-31509083011.A1 31509083011	£313.87	£376.64
250 - GROOVED BALL BEARING FEI-41701204010.A10 41701204010	£6.37	£7.64
260 - GROOVED BALL BEARING FEI-41701017059.A5 41701017059	£35.10	£42.12
270 - CIRCLIP FEI-42616004000.A11 42616004000	£2.37	£2.84
280 - SHAFT FEI-33403105002.A4 33403105002	£174.86	£209.83
290 - CLAMPING SLEEVE FEI-40238065002.A13 40238065002	£1.60	£1.92
300 - SPIRAL SPRING FEI-30901353006.A0 30901353006	£4.45	£5.34
305 - SPIRAL SPRING FEI-30901353015.A3 30901353015	£14.21	£17.05
310 - SEALING RING FEI-30503145006.A73 30503145006	£3.52	£4.23
320 - DISC FEI-32408389000.A11 32408389000	£1.60	£1.92
330 - CIRCLIP FEI-42616075007.A7 42616075007	-
340 - BALL FEI-41708025004.A37 41708025004	£1.60	£1.92
350 - SPIRAL SPRING FEI-30907063003.A7 30907063003	£6.76	£8.11
360 - CLAMPING SLEEVE FEI-30232045005.A11 30232045005	£37.81	£45.37
380 - CIRCLIP FEI-42643009005.A13 42643009005	£3.40	£4.08
390 - CIRCLIP FEI-42616014009.A23 42616014009	£1.60	£1.92
400 - FEATHER KEY FEI-40221028001.A7 40221028001	£3.52	£4.22
410 - GEAR-WHEEL FEI-33663166008.A0 33663166008	£51.90	£62.28
420 - CIRCLIP FEI-42616009003.A55 42616009003	£1.60	£1.92
430 - SHAFT TOOTHED FEI-33763060007.A0 33763060007	£48.74	£58.49
440 - GEAR-WHEEL FEI-33657159006.A3 33657159006	£48.62	£58.35
450 - CIRCLIP M4 FEI-42443003043.A336 42443003043	£1.60	£1.92
460 - CYLINDER HEAD SCREW FEI-43035009044.A4 43035009044	-
470 - CYLINDER HEAD SCREW FEI-43035096049.A5 43035096049	£1.60	£1.92
480 - PRESSURE PIECE FEI-30240240007.A12 30240240007	£17.11	£20.53
490 - LEVER FEI-32170017007.A11 32170017007	£27.20	£32.64
500 - HOSE SOCKET FEI-41138025006.A47 41138025006	£8.40	£10.08
602 - BUSH FEI-31602081001.A10 31602081001	-
603 - BUSH FEI-31602092003.A13 31602092003	-
605 - HOUSING FEI-31207277020.A1 31207277020	£398.87	£478.64
610 - PRESSURE PIECE FEI-33216047000.A25 33216047000	£5.35	£6.42
620 - GUIDE STRIP FEI-33218117000.A2 33218117000	£43.78	£52.53
630 - CYLINDER HEAD SCREW FEI-43035076041.A14 43035076041	£1.60	£1.92
640 - LEAF SPRING FEI-30904041001.A8 30904041001	£5.78	£6.94
650 - FILLISTER HEAD SCREW FEI-43041026994.A43 43041026994	-
660 - SET SCREW FEI-43058008051.A74 43058008051	-
670 - CIRCLIP M5 FEI-42443004057.A5 42443004057	£1.60	£1.92
680 - GEAR RACK FEI-33812007004.A47 33812007004	£101.03	£121.24
690 - CYLINDER HEAD SCREW FEI-43035017057.A49 43035017057	£1.60	£1.92
700 - GUIDE FEI-33218116006.A3 33218116006	£84.85	£101.82
710 - FLAT HEADED SCREW FEI-43013048041.A7 43013048041	£1.60	£1.92
740 - SHAFT FEI-33713068008.A14 33713068008	-
750 - SCALE FEI-33213008009.A13 33213008009	£8.34	£10.01
760 - HANDLE FEI-32119114014.A86 32119114014	£19.35	£23.22
770 - DISC FEI-42401019085.A99 42401019085	£1.60	£1.92
780 - CUP SPRING FEI-30905055000.A31 30905055000	-
790 - NUT FEI-42019006080.A14 42019006080	£1.60	£1.92
800 - MAGNETIC FOOT FEI-33216046015.A1 33216046015	£370.89	£445.07
810 - CYLINDER HEAD SCREW FEI-43035021050.A7 43035021050	-
820 - CABLE WITH PLUG FEI-30707423010.A13 30707423010	-
830 - CABLE GROMMET FEI-31413007007.A12 31413007007	£1.60	£1.92
840 - SCREW CONNECTION FEI-30723044003.A18 30723044003	£28.66	£34.39
845 - SEAL FEI-30610034008.A12 30610034008	£1.60	£1.92
850 - PLATE FEI-32422317010.A7 32422317010	£12.07	£14.48
860 - PLATE FEI-31408086007.A3 31408086007	£6.68	£8.01
870 - NUT FEI-30723043005.A3 30723043005	£2.73	£3.28
875 - CONNECTING CABLE FEI-30719647010.A9 30719647010	-
880 - SWITCH FEI-30701281000.A4 30701281000	£34.57	£41.48
885 - TERMINAL FEI-31412063000.A16 31412063000	£3.93	£4.72
888 - SWITCH UMBAUSATZ / REPAIR KIT FEI-30701281010.A7 30701281010	£41.78	£50.13
890 - ELECTRONICS FEI-30762243998.A0 30762243998	£226.27	£271.52
900 - CONNECTING CABLE FEI-30719481019.A1 30719481019	£7.41	£8.89
910 - SWITCH FEI-30701242009.A2 30701242009	£20.86	£25.03
911 - CAP FEI-32816059009.A4 32816059009	£3.11	£3.73
920 - LOCK WASHER FEI-42439013046.A148 42439013046	£1.60	£1.92
930 - DISC FEI-42404005048.A2 42404005048	£1.60	£1.92
940 - SEALING RING FEI-40612024009.A30 40612024009	£1.60	£1.92
950 - COVER FEI-32429135010.A3 32429135010	-
960 - SCREW CONNECTION FEI-30723046019.A6 30723046019	£39.90	£47.88
970 - NUT FEI-30723045007.A2 30723045007	£1.60	£1.92
980 - FILLISTER HEAD SCREW FEI-43064023045.A15 43064023045	£1.60	£1.92
1000 - STICKER FEI-32217406002.A16 32217406002	£1.60	£1.92
5000 - TOOL BOX ASS. FEI-33901126020.A1 33901126020	£136.46	£163.75
5010 - BOTTLE HOLDER FEI-30240247002.A1 30240247002	£31.07	£37.28
5020 - PUMP FEI-32132022007.A2 32132022007	£19.91	£23.89
5030 - REPLACEMENT HOSE FEI-31414054008.A12 31414054008	£6.47	£7.76
5040 - HOOK F. CHIP REMOVAL FEI-64201001000.A30 64201001000	£61.87	£74.24
5050 - STRAP SAFETY FEI-32174008007.A59 32174008007	£33.23	£39.88
5060 - KEY-TYPE DRILL CHUCKS FEI-63203050014.A13 63203050014	£78.38	£94.05
5065 - CHUCK KEY FEI-62914002005.A9 62914002005	£4.30	£5.16
5070 - QUICKIN-ADAPTOR FEI-63901020006.A6 63901020006	£36.00	£43.20
5080 - CENTERING PIN FEI-63134998310.A34 63134998310	£25.18	£30.21
5090 - CENTERING PIN FEI-63134998330.A13 63134998330	£25.68	£30.81
5100 - FILLISTER HEAD SCREW FEI-43041008045.A6 43041008045	£1.60	£1.92
5110 - CONTACT AND SWARF PROTECTION FEI-63901037010.A3 63901037010	£120.48	£144.58
5210 - WIRE CLAMP FEI-30232050000.A71 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 080KG FEI-32160003182.A17 32160003182	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A193 34130054061	-
