Fein KBE 35 (A) (50/60Hz 220/230V) / 72706200230 Spare Parts

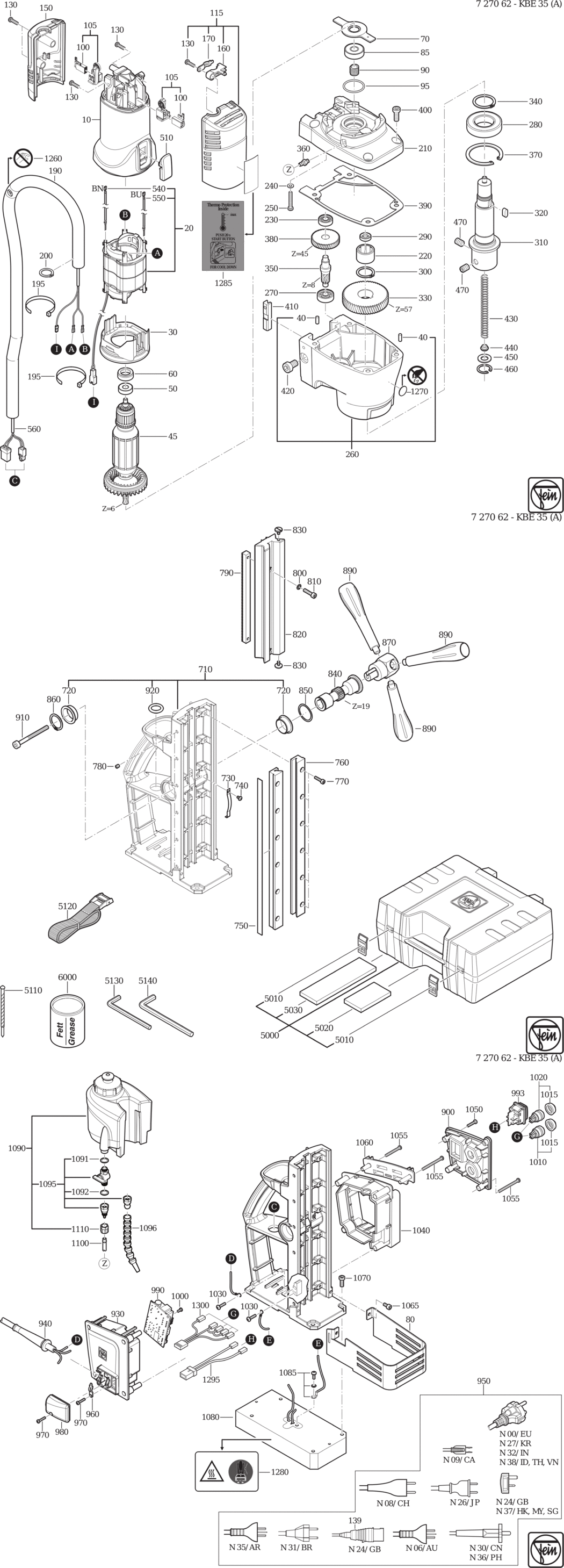

An exploded diagram and spare parts listing for the Fein KBE 35 (A) (50/60Hz 220/230V) / 72706200230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A26 31901174000	£37.51	£45.01
20 - STATOR 220/230V 50/60HZ FEI-51281009230.A1 51281009230	-
30 - AIR GUIDE RING FEI-31428198000.A2 31428198000	-
40 - STRAIGHT PIN FEI-40201035003.A13 40201035003	-
45 - ARMATURE 50H230V FEI-53281006230.A1 53281006230	-
50 - GROOVED BALL BEARING FEI-41701000029.A7 41701000029	-
60 - BEARING BUSH FEI-30507236000.A147 30507236000	£3.19	£3.83
70 - PLATE FEI-32416117000.A37 32416117000	£1.60	£1.92
80 - PROTECTIVE GRILLE FEI-31810286000.A4 31810286000	-
85 - GROOVED BALL BEARING FEI-41701000023.A5 41701000023	£4.92	£5.90
90 - SEALING RING FEI-32612134000.A1 32612134000	-
95 - SEALING RING FEI-40612143008.A8 40612143008	-
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A90 30711158000	£8.15	£9.78
105 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A65 30712096010	£11.45	£13.74
115 - COVER OT FEI-32427150010.A15 32427150010	£15.07	£18.08
130 - SCREW FEI-43072000000.A139 43072000000	£1.60	£1.92
150 - COVER FEI-32427148000.A16 32427148000	£5.49	£6.59
160 - CABLE CLAMPING PIECE FEI-32431047000.A94 32431047000	-
170 - CABLE CLAMPING PIECE FEI-32431043002.A179 32431043002	£1.60	£1.92
190 - PROTECTIVE HOSE FEI-31414071000.A2 31414071000	-
195 - CABLE TIE FEI-30234026008.A11 30234026008	£1.60	£1.92
200 - CIRCLIP FEI-42616007001.A2 42616007001	£1.60	£1.92
210 - INTERMEDIATE GEAR BOX FEI-31506409010.A0 31506409010	-
220 - NEEDLE SLEEVE FEI-41705038005.A1 41705038005	-
230 - GROOVED BALL BEARING FEI-41701001010.A12 41701001010	£7.35	£8.82
240 - SEALING RING FEI-40611000000.A4 40611000000	-
250 - SCREW FEI-43074012000.A123 43074012000	£1.60	£1.92
260 - GEARBOX HOUSING FEI-31508304010.A1 31508304010	-
270 - GROOVED BALL BEARING FEI-41701000026.A6 41701000026	-
280 - GROOVED BALL BEARING FEI-41701017059.A8 41701017059	£35.10	£42.12
290 - SEALING RING FEI-40608000004.A1 40608000004	-
300 - CIRCLIP FEI-42616009003.A11 42616009003	£1.60	£1.92
310 - SHAFT FEI-33403129000.A0 33403129000	-
320 - FEATHER KEY FEI-40221028001.A1 40221028001	£3.52	£4.22
330 - GEAR-WHEEL FEI-33663166008.A5 33663166008	£51.90	£62.28
340 - CIRCLIP FEI-42616014009.A47 42616014009	£1.60	£1.92
350 - SHAFT TOOTHED FEI-33763060007.A5 33763060007	£48.74	£58.49
360 - HOSE SOCKET FEI-41138025006.A16 41138025006	£8.40	£10.08
370 - CIRCLIP FEI-42616004000.A0 42616004000	£2.37	£2.84
380 - GEAR-WHEEL FEI-33657188000.A1 33657188000	-
390 - SEAL FEI-30610053000.A0 30610053000	-
400 - CYLINDER HEAD SCREW FEI-43033064066.A4 43033064066	£1.60	£1.92
410 - PRESSURE PIECE FEI-30240240007.A9 30240240007	£17.11	£20.53
420 - CYLINDER HEAD SCREW FEI-43035119083.A13 43035119083	-
430 - SPIRAL SPRING FEI-30901341000.A0 30901341000	£5.99	£7.19
440 - SEALING RING FEI-30503145006.A20 30503145006	£3.52	£4.23
450 - DISC FEI-32408389000.A62 32408389000	£1.60	£1.92
460 - CIRCLIP FEI-42616033009.A77 42616033009	£1.60	£1.92
470 - SET SCREW FEI-43045042084.A1 43045042084	-
510 - COVER FEI-32429158000.A2 32429158000	-
540 - CONNECTING CABLE FEI-30719851010.A2 30719851010	-
550 - CONNECTING CABLE FEI-30719854010.A9 30719854010	-
560 - CONNECTING CABLE FEI-30720009010.A10 30720009010	-
710 - HOUSING FEI-31207295010.A9 31207295010	-
720 - BUSH FEI-31602089009.A17 31602089009	-
730 - LEAF SPRING FEI-30904041001.A51 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A11 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A40 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A40 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A63 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A0 43058008051	-
790 - GEAR RACK FEI-33812007004.A19 33812007004	£101.03	£121.24
800 - CIRCLIP M5 FEI-42443004057.A349 42443004057	£1.60	£1.92
810 - CYLINDER HEAD SCREW FEI-43035017057.A4 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A22 34300000047	-
830 - FLAT HEADED SCREW FEI-43013048041.A0 43013048041	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A3 33713071000	-
850 - DISC FEI-42446003009.A38 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A3 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A45 30109201010	-
890 - HANDLE FEI-32119114014.A20 32119114014	£19.35	£23.22
900 - COVER FEI-32424044000.A11 32424044000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A16 43035084062	-
920 - SEALING RING FEI-40612171000.A48 40612171000	-
930 - COVER FEI-32429155000.A2 32429155000	-
940 - PROTECTIVE HOSE FEI-31413237000.A100 31413237000	£2.74	£3.29
950 - CABLE FEI-30707558010.A4 30707558010	-
960 - CABLE CLAMPING PIECE FEI-32431043002.A177 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A29 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A18 32424031000	£12.77	£15.32
990 - ELECTRONICS 50H230V FEI-30762511990.A3 30762511990	£109.28	£131.14
993 - SWITCH FEI-30701281000.A23 30701281000	£34.57	£41.48
1000 - SCREW FEI-43074013000.A17 43074013000	-
1010 - BUTTON FEI-30701311000.A12 30701311000	-
1015 - CAP FEI-30701224003.A14 30701224003	£5.50	£6.60
1020 - BUTTON FEI-30701223005.A33 30701223005	£14.97	£17.96
1030 - FILLISTER HEAD SCREW FEI-43064002043.A13 43064002043	£1.60	£1.92
1040 - COVER FEI-32429156000.A11 32429156000	-
1050 - SCREW FEI-43074008000.A43 43074008000	£1.60	£1.92
1055 - SCREW FEI-43072013005.A30 43072013005	£1.60	£1.92
1060 - HOLDER FEI-32424034000.A0 32424034000	-
1065 - CYLINDER HEAD SCREW FEI-43035013058.A83 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A9 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216058000.A7 33216058000	-
1085 - CONNECTING CABLE FEI-33216058010.A4 33216058010	-
1090 - CONTAINER FEI-32132035010.A60 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A68 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A46 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A17 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A45 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414069000.A5 31414069000	£2.65	£3.18
1110 - NUT FEI-42015000000.A31 42015000000	£6.83	£8.20
1260 - STICKER FEI-32217468060.A30 32217468060	-
1270 - STICKER FEI-32217406002.A61 32217406002	£1.60	£1.92
1280 - INFORMATION SIGN FEI-32217507060.A34 32217507060	-
1295 - CABLE FEI-30719978010.A4 30719978010	-
1300 - CABLE HARNESS FEI-30720008010.A2 30720008010	-
5000 - CASE FEI-33901142140.A26 33901142140	£127.98	£153.57
5010 - WIRE CLAMP FEI-30232050000.A224 30232050000	£10.78	£12.94
5020 - PLATE FEI-33904486000.A3 33904486000	-
5030 - PLATE FEI-33904487000.A29 33904487000	-
5110 - CENTERING PIN FEI-63134998310.A55 63134998310	£25.18	£30.21
5120 - STRAP SAFETY FEI-32174008007.A44 32174008007	£33.23	£39.88
5130 - ALLEN KEY SW4 FEI-62907023005.A10 62907023005	£3.29	£3.95
5140 - ALLEN KEY SW6 FEI-62907004005.A48 62907004005	£3.35	£4.02
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A2 32132041000	-
