Fein KBB 38 X / 72721224110 Spare Parts

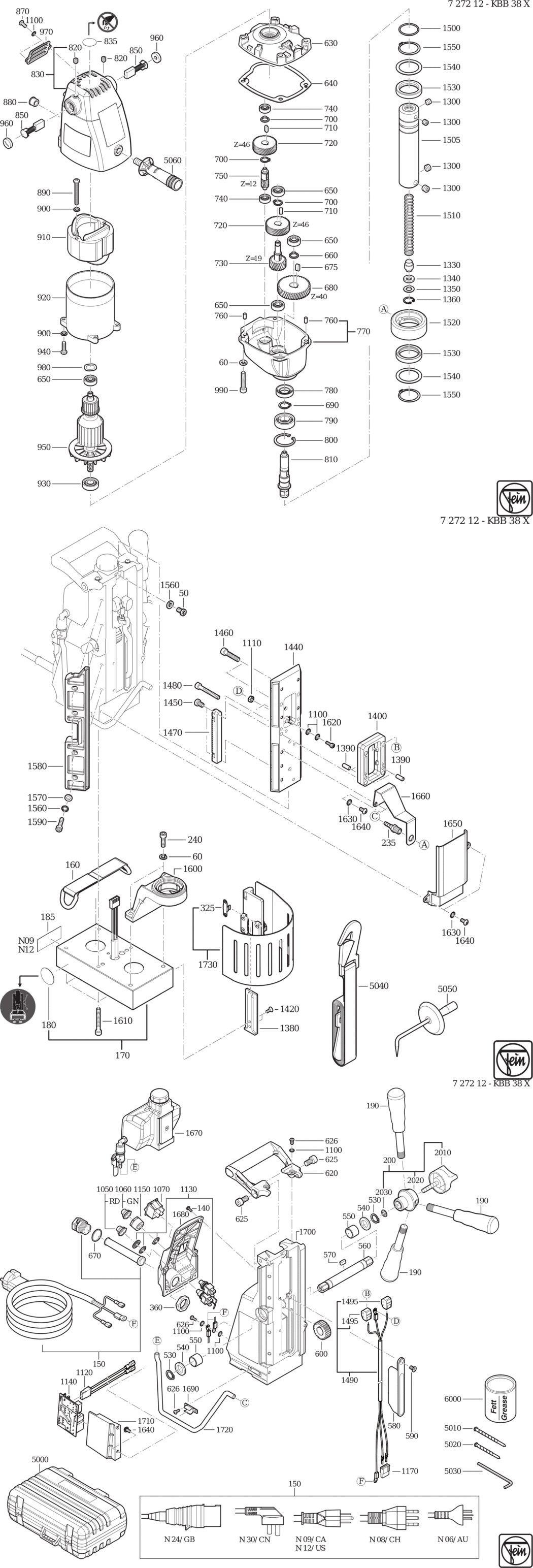

An exploded diagram and spare parts listing for the Fein KBB 38 X / 72721224110

	Ex VAT	Inc VAT
50 - SCREW FEI-43098706045.A3 43098706045	-
60 - DISC FEI-42498727210.A6 42498727210	£1.60	£1.92
140 - SCREW FEI-43098703230.A9 43098703230	-
150 - CABLE WITH PLUG GB FEI-30798592070.A3 30798592070	£90.57	£108.68
160 - BELT FEI-32198121000.A2 32198121000	£24.88	£29.85
170 - MAGNETIC FOOT FEI-33298492025.A1 33298492025	£399.20	£479.04
180 - STICKER FEI-32217407000.A9 32217407000	-
190 - HANDLE FEI-32198114010.A0 32198114010	£19.05	£22.86
200 - CONNECTING PIECE FEI-31698391000.A1 31698391000	£44.05	£52.86
235 - HOSE SOCKET FEI-31498761020.A6 31498761020	£7.27	£8.72
240 - SCREW FEI-43098706400.A0 43098706400	£1.60	£1.92
360 - NUT FEI-30798757544.A4 30798757544	£3.04	£3.65
530 - CIRCLIP FEI-42616023000.A15 42616023000	-
540 - DISC FEI-31698320055.A1 31698320055	-
550 - BUSH FEI-31698320040.A15 31698320040	£3.54	£4.25
560 - SHAFT FEI-33298320040.A14 33298320040	£38.13	£45.76
570 - FEATHER KEY FEI-40298745000.A11 40298745000	-
580 - HOUSING INSERT FEI-33298331020.A0 33298331020	£2.70	£3.24
590 - SCREW FEI-43098705120.A13 43098705120	-
600 - GEAR-WHEEL FEI-33698682000.A11 33698682000	£36.42	£43.70
620 - HANDLE FEI-31298330020.A8 31298330020	£19.50	£23.40
625 - SCREW FEI-43098708100.A17 43098708100	-
626 - SCREW FEI-43098704060.A21 43098704060	£1.60	£1.92
630 - COVER FEI-31998631020.A0 31998631020	£45.33	£54.40
640 - SEAL FEI-32498611000.A6 32498611000	£11.53	£13.84
650 - GROOVED BALL BEARING FEI-41798730200.A8 41798730200	£18.80	£22.56
660 - CIRCLIP FEI-42698740140.A5 42698740140	-
670 - SEAL FEI-30610034008.A26 30610034008	£1.60	£1.92
675 - FEATHER KEY FEI-40298745020.A0 40298745020	-
680 - GEAR-WHEEL FEI-33698681010.A6 33698681010	-
690 - CIRCLIP FEI-42698740170.A5 42698740170	-
700 - RING FEI-42698740120.A9 42698740120	-
710 - FEATHER KEY FEI-40298745040.A11 40298745040	£3.12	£3.75
720 - GEAR-WHEEL FEI-33698681030.A16 33698681030	-
730 - SHAFT TOOTHED FEI-33698681020.A0 33698681020	-
740 - GROOVED BALL BEARING FEI-41798730120.A7 41798730120	-
750 - PINION FEI-33698681040.A0 33698681040	£23.88	£28.66
760 - PIN FEI-40298742003.A10 40298742003	-
770 - GEARBOX HOUSING FEI-52298691070.A5 52298691070	-
780 - SEALING RING FEI-40698763020.A5 40698763020	-
790 - GROOVED BALL BEARING FEI-41798730450.A8 41798730450	-
800 - RING FEI-42698741350.A16 42698741350	-
810 - SHAFT FEI-33498621000.A6 33498621000	£93.08	£111.69
820 - SCREW FEI-43098705000.A1 43098705000	-
830 - MOTOR HOUSING FEI-31998631080.A4 31998631080	-
835 - STICKER FEI-32217406002.A92 32217406002	£1.60	£1.92
850 - CARBON BRUSH (SOLD SINGLY) FEI-30798651060.A0 30798651060	£16.68	£20.01
870 - SCREW FEI-43098704200.A10 43098704200	-
880 - SLEEVE FEI-30798757000.A1 30798757000	£1.60	£1.92
890 - SCREW FEI-43098705600.A5 43098705600	-
900 - DISC FEI-42498720540.A11 42498720540	-
910 - STATOR FEI-51298651030.A4 51298651030	-
920 - SLEEVE FEI-31998631040.A6 31998631040	£18.80	£22.56
930 - GROOVED BALL BEARING FEI-41798730390.A22 41798730390	£35.33	£42.40
940 - SCREW FEI-43098705440.A0 43098705440	-
950 - ARMATURE 120V FEI-53298651010.A4 53298651010	£153.20	£183.84
960 - COVER FEI-30798651080.A6 30798651080	£9.34	£11.21
970 - PROTECTIVE GRILLE FEI-32498611020.A0 32498611020	£1.60	£1.92
980 - DISC FEI-42498726140.A6 42498726140	-
990 - SCREW FEI-43098706635.A5 43098706635	-
1050 - PUSHBUTTON FEI-30798755275.A7 30798755275	£8.29	£9.95
1060 - PUSHBUTTON FEI-30798755270.A13 30798755270	£8.29	£9.95
1070 - SWITCH FEI-30798755410.A13 30798755410	£33.88	£40.66
1100 - DISC FEI-42498720440.A19 42498720440	£1.60	£1.92
1110 - HEX NUT FEI-42001027045.A18 42001027045	£1.60	£1.92
1120 - CONNECTING CABLE FEI-30798591075.A0 30798591075	£17.32	£20.78
1130 - SWITCH MODULE FEI-30798591058.A13 30798591058	£58.83	£70.60
1140 - ELECTRONICS 60HZ120V FEI-30798550270.A1 30798550270	-
1150 - PROTECTIVE CAP FEI-32498520090.A4 32498520090	£3.95	£4.74
1170 - PLUG FEI-30798753140.A1 30798753140	-
1290 - SET SCREW FEI-43045024088.A4 43045024088	-
1300 - SCREW FEI-43098709000.A13 43098709000	£1.60	£1.92
1330 - PLUNGER FEI-33498220080.A0 33498220080	£38.43	£46.12
1340 - SEALING RING FEI-42498726040.A6 42498726040	£5.77	£6.92
1350 - DISC FEI-42498726060.A0 42498726060	£1.60	£1.92
1360 - CIRCLIP FEI-42698741190.A2 42698741190	£1.60	£1.92
1390 - PIN FEI-40298742020.A7 40298742020	-
1400 - FLANGE FEI-31998631120.A0 31998631120	£22.29	£26.75
1420 - SCREW FEI-43098705120.A11 43098705120	-
1440 - GUIDE FEI-31998631100.A5 31998631100	£82.61	£99.13
1450 - SCREW FEI-43098706050.A6 43098706050	-
1460 - SCREW FEI-43098706540.A7 43098706540	-
1470 - GEAR RACK FEI-33698680020.A6 33698680020	£40.58	£48.70
1480 - SCREW FEI-43098706580.A1 43098706580	-
1490 - CONNECTING CABLE FEI-30798591026.A0 30798591026	£38.95	£46.74
1495 - TERMINAL FEI-31412064000.A5 31412064000	-
1500 - RING FEI-40698763670.A0 40698763670	£2.43	£2.92
1505 - SHAFT FEI-33498222010.A2 33498222010	£109.58	£131.50
1510 - SPRING FEI-30998744040.A0 30998744040	£4.22	£5.07
1520 - DISTRIBUTOR FEI-33498220100.A2 33498220100	£64.85	£77.82
1530 - SEALING RING FEI-40608012001.A2 40608012001	£33.36	£40.03
1540 - DISC FEI-42498726670.A0 42498726670	£3.54	£4.25
1550 - RING FEI-42698740350.A0 42698740350	£1.60	£1.92
1560 - DISC FEI-42498720630.A5 42498720630	-
1570 - DISC FEI-42498720600.A8 42498720600	£1.60	£1.92
1580 - GUIDE FEI-31298332830.A2 31298332830	£14.02	£16.83
1590 - SCREW FEI-43098706480.A5 43098706480	-
1600 - HOLDER FEI-31598291030.A0 31598291030	£67.09	£80.51
1610 - SCREW FEI-43098705585.A5 43098705585	-
1620 - SCREW FEI-43098704300.A0 43098704300	-
1630 - DISC FEI-42498720540.A10 42498720540	-
1640 - SCREW FEI-43098705060.A5 43098705060	-
1650 - COVER FEI-31298335180.A1 31298335180	£5.05	£6.06
1660 - HOLDER FEI-30298210050.A2 30298210050	£11.65	£13.98
1670 - CONTAINER FEI-32198190200.A2 32198190200	£83.09	£99.71
1680 - COVER FEI-30798591140.A0 30798591140	£19.01	£22.81
1690 - HOLDER FEI-31298332580.A2 31298332580	£2.48	£2.97
1700 - HOUSING FEI-31298391090.A0 31298391090	-
1710 - HOLDER FEI-31498531500.A3 31498531500	£4.86	£5.83
1720 - HOSE FEI-31498760100.A1 31498760100	£4.65	£5.58
1730 - PROTECTIVE GRILLE FEI-63998611060.A3 63998611060	£41.76	£50.11
5000 - CASE FEI-33998140092.A4 33998140092	£114.39	£137.27
5010 - CENTERING PIN FEI-63134998310.A80 63134998310	£25.18	£30.21
5011 - CENTERING PIN FEI-63134998315.A0 63134998315	-
5020 - CENTERING PIN FEI-63134998300.A10 63134998300	£25.18	£30.21
5030 - WRENCH FEI-62998780030.A20 62998780030	£3.35	£4.02
5040 - BELT FEI-32198131000.A20 32198131000	£50.73	£60.88
5050 - SWARF HOOK FEI-64298160400.A17 64298160400	-
5060 - HANDLE FEI-32198114100.A6 32198114100	£10.71	£12.85
6000 - LUBRICANT TUBE 100G FEI-32198766050.A7 32198766050	-

Attribute Name	Value
Brand	Fein
