Fein KBB 30 / 72720124110 Spare Parts

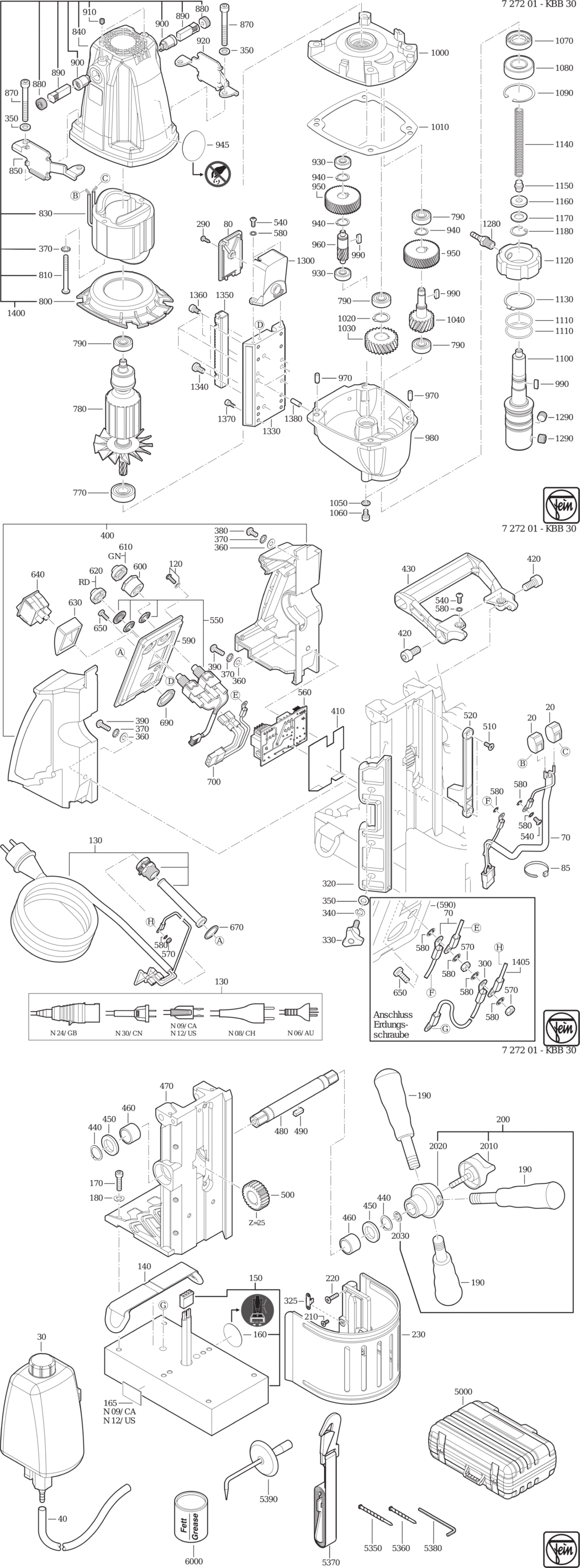

An exploded diagram and spare parts listing for the Fein KBB 30 / 72720124110

	Ex VAT	Inc VAT
20 - TERMINAL FEI-31412064000.A7 31412064000	-
30 - CONTAINER FEI-32198190010.A4 32198190010	£25.49	£30.59
40 - HOSE FEI-31498760060.A8 31498760060	-
70 - CABLE FEI-30798591120.A0 30798591120	£36.25	£43.50
80 - COVER FEI-31998630020.A5 31998630020	£1.60	£1.92
85 - CABLE TIE FEI-30798757100.A8 30798757100	£1.60	£1.92
120 - SCREW FEI-43098703230.A8 43098703230	-
130 - CABLE WITH PLUG GB FEI-30798592070.A4 30798592070	£90.57	£108.68
140 - BELT FEI-32198121000.A4 32198121000	£24.88	£29.85
150 - MAGNETIC FOOT 60HZ/120V FEI-33298493055.A0 33298493055	£383.58	£460.29
160 - STICKER FEI-32217407000.A8 32217407000	-
170 - SCREW FEI-43098706430.A1 43098706430	£1.60	£1.92
180 - DISC FEI-42498720670.A1 42498720670	-
190 - HANDLE FEI-32198114000.A12 32198114000	£18.38	£22.06
200 - CONNECTING PIECE FEI-31698391000.A2 31698391000	£44.05	£52.86
210 - SCREW FEI-43098704080.A1 43098704080	-
220 - SCREW FEI-43098704295.A1 43098704295	-
230 - PROTECTIVE GRILLE FEI-63998611020.A3 63998611020	-
290 - SCREW FEI-43098710070.A3 43098710070	-
300 - CONNECTING CABLE FEI-30798591095.A3 30798591095	£14.24	£17.09
320 - GUIDE FEI-31298332820.A2 31298332820	£13.75	£16.50
325 - STOP BUTTON FEI-31298331050.A1 31298331050	£2.70	£3.24
330 - ROTARY KNOB FEI-42498748230.A2 42498748230	£4.80	£5.76
340 - DISC FEI-42498727210.A5 42498727210	£1.60	£1.92
350 - DISC FEI-42498720600.A3 42498720600	£1.60	£1.92
360 - LOCK WASHER FEI-42498720500.A5 42498720500	-
370 - DISC FEI-42498720540.A6 42498720540	-
380 - SCREW FEI-43098705060.A2 43098705060	-
390 - SCREW FEI-43098705370.A10 43098705370	-
400 - HOUSING FEI-31298392600.A4 31298392600	-
410 - COVER FEI-30798510130.A9 30798510130	-
420 - SCREW FEI-43098708100.A13 43098708100	-
430 - HANDLE FEI-31298330020.A4 31298330020	£19.50	£23.40
440 - CIRCLIP FEI-42616023000.A14 42616023000	-
450 - DISC FEI-31698320055.A2 31698320055	-
460 - BUSH FEI-31698320040.A14 31698320040	£3.54	£4.25
470 - HOUSING FEI-31298335160.A1 31298335160	£211.85	£254.22
480 - SHAFT FEI-33298320040.A16 33298320040	£38.13	£45.76
490 - FEATHER KEY FEI-40298745000.A12 40298745000	-
500 - GEAR-WHEEL FEI-33698682000.A12 33698682000	£36.42	£43.70
510 - SCREW FEI-43098705055.A8 43098705055	-
520 - GUIDE FEI-31298332540.A1 31298332540	£3.19	£3.83
540 - SCREW FEI-43098704060.A17 43098704060	£1.60	£1.92
550 - SWITCH MODULE FEI-30798591058.A11 30798591058	£58.83	£70.60
560 - ELECTRONICS FEI-30798550098.A0 30798550098	£148.98	£178.77
570 - HEX NUT FEI-42001027045.A16 42001027045	£1.60	£1.92
580 - DISC FEI-42498720440.A23 42498720440	£1.60	£1.92
590 - PLATE FEI-30798591110.A3 30798591110	£30.00	£36.00
600 - PROTECTIVE CAP FEI-32498520090.A2 32498520090	£3.95	£4.74
610 - PUSHBUTTON FEI-30798755270.A16 30798755270	£8.29	£9.95
620 - PUSHBUTTON FEI-30798755275.A4 30798755275	£8.29	£9.95
630 - COVER FEI-31498531020.A4 31498531020	£5.54	£6.65
640 - SWITCH FEI-30798755410.A16 30798755410	£33.88	£40.66
650 - SCREW FEI-43098704330.A8 43098704330	£2.24	£2.69
670 - SEAL FEI-30610034008.A21 30610034008	£1.60	£1.92
690 - NUT FEI-30798757544.A5 30798757544	£3.04	£3.65
700 - CABLE FEI-30798591085.A6 30798591085	£30.90	£37.08
770 - GROOVED BALL BEARING FEI-41798730390.A26 41798730390	£35.33	£42.40
780 - ARMATURE SET 120V FEI-53298653020.A2 53298653020	£161.38	£193.66
790 - GROOVED BALL BEARING FEI-41798730200.A10 41798730200	£18.80	£22.56
800 - AIR GUIDE RING FEI-31998633060.A7 31998633060	£4.09	£4.91
810 - SCREW FEI-43098705600.A1 43098705600	-
830 - STATOR FEI-51298653020.A2 51298653020	£67.10	£80.52
840 - MOTOR HOUSING FEI-31998633010.A2 31998633010	-
850 - ADAPTER FEI-32498610180.A2 32498610180	£7.29	£8.75
870 - SCREW FEI-43098706660.A7 43098706660	-
880 - CAP FEI-30798653080.A5 30798653080	£1.60	£1.92
890 - CARBON BRUSH (SOLD SINGLY) FEI-30798653100.A4 30798653100	£6.23	£7.48
900 - BRUSH HOLDER FEI-30798653120.A5 30798653120	£9.67	£11.61
910 - SCREW FEI-43098705010.A11 43098705010	-
920 - ADAPTER FEI-32498610160.A7 32498610160	£7.37	£8.84
930 - GROOVED BALL BEARING FEI-41798730120.A6 41798730120	-
940 - RING FEI-42698740120.A10 42698740120	-
945 - STICKER FEI-32217406002.A87 32217406002	£1.60	£1.92
950 - GEAR-WHEEL FEI-33698681030.A11 33698681030	-
970 - PIN FEI-40298742003.A6 40298742003	-
980 - GEARBOX HOUSING FEI-31998633040.A1 31998633040	£64.03	£76.84
990 - FEATHER KEY FEI-40298745040.A14 40298745040	£3.12	£3.75
1000 - COVER FEI-31998633020.A5 31998633020	£50.82	£60.98
1010 - SEAL FEI-32498613000.A2 32498613000	£10.40	£12.48
1020 - RING FEI-42698740080.A4 42698740080	-
1030 - PINION FEI-33698681050.A7 33698681050	-
1040 - SHAFT TOOTHED FEI-33698681020.A5 33698681020	-
1050 - DISC FEI-42498720560.A4 42498720560	-
1060 - SCREW FEI-43098705040.A1 43098705040	-
1070 - SEALING RING FEI-40698763020.A9 40698763020	-
1080 - GROOVED BALL BEARING FEI-41798730450.A4 41798730450	-
1090 - RING FEI-42698741350.A13 42698741350	-
1100 - PRESSURE SPINDLE FEI-33498621020.A4 33498621020	£98.01	£117.61
1110 - RING FEI-40698763560.A5 40698763560	£3.70	£4.44
1120 - RING FEI-31998633080.A2 31998633080	£71.03	£85.24
1130 - RING FEI-42698740320.A1 42698740320	-
1140 - SPRING FEI-30998744240.A7 30998744240	£4.51	£5.41
1150 - PLUNGER FEI-33498223340.A3 33498223340	£3.52	£4.22
1160 - DISC FEI-42498726030.A1 42498726030	£1.60	£1.92
1170 - DISC FEI-42498726060.A4 42498726060	£1.60	£1.92
1180 - CIRCLIP FEI-42698741190.A7 42698741190	£1.60	£1.92
1280 - HOSE SOCKET FEI-31498761020.A4 31498761020	£7.27	£8.72
1290 - SCREW FEI-43098709000.A15 43098709000	£1.60	£1.92
1300 - COVER FEI-31998630010.A4 31998630010	£2.82	£3.38
1330 - GUIDE FEI-31998631130.A8 31998631130	£56.76	£68.11
1340 - SCREW FEI-43098706050.A1 43098706050	-
1350 - GEAR RACK FEI-33698680020.A3 33698680020	£40.58	£48.70
1360 - SCREW FEI-43098705220.A1 43098705220	-
1370 - SCREW FEI-43098704120.A3 43098704120	-
1380 - PIN FEI-40298742020.A11 40298742020	-
1400 - STATOR UNIT 120V FEI-52298690350.A3 52298690350	-
2010 - CLAMPING UNIT FEI-64298120140.A8 64298120140	-
2020 - CONNECTING PIECE FEI-31698321000.A17 31698321000	£39.75	£47.70
2030 - DISC FEI-42098746000.A10 42098746000	-
5000 - PLASTIC TOOL CASES FEI-33998140022.A1 33998140022	£120.72	£144.87
5350 - CENTERING PIN FEI-63134998310.A86 63134998310	£25.18	£30.21
5360 - CENTERING PIN FEI-63134998300.A8 63134998300	£25.18	£30.21
5370 - BELT FEI-32198131000.A16 32198131000	£50.73	£60.88
5380 - WRENCH FEI-62998780030.A23 62998780030	£3.35	£4.02
5390 - SWARF HOOK FEI-64298160400.A14 64298160400	-
6000 - LUBRICANT TUBE 100G FEI-32198766050.A12 32198766050	-
