Fein KBB 40 / 72720324110 Spare Parts

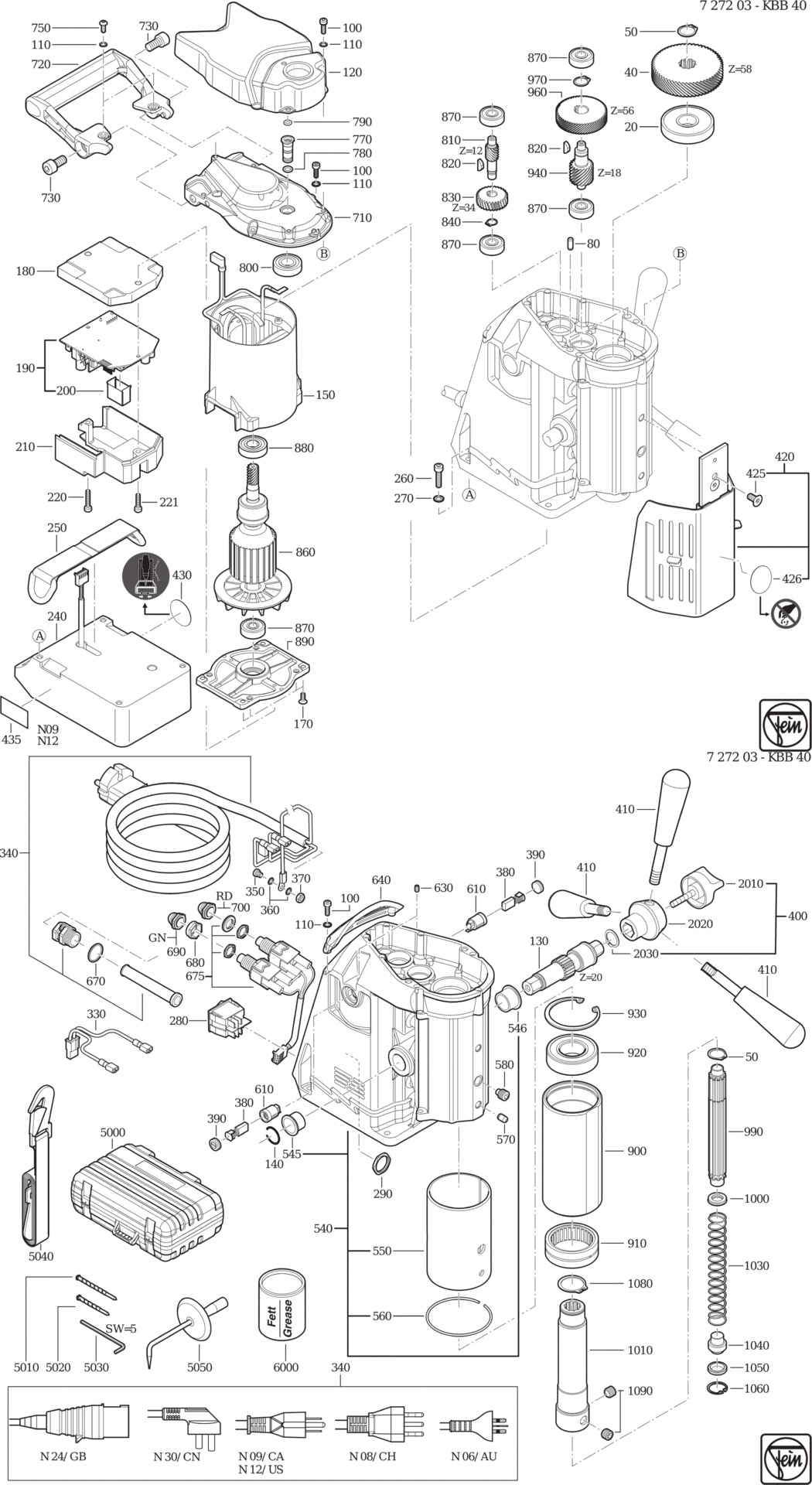

An exploded diagram and spare parts listing for the Fein KBB 40 / 72720324110

	Ex VAT	Inc VAT
20 - GROOVED BALL BEARING FEI-41798730450.A21 41798730450	-
40 - GEAR-WHEEL FEI-33698681200.A4 33698681200	-
50 - RING FEI-42698740160.A4 42698740160	£1.60	£1.92
80 - PIN FEI-40298742003.A20 40298742003	-
100 - SCREW FEI-43098704220.A6 43098704220	-
110 - DISC FEI-42498720440.A8 42498720440	£1.60	£1.92
120 - CONTAINER FEI-32198190030.A0 32198190030	£26.60	£31.92
130 - TOOTHED FEI-33298320110.A0 33298320110	-
140 - CIRCLIP FEI-42698740500.A1 42698740500	£3.44	£4.13
150 - STATOR 120V FEI-52298694180.A1 52298694180	£186.28	£223.54
170 - SCREW FEI-43098704100.A1 43098704100	£1.60	£1.92
180 - COVER FEI-31498535000.A1 31498535000	-
190 - ELECTRONICS 120V FEI-30798550060.A2 30798550060	£136.70	£164.04
200 - PROTECTIVE CAP FEI-30798550120.A1 30798550120	£1.60	£1.92
210 - HOUSING FEI-31498535010.A1 31498535010	-
220 - SCREW FEI-43098704340.A0 43098704340	-
240 - MAGNETIC FOOT 60HZ/120V FEI-33298493035.A0 33298493035	£422.23	£506.68
250 - BELT FEI-32198121000.A16 32198121000	£24.88	£29.85
260 - CYLINDER HEAD SCREW FEI-43035017057.A80 43035017057	£1.60	£1.92
270 - DISC FEI-42498720540.A13 42498720540	-
280 - SWITCH FEI-30798755410.A3 30798755410	£33.88	£40.66
290 - NUT FEI-30798757544.A22 30798757544	£3.04	£3.65
330 - CONNECTING CABLE FEI-30798592760.A0 30798592760	£15.93	£19.12
340 - CABLE WITH PLUG GB FEI-30798592070.A1 30798592070	£90.57	£108.68
350 - SCREW FEI-43098703100.A2 43098703100	-
360 - DISC FEI-42498720350.A1 42498720350	-
370 - NUT FEI-42098746010.A1 42098746010	-
380 - CARBON BRUSH (SOLD SINGLY) FEI-30798651120.A3 30798651120	£18.09	£21.71
390 - CAP FEI-30798651160.A3 30798651160	£6.30	£7.56
400 - CONNECTING PIECE FEI-31698391000.A12 31698391000	£44.05	£52.86
410 - HANDLE FEI-32198114000.A3 32198114000	£18.38	£22.06
420 - PROTECTING LATTICE FEI-63998611030.A2 63998611030	£45.50	£54.60
430 - STICKER FEI-32217407000.A26 32217407000	-
540 - HOUSING FEI-31298392411.A0 31298392411	-
545 - BUSH FEI-41798733100.A1 41798733100	£9.00	£10.80
546 - BUSH FEI-41798733200.A5 41798733200	£10.71	£12.85
550 - SLEEVE FEI-31598231500.A5 31598231500	£92.47	£110.96
560 - CIRCLIP FEI-42698740620.A3 42698740620	-
580 - SCREW FEI-43098709020.A1 43098709020	£6.75	£8.10
610 - BRUSH HOLDER FEI-30798651140.A3 30798651140	£13.02	£15.62
630 - SCREW FEI-43098705010.A0 43098705010	-
640 - COVER FEI-32498611030.A1 32498611030	£8.68	£10.42
670 - SEAL FEI-30610034008.A3 30610034008	£1.60	£1.92
675 - SWITCH FEI-30798591068.A1 30798591068	£54.78	£65.74
680 - PROTECTIVE CAP FEI-32498520090.A19 32498520090	£3.95	£4.74
690 - PUSHBUTTON FEI-30798755270.A3 30798755270	£8.29	£9.95
700 - PUSHBUTTON FEI-30798755275.A17 30798755275	£8.29	£9.95
710 - COVER FEI-31342621182.A1 31342621182	£122.42	£146.90
720 - HANDLE FEI-31298330020.A19 31298330020	£19.50	£23.40
730 - SCREW FEI-43098708100.A5 43098708100	-
750 - SCREW FEI-43098704060.A5 43098704060	£1.60	£1.92
770 - CONNECTING PIECE FEI-31498761060.A1 31498761060	£23.08	£27.69
780 - RING FEI-40698763680.A3 40698763680	£1.60	£1.92
790 - RING FEI-40698763660.A2 40698763660	-
800 - GROOVED BALL BEARING FEI-41798730390.A3 41798730390	£35.33	£42.40
810 - PINION FEI-33698681260.A4 33698681260	-
820 - FEATHER KEY FEI-40298745840.A4 40298745840	-
830 - GEAR-WHEEL FEI-33698681280.A2 33698681280	-
840 - CIRCLIP FEI-42698740090.A5 42698740090	-
860 - ARMATURE 120V FEI-53298651030.A1 53298651030	£230.55	£276.66
870 - GROOVED BALL BEARING FEI-41798730240.A5 41798730240	£21.99	£26.39
880 - GROOVED BALL BEARING FEI-41798730390.A2 41798730390	£35.33	£42.40
890 - BEARING PLATE FEI-33298333030.A2 33298333030	£18.79	£22.55
900 - SLEEVE FEI-33498223000.A3 33498223000	£162.45	£194.94
910 - NEEDLE BEARING FEI-41798730630.A5 41798730630	£38.89	£46.67
920 - GROOVED BALL BEARING FEI-41798730570.A1 41798730570	£27.41	£32.89
930 - CIRCLIP FEI-42698741520.A3 42698741520	-
940 - PINION FEI-33698681220.A4 33698681220	-
960 - GEAR-WHEEL FEI-33698681240.A2 33698681240	-
970 - CIRCLIP FEI-42698740130.A2 42698740130	-
990 - SHAFT FEI-33498223040.A4 33498223040	£129.02	£154.82
1000 - SEAL FEI-40698763080.A3 40698763080	£19.49	£23.39
1010 - SHAFT FEI-33498223020.A2 33498223020	£164.13	£196.96
1030 - SPRING FEI-30998744020.A4 30998744020	£6.68	£8.01
1040 - PLUNGER FEI-33498223060.A2 33498223060	£4.38	£5.26
1050 - SEAL FEI-40698763100.A3 40698763100	£17.50	£21.00
1060 - CIRCLIP FEI-42698741190.A13 42698741190	£1.60	£1.92
1080 - CIRCLIP FEI-42698740250.A1 42698740250	£1.60	£1.92
1090 - SCREW FEI-43098709000.A25 43098709000	£1.60	£1.92
5000 - TOOL CASE FEI-33998140062.A2 33998140062	-
5010 - CENTERING PIN FEI-63134998310.A0 63134998310	£25.18	£30.21
5011 - CENTERING PIN FEI-63134998315.A4 63134998315	-
5020 - CENTERING PIN FEI-63134998300.A4 63134998300	£25.18	£30.21
5021 - CENTERING PIN FEI-63134998305.A2 63134998305	-
5030 - WRENCH FEI-62998780030.A3 62998780030	£3.35	£4.02
5040 - BELT FEI-32198131000.A3 32198131000	£50.73	£60.88
5050 - SWARF HOOK FEI-64298160400.A5 64298160400	-
6000 - LUBRICANT CAN 0.400KG FEI-32198766040.A4 32198766040	-
9000 - OPERATING INSTRUCTIONS FEI-34198142790.A0 34198142790	-
