Fein KBM 80 auto (50/60Hz 220/230V) / 72703200230 Spare Parts

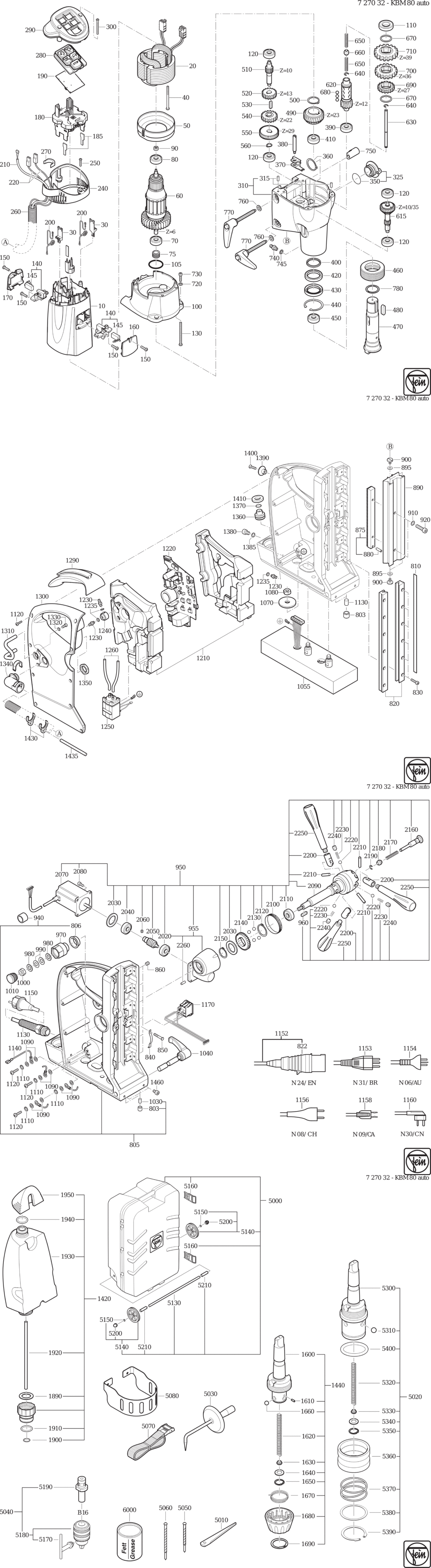

An exploded diagram and spare parts listing for the Fein KBM 80 auto (50/60Hz 220/230V) / 72703200230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903216000.A1 31903216000	-
20 - STATOR 50HZ230V FEI-51275002232.A6 51275002232	-
30 - BASE PLATE FEI-31428144005.A12 31428144005	£1.60	£1.92
40 - SCREW FEI-43072011008.A16 43072011008	-
50 - AIR GUIDE RING FEI-31428141000.A10 31428141000	£5.95	£7.14
60 - ARMATURE Z=6 FEI-53275004230.A0 53275004230	-
70 - GROOVED BALL BEARING FEI-41701213220.A4 41701213220	£10.67	£12.80
75 - SEALING RING FEI-32612128000.A5 32612128000	-
80 - GROOVED BALL BEARING FEI-41701210230.A1 41701210230	£13.94	£16.73
90 - RING MAGNET FEI-32172011004.A29 32172011004	£10.15	£12.18
100 - INTERMEDIATE GEAR BOX FEI-31506373000.A2 31506373000	-
105 - SEALING RING FEI-40612128007.A15 40612128007	£1.60	£1.92
110 - GROOVED BALL BEARING FEI-41701222016.A8 41701222016	-
120 - GROOVED BALL BEARING FEI-41701004015.A23 41701004015	£6.83	£8.20
130 - SCREW FEI-43072001009.A12 43072001009	-
140 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A12 30712090019	£23.51	£28.21
145 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A9 30711137006	£14.48	£17.37
150 - SCREW FEI-43070027000.A11 43070027000	-
160 - COVER FEI-32427118006.A13 32427118006	£4.37	£5.24
170 - COVER FEI-32427117008.A9 32427117008	£4.37	£5.24
180 - ELECTRONICS 110V-230V 50/60HZ FEI-30762396990.A1 30762396990	£456.29	£547.55
185 - PRESSURE PIECE FEI-31415104000.A2 31415104000	-
190 - ELECTRONICS FEI-30762366990.A3 30762366990	£70.90	£85.08
200 - CHOKE FEI-30764128009.A1 30764128009	-
210 - CONNECTING CABLE FEI-30719662010.A4 30719662010	-
220 - CONNECTING CABLE FEI-30719667010.A2 30719667010	-
240 - HOUSING FEI-31207264000.A5 31207264000	-
250 - SCREW FEI-43070031003.A69 43070031003	£1.60	£1.92
260 - PROTECTIVE HOSE FEI-31414063000.A3 31414063000	-
270 - TERMINAL FEI-30240275000.A2 30240275000	-
280 - SWITCH INSERT FEI-32816067000.A2 32816067000	-
290 - COVER FEI-32429133000.A3 32429133000	-
300 - SCREW FEI-43070012008.A0 43070012008	£1.60	£1.92
310 - GEARBOX HOUSING FEI-31508258000.A3 31508258000	-
315 - STRAIGHT PIN FEI-40201034009.A3 40201034009	-
325 - SWITCH PUSHBUTTON FEI-32805208010.A1 32805208010	-
350 - SEALING RING FEI-40612168000.A1 40612168000	-
360 - CIRCLIP FEI-42616015003.A44 42616015003	£1.60	£1.92
370 - LINK FEI-32714090000.A3 32714090000	-
380 - SET SCREW FEI-30217349000.A2 30217349000	-
390 - GROOVED BALL BEARING FEI-41701010010.A71 41701010010	£8.58	£10.30
400 - SEALING RING FEI-40608078000.A4 40608078000	-
410 - GROOVED BALL BEARING FEI-41701113059.A2 41701113059	-
420 - SEALING RING FEI-40608074000.A4 40608074000	-
430 - SEALING RING FEI-40608026009.A8 40608026009	-
440 - CIRCLIP FEI-42616004000.A16 42616004000	£2.37	£2.84
450 - GROOVED BALL BEARING FEI-41701116050.A1 41701116050	-
460 - NUT FEI-42015068000.A4 42015068000	-
470 - SHAFT FEI-33402054000.A1 33402054000	-
480 - FEATHER KEY FEI-40222011002.A5 40222011002	-
490 - GEAR-WHEEL Z=23 FEI-33669026000.A3 33669026000	£44.86	£53.83
500 - CIRCLIP 28X1 5 FEI-42616076000.A38 42616076000	-
510 - SHAFT Z=10 FEI-33717038000.A5 33717038000	-
520 - GEAR-WHEEL Z=13 FEI-33617061000.A2 33617061000	-
530 - FEATHER KEY FEI-40221067009.A33 40221067009	£5.66	£6.79
540 - GEAR-WHEEL Z=22 FEI-33617060000.A3 33617060000	-
550 - GEAR-WHEEL Z=29 FEI-33665056000.A3 33665056000	-
560 - CIRCLIP FEI-42616006007.A1 42616006007	£1.60	£1.92
615 - SHAFT TOOTHED Z=10/35 FEI-33765020010.A3 33765020010	£188.18	£225.81
620 - SHAFT TOOTHED Z=12 FEI-33769002000.A2 33769002000	-
630 - SELECTOR SHAFT FEI-30217348000.A3 30217348000	-
640 - CIRCLIP FEI-42634022000.A10 42634022000	£1.60	£1.92
650 - SPIRAL SPRING FEI-30901374000.A3 30901374000	-
660 - SLEEVE FEI-30220062000.A7 30220062000	-
670 - CIRCLIP FEI-42643016008.A17 42643016008	£2.59	£3.11
680 - BALL FEI-41708025004.A5 41708025004	£1.60	£1.92
690 - GEAR-WHEEL Z=27 FEI-33617057000.A2 33617057000	-
700 - GEAR-WHEEL Z=36 FEI-33617058000.A3 33617058000	-
710 - GEAR-WHEEL Z=39 FEI-33617059000.A2 33617059000	-
720 - CIRCLIP M5 FEI-42443004057.A203 42443004057	£1.60	£1.92
730 - CYLINDER HEAD SCREW FEI-43035016053.A8 43035016053	-
740 - HOSE SOCKET FEI-41138025006.A86 41138025006	£8.40	£10.08
745 - SEALING RING FEI-40611012000.A4 40611012000	-
750 - BOLT FEI-30217347001.A2 30217347001	£48.72	£58.46
760 - DISC FEI-42401019085.A71 42401019085	£1.60	£1.92
770 - LEVER FEI-32170019000.A3 32170019000	-
780 - SEALING RING FEI-40608079000.A1 40608079000	-
803 - BUSH FEI-30507226001.A6 30507226001	£23.12	£27.74
805 - HOUSING FEI-31207266010.A0 31207266010	-
806 - BUSH FEI-31602089009.A69 31602089009	-
810 - PRESSURE PIECE FEI-33216054000.A0 33216054000	-
820 - GUIDE STRIP FEI-33218126000.A1 33218126000	-
830 - CYLINDER HEAD SCREW FEI-43035076041.A39 43035076041	£1.60	£1.92
840 - LEAF SPRING FEI-30904041001.A19 30904041001	£5.78	£6.94
850 - FILLISTER HEAD SCREW FEI-43041026994.A53 43041026994	-
860 - SET SCREW FEI-43058005056.A4 43058005056	-
875 - GEAR RACK FEI-33812008010.A1 33812008010	-
880 - CLAMPING SLEEVE FEI-40238051004.A10 40238051004	-
890 - GUIDE FEI-33218112007.A9 33218112007	£101.26	£121.51
895 - DISC FEI-42402017040.A6 42402017040	-
900 - CYLINDER HEAD SCREW FEI-43035006048.A3 43035006048	-
910 - CIRCLIP M6 FEI-42443005064.A42 42443005064	£1.60	£1.92
920 - CYLINDER HEAD SCREW FEI-43058021068.A2 43058021068	-
940 - BUSH FEI-31601178000.A1 31601178000	-
950 - GEARBOX FEI-31207265010.A0 31207265010	-
955 - HOUSING FEI-31207265020.A2 31207265020	-
960 - FEATHER KEY FEI-40221032009.A4 40221032009	-
970 - CLUTCH PART FEI-33412042000.A2 33412042000	-
980 - DISC FEI-42401019085.A70 42401019085	£1.60	£1.92
990 - CUP SPRING FEI-30905055000.A21 30905055000	-
1000 - HEX NUT FEI-42001009080.A15 42001009080	£1.60	£1.92
1010 - PLUG FEI-31420123000.A5 31420123000	-
1030 - ROLLER FEI-41709041004.A7 41709041004	-
1040 - LEVER FEI-32170020000.A4 32170020000	-
1055 - MAGNETIC FOOT FEI-33216052010.A5 33216052010	-
1070 - DISC FEI-32408419000.A8 32408419000	-
1080 - HEX NUT FEI-42001010103.A1 42001010103	-
1090 - DISC FEI-42404005048.A44 42404005048	£1.60	£1.92
1110 - LOCK WASHER FEI-42439013046.A105 42439013046	£1.60	£1.92
1120 - FILLISTER HEAD SCREW FEI-43064024043.A97 43064024043	-
1130 - CABLE GROMMET FEI-31413230000.A3 31413230000	-
1140 - CONNECTING CABLE FEI-30719688010.A3 30719688010	-
1150 - CABLE WITH PLUG FEI-30707423010.A11 30707423010	-
1170 - SWITCH FEI-30701282010.A5 30701282010	-
1210 - EPP INSERT FEI-33904412000.A0 33904412000	-
1220 - ELECTRONICS FEI-30762398990.A2 30762398990	£749.13	£898.96
1230 - HOSE SOCKET FEI-41138025006.A87 41138025006	£8.40	£10.08
1235 - SEALING RING FEI-40611012000.A5 40611012000	-
1240 - VALVE FEI-32716027010.A4 32716027010	-
1250 - PUMP FEI-92601024010.A3 92601024010	-
1260 - HOSE FEI-31414067000.A2 31414067000	-
1290 - HANDLE FEI-32119120000.A1 32119120000	-
1300 - COVER FEI-32429134000.A2 32429134000	-
1310 - CLAMP FEI-33216055000.A5 33216055000	-
1320 - CIRCLIP M5 FEI-42443004057.A204 42443004057	£1.60	£1.92
1330 - CYLINDER HEAD SCREW FEI-43033009052.A7 43033009052	£1.60	£1.92
1340 - SCREW CONNECTION FEI-30723054002.A14 30723054002	£36.50	£43.80
1350 - NUT FEI-30723055006.A3 30723055006	-
1360 - BOLT FEI-30217354000.A3 30217354000	-
1370 - SEALING RING FEI-40612146003.A8 40612146003	-
1380 - CYLINDER HEAD SCREW FEI-43035119083.A5 43035119083	-
1385 - SEALING RING FEI-40611013000.A2 40611013000	-
1390 - BOLT FEI-30240276000.A5 30240276000	-
1400 - COUNTERSUNK SCREW FEI-43059015056.A4 43059015056	-
1410 - FILTER FEI-32901048000.A4 32901048000	-
1420 - CONTAINER FEI-32132030010.A0 32132030010	-
1430 - HOLDER FEI-33206050000.A0 33206050000	-
1435 - HOSE FEI-31414066000.A3 31414066000	-
1440 - QUICKIN OUTPUT FEI-63901039020.A4 63901039020	£242.55	£291.06
1460 - CYLINDER HEAD SCREW FEI-43035013058.A18 43035013058	£1.60	£1.92
1600 - SHAFT FEI-33401091000.A4 33401091000	-
1610 - CLAMPING SLEEVE FEI-40238065002.A19 40238065002	£1.60	£1.92
1620 - SPIRAL SPRING FEI-30901341000.A40 30901341000	£5.99	£7.19
1630 - SEALING RING FEI-30503145006.A46 30503145006	£3.52	£4.23
1640 - DISC FEI-32408389000.A24 32408389000	£1.60	£1.92
1650 - CIRCLIP FEI-42616075007.A11 42616075007	-
1660 - BALL FEI-41708025004.A4 41708025004	£1.60	£1.92
1670 - SPIRAL SPRING FEI-30907063003.A5 30907063003	£6.76	£8.11
1680 - CLAMPING SLEEVE FEI-30232045005.A15 30232045005	£37.81	£45.37
1690 - CIRCLIP FEI-42643009005.A4 42643009005	£3.40	£4.08
1890 - SEAL FEI-30605119005.A1 30605119005	-
1900 - SEALING RING FEI-40612025003.A2 40612025003	-
1910 - SEALING RING FEI-40612038007.A6 40612038007	£10.08	£12.10
1920 - HOSE FEI-31414065000.A2 31414065000	-
1930 - CONTAINER FEI-32132030000.A5 32132030000	-
1940 - SEALING RING FEI-40612169000.A5 40612169000	-
1950 - CAP FEI-31420122000.A1 31420122000	-
2020 - GROOVED BALL BEARING FEI-41701001032.A48 41701001032	£10.89	£13.07
2030 - DISC FEI-32408418000.A0 32408418000	-
2040 - GROOVED BALL BEARING FEI-41701010054.A137 41701010054	£8.25	£9.90
2050 - WORM FEI-33806009000.A5 33806009000	-
2060 - SET SCREW FEI-43045028046.A3 43045028046	£1.60	£1.92
2070 - MOTOR FEI-54199025930.A5 54199025930	-
2080 - CYLINDER HEAD SCREW FEI-43035005045.A14 43035005045	-
2090 - SHAFT Z=12 FEI-33717039000.A0 33717039000	-
2100 - SCALE FEI-33213009000.A2 33213009000	-
2110 - GROOVED BALL BEARING FEI-41701025051.A0 41701025051	£34.83	£41.80
2120 - CIRCLIP FEI-42616015003.A42 42616015003	£1.60	£1.92
2130 - BALL FEI-41708025004.A3 41708025004	£1.60	£1.92
2140 - WORM FEI-33807014000.A2 33807014000	-
2150 - CIRCLIP FEI-42616014009.A7 42616014009	£1.60	£1.92
2160 - SELECTOR SHAFT FEI-30217351000.A1 30217351000	-
2170 - SPIRAL SPRING FEI-30901378000.A5 30901378000	-
2180 - SLEEVE FEI-30220062000.A6 30220062000	-
2190 - CIRCLIP FEI-42634022000.A11 42634022000	£1.60	£1.92
2200 - LOCKING BAR FEI-30217352000.A2 30217352000	-
2210 - PIN FEI-40242041001.A0 40242041001	-
2220 - BALL FEI-41708018000.A49 41708018000	£1.60	£1.92
2230 - SPIRAL SPRING FEI-30901155006.A5 30901155006	£1.60	£1.92
2240 - SET SCREW FEI-43045039068.A4 43045039068	-
2250 - HANDLE FEI-32119114014.A47 32119114014	£19.35	£23.22
2260 - PIN FEI-40242006007.A21 40242006007	-
5000 - TOOL BOX ASS. FEI-33901155020.A1 33901155020	£285.72	£342.87
5010 - DRIFT KEYS FEI-63305003003.A39 63305003003	£10.56	£12.67
5020 - QUICKIN MAX OUTPUT FEI-63901038020.A3 63901038020	£355.38	£426.46
5030 - HOOK F. CHIP REMOVAL FEI-64201001000.A16 64201001000	£61.87	£74.24
5040 - KEY-TYPE DRILL CHUCK WITH QUICKIN HOLDER FEI-63901023020.A3 63901023020	£106.82	£128.19
5050 - CENTERING PIN FEI-63134998310.A17 63134998310	£25.18	£30.21
5060 - CENTERING PIN FEI-63134998330.A6 63134998330	£25.68	£30.81
5070 - STRAP SAFETY FEI-32174008007.A73 32174008007	£33.23	£39.88
5080 - PROTECTIVE GRILLE FEI-31810259000.A2 31810259000	-
5130 - ROD FEI-33413064000.A2 33413064000	-
5140 - WHEEL SET FEI-32103043010.A0 32103043010	-
5160 - WIRE CLAMP FEI-30232050000.A13 30232050000	£10.78	£12.94
5170 - CHUCK KEY FEI-62914004007.A5 62914004007	£8.38	£10.05
5180 - KEY-TYPE DRILL CHUCKS FEI-63202037010.A0 63202037010	£97.35	£116.82
5190 - QUICKIN-ADAPTOR FEI-63901023002.A3 63901023002	£36.00	£43.20
5200 - DISC FEI-30240319000.A3 30240319000	-
5300 - SHAFT QUICK-IN MK3 FEI-33401092000.A1 33401092000	-
5310 - BALL FEI-41708025004.A6 41708025004	£1.60	£1.92
5320 - SPIRAL SPRING FEI-30901341000.A41 30901341000	£5.99	£7.19
5330 - SEALING RING FEI-30503145006.A45 30503145006	£3.52	£4.23
5340 - DISC FEI-32408389000.A23 32408389000	£1.60	£1.92
5350 - CIRCLIP FEI-42616075007.A12 42616075007	-
5360 - SLEEVE FEI-30503162000.A4 30503162000	-
5370 - SPIRAL SPRING FEI-30901385000.A2 30901385000	-
5380 - DISC FEI-32408439000.A1 32408439000	-
5390 - CIRCLIP FEI-42643018000.A2 42643018000	-
5400 - SEALING RING FEI-40608080000.A4 40608080000	-
6000 - LUBRICANT CAN 0.850KG FEI-32132007189.A6 32132007189	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A333 34130054061	-

Attribute Name	Value
Brand	Fein

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Fein KBM 80 auto (50/60Hz 220/230V) / 72703200230 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Fein KBM 80 auto (50/60Hz 220/230V) / 72703200230 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
