Fein MShy 869-1b (200Hz 72V) / 78243600120 Spare Parts

Fein MShy 869-1b 𨈀Hz 72V) / 78243600120 Spare Parts

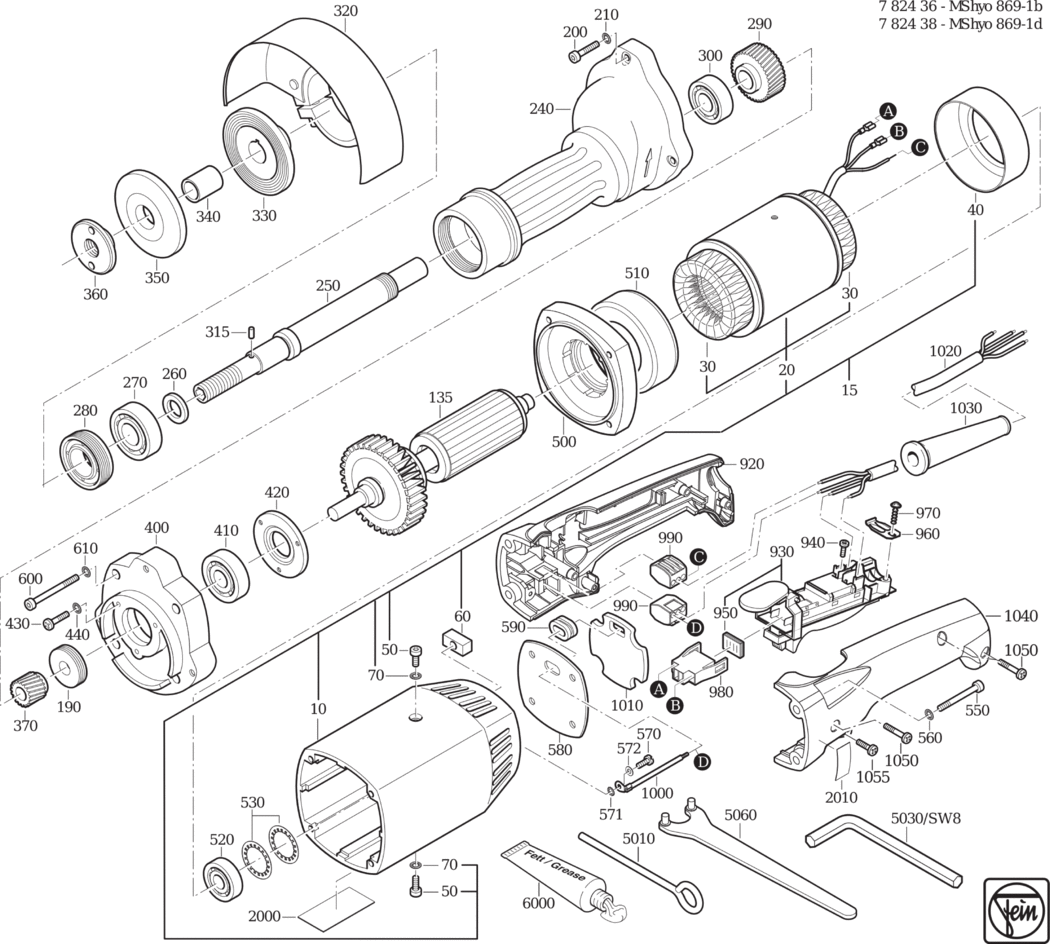

An exploded diagram and spare parts listing for the Fein MShy 869-1b (200Hz 72V) / 78243600120

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903141002.A13 31903141002	£235.29	£282.35
15 - MOTOR HOUSING WITH STAT FEI-52819004360.A0 52819004360	-
20 - STATOR FEI-51819004360.A2 51819004360	-
30 - RING FEI-31419034005.A8 31419034005	£6.58	£7.90
40 - SLEEVE FEI-30517009003.A6 30517009003	£39.08	£46.89
50 - CYLINDER HEAD SCREW FEI-43033008058.A11 43033008058	£1.60	£1.92
60 - PLUG FEI-31415032009.A23 31415032009	£6.34	£7.61
70 - CIRCLIP M5 FEI-42443004057.A412 42443004057	£1.60	£1.92
135 - ROTOR FEI-33502045016.A3 33502045016	£401.58	£481.89
190 - SEALING RING FEI-32612093002.A0 32612093002	£32.37	£38.84
200 - CYLINDER HEAD SCREW FEI-43035034067.A0 43035034067	£1.60	£1.92
210 - CIRCLIP M6 FEI-42443005064.A2 42443005064	£1.60	£1.92
240 - COLLAR BEARING FEI-31510062003.A3 31510062003	£519.99	£623.99
250 - SHAFT FEI-33406182001.A3 33406182001	£157.33	£188.80
260 - DISC FEI-32408290006.A0 32408290006	£33.31	£39.97
270 - GROOVED BALL BEARING FEI-41701228017.A0 41701228017	£16.65	£19.98
280 - THREAD RING FEI-32618050002.A0 32618050002	£55.36	£66.43
290 - GEAR-WHEEL FEI-33663122003.A2 33663122003	-
300 - GROOVED BALL BEARING FEI-41701222038.A0 41701222038	£22.46	£26.95
315 - PIN FEI-40253008004.A3 40253008004	£1.60	£1.92
320 - SAFETY HOOD FEI-31810184009.A3 31810184009	£281.12	£337.35
330 - GRINDING DISC FLANGE FEI-63801145002.A3 63801145002	-
340 - SLEEVE FEI-30501283001.A6 30501283001	£15.22	£18.26
350 - GRINDING DISC FLANGE FEI-63802145006.A6 63802145006	-
360 - THREAD RING FEI-32009066000.A6 32009066000	£59.62	£71.55
370 - GEAR-WHEEL FEI-33663123007.A0 33663123007	£241.59	£289.91
400 - INTERMEDIATE GEAR BOX FEI-31506250005.A0 31506250005	£222.68	£267.21
410 - GROOVED BALL BEARING FEI-41701222022.A10 41701222022	£13.42	£16.11
420 - PLATE FEI-32416080003.A3 32416080003	£44.32	£53.18
430 - FILLISTER HEAD SCREW FEI-43041013047.A17 43041013047	£1.60	£1.92
440 - CIRCLIP M4 FEI-42443003043.A30 42443003043	£1.60	£1.92
500 - AIR GUIDE RING FEI-32602063006.A8 32602063006	£73.83	£88.60
510 - SLEEVE FEI-30517010005.A12 30517010005	£40.32	£48.38
520 - GROOVED BALL BEARING FEI-41701010026.A20 41701010026	£8.93	£10.72
530 - CUP SPRING FEI-30905035002.A0 30905035002	£1.60	£1.92
550 - CYLINDER HEAD SCREW FEI-43035020051.A30 43035020051	£1.60	£1.92
560 - CIRCLIP M5 FEI-42443004057.A411 42443004057	£1.60	£1.92
570 - FLAT HEADED SCREW FEI-43003029048.A44 43003029048	-
571 - LOCK WASHER FEI-42439013046.A69 42439013046	£1.60	£1.92
572 - DISC FEI-42404005048.A133 42404005048	£1.60	£1.92
580 - INSULATION BOARD FEI-31408056000.A0 31408056000	£7.32	£8.79
590 - INSULATING RING FEI-31406033009.A26 31406033009	£2.86	£3.43
600 - CYLINDER HEAD SCREW FEI-43033018057.A12 43033018057	£1.60	£1.92
610 - CIRCLIP M5 FEI-42443004057.A415 42443004057	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A58 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A36 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A49 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A32 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-31324122000.A5 31324122000	£6.93	£8.32
970 - SCREW FEI-43070035002.A37 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A34 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A105 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A10 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A12 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706336010.A4 30706336010	-
1030 - CABLE GROMMET FEI-31413095001.A0 31413095001	£3.11	£3.73
1040 - HANDLE HALF SHELL FEI-31204180000.A38 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A111 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A60 43070038007	£1.60	£1.92
5030 - ALLEN KEY SW8 FEI-62907030008.A2 62907030008	£7.02	£8.42
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A178 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A75 32160003135	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A529 34130054061	-
