Fein MSho 852-1 (300Hz 72V) / 78244200220 Spare Parts

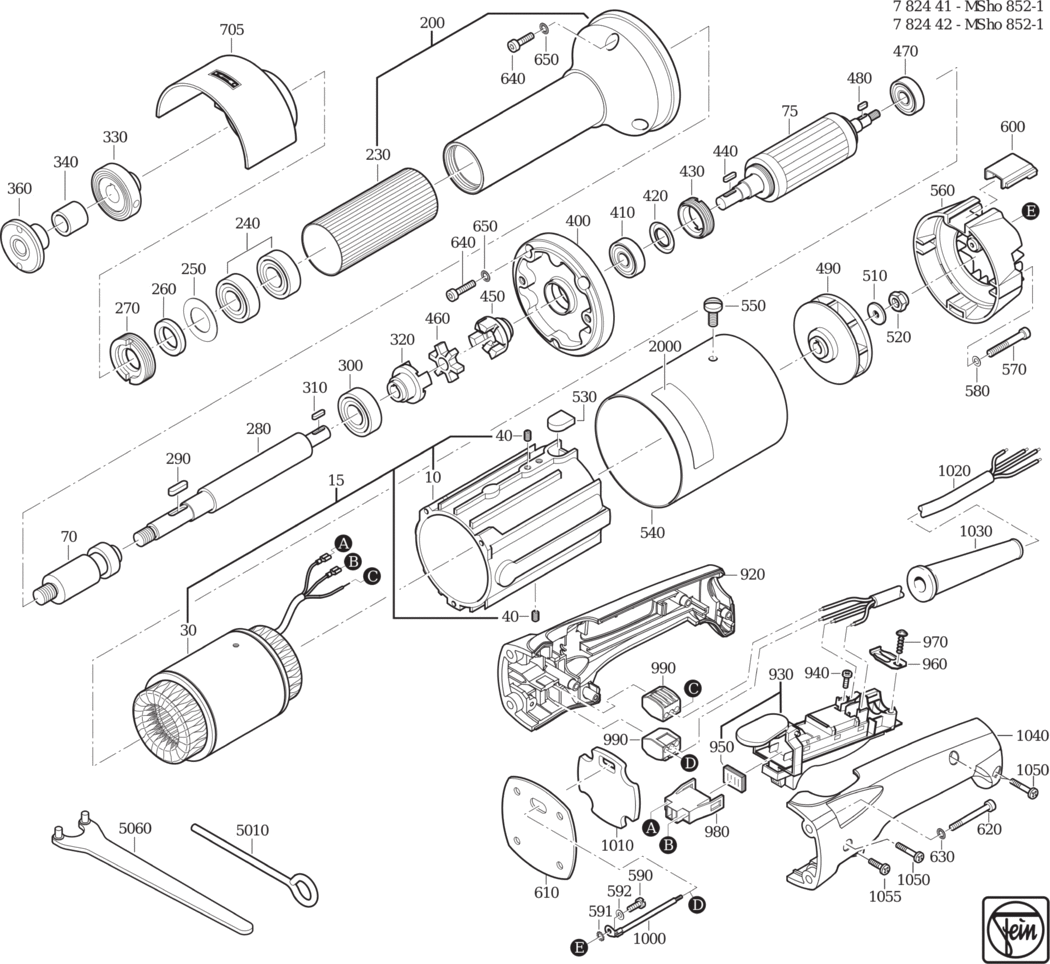

An exploded diagram and spare parts listing for the Fein MSho 852-1 (300Hz 72V) / 78244200220

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A26 31903098002	£182.78	£219.33
15 - MOTOR HOUSING WITH STAT FEI-52810006370.A0 52810006370	-
30 - STATOR FEI-51810006370.A1 51810006370	-
40 - SET SCREW M5X10 FEI-43011005051.A15 43011005051	-
75 - ROTOR FEI-33502039016.A2 33502039016	£222.96	£267.55
200 - COLLAR BEARING FEI-31510038007.A3 31510038007	£345.19	£414.23
230 - PROTECTIVE HOSE FEI-31413118003.A6 31413118003	£4.65	£5.58
240 - GROOVED BALL BEARING FEI-41717002002.A15 41717002002	£85.76	£102.91
250 - DISC FEI-32411053004.A9 32411053004	£7.11	£8.53
260 - FELT RING FEI-30601056003.A14 30601056003	£1.60	£1.92
270 - SEALING RING FEI-32613034007.A3 32613034007	£35.06	£42.07
280 - SHAFT FEI-33406095007.A4 33406095007	£86.84	£104.21
290 - FEATHER KEY FEI-40223027008.A0 40223027008	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701212092.A4 41701212092	£20.05	£24.06
310 - FEATHER KEY FEI-40223021002.A2 40223021002	£1.60	£1.92
320 - CLUTCH PART FEI-30102072001.A59 30102072001	£57.78	£69.34
330 - GRINDING WHEEL FEI-63801097005.A0 63801097005	£51.59	£61.91
340 - SLEEVE FEI-30501174004.A2 30501174004	£18.16	£21.79
360 - GRINDING WHEEL FEI-63802106003.A2 63802106003	£36.76	£44.11
400 - INTERMEDIATE GEAR BOX FEI-31506164002.A12 31506164002	£117.74	£141.29
410 - GROOVED BALL BEARING FEI-41701010026.A11 41701010026	£8.93	£10.72
420 - SEALING RING FEI-42639003008.A10 42639003008	£5.02	£6.03
430 - THREAD RING FEI-32618035002.A0 32618035002	£40.93	£49.12
440 - FEATHER KEY FEI-40221005008.A23 40221005008	£1.60	£1.92
450 - CLUTCH PART FEI-30102072001.A58 30102072001	£57.78	£69.34
460 - CLUTCH PART FEI-30102071008.A0 30102071008	£12.11	£14.53
470 - GROOVED BALL BEARING FEI-41701007038.A40 41701007038	£10.17	£12.20
480 - FEATHER KEY FEI-40221003006.A0 40221003006	£1.60	£1.92
490 - FAN WHEEL FEI-31001085002.A16 31001085002	£147.12	£176.54
510 - DISC FEI-42402003067.A25 42402003067	£1.60	£1.92
520 - NUT FEI-42019008060.A21 42019008060	£1.60	£1.92
530 - SEAL FEI-30605014003.A18 30605014003	£5.40	£6.48
540 - SLEEVE FEI-30502059004.A10 30502059004	£84.98	£101.98
550 - FLAT HEADED SCREW M5X8 FEI-43003048058.A3 43003048058	£1.60	£1.92
560 - HOUSING FEI-31207047000.A26 31207047000	£50.70	£60.84
570 - CYLINDER HEAD SCREW FEI-43033016055.A41 43033016055	£1.60	£1.92
580 - CIRCLIP M5 FEI-42443004057.A50 42443004057	£1.60	£1.92
590 - FLAT HEADED SCREW FEI-43003032042.A2 43003032042	-
591 - LOCK WASHER FEI-42439013046.A124 42439013046	£1.60	£1.92
592 - DISC FEI-42404005048.A26 42404005048	£1.60	£1.92
600 - COVER FEI-32427036003.A29 32427036003	£4.38	£5.26
610 - INSULATION BOARD FEI-31408056000.A52 31408056000	£7.32	£8.79
620 - CYLINDER HEAD SCREW FEI-43033016055.A40 43033016055	£1.60	£1.92
630 - CIRCLIP M5 FEI-42443004057.A49 42443004057	£1.60	£1.92
640 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A39 43033012056	£1.60	£1.92
650 - CIRCLIP M5 FEI-42443004057.A48 42443004057	£1.60	£1.92
705 - SAFETY HOOD FEI-31810108015.A0 31810108015	£127.51	£153.01
920 - HANDLE HALF SHELL FEI-31204179010.A1 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A58 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A55 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A77 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A114 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A103 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A79 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A2 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A76 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A56 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706341010.A0 30706341010	-
1030 - CABLE GROMMET FEI-31413094007.A27 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A100 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A38 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A105 43070038007	£1.60	£1.92
5010 - PIN FEI-62913005004.A13 62913005004	£10.36	£12.43
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A7 62910022002	£7.22	£8.67
9020 - SAFETY INSTRUCTION FEI-34130054061.A174 34130054061	-
