Fein MSho 852-1 (300Hz 200V) / 78244200260 Spare Parts

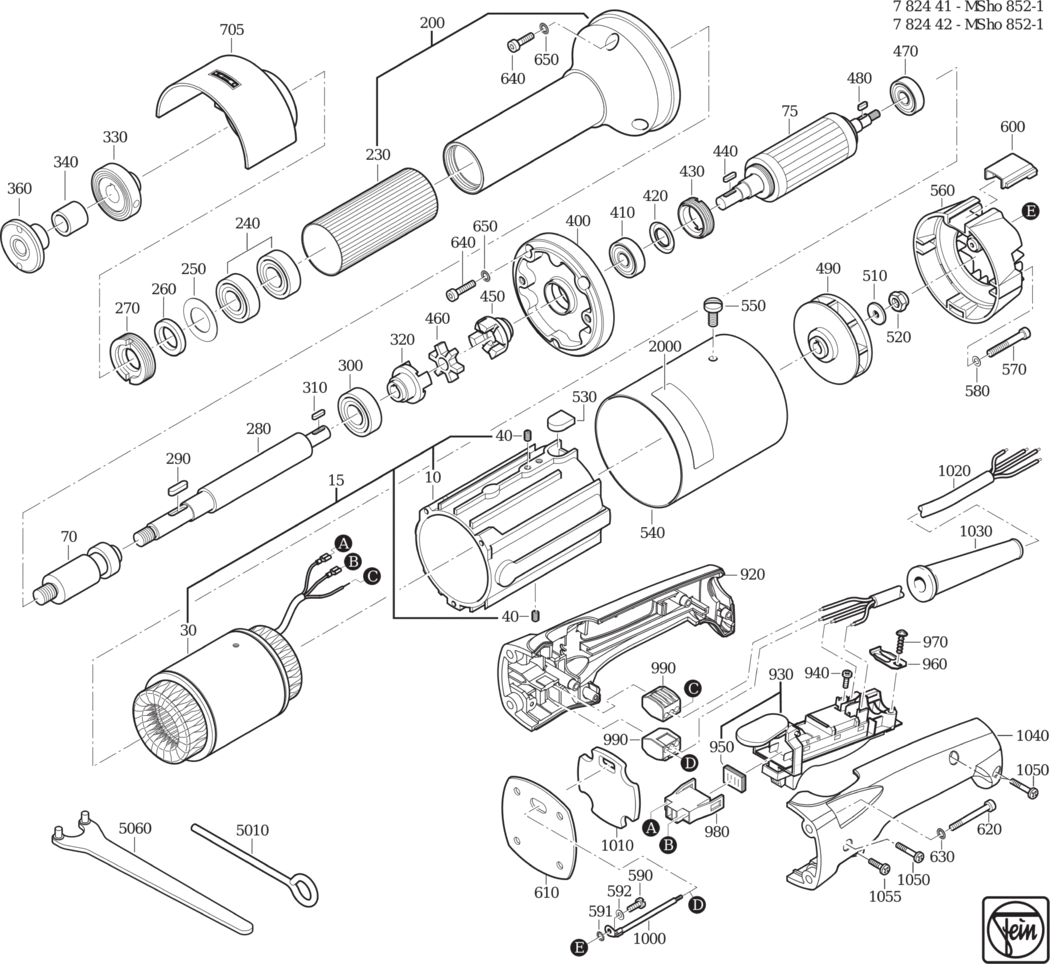

An exploded diagram and spare parts listing for the Fein MSho 852-1 (300Hz 200V) / 78244200260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A28 31903098002	£182.78	£219.33
15 - MOTOR HOUSING WITH STAT FEI-52810006160.A12 52810006160	£562.24	£674.69
30 - STATOR FEI-51810006160.A7 51810006160	£433.66	£520.39
40 - SET SCREW M5X10 FEI-43011005051.A17 43011005051	-
75 - ROTOR FEI-33502039016.A0 33502039016	£222.96	£267.55
200 - COLLAR BEARING FEI-31510038007.A4 31510038007	£345.19	£414.23
230 - PROTECTIVE HOSE FEI-31413118003.A4 31413118003	£4.65	£5.58
240 - GROOVED BALL BEARING FEI-41717002002.A14 41717002002	£85.76	£102.91
250 - DISC FEI-32411053004.A11 32411053004	£7.11	£8.53
260 - FELT RING FEI-30601056003.A15 30601056003	£1.60	£1.92
270 - SEALING RING FEI-32613034007.A2 32613034007	£35.06	£42.07
280 - SHAFT FEI-33406095007.A6 33406095007	£86.84	£104.21
290 - FEATHER KEY FEI-40223027008.A1 40223027008	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701212092.A6 41701212092	£20.05	£24.06
310 - FEATHER KEY FEI-40223021002.A1 40223021002	£1.60	£1.92
320 - CLUTCH PART FEI-30102072001.A54 30102072001	£57.78	£69.34
330 - GRINDING WHEEL FEI-63801097005.A1 63801097005	£51.59	£61.91
340 - SLEEVE FEI-30501174004.A1 30501174004	£18.16	£21.79
360 - GRINDING WHEEL FEI-63802106003.A1 63802106003	£36.76	£44.11
400 - INTERMEDIATE GEAR BOX FEI-31506164002.A14 31506164002	£117.74	£141.29
410 - GROOVED BALL BEARING FEI-41701010026.A9 41701010026	£8.93	£10.72
420 - SEALING RING FEI-42639003008.A12 42639003008	£5.02	£6.03
430 - THREAD RING FEI-32618035002.A1 32618035002	£40.93	£49.12
440 - FEATHER KEY FEI-40221005008.A22 40221005008	£1.60	£1.92
450 - CLUTCH PART FEI-30102072001.A55 30102072001	£57.78	£69.34
460 - CLUTCH PART FEI-30102071008.A2 30102071008	£12.11	£14.53
470 - GROOVED BALL BEARING FEI-41701007038.A42 41701007038	£10.17	£12.20
480 - FEATHER KEY FEI-40221003006.A1 40221003006	£1.60	£1.92
490 - FAN WHEEL FEI-31001085002.A17 31001085002	£147.12	£176.54
510 - DISC FEI-42402003067.A26 42402003067	£1.60	£1.92
520 - NUT FEI-42019008060.A20 42019008060	£1.60	£1.92
530 - SEAL FEI-30605014003.A17 30605014003	£5.40	£6.48
540 - SLEEVE FEI-30502059004.A12 30502059004	£84.98	£101.98
550 - FLAT HEADED SCREW M5X8 FEI-43003048058.A1 43003048058	£1.60	£1.92
560 - HOUSING FEI-31207047000.A28 31207047000	£50.70	£60.84
570 - CYLINDER HEAD SCREW FEI-43033016055.A43 43033016055	£1.60	£1.92
580 - CIRCLIP M5 FEI-42443004057.A55 42443004057	£1.60	£1.92
590 - FLAT HEADED SCREW FEI-43003032042.A4 43003032042	-
591 - LOCK WASHER FEI-42439013046.A125 42439013046	£1.60	£1.92
592 - DISC FEI-42404005048.A24 42404005048	£1.60	£1.92
600 - COVER FEI-32427036003.A30 32427036003	£4.38	£5.26
610 - INSULATION BOARD FEI-31408056000.A51 31408056000	£7.32	£8.79
620 - CYLINDER HEAD SCREW FEI-43033016055.A44 43033016055	£1.60	£1.92
630 - CIRCLIP M5 FEI-42443004057.A52 42443004057	£1.60	£1.92
640 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A38 43033012056	£1.60	£1.92
650 - CIRCLIP M5 FEI-42443004057.A51 42443004057	£1.60	£1.92
705 - SAFETY HOOD FEI-31810108015.A1 31810108015	£127.51	£153.01
920 - HANDLE HALF SHELL FEI-31204179010.A2 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A59 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A56 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A76 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A115 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A102 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A80 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A1 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A77 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A57 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A9 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A28 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A99 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A39 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A106 43070038007	£1.60	£1.92
5010 - PIN FEI-62913005004.A14 62913005004	£10.36	£12.43
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A6 62910022002	£7.22	£8.67
9020 - SAFETY INSTRUCTION FEI-34130054061.A175 34130054061	-
