Fein MSho 849-1z (300Hz 72V) / 78232000220 Spare Parts

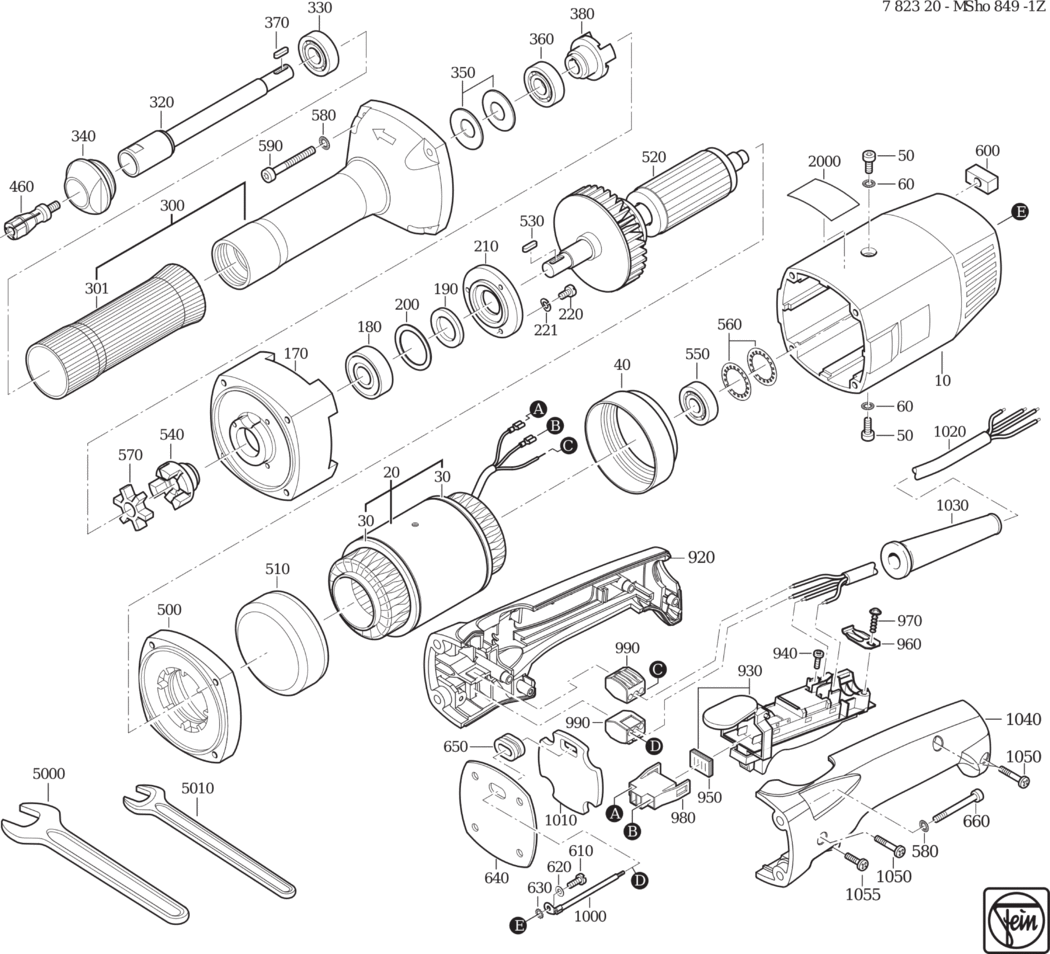

An exploded diagram and spare parts listing for the Fein MSho 849-1z (300Hz 72V) / 78232000220

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903138007.A8 31903138007	£184.65	£221.58
20 - STATOR FEI-51818003370.A0 51818003370	-
30 - RING FEI-31419033007.A10 31419033007	£3.82	£4.59
40 - SLEEVE FEI-30517007001.A10 30517007001	£37.59	£45.11
50 - CYLINDER HEAD SCREW FEI-43033007050.A7 43033007050	-
60 - CIRCLIP M5 FEI-42443004057.A154 42443004057	£1.60	£1.92
170 - INTERMEDIATE GEAR BOX FEI-31506224002.A0 31506224002	£173.57	£208.28
180 - GROOVED BALL BEARING FEI-41701213027.A39 41701213027	£9.82	£11.79
190 - FELT RING FEI-30601050002.A14 30601050002	£1.60	£1.92
200 - DISC FEI-32411059005.A19 32411059005	£1.60	£1.92
210 - PLATE FEI-32416074008.A3 32416074008	£34.94	£41.93
220 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A9 43002033045	£1.60	£1.92
221 - SPRING WASHER FEI-42445001044.A35 42445001044	£1.60	£1.92
300 - COLLAR BEARING FEI-31510070000.A0 31510070000	£162.28	£194.73
301 - PROTECTIVE HOSE FEI-31413193008.A0 31413193008	£8.96	£10.75
320 - SHAFT FEI-33406227006.A0 33406227006	£200.78	£240.93
330 - GROOVED BALL BEARING FEI-41701010032.A47 41701010032	£13.90	£16.68
340 - SLEEVE FEI-30514101007.A11 30514101007	£59.22	£71.06
350 - CUP SPRING FEI-30905012008.A11 30905012008	£1.60	£1.92
360 - GROOVED BALL BEARING FEI-41701020130.A39 41701020130	£11.73	£14.08
370 - FEATHER KEY FEI-40221006001.A2 40221006001	£2.60	£3.12
380 - CLUTCH PART FEI-30102072001.A45 30102072001	£57.78	£69.34
460 - COLLETS FEI-63207069005.A0 63207069005	£40.45	£48.54
500 - RING FEI-32602062002.A7 32602062002	£70.29	£84.35
510 - SLEEVE FEI-30517008009.A0 30517008009	£37.59	£45.11
520 - ROTOR FEI-33502053013.A4 33502053013	£323.12	£387.74
530 - FEATHER KEY FEI-40221006001.A1 40221006001	£2.60	£3.12
540 - CLUTCH PART FEI-30102072001.A46 30102072001	£57.78	£69.34
550 - GROOVED BALL BEARING FEI-41701006028.A10 41701006028	£14.07	£16.88
560 - CUP SPRING FEI-30905034008.A9 30905034008	£1.60	£1.92
570 - CLUTCH PART FEI-30102071008.A7 30102071008	£12.11	£14.53
580 - CIRCLIP M5 FEI-42443004057.A153 42443004057	£1.60	£1.92
590 - CYLINDER HEAD SCREW FEI-43035026052.A2 43035026052	£1.60	£1.92
600 - PLUG FEI-31415032009.A40 31415032009	£6.34	£7.61
610 - FLAT HEADED SCREW FEI-43003029048.A57 43003029048	-
620 - DISC FEI-42404005048.A67 42404005048	£1.60	£1.92
630 - LOCK WASHER FEI-42439013046.A82 42439013046	£1.60	£1.92
640 - INSULATION BOARD FEI-31408056000.A66 31408056000	£7.32	£8.79
650 - INSULATING RING FEI-31406033009.A3 31406033009	£2.86	£3.43
660 - CYLINDER HEAD SCREW FEI-43035020051.A1 43035020051	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A39 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A54 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A93 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A52 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A87 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A65 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A54 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A78 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A49 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A79 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706341010.A3 30706341010	-
1030 - CABLE GROMMET FEI-31413094007.A69 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A61 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A84 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A86 43070038007	£1.60	£1.92
5000 - JAW SPANNER SW17 FEI-62903002009.A55 62903002009	£11.61	£13.93
5010 - JAW SPANNER SW13 FEI-62901007007.A36 62901007007	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A365 34130054061	-
