Fein MSho 849-1z (200Hz 135V) / 78232000170 Spare Parts

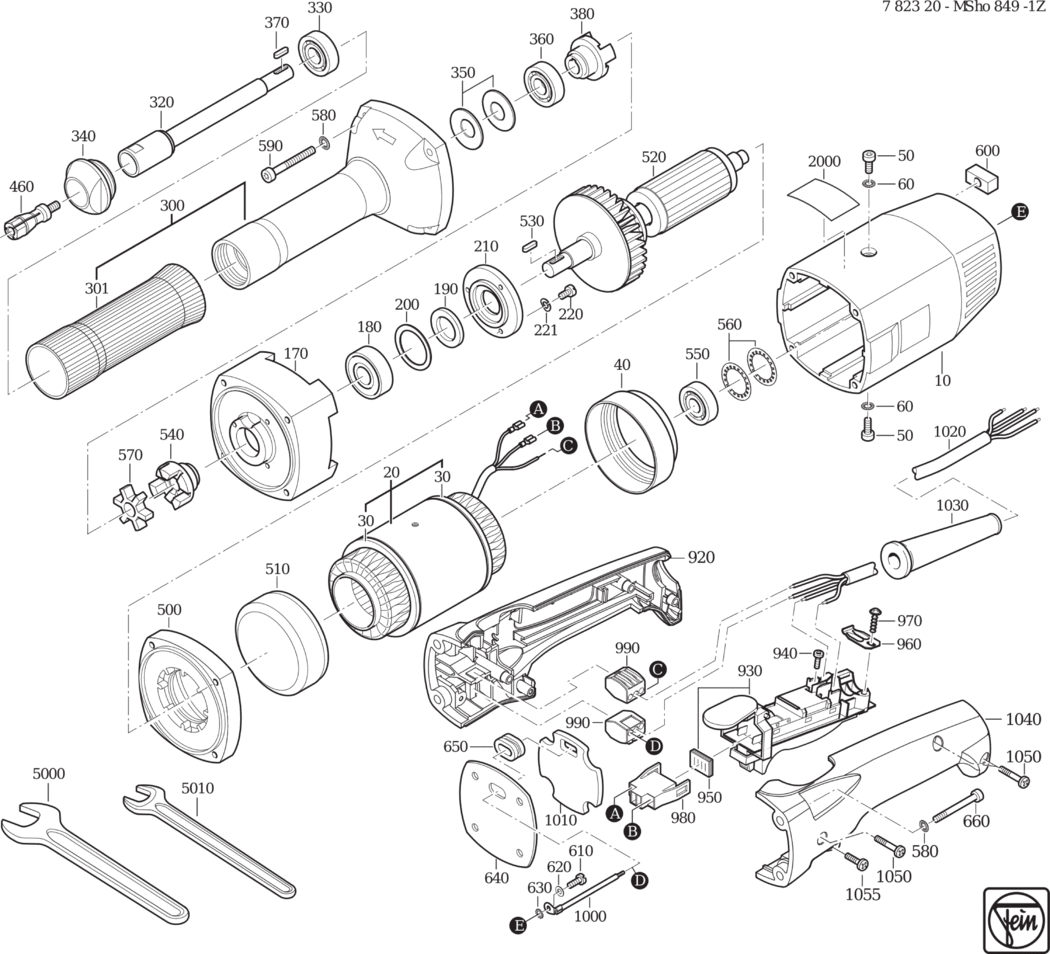

An exploded diagram and spare parts listing for the Fein MSho 849-1z (200Hz 135V) / 78232000170

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903138007.A4 31903138007	£184.65	£221.58
20 - STATOR FEI-51818003160.A0 51818003160	£472.38	£566.86
30 - RING FEI-31419033007.A1 31419033007	£3.82	£4.59
40 - SLEEVE FEI-30517007001.A3 30517007001	£37.59	£45.11
50 - CYLINDER HEAD SCREW FEI-43033007050.A3 43033007050	-
60 - CIRCLIP M5 FEI-42443004057.A373 42443004057	£1.60	£1.92
170 - INTERMEDIATE GEAR BOX FEI-31506224002.A3 31506224002	£173.57	£208.28
180 - GROOVED BALL BEARING FEI-41701213027.A15 41701213027	£9.82	£11.79
190 - FELT RING FEI-30601050002.A54 30601050002	£1.60	£1.92
200 - DISC FEI-32411059005.A8 32411059005	£1.60	£1.92
210 - PLATE FEI-32416074008.A9 32416074008	£34.94	£41.93
220 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A33 43002033045	£1.60	£1.92
221 - SPRING WASHER FEI-42445001044.A10 42445001044	£1.60	£1.92
300 - COLLAR BEARING FEI-31510070000.A4 31510070000	£162.28	£194.73
301 - PROTECTIVE HOSE FEI-31413193008.A8 31413193008	£8.96	£10.75
320 - SHAFT FEI-33406227006.A4 33406227006	£200.78	£240.93
330 - GROOVED BALL BEARING FEI-41701010032.A8 41701010032	£13.90	£16.68
340 - SLEEVE FEI-30514101007.A6 30514101007	£59.22	£71.06
350 - CUP SPRING FEI-30905012008.A8 30905012008	£1.60	£1.92
360 - GROOVED BALL BEARING FEI-41701020130.A12 41701020130	£11.73	£14.08
370 - FEATHER KEY FEI-40221006001.A21 40221006001	£2.60	£3.12
380 - CLUTCH PART FEI-30102072001.A33 30102072001	£57.78	£69.34
460 - COLLETS FEI-63207069005.A3 63207069005	£40.45	£48.54
500 - RING FEI-32602062002.A3 32602062002	£70.29	£84.35
510 - SLEEVE FEI-30517008009.A8 30517008009	£37.59	£45.11
520 - ROTOR FEI-33502053013.A2 33502053013	£323.12	£387.74
530 - FEATHER KEY FEI-40221006001.A20 40221006001	£2.60	£3.12
540 - CLUTCH PART FEI-30102072001.A32 30102072001	£57.78	£69.34
550 - GROOVED BALL BEARING FEI-41701006028.A4 41701006028	£14.07	£16.88
560 - CUP SPRING FEI-30905034008.A19 30905034008	£1.60	£1.92
570 - CLUTCH PART FEI-30102071008.A14 30102071008	£12.11	£14.53
580 - CIRCLIP M5 FEI-42443004057.A372 42443004057	£1.60	£1.92
590 - CYLINDER HEAD SCREW FEI-43035026052.A4 43035026052	£1.60	£1.92
600 - PLUG FEI-31415032009.A11 31415032009	£6.34	£7.61
610 - FLAT HEADED SCREW FEI-43003029048.A7 43003029048	-
620 - DISC FEI-42404005048.A122 42404005048	£1.60	£1.92
630 - LOCK WASHER FEI-42439013046.A2 42439013046	£1.60	£1.92
640 - INSULATION BOARD FEI-31408056000.A16 31408056000	£7.32	£8.79
650 - INSULATING RING FEI-31406033009.A41 31406033009	£2.86	£3.43
660 - CYLINDER HEAD SCREW FEI-43035020051.A42 43035020051	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A63 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A9 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A2 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A7 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A22 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A8 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A26 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A114 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A33 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A33 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A35 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A85 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A30 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A154 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A4 43070038007	£1.60	£1.92
5000 - JAW SPANNER SW17 FEI-62903002009.A1 62903002009	£11.61	£13.93
5010 - JAW SPANNER SW13 FEI-62901007007.A63 62901007007	£11.61	£13.93
9000 - OPERATING INSTRUCTIONS FEI-34101072060.A5 34101072060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A605 34130054061	-

Attribute Name	Value
Brand	Fein
