Fein MSho 840-2 (200Hz 265V) / 78230300204 Spare Parts

Fein MSho 840-2 𨈀Hz 265V) / 78230300204 Spare Parts

Home Details Reviews Delivery

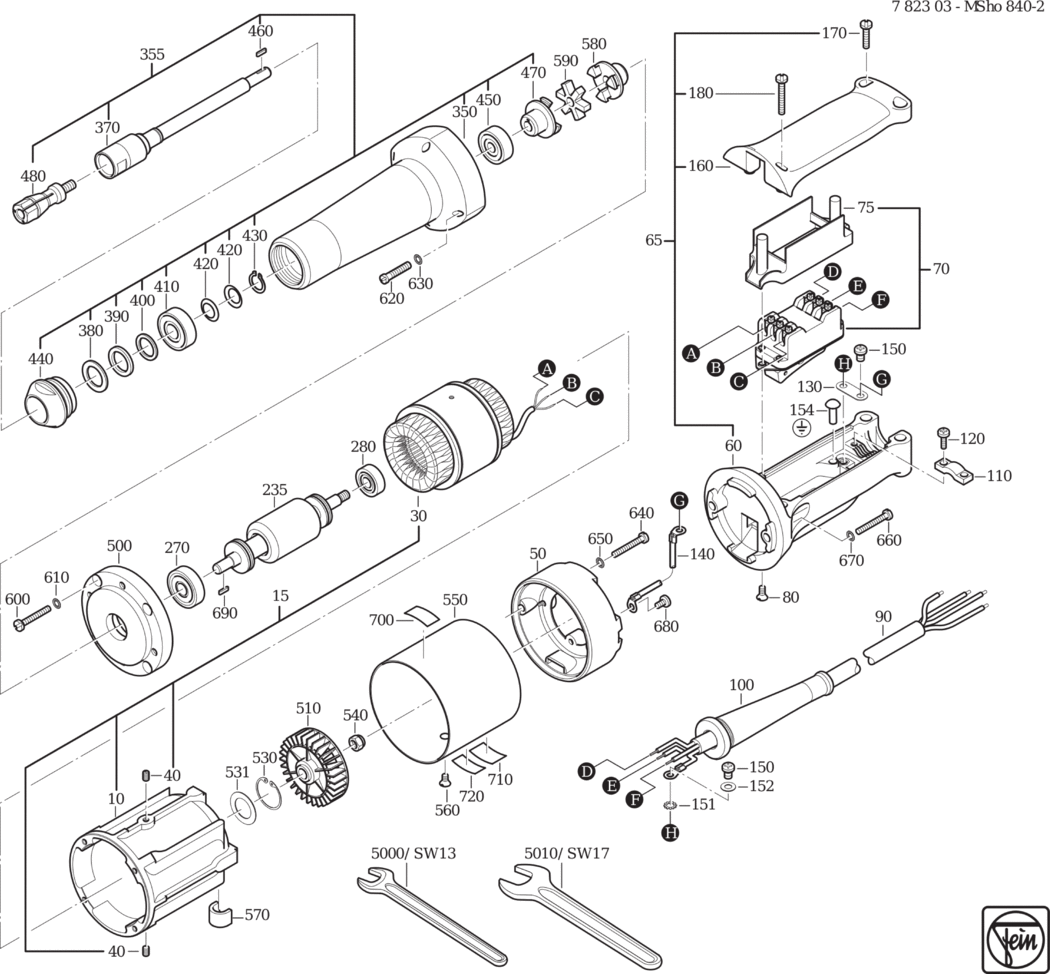

An exploded diagram and spare parts listing for the Fein MSho 840-2 (200Hz 265V) / 78230300204

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903073007.A2 31903073007	£131.27	£157.52
15 - MOTOR HOUSING SET FEI-52803003065.A0 52803003065	-
30 - STATOR FEI-51803002065.A0 51803002065	-
40 - SET SCREW M4X8 FEI-43011002049.A2 43011002049	£1.60	£1.92
50 - HOUSING FEI-31207032008.A17 31207032008	£76.15	£91.38
60 - HANDLE HALF SHELL FEI-31204054001.A26 31204054001	£37.72	£45.26
65 - HANDLE FEI-31204054010.A0 31204054010	£46.32	£55.58
70 - SWITCH FEI-30701043017.A23 30701043017	£61.38	£73.65
75 - CAP FEI-31428066001.A15 31428066001	£9.47	£11.37
80 - COUNTERSUNK SCREW FEI-43060003046.A17 43060003046	-
90 - CABLE FEI-30706227011.A2 30706227011	£67.97	£81.56
100 - CABLE GROMMET FEI-31413090003.A11 31413090003	£3.40	£4.08
110 - CABLE CLAMPING PIECE FEI-32431021007.A159 32431021007	£1.60	£1.92
120 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A56 43041001994	£1.60	£1.92
130 - LUG FEI-32802042002.A1 32802042002	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719023015.A2 30719023015	£7.08	£8.50
150 - FILLISTER HEAD SCREW FEI-43041016042.A78 43041016042	-
151 - LOCK WASHER FEI-42439013046.A58 42439013046	£1.60	£1.92
152 - DISC FEI-42404005048.A143 42404005048	£1.60	£1.92
154 - RIVET FEI-32215029003.A10 32215029003	£1.60	£1.92
160 - HANDLE HALF SHELL FEI-31204053003.A0 31204053003	-
170 - FLAT HEADED SCREW FEI-43003040049.A27 43003040049	£1.60	£1.92
180 - FLAT HEADED SCREW FEI-43003042041.A23 43003042041	£1.60	£1.92
235 - ROTOR FEI-33508031010.A3 33508031010	£231.72	£278.07
270 - GROOVED BALL BEARING FEI-41701004246.A35 41701004246	£7.72	£9.27
280 - GROOVED BALL BEARING FEI-41701001260.A353 41701001260	£7.11	£8.53
350 - COLLAR BEARING FEI-31510042005.A7 31510042005	£103.34	£124.01
355 - COLLAR BEARING FEI-31510042014.A10 31510042014	£398.93	£478.72
370 - SHAFT FEI-33403047006.A15 33403047006	£149.93	£179.92
380 - DISC FEI-32408020008.A10 32408020008	£3.83	£4.60
390 - FELT RING FEI-30601047008.A22 30601047008	£1.60	£1.92
400 - DISC FEI-32411051007.A23 32411051007	£2.55	£3.06
410 - GROOVED BALL BEARING FEI-41701020130.A2 41701020130	£11.73	£14.08
420 - CUP SPRING FEI-30905026006.A5 30905026006	£1.60	£1.92
430 - CIRCLIP FEI-42616013001.A23 42616013001	£1.60	£1.92
440 - SLEEVE FEI-30514078005.A3 30514078005	£31.00	£37.20
450 - GROOVED BALL BEARING FEI-41701204095.A16 41701204095	£17.68	£21.22
460 - FEATHER KEY FEI-40221001009.A12 40221001009	£1.60	£1.92
470 - CLUTCH PART FEI-30102045000.A24 30102045000	£67.72	£81.27
480 - COLLETS FEI-63207059006.A2 63207059006	£40.45	£48.54
500 - INTERMEDIATE GEAR BOX FEI-31506194009.A5 31506194009	£115.68	£138.82
510 - FAN WHEEL FEI-31004032003.A16 31004032003	£16.65	£19.98
530 - CIRCLIP FEI-42616033009.A58 42616033009	£1.60	£1.92
531 - DISC FEI-32624034022.A24 32624034022	£1.60	£1.92
531 - DISC FEI-32624034038.A17 32624034038	£1.60	£1.92
540 - NUT FEI-42019008060.A48 42019008060	£1.60	£1.92
550 - SLEEVE FEI-30502053003.A26 30502053003	£74.06	£88.87
560 - COUNTERSUNK SCREW FEI-43060002042.A12 43060002042	£1.60	£1.92
570 - SEAL FEI-30605023004.A10 30605023004	£3.33	£4.00
580 - CLUTCH PART FEI-30102045000.A25 30102045000	£67.72	£81.27
590 - CLUTCH PART FEI-30102046003.A5 30102046003	£12.28	£14.73
600 - CYLINDER HEAD SCREW FEI-43002116041.A3 43002116041	£1.60	£1.92
610 - CIRCLIP M4 FEI-42443003043.A7 42443003043	£1.60	£1.92
620 - CYLINDER HEAD SCREW FEI-43002017999.A3 43002017999	£1.60	£1.92
630 - CIRCLIP FEI-42443002992.A110 42443002992	£1.60	£1.92
640 - CYLINDER HEAD SCREW FEI-43002041047.A53 43002041047	£1.60	£1.92
650 - CIRCLIP M4 FEI-42443003043.A5 42443003043	£1.60	£1.92
660 - FLAT HEADED SCREW FEI-43003042041.A25 43003042041	£1.60	£1.92
670 - CIRCLIP M4 FEI-42443003043.A6 42443003043	£1.60	£1.92
680 - FLAT HEADED SCREW FEI-43003029048.A50 43003029048	-
690 - FEATHER KEY FEI-40221001009.A13 40221001009	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A69 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A42 62903002009	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A506 34130054061	-
