Fein MSfov 852-1 (200Hz 72V) / 78208200120 Spare Parts

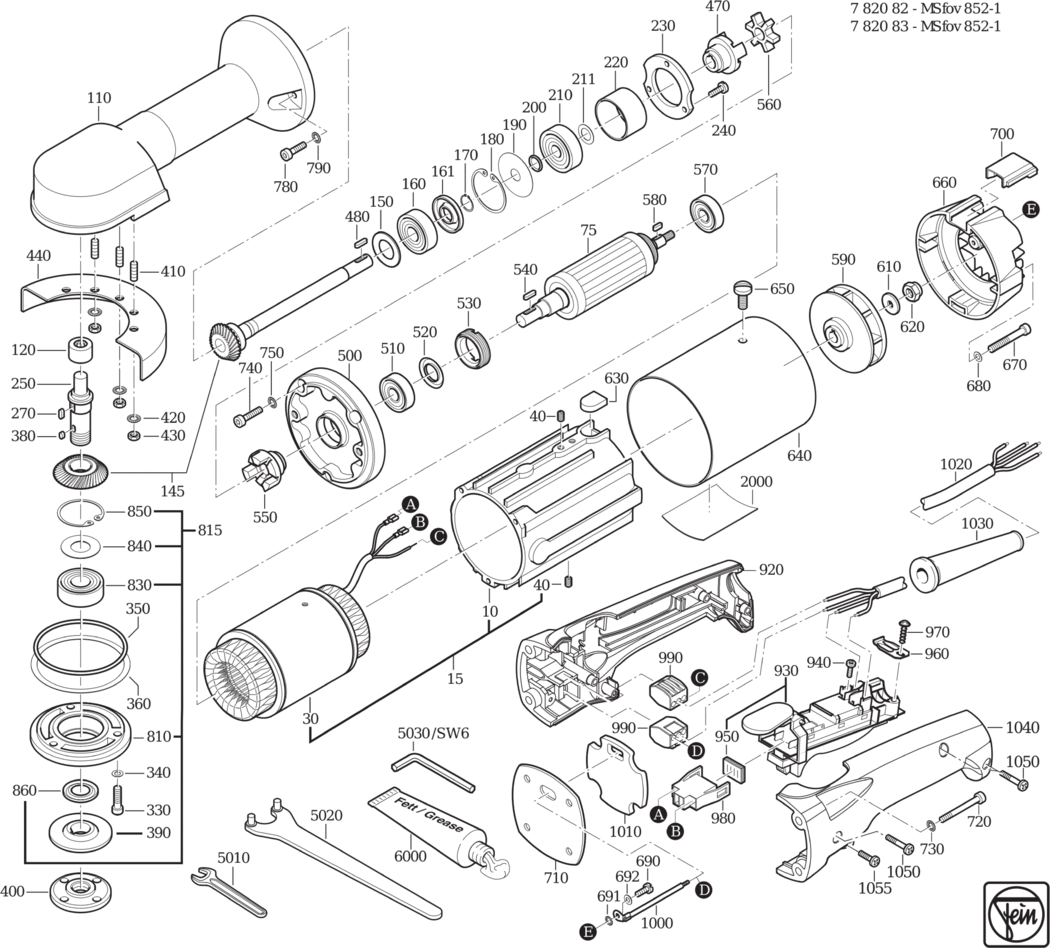

An exploded diagram and spare parts listing for the Fein MSfov 852-1 (200Hz 72V) / 78208200120

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A5 31903098002	£182.78	£219.33
15 - MOTOR HOUSING WITH STAT FEI-52810006360.A2 52810006360	-
30 - STATOR FEI-51810006360.A2 51810006360	-
40 - SET SCREW M5X10 FEI-43011005051.A25 43011005051	-
75 - ROTOR FEI-33502039016.A7 33502039016	£222.96	£267.55
110 - GEARBOX HOUSING FEI-31206058006.A0 31206058006	£360.60	£432.72
120 - NEEDLE SLEEVE FEI-41705007000.A0 41705007000	£5.66	£6.79
145 - BEVEL GEAR Z=27/35 FEI-33809115018.A0 33809115018	£284.46	£341.35
150 - CUP SPRING FEI-30905006008.A0 30905006008	-
160 - GROOVED BALL BEARING FEI-41701213096.A48 41701213096	£20.90	£25.08
161 - SEALING RING FEI-42640004008.A5 42640004008	-
170 - CIRCLIP FEI-42643001007.A16 42643001007	£1.60	£1.92
180 - CIRCLIP FEI-42616018008.A1 42616018008	£1.60	£1.92
190 - DISC FEI-32624064029.A3 32624064029	£6.44	£7.73
190 - DISC FEI-32624064035.A2 32624064035	£5.95	£7.14
200 - RING FEI-32601137003.A3 32601137003	£6.98	£8.37
210 - GROOVED BALL BEARING FEI-41701301096.A0 41701301096	£28.37	£34.04
211 - DISC FEI-32624048036.A5 32624048036	£1.60	£1.92
220 - SLEEVE FEI-30501226002.A0 30501226002	£9.18	£11.02
230 - PLATE FEI-32410055007.A0 32410055007	£6.20	£7.44
240 - CYLINDER HEAD SCREW FEI-43050002049.A3 43050002049	£1.60	£1.92
250 - SHAFT FEI-33406086001.A2 33406086001	£72.59	£87.11
270 - FEATHER KEY FEI-40221013005.A5 40221013005	-
330 - CYLINDER HEAD SCREW FEI-43033011053.A5 43033011053	£1.60	£1.92
340 - SEALING RING FEI-40611001002.A55 40611001002	£1.60	£1.92
350 - SEALING RING FEI-40612010006.A2 40612010006	£4.18	£5.01
360 - DISC FEI-32624063037.A2 32624063037	£6.03	£7.24
360 - DISC FEI-32624063021.A5 32624063021	£10.89	£13.07
380 - FEATHER KEY FEI-40222001003.A4 40222001003	£1.60	£1.92
390 - INNER FLANGE FEI-63801079009.A7 63801079009	£14.60	£17.52
400 - THREADED FLANGE FEI-63802084009.A4 63802084009	£14.60	£17.52
410 - STUD BOLT FEI-43007055056.A3 43007055056	£1.60	£1.92
420 - CIRCLIP M5 FEI-42443004057.A270 42443004057	£1.60	£1.92
430 - HEX NUT FEI-42001007053.A16 42001007053	£1.60	£1.92
440 - WHEEL GUARD FEI-31810277000.A2 31810277000	£22.26	£26.71
470 - CLUTCH PART FEI-30102072001.A24 30102072001	£57.78	£69.34
480 - FEATHER KEY FEI-40223021002.A16 40223021002	£1.60	£1.92
500 - INTERMEDIATE GEAR BOX FEI-31506170007.A5 31506170007	£115.18	£138.22
510 - GROOVED BALL BEARING FEI-41701010026.A35 41701010026	£8.93	£10.72
520 - SEALING RING FEI-42639003008.A6 42639003008	£5.02	£6.03
530 - THREAD RING FEI-32618042005.A0 32618042005	£46.93	£56.32
540 - FEATHER KEY FEI-40221005008.A8 40221005008	£1.60	£1.92
550 - CLUTCH PART FEI-30102072001.A23 30102072001	£57.78	£69.34
560 - CLUTCH PART FEI-30102071008.A18 30102071008	£12.11	£14.53
570 - GROOVED BALL BEARING FEI-41701007038.A124 41701007038	£10.17	£12.20
580 - FEATHER KEY FEI-40221003006.A48 40221003006	£1.60	£1.92
590 - FAN WHEEL FEI-31001085002.A31 31001085002	£147.12	£176.54
610 - DISC FEI-42402003067.A4 42402003067	£1.60	£1.92
620 - NUT FEI-42019008060.A41 42019008060	£1.60	£1.92
630 - SEAL FEI-30605014003.A23 30605014003	£5.40	£6.48
640 - SLEEVE FEI-30502059004.A15 30502059004	£84.98	£101.98
650 - FLAT HEADED SCREW M5X8 FEI-43003048058.A24 43003048058	£1.60	£1.92
660 - HOUSING FEI-31207047000.A9 31207047000	£50.70	£60.84
670 - CYLINDER HEAD SCREW FEI-43033016055.A73 43033016055	£1.60	£1.92
680 - CIRCLIP M5 FEI-42443004057.A269 42443004057	£1.60	£1.92
690 - FLAT HEADED SCREW FEI-43003032042.A28 43003032042	-
691 - LOCK WASHER FEI-42439013046.A28 42439013046	£1.60	£1.92
692 - DISC FEI-42404005048.A102 42404005048	£1.60	£1.92
700 - COVER FEI-32427036003.A7 32427036003	£4.38	£5.26
710 - INSULATION BOARD FEI-31408056000.A35 31408056000	£7.32	£8.79
720 - CYLINDER HEAD SCREW FEI-43033016055.A85 43033016055	£1.60	£1.92
730 - CIRCLIP M5 FEI-42443004057.A298 42443004057	£1.60	£1.92
740 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A0 43033012056	£1.60	£1.92
750 - CIRCLIP M5 FEI-42443004057.A297 42443004057	£1.60	£1.92
780 - CYLINDER HEAD SCREW FEI-43033062051.A15 43033062051	£1.60	£1.92
790 - CIRCLIP M5 FEI-42443004057.A296 42443004057	£1.60	£1.92
810 - BEARING PLATE FEI-32419052007.A3 32419052007	£49.01	£58.81
815 - BEARING PLATE FEI-32419052016.A4 32419052016	£82.81	£99.37
830 - GROOVED BALL BEARING FEI-41701218024.A14 41701218024	£8.92	£10.70
840 - DISC FEI-32624046034.A4 32624046034	£4.92	£5.90
840 - DISC FEI-32624046028.A17 32624046028	£1.60	£1.92
850 - CIRCLIP FEI-42616018008.A2 42616018008	£1.60	£1.92
860 - SEALING RING FEI-42640012005.A5 42640012005	-
920 - HANDLE HALF SHELL FEI-31204179010.A81 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A16 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A27 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A23 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A49 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A20 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A13 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A131 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A17 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A19 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706341010.A6 30706341010	-
1030 - CABLE GROMMET FEI-31413094007.A111 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A6 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A129 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A28 43070038007	£1.60	£1.92
5010 - JAW SPANNER SW8 FEI-62901002004.A6 62901002004	£11.34	£13.61
5020 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A236 62910022002	£7.22	£8.67
5030 - ALLEN KEY SW6 FEI-62907004005.A64 62907004005	£3.35	£4.02
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A70 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101066060.A10 34101066060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A670 34130054061	-

Attribute Name	Value
Brand	Fein
