Fein MSfo 870-1d (300Hz 200V) / 78207700260 Spare Parts

Fein MSfo 870-1d 𨌀Hz 200V) / 78207700260 Spare Parts

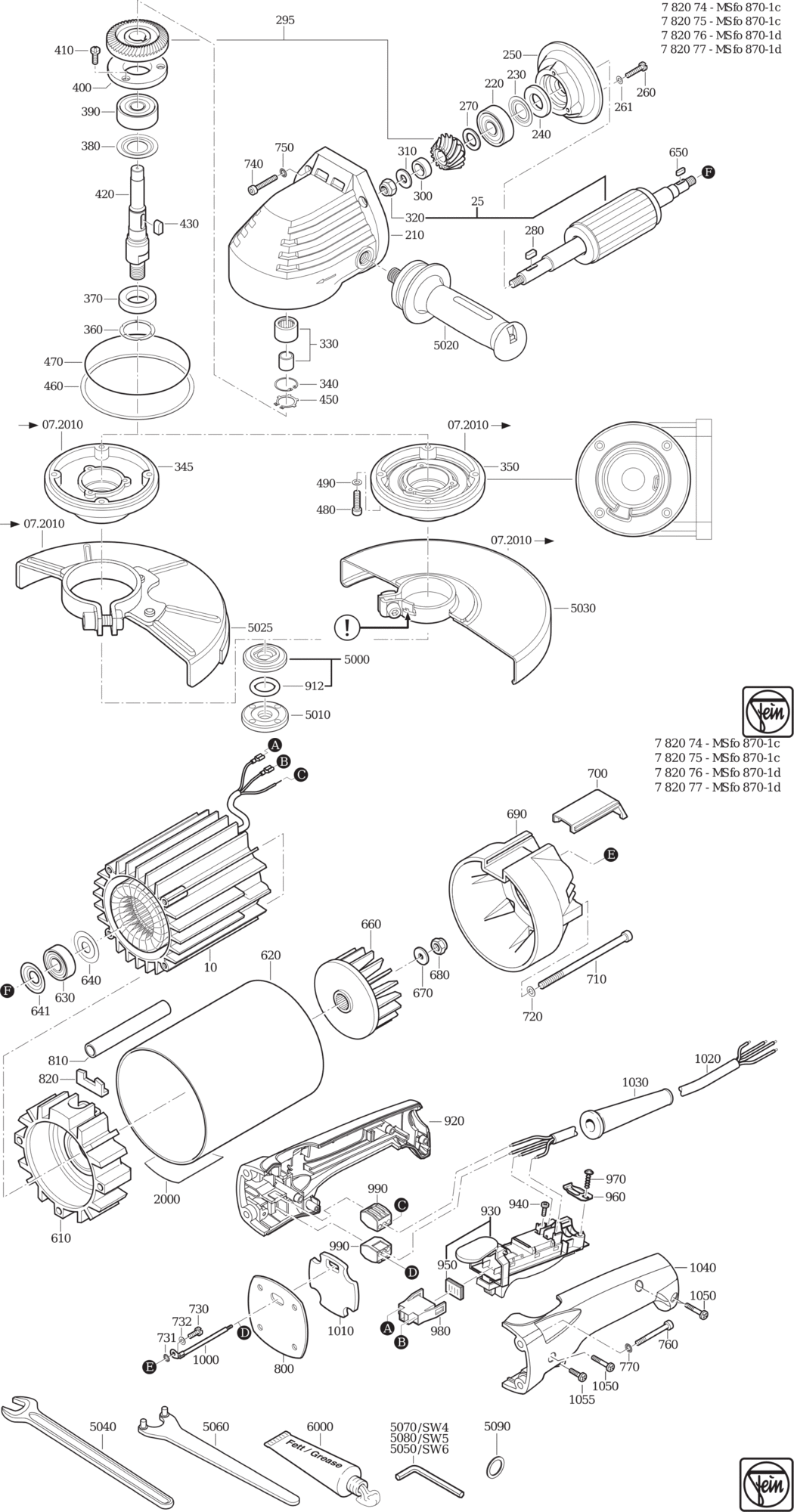

An exploded diagram and spare parts listing for the Fein MSfo 870-1d (300Hz 200V) / 78207700260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING WITH STAT 200H/135V+300H/200V FEI-52832001160.A4 52832001160	£597.52	£717.02
25 - ROTOR FEI-33508030020.A1 33508030020	£405.12	£486.15
210 - GEARBOX HOUSING FEI-31206063008.A2 31206063008	£211.10	£253.32
220 - GROOVED BALL BEARING FEI-41701303024.A5 41701303024	£15.13	£18.16
230 - DISC FEI-32411064001.A1 32411064001	£5.27	£6.32
240 - FELT RING FEI-30601075008.A5 30601075008	£1.60	£1.92
250 - FLANGE FEI-32436025004.A5 32436025004	£82.90	£99.48
260 - CYLINDER HEAD SCREW FEI-43002058056.A14 43002058056	£1.60	£1.92
261 - CIRCLIP M5 FEI-42443004057.A59 42443004057	£1.60	£1.92
270 - DISC FEI-32624029026.A7 32624029026	£1.60	£1.92
270 - DISC FEI-32624029032.A28 32624029032	£2.25	£2.70
280 - FEATHER KEY FEI-40221016000.A11 40221016000	£1.60	£1.92
295 - BEVEL GEAR Z=25/52 FEI-33809133014.A1 33809133014	-
300 - BUSH FEI-30501240009.A2 30501240009	£14.10	£16.92
310 - CIRCLIP FEI-30240313000.A6 30240313000	-
320 - NUT FEI-42019001088.A24 42019001088	£9.49	£11.39
330 - NEEDLE BEARING FEI-41706002002.A10 41706002002	£40.91	£49.09
340 - CIRCLIP FEI-42616020004.A25 42616020004	£1.60	£1.92
350 - BEARING PLATE FEI-32419145010.A2 32419145010	£132.02	£158.43
360 - DISC FEI-32411066008.A1 32411066008	£3.50	£4.20
370 - FELT RING FEI-30601049000.A24 30601049000	£1.60	£1.92
380 - SEALING RING FEI-42639008005.A20 42639008005	£5.02	£6.03
390 - GROOVED BALL BEARING FEI-41701224024.A19 41701224024	£12.19	£14.63
400 - PLATE FEI-32416058009.A9 32416058009	£19.56	£23.47
410 - CYLINDER HEAD SCREW FEI-43050002049.A30 43050002049	£1.60	£1.92
420 - SHAFT FEI-33406102009.A2 33406102009	£86.90	£104.28
430 - FEATHER KEY FEI-40221030007.A1 40221030007	£2.60	£3.12
450 - CIRCLIP FEI-42641001002.A39 42641001002	£1.60	£1.92
460 - DISC FEI-32624068028.A7 32624068028	£11.14	£13.37
460 - DISC FEI-32624068034.A4 32624068034	£11.14	£13.37
470 - SEALING RING FEI-40612002009.A7 40612002009	£4.26	£5.11
480 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A32 43033014058	£1.60	£1.92
490 - SEALING RING FEI-40611001002.A3 40611001002	£1.60	£1.92
610 - HOUSING FEI-31207061002.A10 31207061002	£203.13	£243.76
620 - SLEEVE FEI-30501237005.A4 30501237005	£104.35	£125.22
630 - GROOVED BALL BEARING FEI-41701213027.A47 41701213027	£9.82	£11.79
640 - DISC FEI-32415044006.A6 32415044006	£16.62	£19.94
641 - SEALING RING FEI-42640011002.A23 42640011002	£5.35	£6.42
650 - FEATHER KEY FEI-40221003006.A3 40221003006	£1.60	£1.92
660 - FAN WHEEL FEI-31001116001.A4 31001116001	£184.06	£220.87
670 - DISC FEI-42401019085.A84 42401019085	£1.60	£1.92
680 - NUT FEI-42019001088.A25 42019001088	£9.49	£11.39
690 - HOUSING FEI-31207060003.A1 31207060003	£76.48	£91.78
700 - COVER FEI-32427049008.A1 32427049008	£8.51	£10.21
710 - CYLINDER HEAD SCREW FEI-43033045062.A10 43033045062	£5.56	£6.67
720 - CIRCLIP M6 FEI-42443005064.A51 42443005064	£1.60	£1.92
730 - FLAT HEADED SCREW FEI-43003035048.A9 43003035048	£1.60	£1.92
731 - LOCK WASHER FEI-42439013046.A119 42439013046	£1.60	£1.92
732 - DISC FEI-42404005048.A31 42404005048	£1.60	£1.92
740 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A33 43033014058	£1.60	£1.92
750 - CIRCLIP M5 FEI-42443004057.A68 42443004057	£1.60	£1.92
760 - CYLINDER HEAD SCREW FEI-43033016055.A37 43033016055	£1.60	£1.92
770 - CIRCLIP M5 FEI-42443004057.A67 42443004057	£1.60	£1.92
800 - INSULATION BOARD FEI-31408056000.A47 31408056000	£7.32	£8.79
810 - INSULATING HOSE FEI-31413122001.A2 31413122001	£3.19	£3.83
820 - SEAL FEI-30605049003.A10 30605049003	£15.36	£18.43
912 - SEALING RING FEI-40612000007.A73 40612000007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A7 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A61 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A59 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A73 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A119 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A99 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A84 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A6 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A75 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A60 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706335010.A13 30706335010	£78.97	£94.76
1030 - CABLE GROMMET FEI-31413094007.A31 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A94 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A42 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A109 43070038007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A223 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A218 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A33 32119117015	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810269020.A2 31810269020	£56.28	£67.54
5040 - JAW SPANNER SW17 FEI-62903011005.A31 62903011005	£7.22	£8.67
5050 - ALLEN KEY SW6 FEI-62907004005.A4 62907004005	£3.35	£4.02
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A8 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A25 32160003135	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A178 34130054061	-
