Fein MSfo 870-1d (200Hz 265V) / 78207600200 Spare Parts

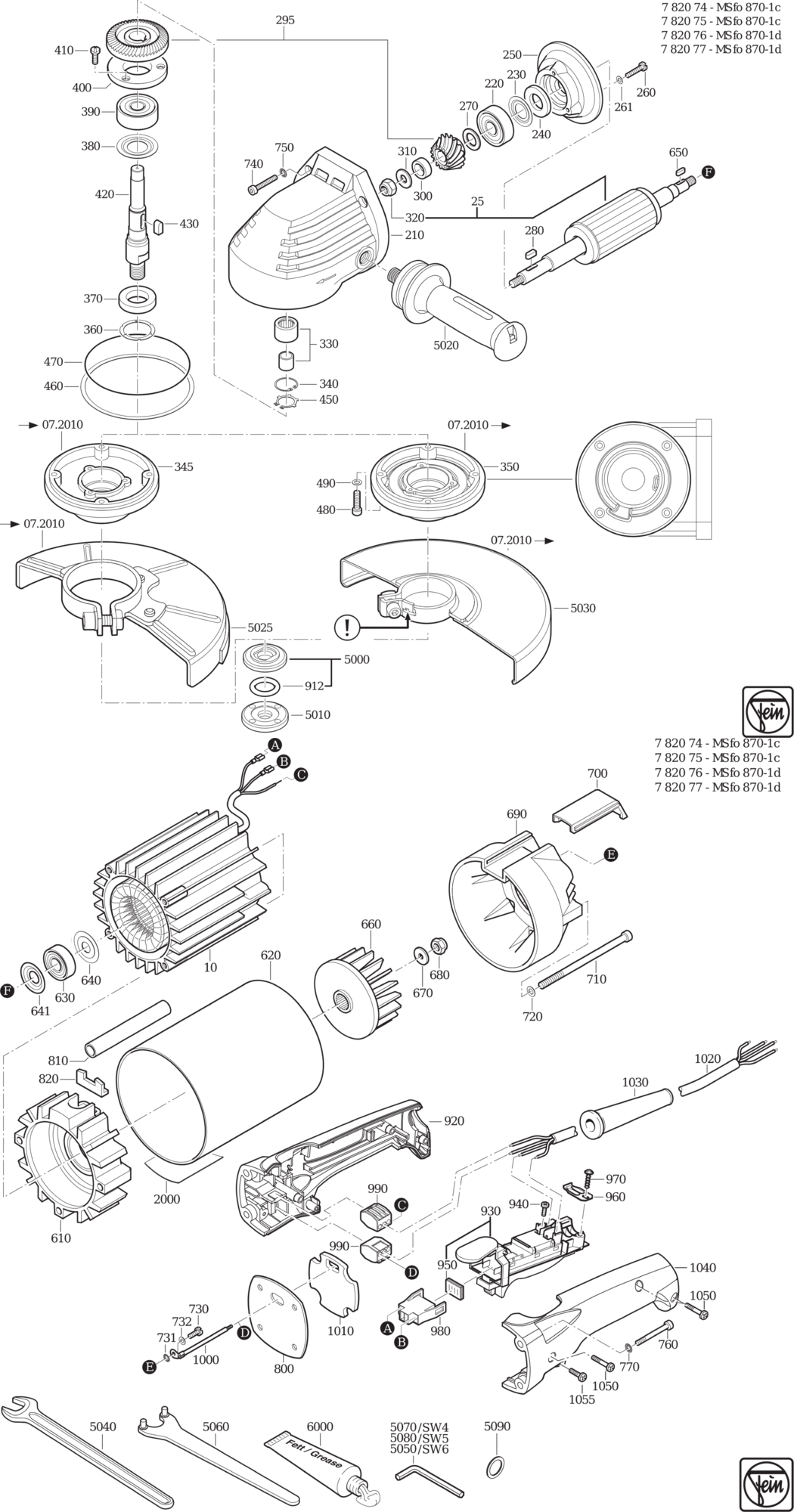

An exploded diagram and spare parts listing for the Fein MSfo 870-1d (200Hz 265V) / 78207600200

	Ex VAT	Inc VAT
10 - MOTOR HOUSING WITH STAT 200H265V FEI-52832001060.A0 52832001060	-
25 - ROTOR FEI-33508030020.A4 33508030020	£405.12	£486.15
210 - GEARBOX HOUSING FEI-31206063008.A0 31206063008	£211.10	£253.32
220 - GROOVED BALL BEARING FEI-41701303024.A3 41701303024	£15.13	£18.16
230 - DISC FEI-32411064001.A4 32411064001	£5.27	£6.32
240 - FELT RING FEI-30601075008.A3 30601075008	£1.60	£1.92
250 - FLANGE FEI-32436025004.A7 32436025004	£82.90	£99.48
260 - CYLINDER HEAD SCREW FEI-43002058056.A19 43002058056	£1.60	£1.92
261 - CIRCLIP M5 FEI-42443004057.A105 42443004057	£1.60	£1.92
270 - DISC FEI-32624029026.A4 32624029026	£1.60	£1.92
270 - DISC FEI-32624029032.A31 32624029032	£2.25	£2.70
280 - FEATHER KEY FEI-40221016000.A13 40221016000	£1.60	£1.92
295 - BEVEL GEAR Z=31/43 FEI-33809130018.A0 33809130018	-
310 - CIRCLIP FEI-30240313000.A12 30240313000	-
320 - NUT FEI-42019001088.A22 42019001088	£9.49	£11.39
330 - NEEDLE BEARING FEI-41706002002.A3 41706002002	£40.91	£49.09
340 - CIRCLIP FEI-42616020004.A18 42616020004	£1.60	£1.92
350 - BEARING PLATE FEI-32419145010.A0 32419145010	£132.02	£158.43
360 - DISC FEI-32411066008.A3 32411066008	£3.50	£4.20
370 - FELT RING FEI-30601049000.A29 30601049000	£1.60	£1.92
380 - SEALING RING FEI-42639008005.A16 42639008005	£5.02	£6.03
390 - GROOVED BALL BEARING FEI-41701224024.A24 41701224024	£12.19	£14.63
400 - PLATE FEI-32416058009.A12 32416058009	£19.56	£23.47
410 - CYLINDER HEAD SCREW FEI-43050002049.A36 43050002049	£1.60	£1.92
420 - SHAFT FEI-33406102009.A3 33406102009	£86.90	£104.28
430 - FEATHER KEY FEI-40221030007.A3 40221030007	£2.60	£3.12
450 - CIRCLIP FEI-42641001002.A38 42641001002	£1.60	£1.92
460 - DISC FEI-32624068034.A7 32624068034	£11.14	£13.37
460 - DISC FEI-32624068028.A4 32624068028	£11.14	£13.37
470 - SEALING RING FEI-40612002009.A2 40612002009	£4.26	£5.11
480 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A37 43033014058	£1.60	£1.92
490 - SEALING RING FEI-40611001002.A2 40611001002	£1.60	£1.92
610 - HOUSING FEI-31207061002.A9 31207061002	£203.13	£243.76
620 - SLEEVE FEI-30501237005.A5 30501237005	£104.35	£125.22
630 - GROOVED BALL BEARING FEI-41701213027.A49 41701213027	£9.82	£11.79
640 - DISC FEI-32415044006.A5 32415044006	£16.62	£19.94
641 - SEALING RING FEI-42640011002.A21 42640011002	£5.35	£6.42
650 - FEATHER KEY FEI-40221003006.A6 40221003006	£1.60	£1.92
660 - FAN WHEEL FEI-31001116001.A6 31001116001	£184.06	£220.87
670 - DISC FEI-42401019085.A86 42401019085	£1.60	£1.92
680 - NUT FEI-42019001088.A29 42019001088	£9.49	£11.39
690 - HOUSING FEI-31207060003.A2 31207060003	£76.48	£91.78
700 - COVER FEI-32427049008.A2 32427049008	£8.51	£10.21
710 - CYLINDER HEAD SCREW FEI-43033045062.A9 43033045062	£5.56	£6.67
720 - CIRCLIP M6 FEI-42443005064.A53 42443005064	£1.60	£1.92
730 - FLAT HEADED SCREW FEI-43003035048.A10 43003035048	£1.60	£1.92
731 - LOCK WASHER FEI-42439013046.A121 42439013046	£1.60	£1.92
732 - DISC FEI-42404005048.A29 42404005048	£1.60	£1.92
740 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A31 43033014058	£1.60	£1.92
750 - CIRCLIP M5 FEI-42443004057.A61 42443004057	£1.60	£1.92
760 - CYLINDER HEAD SCREW FEI-43033016055.A38 43033016055	£1.60	£1.92
770 - CIRCLIP M5 FEI-42443004057.A62 42443004057	£1.60	£1.92
800 - INSULATION BOARD FEI-31408056000.A49 31408056000	£7.32	£8.79
810 - INSULATING HOSE FEI-31413122001.A0 31413122001	£3.19	£3.83
820 - SEAL FEI-30605049003.A9 30605049003	£15.36	£18.43
912 - SEALING RING FEI-40612000007.A74 40612000007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A5 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A60 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A60 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A74 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A118 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A97 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A82 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A4 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A73 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A61 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706335010.A15 30706335010	£78.97	£94.76
1030 - CABLE GROMMET FEI-31413094007.A33 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A96 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A44 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A111 43070038007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A222 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A217 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A31 32119117015	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810269020.A4 31810269020	£56.28	£67.54
5040 - JAW SPANNER SW17 FEI-62903011005.A33 62903011005	£7.22	£8.67
5050 - ALLEN KEY SW6 FEI-62907004005.A3 62907004005	£3.35	£4.02
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A9 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A27 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101066060.A5 34101066060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A176 34130054061	-

Attribute Name	Value
Brand	Fein
