Fein MSf 842-2c (300Hz 200V) / 78205100264 Spare Parts

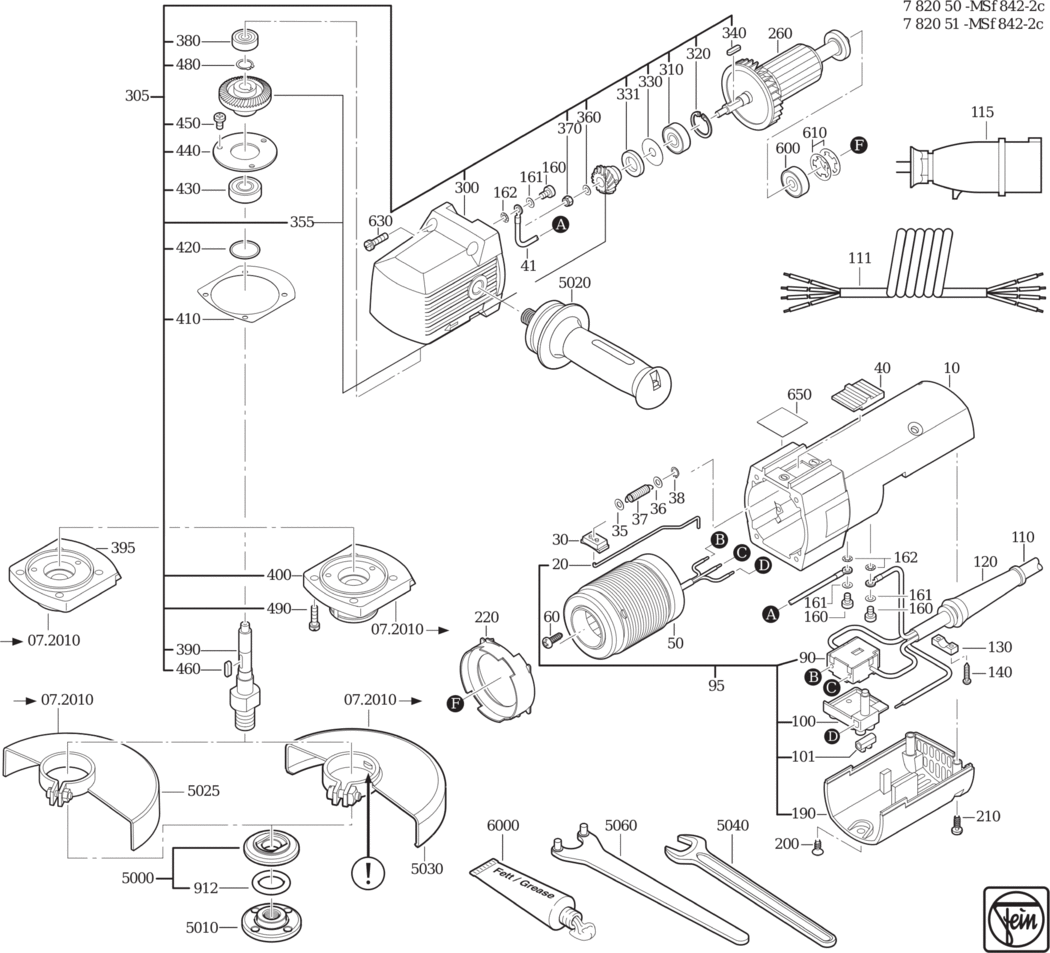

An exploded diagram and spare parts listing for the Fein MSf 842-2c (300Hz 200V) / 78205100264

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901062009.A3 31901062009	£96.18	£115.41
20 - CONTROL ROD FEI-32816032006.A2 32816032006	£2.58	£3.09
30 - SLIDER FEI-32805068000.A5 32805068000	£1.60	£1.92
40 - SLIDE SWITCH FEI-32805083001.A2 32805083001	£2.78	£3.33
41 - CONNECTING CABLE FEI-30719288011.A7 30719288011	£5.21	£6.25
50 - STATOR FEI-51829001165.A0 51829001165	£423.18	£507.81
60 - SHEET METAL SCREW FEI-43046001002.A55 43046001002	-
90 - SWITCH FEI-30701133008.A5 30701133008	£39.32	£47.19
95 - SWITCH UMBAUSATZ / REPAIR KIT FEI-30701133017.A1 30701133017	£58.29	£69.95
100 - INSULATION BOARD FEI-31428039000.A5 31428039000	£5.48	£6.57
101 - TERMINAL FEI-32801022000.A2 32801022000	£1.60	£1.92
110 - CABLE FEI-30706234019.A1 30706234019	£83.67	£100.40
120 - CABLE GROMMET FEI-31413164009.A8 31413164009	£2.59	£3.11
130 - CABLE CLAMPING PIECE FEI-32431026009.A78 32431026009	£1.60	£1.92
140 - SHEET METAL SCREW FEI-43046022003.A5 43046022003	-
160 - FILLISTER HEAD SCREW FEI-43041016042.A8 43041016042	-
161 - DISC FEI-42404005048.A75 42404005048	£1.60	£1.92
162 - LOCK WASHER FEI-42439013046.A109 42439013046	£1.60	£1.92
190 - COVER FEI-32427064003.A5 32427064003	£15.89	£19.07
200 - SHEET METAL SCREW FEI-43067001000.A7 43067001000	£1.60	£1.92
210 - SHEET METAL SCREW FEI-43046023007.A3 43046023007	£1.60	£1.92
220 - AIR GUIDE RING FEI-31428064004.A1 31428064004	£6.28	£7.53
260 - ROTOR FEI-33502046019.A5 33502046019	£181.85	£218.22
300 - GEARBOX HOUSING FEI-31206091008.A1 31206091008	£148.28	£177.94
305 - GEARBOX HOUSING FEI-31206091039.A0 31206091039	£367.52	£441.02
310 - GROOVED BALL BEARING FEI-41701207033.A38 41701207033	£10.15	£12.18
320 - CIRCLIP FEI-42616001005.A11 42616001005	£1.60	£1.92
330 - DISC FEI-32624053022.A0 32624053022	£1.60	£1.92
330 - DISC FEI-32624053038.A11 32624053038	£2.41	£2.89
331 - SEALING RING FEI-30602014004.A2 30602014004	£20.61	£24.73
340 - FEATHER KEY FEI-40221058008.A4 40221058008	£1.60	£1.92
355 - BEVEL GEAR Z=13/33 FEI-33809159013.A0 33809159013	£141.59	£169.91
360 - DISC FEI-42401002056.A9 42401002056	£1.60	£1.92
370 - NUT FEI-42019009051.A18 42019009051	£1.60	£1.92
380 - GROOVED BALL BEARING FEI-41701204010.A38 41701204010	£6.37	£7.64
390 - SHAFT FEI-33406174004.A1 33406174004	£62.79	£75.35
400 - BEARING PLATE FEI-32419148010.A3 32419148010	£76.94	£92.33
410 - DISC FEI-32624102022.A3 32624102022	£4.48	£5.38
410 - DISC FEI-32624102038.A4 32624102038	£5.54	£6.65
420 - SEALING RING FEI-42639003008.A15 42639003008	£5.02	£6.03
430 - GROOVED BALL BEARING FEI-41701010026.A4 41701010026	£8.93	£10.72
440 - PLATE FEI-32416081002.A0 32416081002	£11.42	£13.71
450 - FILLISTER HEAD SCREW FEI-43064008044.A20 43064008044	£1.60	£1.92
460 - FEATHER KEY FEI-40221016000.A25 40221016000	£1.60	£1.92
480 - RING FEI-42628009004.A2 42628009004	£1.60	£1.92
490 - CYLINDER HEAD SCREW FEI-43050006048.A0 43050006048	-
600 - GROOVED BALL BEARING FEI-41701204026.A14 41701204026	£7.20	£8.64
610 - CUP SPRING FEI-30905039001.A9 30905039001	£1.60	£1.92
630 - CYLINDER HEAD SCREW FEI-43050006048.A1 43050006048	-
912 - SEALING RING FEI-40612000007.A122 40612000007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A146 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A128 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119118013.A6 32119118013	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810278020.A8 31810278020	£63.78	£76.53
5040 - JAW SPANNER SW17 FEI-62903002009.A75 62903002009	£11.61	£13.93
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A111 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A547 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A285 34130054061	-
