Fein HFW 9-125 (300Hz 200V) / 78208600260 Spare Parts

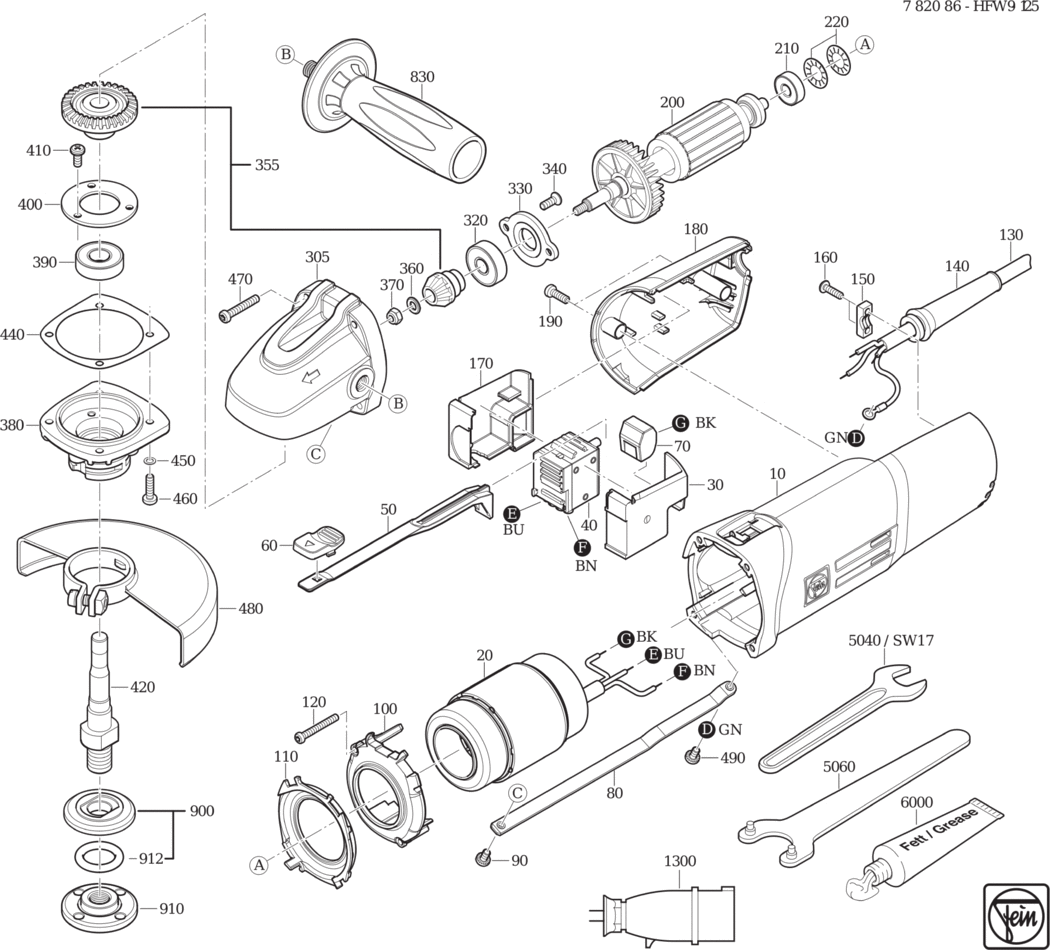

An exploded diagram and spare parts listing for the Fein HFW 9-125 (300Hz 200V) / 78208600260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901168000.A0 31901168000	£67.04	£80.45
20 - STATOR FEI-51829003160.A0 51829003160	£460.26	£552.31
30 - COVER FEI-31201146000.A0 31201146000	-
40 - SWITCH FEI-30701296000.A1 30701296000	£50.50	£60.60
50 - CONTROL ROD FEI-32816073000.A0 32816073000	£6.78	£8.13
60 - SLIDE SWITCH FEI-32805306000.A38 32805306000	£4.59	£5.51
70 - TERMINAL FEI-31412063000.A96 31412063000	£3.93	£4.72
80 - EARTH TERMINAL FEI-30229334010.A1 30229334010	-
90 - FLAT HEADED SCREW FEI-43064026040.A2 43064026040	£1.60	£1.92
100 - AIR GUIDE RING UT FEI-31428173000.A0 31428173000	£9.67	£11.61
110 - AIR GUIDE RING OT FEI-31428174000.A1 31428174000	£9.63	£11.56
120 - SCREW FEI-43074004000.A6 43074004000	£1.60	£1.92
130 - CABLE FEI-30706351010.A0 30706351010	-
140 - CABLE GROMMET FEI-31413164009.A45 31413164009	£2.59	£3.11
150 - CABLE CLAMPING PIECE FEI-32431026009.A60 32431026009	£1.60	£1.92
160 - SCREW FEI-43070006008.A43 43070006008	£1.60	£1.92
170 - COVER FEI-31201147000.A1 31201147000	-
180 - COVER FEI-32427141000.A0 32427141000	£15.08	£18.09
190 - SCREW FEI-43074007000.A36 43074007000	£1.60	£1.92
200 - ROTOR FEI-33502054010.A0 33502054010	-
210 - GROOVED BALL BEARING FEI-41701001260.A350 41701001260	£7.11	£8.53
220 - CUP SPRING FEI-30905080000.A1 30905080000	£1.60	£1.92
305 - GEARBOX HOUSING FEI-31206144020.A1 31206144020	£83.02	£99.62
320 - GROOVED BALL BEARING FEI-41701207055.A1 41701207055	£21.58	£25.89
330 - PLATE FEI-32416113000.A0 32416113000	-
340 - COUNTERSUNK SCREW FEI-43069001045.A6 43069001045	£1.60	£1.92
355 - BEVEL GEAR Z=13/33 FEI-33809240010.A1 33809240010	£161.18	£193.41
360 - DISC FEI-42401002056.A0 42401002056	£1.60	£1.92
370 - NUT FEI-42019009051.A6 42019009051	£1.60	£1.92
380 - BEARING PLATE FEI-32419149000.A1 32419149000	-
390 - GROOVED BALL BEARING FEI-41701010054.A1 41701010054	£8.25	£9.90
400 - PLATE FEI-32416081002.A6 32416081002	£11.42	£13.71
410 - FILLISTER HEAD SCREW FEI-43064008044.A2 43064008044	£1.60	£1.92
420 - SHAFT FEI-33406312000.A0 33406312000	£58.92	£70.70
440 - DISC FEI-32624121020.A1 32624121020	-
450 - CIRCLIP M4 FEI-42443003043.A11 42443003043	£1.60	£1.92
460 - FILLISTER HEAD SCREW FEI-43064024043.A11 43064024043	-
470 - SCREW FEI-43074012000.A103 43074012000	£1.60	£1.92
480 - SAFETY HOOD FEI-31810278020.A4 31810278020	£63.78	£76.53
490 - FLAT HEADED SCREW FEI-43064026040.A0 43064026040	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A82 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A73 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A67 63802052000	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A169 40612000007	£1.60	£1.92
5040 - JAW SPANNER SW17 FEI-62903002009.A41 62903002009	£11.61	£13.93
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A189 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A81 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A492 34130054061	-

Attribute Name	Value
Brand	Fein
