Fein MShy 664-1 (50/60Hz 220/230V) / 72240500230 Spare Parts

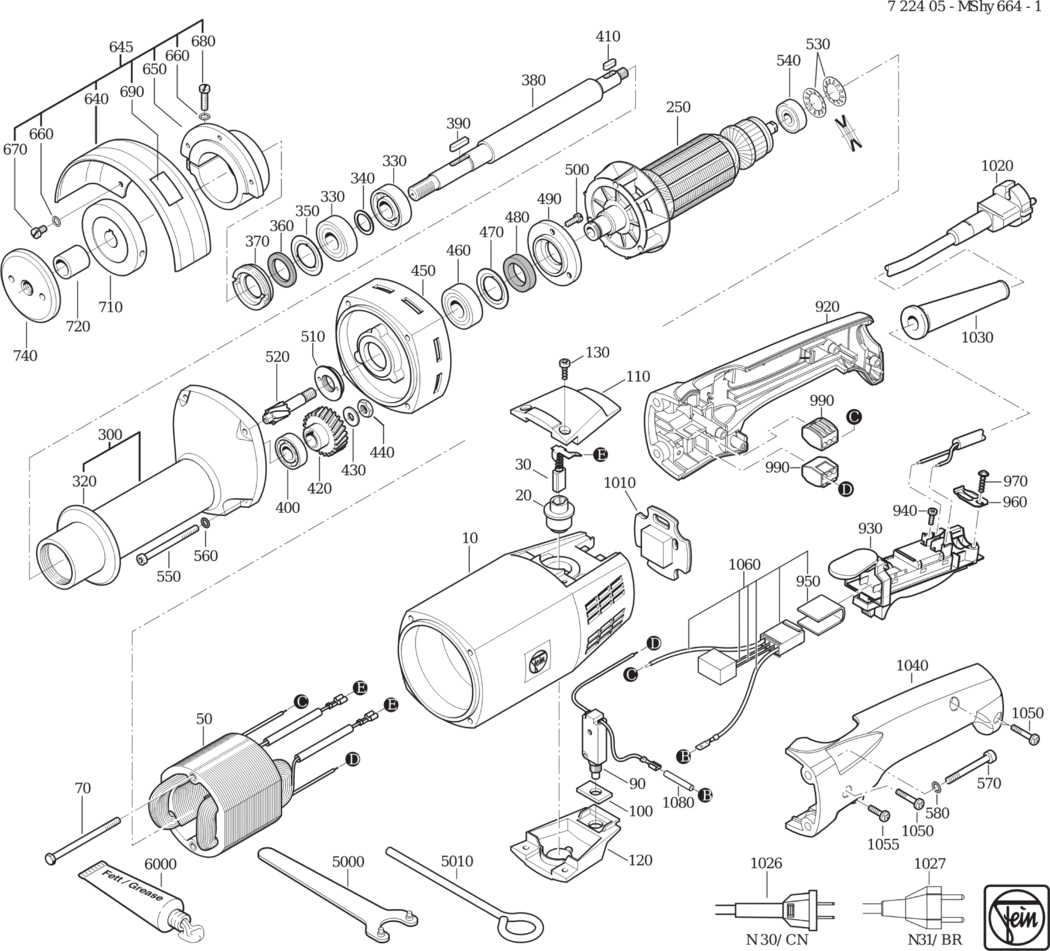

An exploded diagram and spare parts listing for the Fein MShy 664-1 (50/60Hz 220/230V) / 72240500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903117001.A0 31903117001	£152.79	£183.35
20 - BRUSH HOLDER FEI-30712059010.A0 30712059010	£9.35	£11.22
30 - CARBON BRUSH (SOLD SINGLY) FEI-30711075006.A0 30711075006	£9.67	£11.61
50 - STATOR FEI-51231012230.A0 51231012230	£116.95	£140.34
70 - HEXAGON SOCKET SCREW FEI-43001011052.A0 43001011052	-
90 - MOTOR PROTECTION SWITCH FEI-30751081040.A0 30751081040	£46.70	£56.04
100 - SEAL FEI-31426008001.A0 31426008001	£3.29	£3.95
110 - COVER FEI-32427050000.A0 32427050000	£10.29	£12.35
120 - COVER FEI-32427051009.A0 32427051009	£19.29	£23.15
130 - SHEET METAL SCREW FEI-43046001002.A16 43046001002	-
250 - ARMATURE 50HZ220V FEI-53231004228.A0 53231004228	£326.60	£391.92
300 - COLLAR BEARING FEI-31510046013.A0 31510046013	£177.34	£212.81
320 - RING FEI-31419024006.A10 31419024006	£17.85	£21.42
330 - GROOVED BALL BEARING FEI-41717002002.A2 41717002002	£85.76	£102.91
340 - DISC FEI-32624058013.A0 32624058013	£2.55	£3.06
350 - DISC FEI-32411053004.A20 32411053004	£7.11	£8.53
360 - FELT RING FEI-30601056003.A4 30601056003	£1.60	£1.92
370 - SEALING RING FEI-32613034007.A15 32613034007	£35.06	£42.07
380 - SHAFT FEI-33406105005.A8 33406105005	£83.84	£100.61
390 - FEATHER KEY FEI-40223027008.A15 40223027008	£1.60	£1.92
400 - GROOVED BALL BEARING FEI-41701010048.A0 41701010048	£16.91	£20.29
410 - FEATHER KEY FEI-40221015007.A9 40221015007	£2.34	£2.81
420 - GEAR-WHEEL FEI-33665026001.A0 33665026001	£123.84	£148.61
430 - DISC FEI-42401019085.A30 42401019085	£1.60	£1.92
440 - HEX NUT FEI-42002008002.A0 42002008002	£1.60	£1.92
450 - INTERMEDIATE GEAR BOX FEI-31506199002.A0 31506199002	£83.96	£100.75
460 - GROOVED BALL BEARING FEI-41701218093.A0 41701218093	£19.66	£23.59
470 - DISC FEI-32411053004.A19 32411053004	£7.11	£8.53
480 - FELT RING FEI-30601084003.A0 30601084003	£3.04	£3.65
490 - FLANGE FEI-32416067000.A8 32416067000	£32.18	£38.62
500 - CYLINDER HEAD SCREW FEI-43050002049.A28 43050002049	£1.60	£1.92
510 - NUT FEI-42011032003.A0 42011032003	£14.76	£17.71
520 - GEAR-WHEEL FEI-33765010000.A0 33765010000	£67.94	£81.53
530 - CUP SPRING FEI-30905015004.A0 30905015004	£1.60	£1.92
540 - GROOVED BALL BEARING FEI-41701207096.A7 41701207096	£18.38	£22.06
550 - CYLINDER HEAD SCREW FEI-43033021052.A0 43033021052	£1.60	£1.92
560 - SEALING RING FEI-40611001002.A32 40611001002	£1.60	£1.92
570 - CYLINDER HEAD SCREW FEI-43033015052.A14 43033015052	£1.60	£1.92
580 - CIRCLIP M5 FEI-42443004057.A424 42443004057	£1.60	£1.92
640 - SAFETY HOOD FEI-31810107008.A9 31810107008	£61.85	£74.22
645 - SAFETY HOOD FEI-31810107023.A8 31810107023	£139.57	£167.48
650 - FLANGE FEI-31809038001.A3 31809038001	£85.88	£103.05
660 - CIRCLIP M5 FEI-42443004057.A423 42443004057	£1.60	£1.92
670 - CYLINDER HEAD SCREW FEI-43002053059.A0 43002053059	£1.60	£1.92
680 - CYLINDER HEAD SCREW FEI-43002057058.A11 43002057058	-
690 - INFORMATION SIGN FEI-32215026007.A29 32215026007	£1.60	£1.92
710 - INNER FLANGE FEI-63801096001.A1 63801096001	£55.86	£67.03
720 - SPACER SLEEVE FEI-30501242001.A7 30501242001	£11.92	£14.30
740 - THREADED FLANGE FEI-63802105000.A10 63802105000	£36.76	£44.11
920 - HANDLE HALF SHELL FEI-31204179000.A8 31204179000	£22.62	£27.15
930 - SWITCH FEI-30701276010.A0 30701276010	£102.23	£122.68
940 - FILLISTER HEAD SCREW FEI-43041035047.A46 43041035047	£1.60	£1.92
950 - SEAL FEI-31415098000.A0 31415098000	-
960 - CABLE CLAMPING PIECE FEI-32431042008.A4 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A50 43070035002	£1.60	£1.92
990 - TERMINAL FEI-31412063000.A97 31412063000	£3.93	£4.72
1010 - PLATE FEI-30605045013.A0 30605045013	£10.56	£12.67
1020 - CABLE WITH PLUG FEI-30707200019.A20 30707200019	£19.62	£23.54
1030 - CABLE GROMMET FEI-31413094007.A137 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A49 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A98 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A62 43070038007	£1.60	£1.92
1060 - START-UP CURRENT LIMITE FEI-30762278020.A0 30762278020	-
1080 - INSULATING HOSE FEI-31413138001.A0 31413138001	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A191 62910022002	£7.22	£8.67
5010 - PIN FEI-62913005004.A3 62913005004	£10.36	£12.43
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A83 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A493 34130054061	-
