Fein MShe 648-1 (50Hz 230V) / 72231495230 Spare Parts

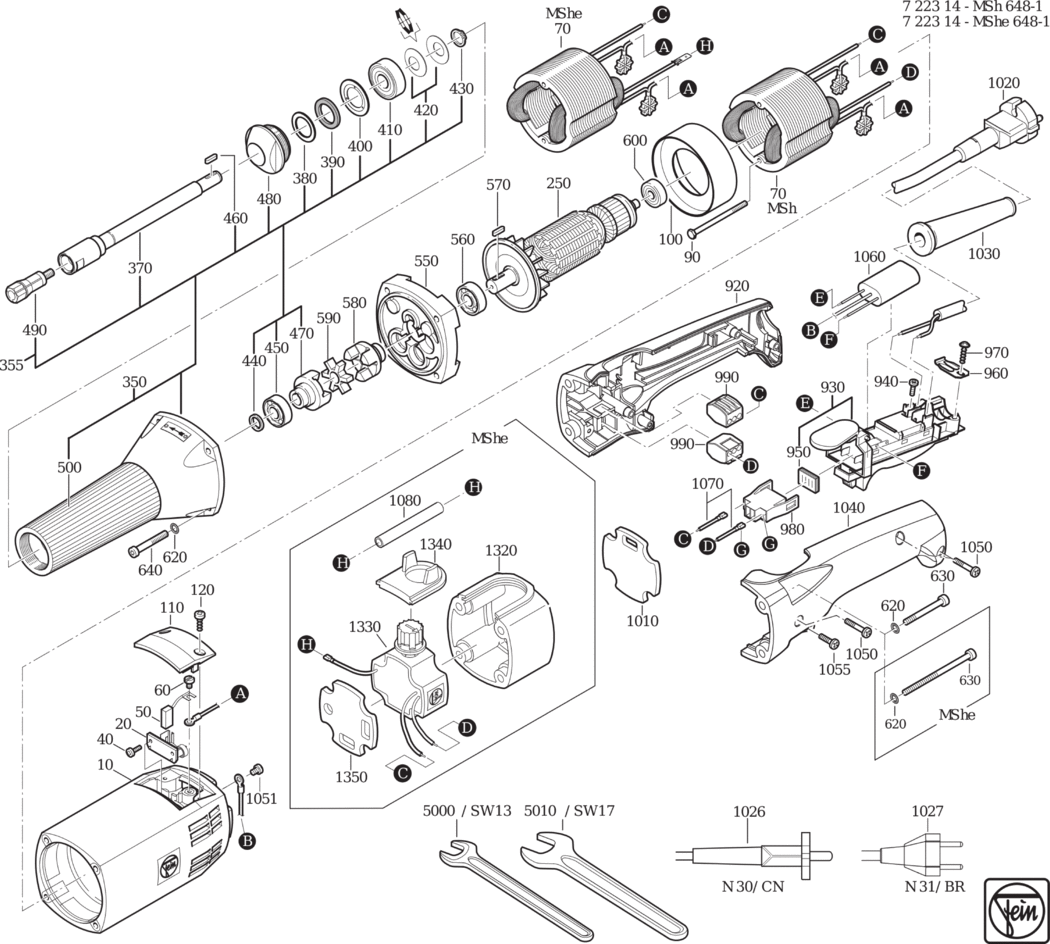

An exploded diagram and spare parts listing for the Fein MShe 648-1 (50Hz 230V) / 72231495230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A14 31903099006	£150.31	£180.37
20 - BRUSH HOLDER FEI-30712067017.A32 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A23 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A3 30711067004	£7.87	£9.44
60 - FILLISTER HEAD SCREW FEI-43041016042.A54 43041016042	-
70 - STATOR FEI-51213043230.A0 51213043230	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A40 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A3 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A8 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A12 43046001002	-
250 - ARMATURE 50HZ220V FEI-53213007227.A0 53213007227	£179.98	£215.98
350 - COLLAR BEARING FEI-31510035002.A0 31510035002	£113.39	£136.07
355 - COLLAR BEARING FEI-31510035011.A1 31510035011	-
370 - SHAFT FEI-33403040001.A0 33403040001	£160.78	£192.93
380 - DISC FEI-32408174006.A3 32408174006	£2.70	£3.24
390 - FELT RING FEI-30601063007.A4 30601063007	£1.60	£1.92
400 - DISC FEI-32411059005.A4 32411059005	£1.60	£1.92
410 - GROOVED BALL BEARING FEI-41701213096.A56 41701213096	£20.90	£25.08
420 - CUP SPRING FEI-30905020005.A1 30905020005	£1.60	£1.92
430 - CIRCLIP FEI-42616006007.A110 42616006007	£1.60	£1.92
440 - RING FEI-32601137003.A2 32601137003	£6.98	£8.37
450 - GROOVED BALL BEARING FEI-41701020130.A22 41701020130	£11.73	£14.08
460 - FEATHER KEY FEI-40223021002.A17 40223021002	£1.60	£1.92
470 - CLUTCH PART FEI-30102072001.A26 30102072001	£57.78	£69.34
480 - SLEEVE FEI-30514085009.A2 30514085009	£27.40	£32.88
490 - COLLETS FEI-63207069005.A6 63207069005	£40.45	£48.54
500 - PROTECTIVE HOSE FEI-31413102003.A1 31413102003	£5.64	£6.77
550 - INTERMEDIATE GEAR BOX FEI-31506175005.A0 31506175005	£48.11	£57.73
560 - GROOVED BALL BEARING FEI-41701020130.A21 41701020130	£11.73	£14.08
570 - FEATHER KEY FEI-40221005008.A10 40221005008	£1.60	£1.92
580 - CLUTCH PART FEI-30102072001.A25 30102072001	£57.78	£69.34
590 - CLUTCH PART FEI-30102071008.A17 30102071008	£12.11	£14.53
600 - GROOVED BALL BEARING FEI-41701204131.A0 41701204131	£9.10	£10.92
620 - CIRCLIP M5 FEI-42443004057.A314 42443004057	£1.60	£1.92
630 - CYLINDER HEAD SCREW FEI-43002106058.A1 43002106058	£3.33	£4.00
640 - CYLINDER HEAD SCREW FEI-43033016055.A68 43033016055	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179000.A2 31204179000	£22.62	£27.15
930 - SWITCH FEI-30701316010.A10 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A19 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A12 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A34 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A33 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A19 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A126 31412063000	£3.93	£4.72
1010 - PLATE FEI-30605042008.A14 30605042008	£5.45	£6.54
1020 - CABLE WITH PLUG FEI-30707419010.A6 30707419010	-
1030 - CABLE GROMMET FEI-31413094007.A118 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A21 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A116 43070031003	£1.60	£1.92
1051 - FILLISTER HEAD SCREW FEI-43041016042.A55 43041016042	-
1055 - SCREW FEI-43070038007.A15 43070038007	£1.60	£1.92
1060 - CAPACITOR FEI-30722186010.A3 30722186010	-
1070 - CONNECTING CABLE FEI-30719655010.A5 30719655010	£2.74	£3.29
1080 - INSULATING HOSE FEI-31413138001.A3 31413138001	£1.60	£1.92
1320 - HOUSING FEI-31207078005.A0 31207078005	£39.58	£47.49
1330 - SPEED SETTING SWITCH FEI-30762289020.A0 30762289020	-
1340 - HOUSING INSERT FEI-32414046002.A3 32414046002	£5.46	£6.55
1350 - PLATE FEI-30605058008.A1 30605058008	£6.82	£8.18
5000 - JAW SPANNER SW13 FEI-62901007007.A52 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A14 62903002009	£11.61	£13.93
9000 - OPERATING INSTRUCTIONS FEI-34101080060.A1 34101080060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A655 34130054061	-
