Fein MSh 636-1 (50Hz 42V) / 72230300045 Spare Parts

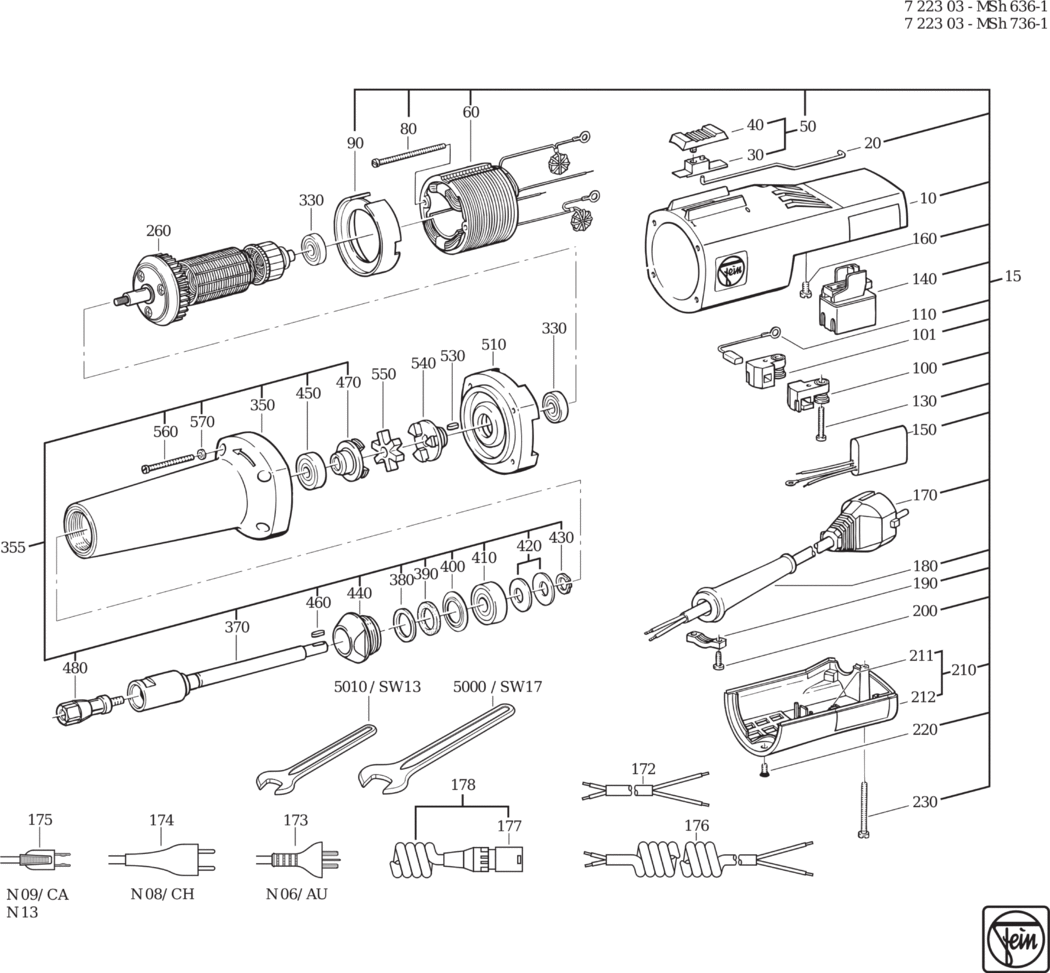

An exploded diagram and spare parts listing for the Fein MSh 636-1 (50Hz 42V) / 72230300045

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901017007.A16 31901017007	£100.68	£120.81
20 - CONTROL ROD FEI-32816025003.A7 32816025003	£2.82	£3.38
30 - SLIDER FEI-32816039001.A3 32816039001	£2.35	£2.82
40 - SLIDE SWITCH FEI-32805118004.A9 32805118004	£1.60	£1.92
50 - SLIDE SWITCH FEI-32805118013.A7 32805118013	£8.15	£9.78
60 - STATOR 50HZ42V FEI-51203004044.A0 51203004044	-
80 - CYLINDER HEAD SCREW FEI-43002025991.A13 43002025991	£1.60	£1.92
90 - AIR GUIDE RING FEI-31428007001.A3 31428007001	£3.22	£3.86
100 - BRUSH HOLDER FEI-30712055011.A1 30712055011	£12.92	£15.51
101 - BRUSH HOLDER FEI-30712056014.A15 30712056014	£12.92	£15.51
110 - CARBON BRUSH (SOLD SINGLY) FEI-30711062001.A5 30711062001	£6.20	£7.44
130 - FILLISTER HEAD SCREW FEI-43041007990.A1 43041007990	£1.60	£1.92
140 - SWITCH FEI-30701060000.A60 30701060000	£22.32	£26.78
150 - CAPACITOR FEI-30722037004.A5 30722037004	£16.62	£19.94
160 - FLAT HEADED SCREW FEI-43003013991.A25 43003013991	£1.60	£1.92
172 - CABLE FEI-30706126011.A1 30706126011	-
180 - CABLE GROMMET FEI-31413164009.A3 31413164009	£2.59	£3.11
190 - CABLE CLAMPING PIECE FEI-32431021007.A121 32431021007	£1.60	£1.92
200 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A131 43041001994	£1.60	£1.92
210 - COVER FEI-32427028006.A13 32427028006	£14.33	£17.20
211 - PRESSURE PIECE FEI-31415042008.A3 31415042008	£1.60	£1.92
212 - HOUSING INSERT FEI-32414083003.A5 32414083003	£3.29	£3.95
220 - COUNTERSUNK SCREW FEI-43066002992.A27 43066002992	£1.60	£1.92
230 - FLAT HEADED SCREW FEI-43003025992.A3 43003025992	£1.60	£1.92
260 - ARMATURE 50HZ42V FEI-53203003048.A2 53203003048	-
350 - COLLAR BEARING FEI-31510042005.A17 31510042005	£103.34	£124.01
355 - COLLAR BEARING FEI-31510042014.A0 31510042014	£398.93	£478.72
370 - SHAFT FEI-33403047006.A5 33403047006	£149.93	£179.92
380 - DISC FEI-32408020008.A20 32408020008	£3.83	£4.60
390 - FELT RING FEI-30601047008.A12 30601047008	£1.60	£1.92
400 - DISC FEI-32411051007.A14 32411051007	£2.55	£3.06
410 - GROOVED BALL BEARING FEI-41701020130.A48 41701020130	£11.73	£14.08
420 - CUP SPRING FEI-30905026006.A14 30905026006	£1.60	£1.92
430 - CIRCLIP FEI-42616013001.A68 42616013001	£1.60	£1.92
440 - SLEEVE FEI-30514078005.A14 30514078005	£31.00	£37.20
450 - GROOVED BALL BEARING FEI-41701204095.A11 41701204095	£17.68	£21.22
460 - FEATHER KEY FEI-40221001009.A30 40221001009	£1.60	£1.92
470 - CLUTCH PART FEI-30102045000.A8 30102045000	£67.72	£81.27
480 - COLLETS FEI-63207059006.A29 63207059006	£40.45	£48.54
510 - INTERMEDIATE GEAR BOX FEI-31506193001.A4 31506193001	£52.74	£63.29
530 - FEATHER KEY FEI-40221001009.A31 40221001009	£1.60	£1.92
540 - CLUTCH PART FEI-30102045000.A9 30102045000	£67.72	£81.27
550 - CLUTCH PART FEI-30102046003.A13 30102046003	£12.28	£14.73
560 - CYLINDER HEAD SCREW FEI-43002021992.A18 43002021992	£1.60	£1.92
570 - CIRCLIP FEI-42443002992.A57 42443002992	£1.60	£1.92
5000 - JAW SPANNER SW17 FEI-62903002009.A71 62903002009	£11.61	£13.93
5000 - JAW SPANNER SW13 FEI-62901007007.A20 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A70 62903002009	£11.61	£13.93
5010 - JAW SPANNER SW13 FEI-62901007007.A19 62901007007	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A291 34130054061	-
