Fein MSh 636-1 (50/60Hz 220/230V) / 72230300226 Spare Parts

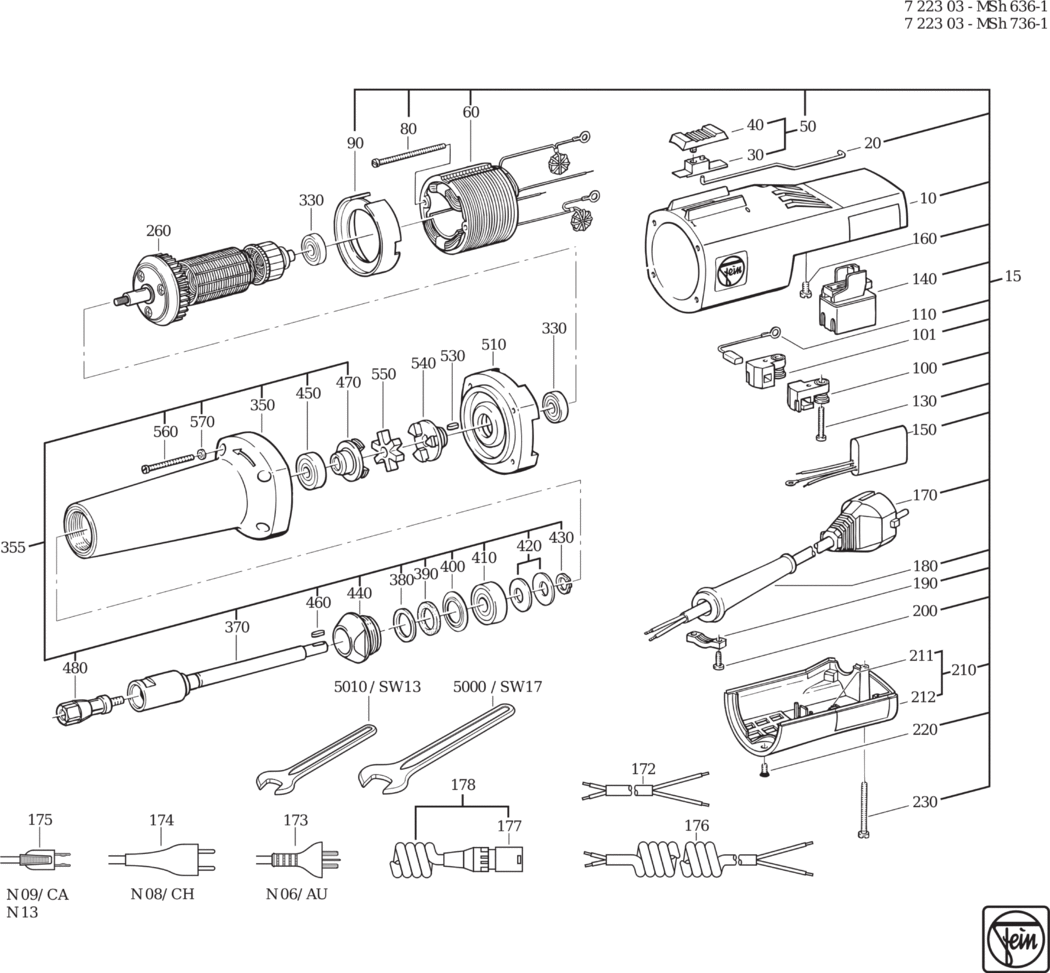

An exploded diagram and spare parts listing for the Fein MSh 636-1 (50/60Hz 220/230V) / 72230300226

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901017007.A6 31901017007	£100.68	£120.81
15 - MOTOR HOUSING WITH STAT 50HZ220V FEI-52203019223.A0 52203019223	-
20 - CONTROL ROD FEI-32816025003.A13 32816025003	£2.82	£3.38
30 - SLIDER FEI-32816039001.A10 32816039001	£2.35	£2.82
40 - SLIDE SWITCH FEI-32805118004.A13 32805118004	£1.60	£1.92
50 - SLIDE SWITCH FEI-32805118013.A3 32805118013	£8.15	£9.78
60 - STATOR 50HZ220V FEI-51203004225.A0 51203004225	£68.49	£82.19
80 - CYLINDER HEAD SCREW FEI-43002025991.A26 43002025991	£1.60	£1.92
90 - AIR GUIDE RING FEI-31428007001.A5 31428007001	£3.22	£3.86
100 - BRUSH HOLDER FEI-30712055011.A0 30712055011	£12.92	£15.51
101 - BRUSH HOLDER FEI-30712056014.A16 30712056014	£12.92	£15.51
110 - CARBON BRUSH (SOLD SINGLY) FEI-30711062001.A3 30711062001	£6.20	£7.44
130 - FILLISTER HEAD SCREW FEI-43041007990.A0 43041007990	£1.60	£1.92
140 - SWITCH FEI-30701060000.A58 30701060000	£22.32	£26.78
150 - CAPACITOR FEI-30722037004.A7 30722037004	£16.62	£19.94
160 - FLAT HEADED SCREW FEI-43003013991.A24 43003013991	£1.60	£1.92
170 - CABLE WITH PLUG FEI-30707120011.A1 30707120011	£17.81	£21.37
180 - CABLE GROMMET FEI-31413142009.A17 31413142009	£1.60	£1.92
190 - CABLE CLAMPING PIECE FEI-32431021007.A123 32431021007	£1.60	£1.92
200 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A130 43041001994	£1.60	£1.92
210 - COVER FEI-32427028006.A11 32427028006	£14.33	£17.20
211 - PRESSURE PIECE FEI-31415042008.A4 31415042008	£1.60	£1.92
212 - HOUSING INSERT FEI-32414083003.A7 32414083003	£3.29	£3.95
220 - COUNTERSUNK SCREW FEI-43066002992.A26 43066002992	£1.60	£1.92
230 - FLAT HEADED SCREW FEI-43003025992.A4 43003025992	£1.60	£1.92
260 - ARMATURE 50HZ220V FEI-53203003229.A0 53203003229	£123.35	£148.02
330 - GROOVED BALL BEARING FEI-41701001260.A25 41701001260	£7.11	£8.53
350 - COLLAR BEARING FEI-31510042005.A15 31510042005	£103.34	£124.01
355 - COLLAR BEARING FEI-31510042014.A2 31510042014	£398.93	£478.72
370 - SHAFT FEI-33403047006.A4 33403047006	£149.93	£179.92
380 - DISC FEI-32408020008.A21 32408020008	£3.83	£4.60
390 - FELT RING FEI-30601047008.A14 30601047008	£1.60	£1.92
400 - DISC FEI-32411051007.A12 32411051007	£2.55	£3.06
410 - GROOVED BALL BEARING FEI-41701020130.A47 41701020130	£11.73	£14.08
420 - CUP SPRING FEI-30905026006.A12 30905026006	£1.60	£1.92
430 - CIRCLIP FEI-42616013001.A69 42616013001	£1.60	£1.92
440 - SLEEVE FEI-30514078005.A12 30514078005	£31.00	£37.20
450 - GROOVED BALL BEARING FEI-41701204095.A12 41701204095	£17.68	£21.22
460 - FEATHER KEY FEI-40221001009.A26 40221001009	£1.60	£1.92
470 - CLUTCH PART FEI-30102045000.A4 30102045000	£67.72	£81.27
480 - COLLETS FEI-63207059006.A28 63207059006	£40.45	£48.54
510 - INTERMEDIATE GEAR BOX FEI-31506193001.A6 31506193001	£52.74	£63.29
530 - FEATHER KEY FEI-40221001009.A27 40221001009	£1.60	£1.92
540 - CLUTCH PART FEI-30102045000.A5 30102045000	£67.72	£81.27
550 - CLUTCH PART FEI-30102046003.A15 30102046003	£12.28	£14.73
560 - CYLINDER HEAD SCREW FEI-43002021992.A17 43002021992	£1.60	£1.92
570 - CIRCLIP FEI-42443002992.A56 42443002992	£1.60	£1.92
5000 - JAW SPANNER SW17 FEI-62903002009.A73 62903002009	£11.61	£13.93
5000 - JAW SPANNER SW13 FEI-62901007007.A17 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A72 62903002009	£11.61	£13.93
5010 - JAW SPANNER SW13 FEI-62901007007.A18 62901007007	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A293 34130054061	-

Attribute Name	Value
Brand	Fein
