Fein MSh 635 (50Hz 240V) / 72231200241 Spare Parts

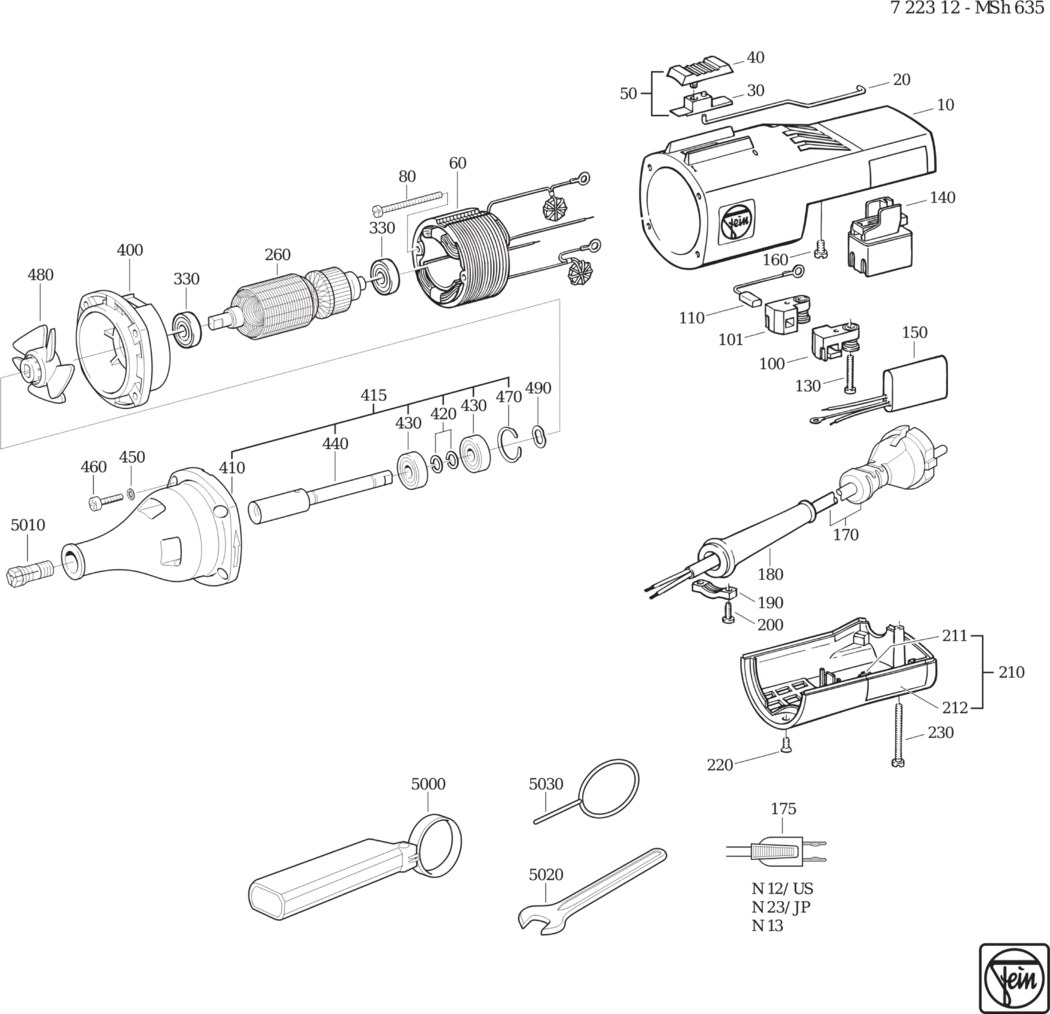

An exploded diagram and spare parts listing for the Fein MSh 635 (50Hz 240V) / 72231200241

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901017007.A8 31901017007	£100.68	£120.81
20 - CONTROL ROD FEI-32816025003.A15 32816025003	£2.82	£3.38
30 - SLIDER FEI-32816039001.A8 32816039001	£2.35	£2.82
40 - SLIDE SWITCH FEI-32805118004.A15 32805118004	£1.60	£1.92
50 - SLIDE SWITCH FEI-32805118013.A1 32805118013	£8.15	£9.78
60 - STATOR FEI-51203024245.A0 51203024245	-
80 - CYLINDER HEAD SCREW FEI-43002022995.A1 43002022995	-
100 - BRUSH HOLDER FEI-30712055011.A9 30712055011	£12.92	£15.51
101 - BRUSH HOLDER FEI-30712056014.A7 30712056014	£12.92	£15.51
110 - CARBON BRUSH (SOLD SINGLY) FEI-30711062001.A9 30711062001	£6.20	£7.44
130 - FILLISTER HEAD SCREW FEI-43041007990.A10 43041007990	£1.60	£1.92
140 - SWITCH FEI-30701060000.A44 30701060000	£22.32	£26.78
150 - CAPACITOR FEI-30722037004.A1 30722037004	£16.62	£19.94
160 - FLAT HEADED SCREW FEI-43003013991.A33 43003013991	£1.60	£1.92
170 - CABLE WITH PLUG FEI-30707101012.A3 30707101012	£14.02	£16.82
180 - CABLE GROMMET FEI-31413142009.A1 31413142009	£1.60	£1.92
190 - CABLE CLAMPING PIECE FEI-32431021007.A22 32431021007	£1.60	£1.92
200 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A90 43041001994	£1.60	£1.92
210 - COVER FEI-32427028006.A14 32427028006	£14.33	£17.20
211 - PRESSURE PIECE FEI-31415042008.A9 31415042008	£1.60	£1.92
212 - HOUSING INSERT FEI-32414083003.A2 32414083003	£3.29	£3.95
220 - COUNTERSUNK SCREW FEI-43066002992.A44 43066002992	£1.60	£1.92
230 - FLAT HEADED SCREW FEI-43003025992.A0 43003025992	£1.60	£1.92
260 - ARMATURE FEI-53203027248.A0 53203027248	-
330 - GROOVED BALL BEARING FEI-41701001172.A107 41701001172	£9.63	£11.56
400 - INTERMEDIATE GEAR BOX FEI-31506294005.A1 31506294005	£41.57	£49.88
410 - COLLAR BEARING FEI-31510069008.A1 31510069008	£130.96	£157.15
415 - COLLAR BEARING FEI-31510069017.A1 31510069017	-
420 - CIRCLIP FEI-42615090002.A10 42615090002	£1.60	£1.92
430 - GROOVED BALL BEARING FEI-41701001172.A106 41701001172	£9.63	£11.56
440 - SHAFT FEI-33406217007.A1 33406217007	£158.92	£190.71
450 - CIRCLIP FEI-42443002992.A25 42443002992	£1.60	£1.92
460 - FILLISTER HEAD SCREW FEI-43041024997.A5 43041024997	£1.60	£1.92
470 - CIRCLIP FEI-42644002007.A5 42644002007	-
480 - FAN WHEEL FEI-31004033007.A1 31004033007	£9.63	£11.56
490 - DISC FEI-42446012004.A2 42446012004	-
5000 - HANDLE FEI-32119084018.A0 32119084018	£42.57	£51.08
5010 - COLLETS FEI-63207097000.A0 63207097000	£39.72	£47.66
5020 - JAW SPANNER SW9 FEI-62901003008.A1 62901003008	£11.34	£13.61
5030 - RETAINING PIN FEI-62913020004.A2 62913020004	£2.34	£2.81
5040 - TOOL CASE FEI-33901065007.A1 33901065007	-
9000 - OPERATING INSTRUCTIONS FEI-34100717062.A0 34100717062	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A117 34130054061	-
