Fein GSZ 8-280 PL (50Hz 110V) / 72231824110 Spare Parts

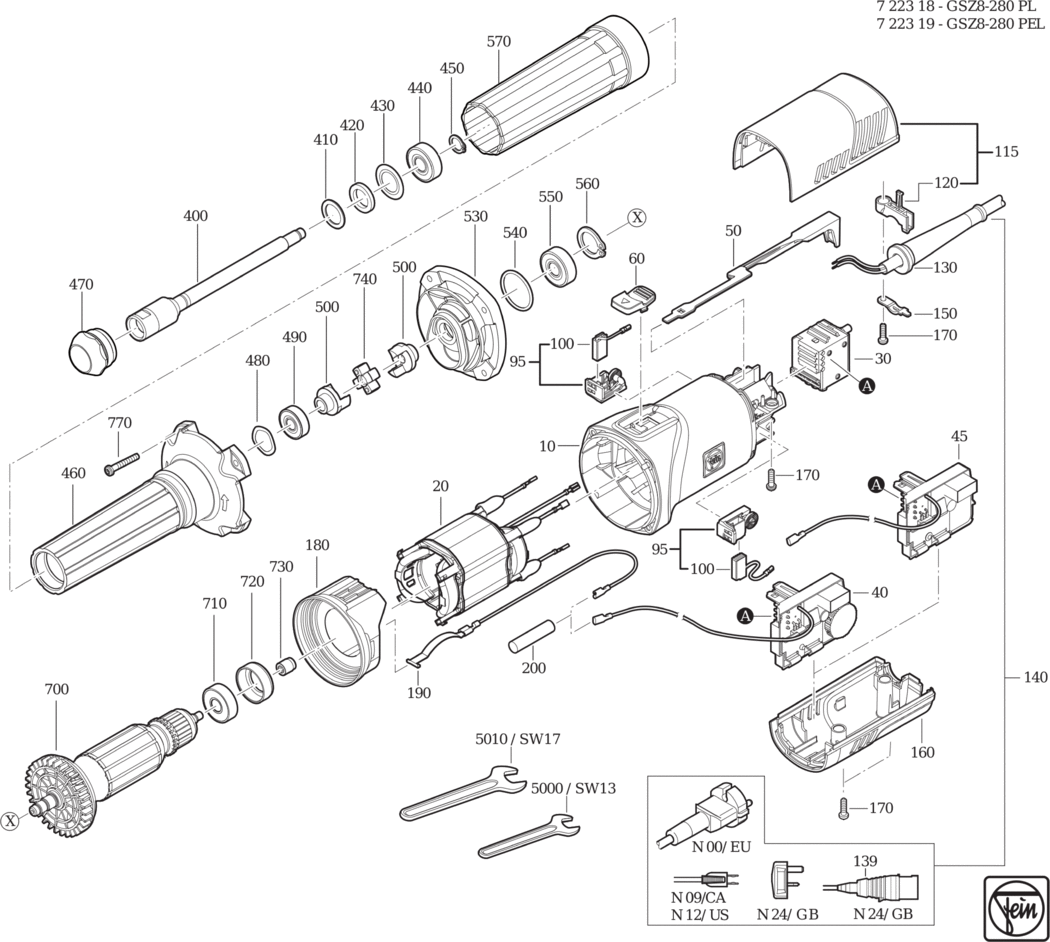

An exploded diagram and spare parts listing for the Fein GSZ 8-280 PL (50Hz 110V) / 72231824110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A22 31901174000	£37.51	£45.01
20 - STATOR 110-120V 50/60HZ FEI-51281004110.A12 51281004110	£50.78	£60.93
30 - SWITCH FEI-30701299000.A41 30701299000	£28.81	£34.57
45 - ELECTRONICS 50/60H100-120V FEI-30762543990.A0 30762543990	-
50 - CONTROL ROD FEI-32816079000.A40 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A68 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A30 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A67 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427150010.A24 32427150010	£15.07	£18.08
120 - CABLE CLAMPING PIECE FEI-32431047000.A24 32431047000	-
130 - PROTECTIVE HOSE FEI-31413237000.A6 31413237000	£2.74	£3.29
140 - CABLE WITH PLUG FEI-30707545010.A10 30707545010	£26.50	£31.80
150 - CABLE CLAMPING PIECE FEI-32431043002.A33 32431043002	£1.60	£1.92
160 - COVER FEI-32427148000.A18 32427148000	£5.49	£6.59
170 - SCREW FEI-43072000000.A119 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A71 31428179000	£7.46	£8.95
190 - CONTACT SPRING FEI-32803019020.A9 32803019020	-
200 - INSULATING HOSE FEI-31413232000.A53 31413232000	£1.60	£1.92
400 - SHAFT FEI-33406317000.A9 33406317000	-
410 - DISC FEI-32408020008.A31 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A3 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A2 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A2 41701000006	-
450 - CIRCLIP FEI-42616013001.A51 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510097010.A8 31510097010	-
470 - SLEEVE FEI-30514103000.A2 30514103000	-
480 - DISC FEI-42446000000.A12 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A12 41701000007	-
500 - CLUTCH PART FEI-30102106000.A3 30102106000	-
530 - INTERMEDIATE GEAR BOX FEI-31506404000.A1 31506404000	-
540 - SEALING RING FEI-40612038007.A16 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A94 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A21 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A3 31413258000	-
700 - ARMATURE 110V50H FEI-53281004110.A0 53281004110	-
710 - GROOVED BALL BEARING FEI-41701001260.A178 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A4 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A29 32172014010	£8.85	£10.62
740 - CLUTCH PART FEI-30102107000.A6 30102107000	-
770 - SCREW FEI-43074012000.A43 43074012000	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A2 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A87 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A379 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A110 34130054061	-
