Fein GSZ 8-280 PEL (50/60Hz 220/230V) / 72231900230 Spare Parts

Fein GSZ 8-280 PEL ⡐/60Hz 220/230V) / 72231900230 Spare Parts

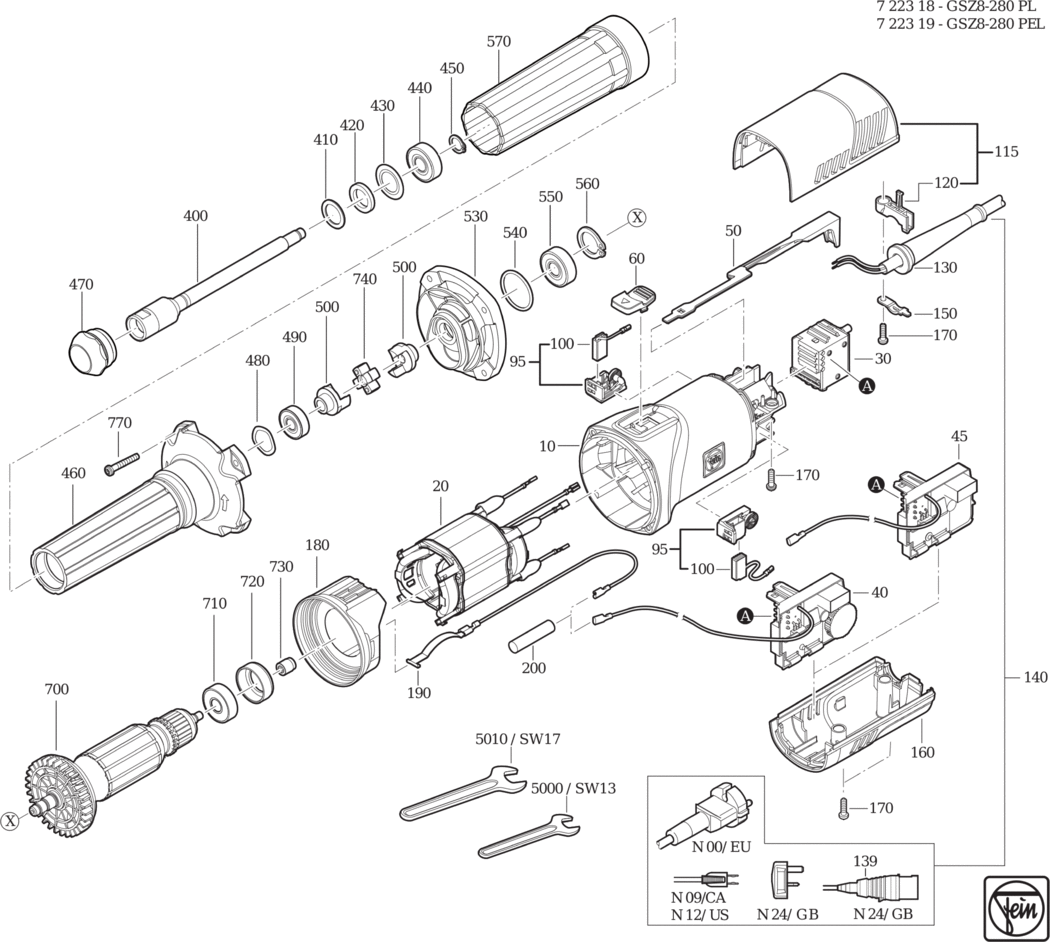

An exploded diagram and spare parts listing for the Fein GSZ 8-280 PEL (50/60Hz 220/230V) / 72231900230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A38 31901174000	£37.51	£45.01
20 - STATOR 50HZ230V FEI-51281004230.A16 51281004230	£50.00	£60.00
30 - SWITCH FEI-30701299000.A0 30701299000	£28.81	£34.57
40 - SPEED SETTING SWITCH 50/60H220-230V FEI-30762544990.A1 30762544990	-
50 - CONTROL ROD FEI-32816079000.A15 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A43 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A109 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A80 30711158000	£8.15	£9.78
115 - COVER FEI-32427149010.A5 32427149010	-
120 - CABLE CLAMPING PIECE FEI-32431047000.A109 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A59 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707544010.A23 30707544010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A32 32431043002	£1.60	£1.92
160 - COVER FEI-32427147000.A0 32427147000	-
170 - SCREW FEI-43072000000.A114 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A66 31428179000	£7.46	£8.95
190 - CONTACT SPRING FEI-32803019020.A4 32803019020	-
200 - INSULATING HOSE FEI-31413232000.A48 31413232000	£1.60	£1.92
400 - SHAFT FEI-33406317000.A6 33406317000	-
410 - DISC FEI-32408020008.A32 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A0 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A1 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A0 41701000006	-
450 - CIRCLIP FEI-42616013001.A49 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510097010.A5 31510097010	-
470 - SLEEVE FEI-30514103000.A5 30514103000	-
480 - DISC FEI-42446000000.A10 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A14 41701000007	-
500 - CLUTCH PART FEI-30102106000.A0 30102106000	-
530 - INTERMEDIATE GEAR BOX FEI-31506404000.A5 31506404000	-
540 - SEALING RING FEI-40612038007.A17 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A96 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A23 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A1 31413258000	-
700 - ARMATURE 230V50H FEI-53281004230.A0 53281004230	-
710 - GROOVED BALL BEARING FEI-41701001260.A175 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A1 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A32 32172014010	£8.85	£10.62
740 - CLUTCH PART FEI-30102107000.A9 30102107000	-
770 - SCREW FEI-43074012000.A42 43074012000	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A5 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A84 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A377 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101214060.A2 34101214060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A112 34130054061	-

Attribute Name	Value
Brand	Fein
