Fein GSZ 8-280 PE (50Hz 110V) / 72231724110 Spare Parts

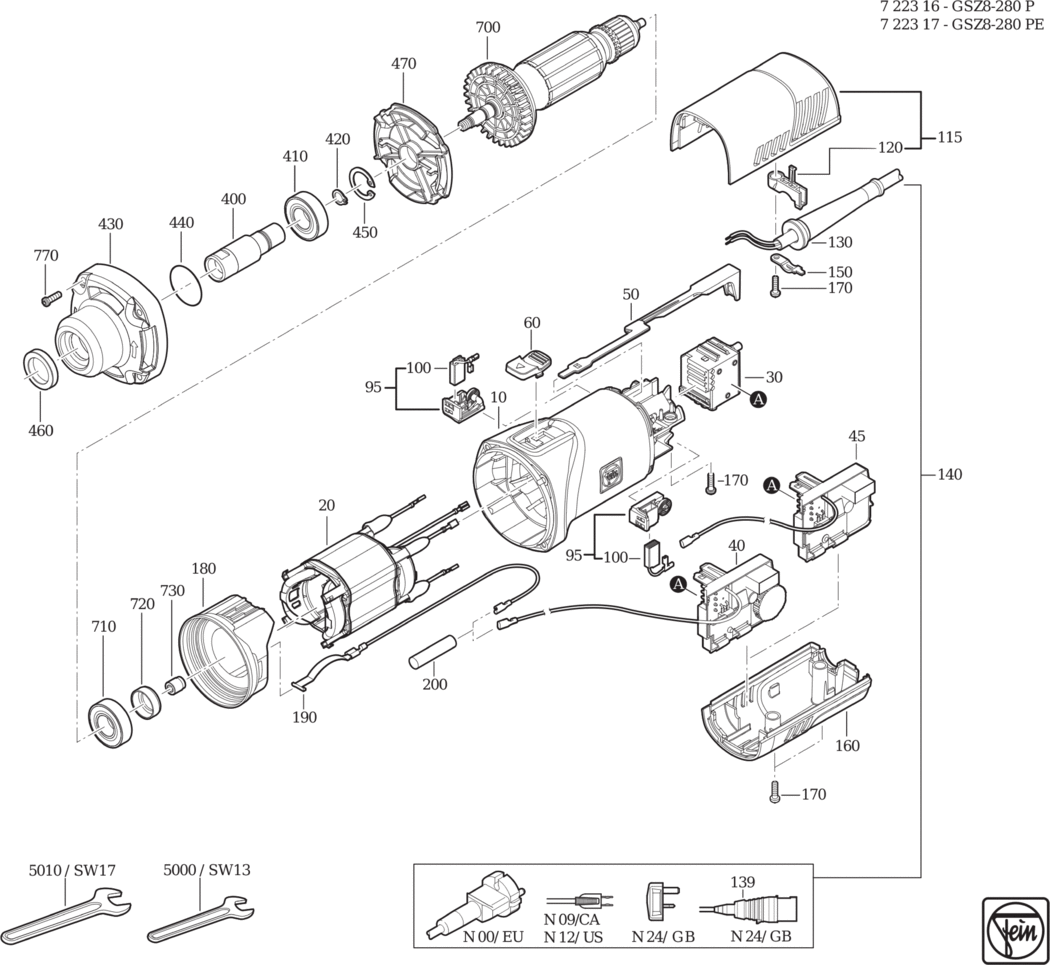

An exploded diagram and spare parts listing for the Fein GSZ 8-280 PE (50Hz 110V) / 72231724110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A37 31901174000	£37.51	£45.01
20 - STATOR 110-120V 50/60HZ FEI-51281004110.A2 51281004110	£50.78	£60.93
30 - SWITCH FEI-30701299000.A1 30701299000	£28.81	£34.57
40 - SPEED SETTING SWITCH 50/60H110-120V FEI-30762545990.A2 30762545990	-
50 - CONTROL ROD FEI-32816079000.A16 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A42 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A110 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A79 30711158000	£8.15	£9.78
115 - COVER FEI-32427149010.A4 32427149010	-
120 - CABLE CLAMPING PIECE FEI-32431047000.A108 32431047000	-
130 - PROTECTIVE HOSE FEI-31413237000.A66 31413237000	£2.74	£3.29
140 - CABLE WITH PLUG FEI-30707545010.A1 30707545010	£26.50	£31.80
150 - CABLE CLAMPING PIECE FEI-32431043002.A214 32431043002	£1.60	£1.92
160 - COVER FEI-32427147000.A4 32427147000	-
170 - SCREW FEI-43072000000.A206 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A2 31428179000	£7.46	£8.95
190 - CONTACT SPRING FEI-32803019020.A0 32803019020	-
200 - INSULATING HOSE FEI-31413232000.A20 31413232000	£1.60	£1.92
400 - SHAFT FEI-33406319000.A2 33406319000	-
410 - GROOVED BALL BEARING FEI-41701012056.A5 41701012056	-
420 - CIRCLIP FEI-42616007001.A27 42616007001	£1.60	£1.92
430 - COLLAR BEARING FEI-31510099000.A1 31510099000	-
440 - SEALING RING FEI-40612128007.A5 40612128007	£1.60	£1.92
450 - CIRCLIP FEI-42616012007.A5 42616012007	-
460 - RING FEI-32601278000.A4 32601278000	-
470 - AIR GUIDE RING FEI-31428185000.A1 31428185000	-
700 - ARMATURE 110V50H FEI-53281005110.A0 53281005110	-
710 - GROOVED BALL BEARING FEI-41701001260.A348 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A226 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A129 32172014010	£8.85	£10.62
770 - SCREW FEI-43074012000.A107 43074012000	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A73 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A36 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A84 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A494 34130054061	-
