Fein GSZ 8-280 PE (50/60Hz 220/230V) / 72231700230 Spare Parts

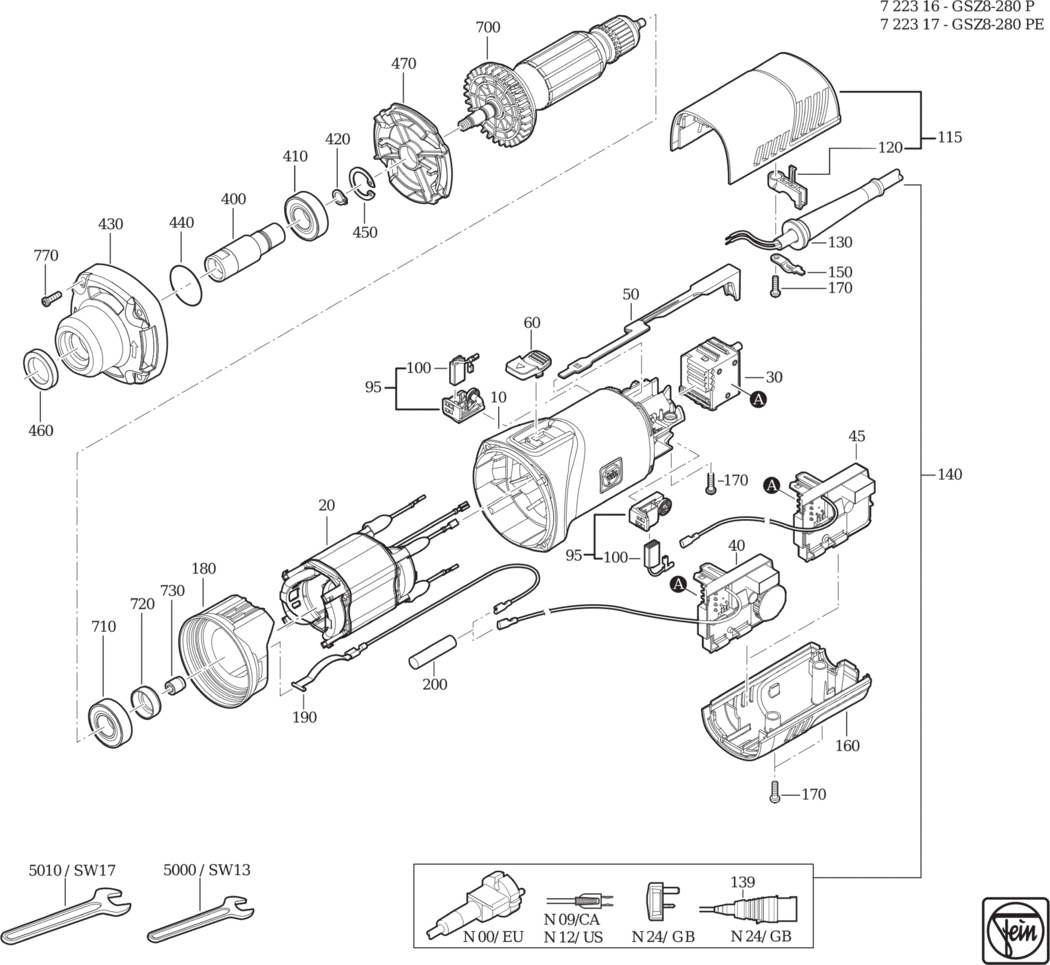

An exploded diagram and spare parts listing for the Fein GSZ 8-280 PE (50/60Hz 220/230V) / 72231700230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A36 31901174000	£37.51	£45.01
20 - STATOR 50HZ230V FEI-51281004230.A15 51281004230	£50.00	£60.00
30 - SWITCH FEI-30701299000.A2 30701299000	£28.81	£34.57
40 - SPEED SETTING SWITCH 50/60H220-230V FEI-30762544990.A0 30762544990	-
50 - CONTROL ROD FEI-32816079000.A17 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A41 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A108 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A81 30711158000	£8.15	£9.78
115 - COVER FEI-32427149010.A3 32427149010	-
120 - CABLE CLAMPING PIECE FEI-32431047000.A110 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A107 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707544010.A89 30707544010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A213 32431043002	£1.60	£1.92
160 - COVER FEI-32427147000.A5 32427147000	-
170 - SCREW FEI-43072000000.A207 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A0 31428179000	£7.46	£8.95
190 - CONTACT SPRING FEI-32803019020.A1 32803019020	-
200 - INSULATING HOSE FEI-31413232000.A21 31413232000	£1.60	£1.92
400 - SHAFT FEI-33406319000.A4 33406319000	-
410 - GROOVED BALL BEARING FEI-41701012056.A7 41701012056	-
420 - CIRCLIP FEI-42616007001.A28 42616007001	£1.60	£1.92
430 - COLLAR BEARING FEI-31510099000.A2 31510099000	-
440 - SEALING RING FEI-40612128007.A7 40612128007	£1.60	£1.92
450 - CIRCLIP FEI-42616012007.A4 42616012007	-
460 - RING FEI-32601278000.A3 32601278000	-
470 - AIR GUIDE RING FEI-31428185000.A4 31428185000	-
700 - ARMATURE 230V50H FEI-53281005230.A1 53281005230	-
710 - GROOVED BALL BEARING FEI-41701001260.A349 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A225 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A128 32172014010	£8.85	£10.62
770 - SCREW FEI-43074012000.A106 43074012000	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A72 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A37 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A85 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A495 34130054061	-

Attribute Name	Value
Brand	Fein
