Fein GSZ 4-90 EL (50/60Hz 220/230V) / 72232500230 Spare Parts

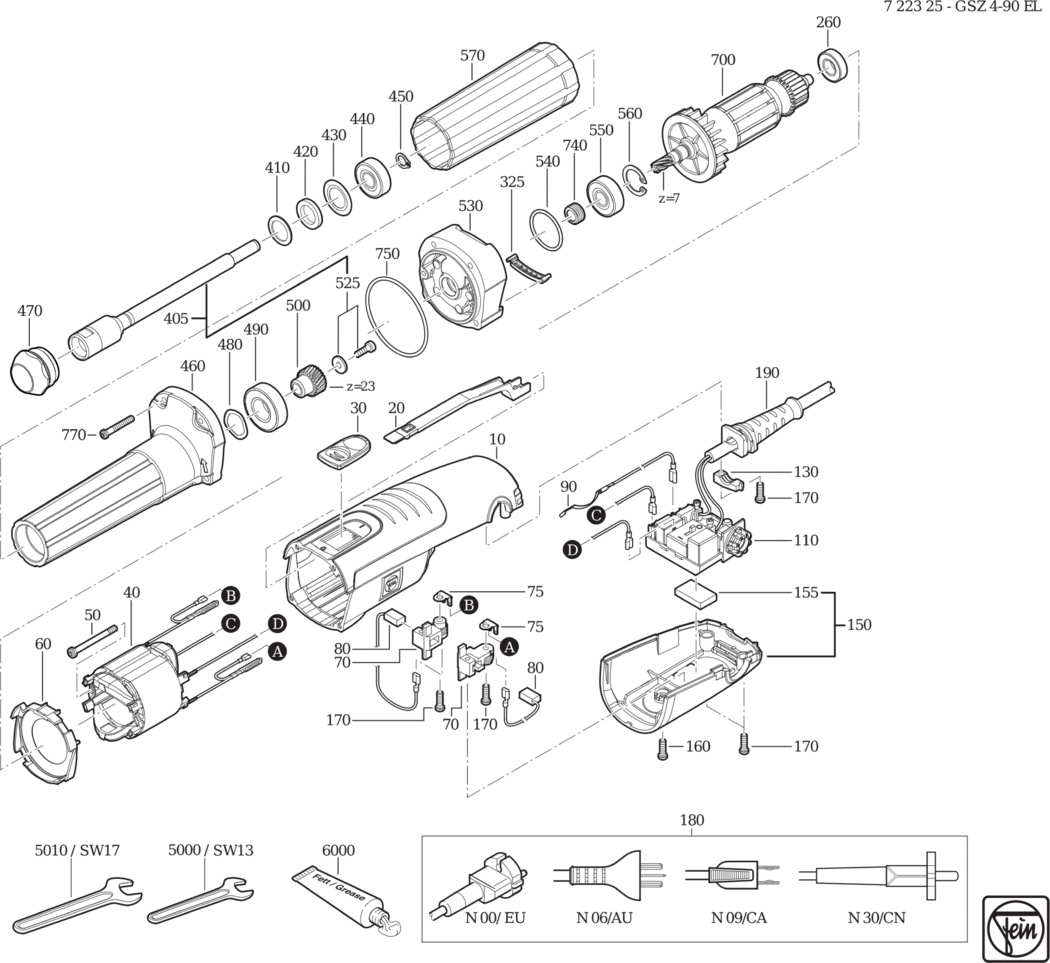

An exploded diagram and spare parts listing for the Fein GSZ 4-90 EL (50/60Hz 220/230V) / 72232500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A0 31901172000	-
20 - CONTROL ROD FEI-32816066000.A27 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A4 32805226000	£2.91	£3.49
40 - STATOR FEI-51274012230.A1 51274012230	-
50 - SCREW FEI-43074005000.A59 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A50 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A21 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A81 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A13 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019030.A0 32803019030	-
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A4 30762412990	£68.25	£81.90
130 - CABLE CLAMPING PIECE FEI-32431045000.A70 32431045000	£1.60	£1.92
150 - COVER FEI-32427127000.A22 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A0 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A44 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A10 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A15 30707373014	£19.11	£22.93
190 - PROTECTIVE HOSE FEI-31413251000.A9 31413251000	£2.41	£2.89
260 - GROOVED BALL BEARING FEI-41701001032.A0 41701001032	£10.89	£13.07
325 - PROTECTIVE GRILLE FEI-32901052000.A6 32901052000	-
405 - SHAFT SET M.SCHRAUBE/SCREW FEI-33406357010.A0 33406357010	-
410 - DISC FEI-32408020008.A6 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A26 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A27 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A14 41701000006	-
450 - CIRCLIP FEI-42616013001.A17 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510101010.A0 31510101010	-
470 - SLEEVE FEI-30514103000.A7 30514103000	-
480 - DISC FEI-42446000000.A6 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A1 41701000007	-
500 - GEAR-WHEEL FEI-33657185000.A5 33657185000	-
525 - SCREW SET M- SCHEIBE/DISK FEI-32408000009.A3 32408000009	-
530 - INTERMEDIATE GEAR BOX FEI-31506407000.A1 31506407000	-
540 - SEALING RING FEI-40612038007.A46 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A63 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A34 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413260000.A0 31413260000	-
700 - ARMATURE 230V50HZ FEI-53274022230.A0 53274022230	-
740 - SEALING RING FEI-32612132000.A0 32612132000	-
750 - SEALING RING FEI-40612000000.A22 40612000000	£1.60	£1.92
770 - SCREW FEI-43074001000.A7 43074001000	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A78 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A31 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A89 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101214060.A6 34101214060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A487 34130054061	-

Attribute Name	Value
Brand	Fein
