Fein GSZ 4-280 EL (50/60Hz 220/230V) / 72232400230 Spare Parts

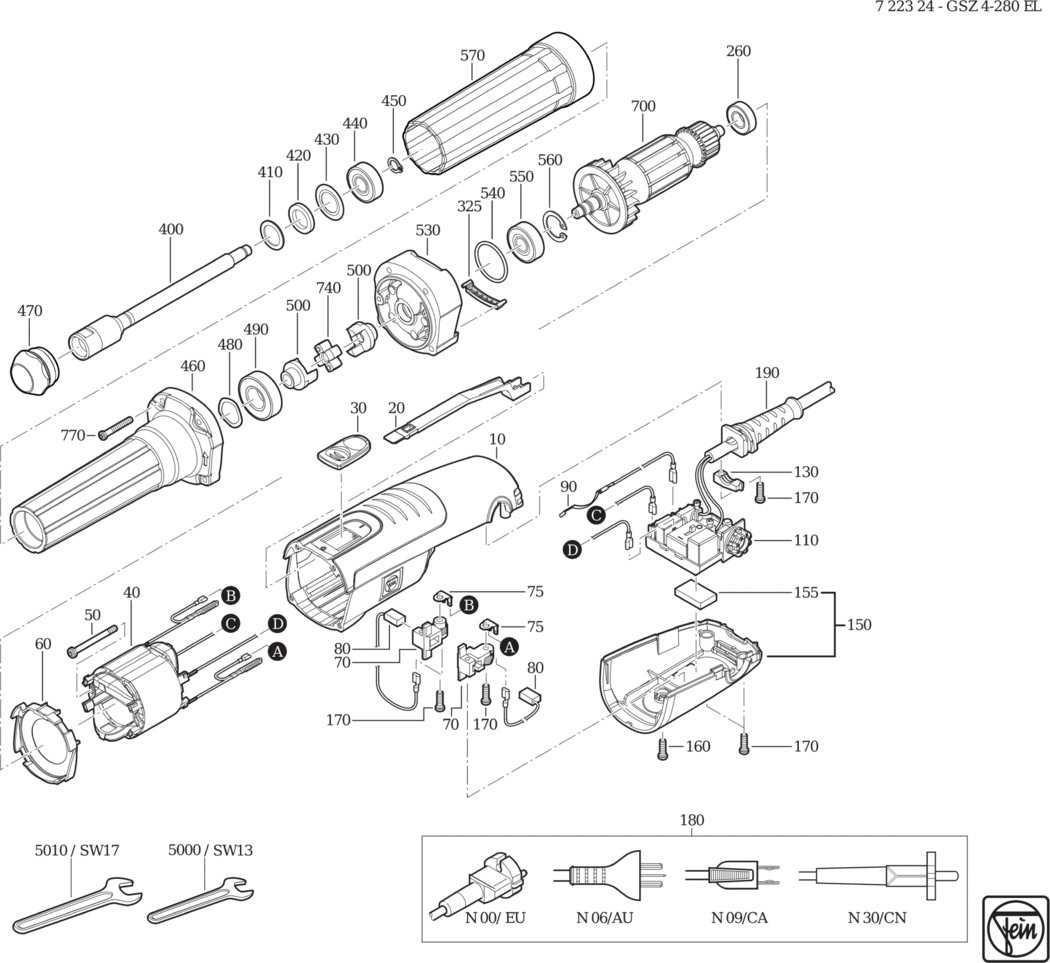

An exploded diagram and spare parts listing for the Fein GSZ 4-280 EL (50/60Hz 220/230V) / 72232400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A1 31901172000	-
20 - CONTROL ROD FEI-32816066000.A26 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A3 32805226000	£2.91	£3.49
40 - STATOR FEI-51274012230.A0 51274012230	-
50 - SCREW FEI-43074005000.A58 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A49 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A22 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A82 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A12 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019030.A1 32803019030	-
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A3 30762412990	£68.25	£81.90
130 - CABLE CLAMPING PIECE FEI-32431045000.A69 32431045000	£1.60	£1.92
150 - COVER FEI-32427127000.A23 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A1 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A45 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A9 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A14 30707373014	£19.11	£22.93
190 - PROTECTIVE HOSE FEI-31413251000.A8 31413251000	£2.41	£2.89
260 - GROOVED BALL BEARING FEI-41701001032.A1 41701001032	£10.89	£13.07
325 - PROTECTIVE GRILLE FEI-32901052000.A7 32901052000	-
400 - SHAFT FEI-33406317000.A0 33406317000	-
410 - DISC FEI-32408020008.A7 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A27 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A26 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A15 41701000006	-
450 - CIRCLIP FEI-42616013001.A18 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510100010.A0 31510100010	-
470 - SLEEVE FEI-30514103000.A6 30514103000	-
480 - DISC FEI-42446000000.A5 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A0 41701000007	-
500 - CLUTCH PART FEI-30102106000.A6 30102106000	-
530 - INTERMEDIATE GEAR BOX FEI-31506407000.A0 31506407000	-
540 - SEALING RING FEI-40612038007.A45 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A65 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A35 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A6 31413258000	-
700 - ARMATURE 230V50HZ FEI-53274021230.A0 53274021230	-
740 - CLUTCH PART FEI-30102107000.A3 30102107000	-
770 - SCREW FEI-43074001000.A8 43074001000	£1.60	£1.92
5000 - JAW SPANNER SW13 FEI-62901007007.A77 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A32 62903002009	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A488 34130054061	-
