Fein GSZ 11-90 PERL (50/60Hz 220/230V) / 72232300230 Spare Parts

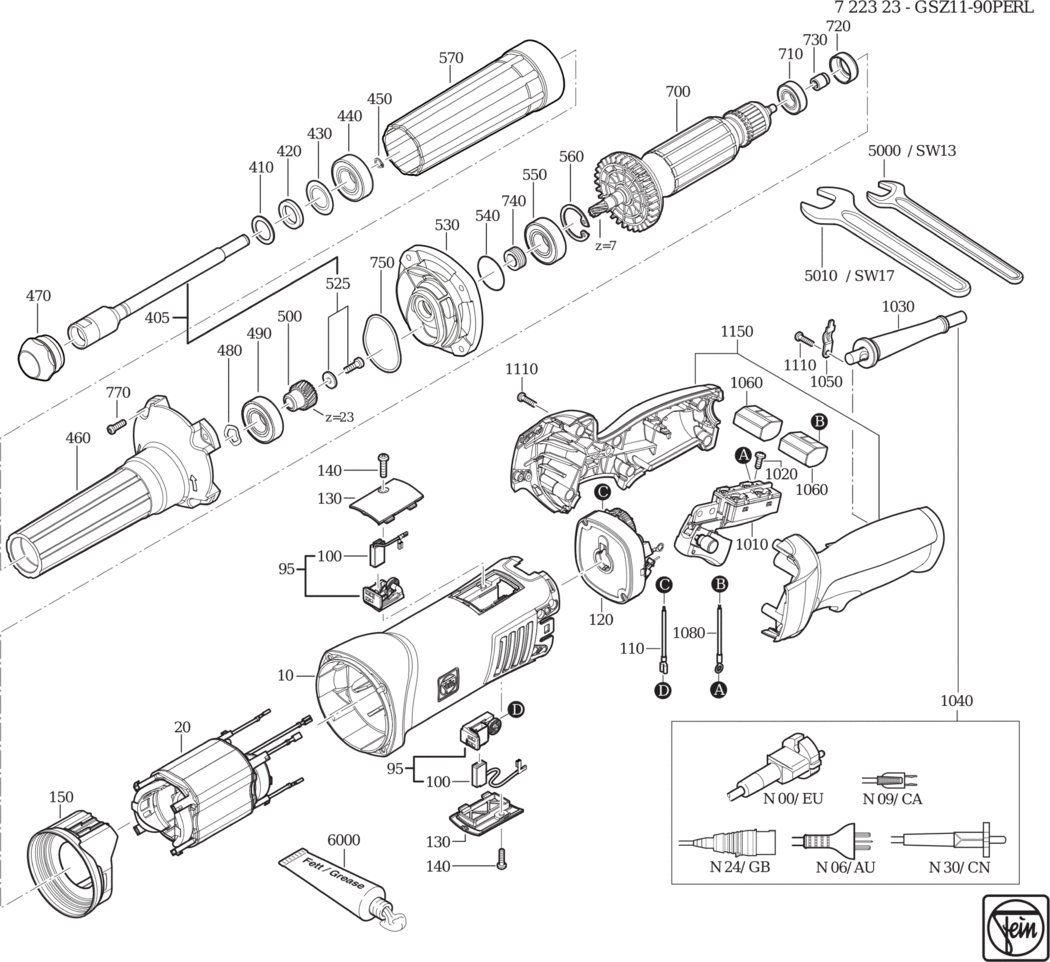

An exploded diagram and spare parts listing for the Fein GSZ 11-90 PERL (50/60Hz 220/230V) / 72232300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A1 31903225000	£40.71	£48.85
20 - STATOR 50HZ230V FEI-51279005230.A0 51279005230	£55.98	£67.18
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A107 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A78 30711158000	£8.15	£9.78
120 - SPEED SETTING SWITCH 50/60H220-230V FEI-30762554990.A1 30762554990	-
130 - COVER FEI-32427157000.A33 32427157000	£4.97	£5.96
140 - SCREW FEI-43072000000.A212 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A5 31428179000	£7.46	£8.95
405 - SHAFT SET M.SCHRAUBE/SCREW FEI-33406357010.A1 33406357010	-
410 - DISC FEI-32408020008.A9 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A25 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A24 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A12 41701000006	-
450 - CIRCLIP FEI-42616013001.A20 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510098010.A3 31510098010	-
470 - SLEEVE FEI-30514103000.A8 30514103000	-
480 - DISC FEI-42446000000.A3 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A3 41701000007	-
500 - GEAR-WHEEL FEI-33657185000.A4 33657185000	-
525 - SCREW SET M- SCHEIBE/DISK FEI-32408000009.A1 32408000009	-
530 - INTERMEDIATE GEAR BOX FEI-31506404000.A11 31506404000	-
540 - SEALING RING FEI-40612038007.A43 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A62 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A37 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A9 31413258000	-
700 - ARMATURE 230V50H FEI-53279004230.A0 53279004230	-
710 - GROOVED BALL BEARING FEI-41701001260.A345 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A221 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A125 32172014010	£8.85	£10.62
740 - SEALING RING FEI-32612132000.A2 32612132000	-
750 - SEALING RING FEI-40612000001.A2 40612000001	-
770 - SCREW FEI-43074012000.A109 43074012000	£1.60	£1.92
1010 - SWITCH FEI-30701304010.A9 30701304010	-
1020 - FILLISTER HEAD SCREW FEI-43041039999.A56 43041039999	£1.60	£1.92
1030 - CABLE GROMMET FEI-31413282000.A106 31413282000	£2.55	£3.06
1040 - CABLE WITH PLUG FEI-30707544010.A87 30707544010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A209 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A100 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A1 30719886010	-
1110 - SCREW FEI-43072000000.A210 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A0 31204193010	-
5000 - JAW SPANNER SW13 FEI-62901007007.A75 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A34 62903002009	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A491 34130054061	-

Attribute Name	Value
Brand	Fein
