Fein GSZ 11-320 PRL (50Hz 110V) / 72232124110 Spare Parts

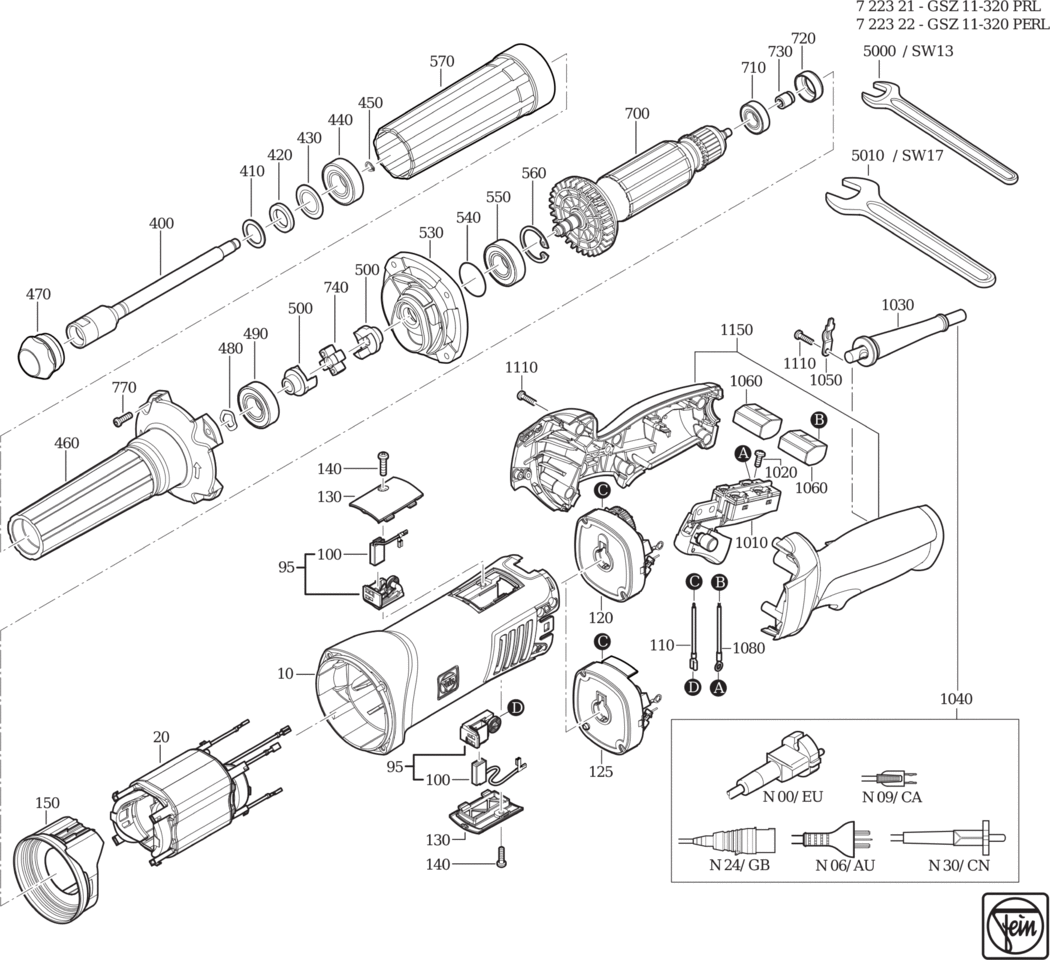

An exploded diagram and spare parts listing for the Fein GSZ 11-320 PRL (50Hz 110V) / 72232124110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A5 31903225000	£40.71	£48.85
20 - STATOR 50HZ110V FEI-51279005110.A7 51279005110	£53.18	£63.81
95 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712096040.A9 30712096040	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 110-120V 50/60HZ FEI-30711160000.A5 30711160000	£8.15	£9.78
110 - CHOKE FEI-30764171000.A4 30764171000	-
125 - ELECTRONICS 50/60H100-120V FEI-30762553990.A0 30762553990	-
130 - COVER FEI-32427157000.A14 32427157000	£4.97	£5.96
140 - SCREW FEI-43072000000.A192 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A26 31428179000	£7.46	£8.95
400 - SHAFT FEI-33406317000.A5 33406317000	-
410 - DISC FEI-32408020008.A1 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A31 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A19 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A9 41701000006	-
450 - CIRCLIP FEI-42616013001.A19 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510097010.A0 31510097010	-
470 - SLEEVE FEI-30514103000.A10 30514103000	-
480 - DISC FEI-42446000000.A2 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A4 41701000007	-
500 - CLUTCH PART FEI-30102106000.A5 30102106000	-
530 - INTERMEDIATE GEAR BOX FEI-31506404000.A12 31506404000	-
540 - SEALING RING FEI-40612038007.A42 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A61 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A38 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A8 31413258000	-
700 - ARMATURE 110V50H FEI-53279003110.A1 53279003110	£118.32	£141.99
710 - GROOVED BALL BEARING FEI-41701001260.A344 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A220 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A124 32172014010	£8.85	£10.62
740 - CLUTCH PART FEI-30102107000.A4 30102107000	-
770 - SCREW FEI-43074012000.A110 43074012000	£1.60	£1.92
1010 - SWITCH FEI-30701304010.A8 30701304010	-
1020 - FILLISTER HEAD SCREW FEI-43041039999.A55 43041039999	£1.60	£1.92
1030 - PROTECTIVE HOSE FEI-31413237000.A64 31413237000	£2.74	£3.29
1040 - CABLE WITH PLUG FEI-30707546010.A24 30707546010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A208 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A101 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A0 30719886010	-
1110 - SCREW FEI-43072000000.A209 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A1 31204193010	-
5000 - JAW SPANNER SW13 FEI-62901007007.A74 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A35 62903002009	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A490 34130054061	-
