Fein GSZ 11-320 PRL (50/60Hz 220/230V) / 72232100230 Spare Parts

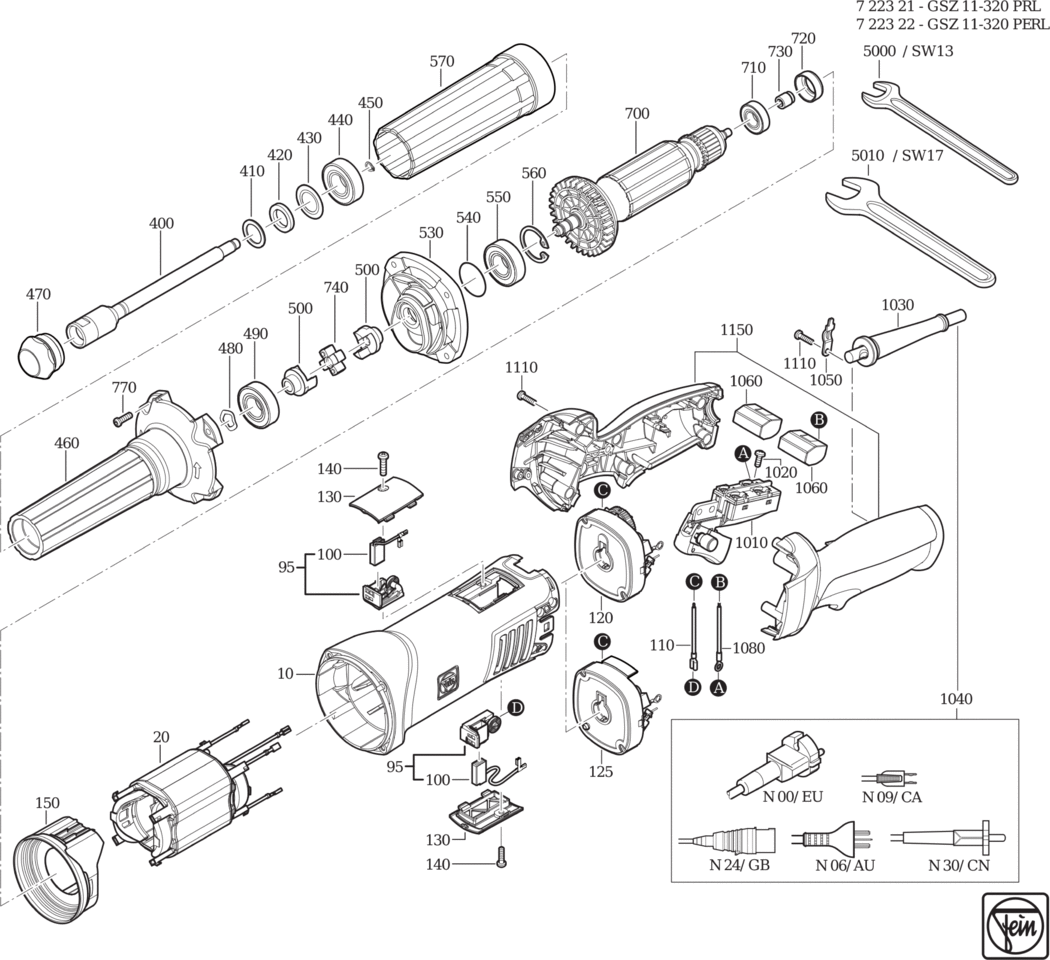

An exploded diagram and spare parts listing for the Fein GSZ 11-320 PRL (50/60Hz 220/230V) / 72232100230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A2 31903225000	£40.71	£48.85
20 - STATOR 50HZ230V FEI-51279005230.A5 51279005230	£55.98	£67.18
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A90 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A118 30711158000	£8.15	£9.78
125 - ELECTRONICS 50/60H220-230V FEI-30762552990.A0 30762552990	-
130 - COVER FEI-32427157000.A13 32427157000	£4.97	£5.96
140 - SCREW FEI-43072000000.A195 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A25 31428179000	£7.46	£8.95
400 - SHAFT FEI-33406317000.A3 33406317000	-
410 - DISC FEI-32408020008.A4 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A28 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A16 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A6 41701000006	-
450 - CIRCLIP FEI-42616013001.A12 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510097010.A4 31510097010	-
470 - SLEEVE FEI-30514103000.A15 30514103000	-
480 - DISC FEI-42446000000.A9 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A7 41701000007	-
500 - CLUTCH PART FEI-30102106000.A9 30102106000	-
530 - INTERMEDIATE GEAR BOX FEI-31506404000.A7 31506404000	-
540 - SEALING RING FEI-40612038007.A31 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A11 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A28 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A14 31413258000	-
700 - ARMATURE FEI-53279003230.A1 53279003230	-
710 - GROOVED BALL BEARING FEI-41701001260.A261 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A150 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A101 32172014010	£8.85	£10.62
740 - CLUTCH PART FEI-30102107000.A2 30102107000	-
770 - SCREW FEI-43074012000.A165 43074012000	£1.60	£1.92
1010 - SWITCH FEI-30701304010.A4 30701304010	-
1020 - FILLISTER HEAD SCREW FEI-43041039999.A29 43041039999	£1.60	£1.92
1030 - CABLE GROMMET FEI-31413282000.A119 31413282000	£2.55	£3.06
1040 - CABLE WITH PLUG FEI-30707544010.A81 30707544010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A131 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A127 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A3 30719886010	-
1110 - SCREW FEI-43072000000.A191 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A15 31204193010	-
5000 - JAW SPANNER SW13 FEI-62901007007.A48 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A18 62903002009	£11.61	£13.93
9020 - SAFETY INSTRUCTION FEI-34130054061.A658 34130054061	-
