Fein AHSl 636C (50Hz 240V) / 72230200242 Spare Parts

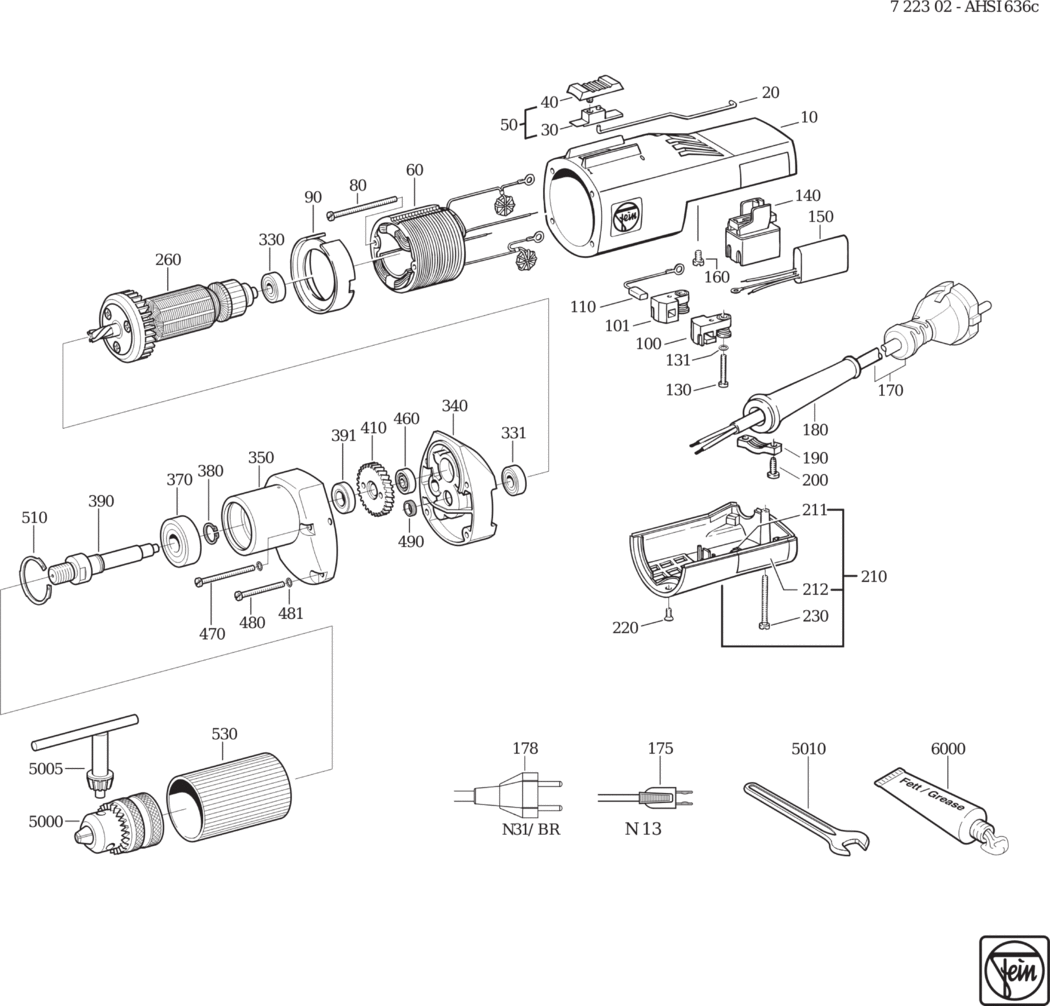

An exploded diagram and spare parts listing for the Fein AHSl 636C (50Hz 240V) / 72230200242

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901017007.A4 31901017007	£100.68	£120.81
20 - CONTROL ROD FEI-32816025003.A0 32816025003	£2.82	£3.38
30 - SLIDER FEI-32816039001.A16 32816039001	£2.35	£2.82
40 - SLIDE SWITCH FEI-32805118004.A0 32805118004	£1.60	£1.92
50 - SLIDE SWITCH FEI-32805118013.A16 32805118013	£8.15	£9.78
60 - STATOR 50HZ220V FEI-51203006222.A0 51203006222	£71.48	£85.77
80 - CYLINDER HEAD SCREW FEI-43002025991.A50 43002025991	£1.60	£1.92
90 - AIR GUIDE RING FEI-31428007001.A11 31428007001	£3.22	£3.86
100 - BRUSH HOLDER FEI-30712055011.A12 30712055011	£12.92	£15.51
101 - BRUSH HOLDER FEI-30712056014.A4 30712056014	£12.92	£15.51
110 - CARBON BRUSH (SOLD SINGLY) FEI-30711062001.A13 30711062001	£6.20	£7.44
130 - FILLISTER HEAD SCREW FEI-43041007990.A11 43041007990	£1.60	£1.92
131 - CIRCLIP FEI-42442011997.A1 42442011997	-
140 - SWITCH FEI-30701060000.A17 30701060000	£22.32	£26.78
150 - CAPACITOR FEI-30722037004.A11 30722037004	£16.62	£19.94
160 - FLAT HEADED SCREW FEI-43003013991.A15 43003013991	£1.60	£1.92
170 - CABLE WITH PLUG FEI-30707175014.A0 30707175014	£17.81	£21.37
180 - CABLE GROMMET FEI-31413142009.A39 31413142009	£1.60	£1.92
190 - CABLE CLAMPING PIECE FEI-32431021007.A220 32431021007	£1.60	£1.92
200 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A32 43041001994	£1.60	£1.92
210 - COVER FEI-32427028006.A5 32427028006	£14.33	£17.20
211 - PRESSURE PIECE FEI-31415042008.A13 31415042008	£1.60	£1.92
212 - HOUSING INSERT FEI-32414083003.A12 32414083003	£3.29	£3.95
220 - COUNTERSUNK SCREW FEI-43066002992.A3 43066002992	£1.60	£1.92
230 - FLAT HEADED SCREW FEI-43003025992.A14 43003025992	£1.60	£1.92
260 - ARMATURE 50HZ220V FEI-53203006224.A1 53203006224	-
330 - GROOVED BALL BEARING FEI-41701001172.A180 41701001172	£9.63	£11.56
331 - GROOVED BALL BEARING FEI-41701101031.A4 41701101031	£18.83	£22.60
340 - INTERMEDIATE GEAR BOX FEI-31506172009.A0 31506172009	£124.38	£149.25
350 - GEARBOX HOUSING FEI-31508107007.A0 31508107007	£97.70	£117.24
370 - GROOVED BALL BEARING FEI-41701213027.A6 41701213027	£9.82	£11.79
380 - CIRCLIP FEI-42616006007.A105 42616006007	£1.60	£1.92
390 - SHAFT FEI-33403034006.A2 33403034006	£68.02	£81.63
391 - SEALING RING FEI-30602005009.A4 30602005009	£5.91	£7.09
410 - GEAR-WHEEL FEI-33657042003.A0 33657042003	£58.68	£70.42
460 - GROOVED BALL BEARING FEI-41701202018.A12 41701202018	£6.92	£8.30
470 - CYLINDER HEAD SCREW FEI-43002023999.A0 43002023999	-
480 - CYLINDER HEAD SCREW FEI-43002021992.A31 43002021992	£1.60	£1.92
481 - CIRCLIP FEI-42443002992.A61 42443002992	£1.60	£1.92
490 - SEALING RING FEI-32612069006.A0 32612069006	£8.71	£10.45
510 - CIRCLIP FEI-42644009002.A0 42644009002	£1.60	£1.92
530 - SLEEVE FEI-30514089017.A0 30514089017	£84.78	£101.73
5000 - KEY-TYPE DRILL CHUCKS FEI-63203034010.A0 63203034010	£54.35	£65.22
5005 - CHUCK KEY FEI-62914002005.A16 62914002005	£4.30	£5.16
5010 - JAW SPANNER SW17 FEI-62903002009.A10 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A244 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A649 34130054061	-
