Fein WSG 7-115 / 72219800230 Spare Parts

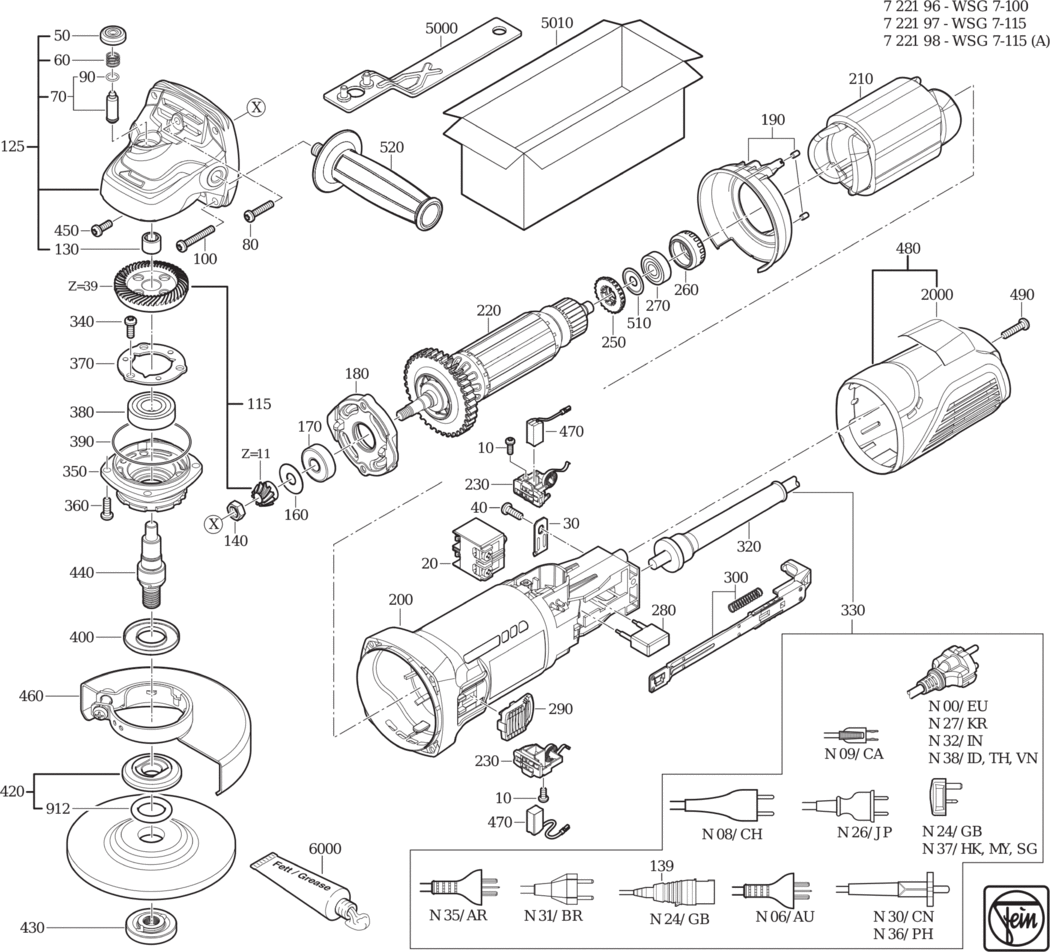

An exploded diagram and spare parts listing for the Fein WSG 7-115 / 72219800230

	Ex VAT	Inc VAT
10 - SCREW FEI-31348001000.A1 31348001000	-
20 - SWITCH FEI-31348131000.A0 31348131000	-
30 - CABLE CLAMPING PIECE FEI-31348003000.A3 31348003000	-
40 - SCREW FEI-31348004000.A1 31348004000	-
50 - PUSHBUTTON FEI-31348005000.A3 31348005000	-
60 - SPIRAL SPRING FEI-31348006000.A1 31348006000	-
70 - BOLT FEI-31348007010.A3 31348007010	-
80 - SCREW FEI-31348008000.A1 31348008000	-
90 - SEALING RING FEI-31348009000.A3 31348009000	-
100 - SCREW FEI-31348010000.A1 31348010000	-
115 - BEVEL GEAR FEI-31348011010.A3 31348011010	-
125 - GEARBOX HOUSING FEI-31348012010.A1 31348012010	-
130 - NEEDLE BEARING FEI-31348013000.A3 31348013000	-
140 - HEX NUT FEI-31348014000.A1 31348014000	-
160 - DISC FEI-31348016000.A3 31348016000	-
170 - GROOVED BALL BEARING FEI-31348017000.A1 31348017000	£4.18	£5.01
180 - PLATE FEI-31348018000.A3 31348018000	-
190 - AIR GUIDE RING FEI-31348019010.A1 31348019010	£1.60	£1.92
200 - MOTOR HOUSING FEI-31348020010.A2 31348020010	-
210 - STATOR FEI-51299007230.A1 51299007230	£29.47	£35.36
220 - ARMATURE FEI-53299009230.A0 53299009230	£37.36	£44.83
230 - BRUSH HOLDER FEI-31348023000.A0 31348023000	-
250 - INSULATING RING FEI-31348025000.A4 31348025000	-
260 - BEARING BUSH FEI-31348026000.A0 31348026000	-
270 - GROOVED BALL BEARING FEI-31348027000.A4 31348027000	£4.03	£4.84
280 - CAPACITOR FEI-31348077000.A1 31348077000	-
290 - SLIDE SWITCH FEI-31348029000.A2 31348029000	£1.60	£1.92
300 - CONTROL ROD FEI-31348030010.A1 31348030010	£1.60	£1.92
320 - CABLE GROMMET FEI-31348032000.A3 31348032000	-
330 - CABLE WITH PLUG FEI-31348061010.A0 31348061010	-
340 - SCREW FEI-31348034000.A8 31348034000	-
350 - BEARING PLATE FEI-31348035000.A0 31348035000	-
360 - SCREW FEI-31348036000.A4 31348036000	-
370 - PLATE FEI-31348037000.A0 31348037000	-
380 - GROOVED BALL BEARING FEI-31348038000.A4 31348038000	£5.05	£6.06
390 - SEALING RING FEI-31348039000.A0 31348039000	-
400 - DISC FEI-31348040000.A4 31348040000	-
420 - INNER FLANGE FEI-63801182010.A9 63801182010	£14.88	£17.86
430 - THREADED FLANGE FEI-63802052000.A1 63802052000	£14.88	£17.86
440 - SHAFT FEI-31348067000.A0 31348067000	-
450 - SCREW FEI-31348034000.A9 31348034000	-
460 - SAFETY HOOD FEI-31348073010.A1 31348073010	-
470 - CARBON BRUSH (SOLD SINGLY) FEI-31348047000.A0 31348047000	£4.09	£4.91
480 - COVER FEI-31348048000.A3 31348048000	-
490 - SCREW FEI-31348049000.A0 31348049000	-
510 - DISC FEI-31348051000.A3 31348051000	-
520 - HANDLE FEI-31348052000.A1 31348052000	-
912 - SEALING RING FEI-40612000007.A207 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A254 62910022002	£7.22	£8.67
5010 - CARDBOARD FEI-33903683010.A2 33903683010	-
6000 - LUBRICANT CAN 0.1 KG FEI-31348075010.A1 31348075010	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A637 34130054061	-

Attribute Name	Value
Brand	Fein
