Fein WSG 17-125 P (C) / 72224000230 Spare Parts

Fein WSG 17-125 P ʌ) / 72224000230 Spare Parts

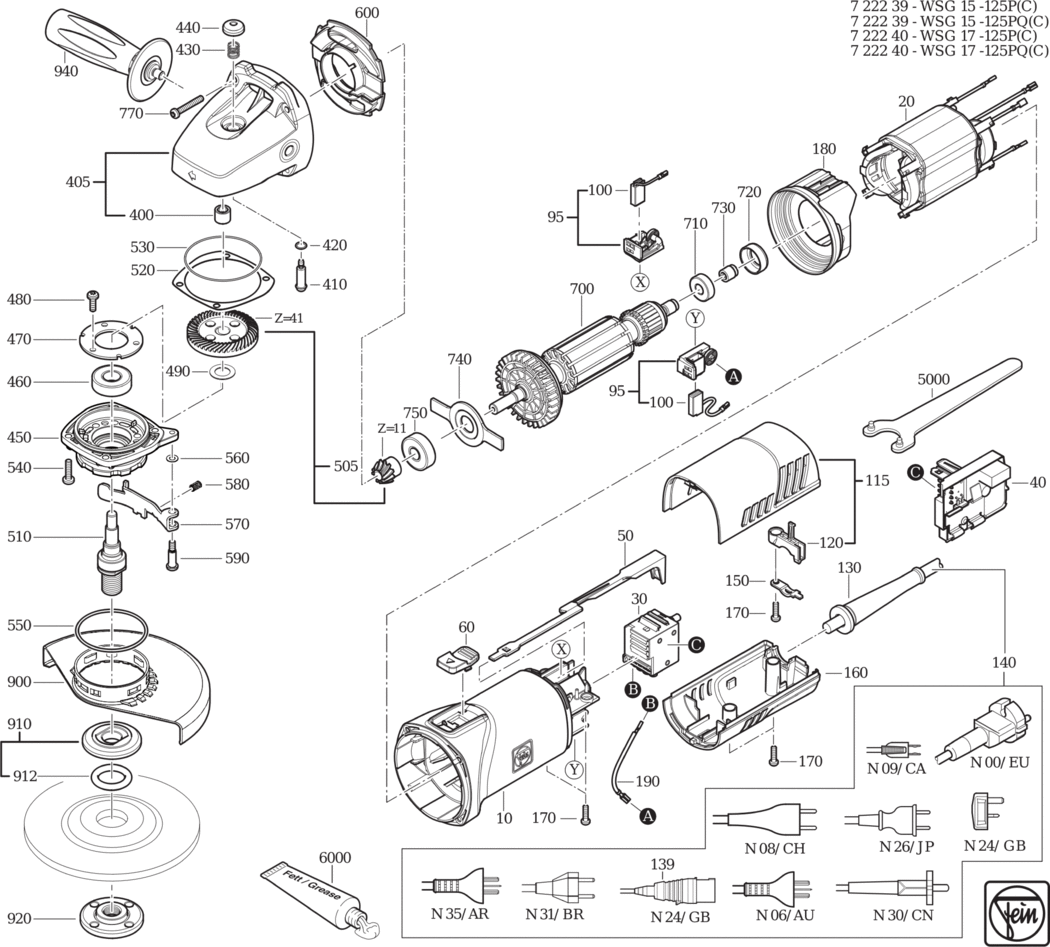

An exploded diagram and spare parts listing for the Fein WSG 17-125 P (C) / 72224000230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A31 31901175000	£36.82	£44.19
20 - STATOR 50HZ230V FEI-51279004230.A43 51279004230	£57.22	£68.67
30 - SWITCH FEI-30701299000.A44 30701299000	£28.81	£34.57
40 - ELECTRONICS 50/60H220-230V FEI-30762556990.A10 30762556990	£62.92	£75.50
50 - CONTROL ROD FEI-32816080000.A7 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A51 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A24 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A64 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427154010.A1 32427154010	£15.42	£18.51
120 - CABLE CLAMPING PIECE FEI-32431047000.A7 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A82 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707544010.A20 30707544010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A56 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427152000.A0 32427152000	£6.62	£7.95
170 - SCREW FEI-43072000000.A96 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A78 31428179000	£7.46	£8.95
400 - NEEDLE SLEEVE FEI-41705006006.A55 41705006006	£7.31	£8.77
405 - GEARBOX HOUSING FEI-31206165030.A1 31206165030	-
410 - BOLT FEI-30217335005.A98 30217335005	£7.39	£8.87
420 - SEALING RING FEI-40612137008.A64 40612137008	£1.60	£1.92
430 - SPIRAL SPRING FEI-30901357005.A148 30901357005	£2.38	£2.86
440 - PUSHBUTTON FEI-32805200008.A196 32805200008	£2.58	£3.09
450 - BEARING PLATE FEI-32419159000.A10 32419159000	-
460 - GROOVED BALL BEARING FEI-41701010054.A304 41701010054	£8.25	£9.90
470 - PLATE FEI-32416118000.A17 32416118000	-
480 - FILLISTER HEAD SCREW FEI-43064002043.A86 43064002043	£1.60	£1.92
490 - DISC FEI-32601280000.A4 32601280000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A25 33809238020	£40.91	£49.09
510 - SHAFT M14 FEI-33406347000.A20 33406347000	-
520 - WASHER 0.15 FEI-32624122060.A11 32624122060	-
520 - WASHER 0.1 FEI-32624122020.A38 32624122020	£1.60	£1.92
530 - SEALING RING FEI-40612000000.A18 40612000000	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A194 43064024043	-
550 - SEALING RING FEI-40612000003.A37 40612000003	£1.60	£1.92
560 - DISC FEI-32408450000.A10 32408450000	£1.60	£1.92
570 - LEVER FEI-30240331000.A16 30240331000	£7.99	£9.59
580 - SPRING FEI-30901403000.A15 30901403000	£1.60	£1.92
590 - SCREW FEI-33024077000.A24 33024077000	£1.60	£1.92
600 - AIR GUIDE RING FEI-31428180000.A52 31428180000	£4.28	£5.14
700 - ARMATURE 50H230V FEI-53279006230.A7 53279006230	£90.61	£108.73
710 - GROOVED BALL BEARING FEI-41701001260.A149 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A22 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A22 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A68 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A105 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A32 43074012000	£1.60	£1.92
900 - WHEEL GUARD FEI-31810300000.A20 31810300000	£19.05	£22.86
910 - INNER FLANGE FEI-63801182010.A173 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A36 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A174 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A19 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A55 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A356 32160003014	-
