Fein WSG 15-70 Inox (50/60Hz 220/230V) / 72218424230 Spare Parts

Fein WSG 15-70 Inox ⡐/60Hz 220/230V) / 72218424230 Spare Parts

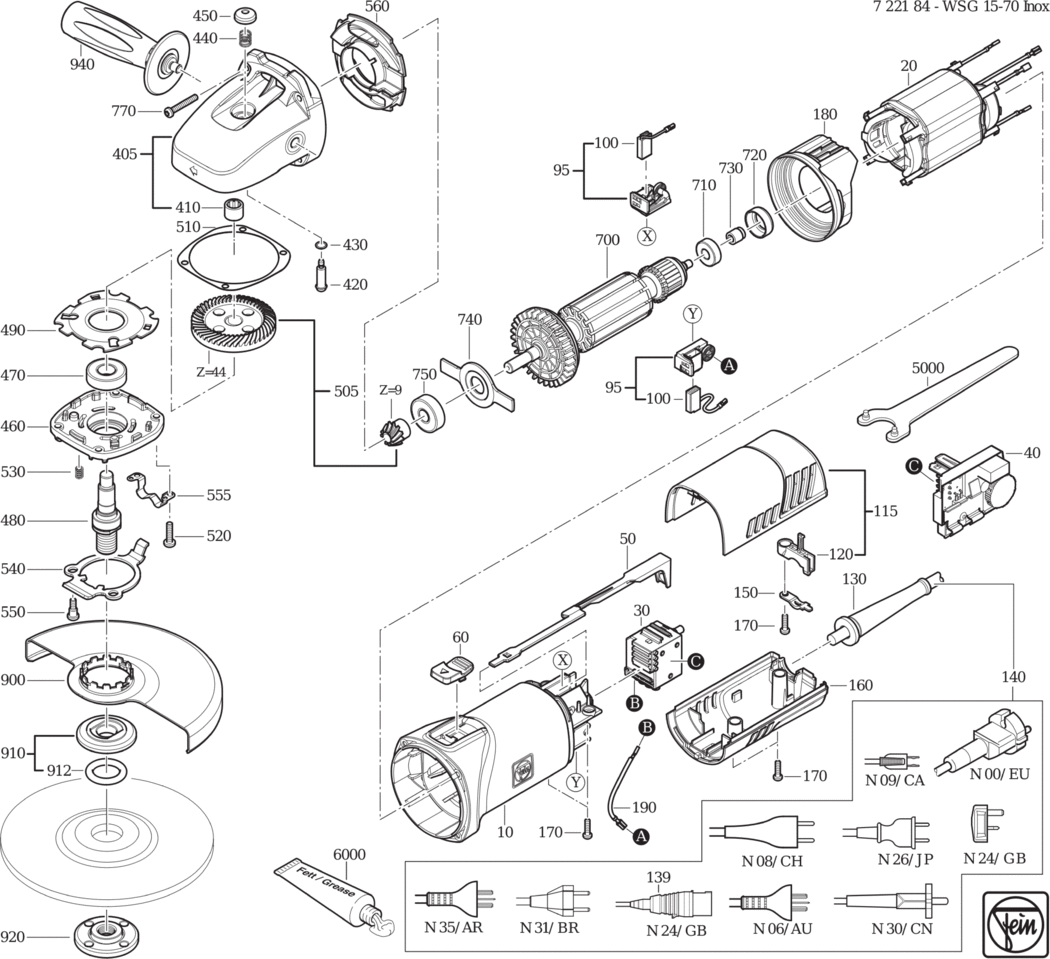

An exploded diagram and spare parts listing for the Fein WSG 15-70 Inox (50/60Hz 220/230V) / 72218424230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A33 31901175000	£36.82	£44.19
20 - STATOR 50HZ230V FEI-51279004230.A40 51279004230	£57.22	£68.67
30 - SWITCH FEI-30701299000.A42 30701299000	£28.81	£34.57
40 - SPEED SETTING SWITCH 50/60H 220-230V FEI-30762533990.A0 30762533990	£74.23	£89.08
50 - CONTROL ROD FEI-32816080000.A9 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A53 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A23 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A61 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427153010.A11 32427153010	£16.59	£19.91
120 - CABLE CLAMPING PIECE FEI-32431047000.A8 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A81 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707547010.A26 30707547010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A55 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427151000.A12 32427151000	£7.13	£8.56
170 - SCREW FEI-43072000000.A90 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A77 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206147030.A5 31206147030	-
410 - NEEDLE SLEEVE FEI-41705019001.A64 41705019001	£9.49	£11.39
420 - BOLT FEI-30217335005.A95 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A61 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A146 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A194 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419152000.A4 32419152000	-
470 - GROOVED BALL BEARING FEI-41701010054.A306 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406284009.A27 33406284009	£33.58	£40.29
490 - PLATE FEI-32416116000.A23 32416116000	-
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A35 33809247010	-
510 - WASHER FEI-32624123020.A21 32624123020	-
520 - FILLISTER HEAD SCREW FEI-43064024043.A197 43064024043	-
530 - SPIRAL SPRING FEI-30901340001.A14 30901340001	£1.60	£1.92
540 - LEVER FEI-32805312000.A31 32805312000	£4.78	£5.73
550 - SCREW FEI-33024073000.A29 33024073000	-
555 - CLAMP FEI-30907074000.A9 30907074000	£2.34	£2.81
560 - AIR GUIDE RING FEI-31428180000.A66 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53279001230.A15 53279001230	£89.30	£107.16
710 - GROOVED BALL BEARING FEI-41701001260.A163 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A25 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A62 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A117 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A149 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A82 43074012000	£1.60	£1.92
900 - SAFETY HOOD Ã˜125 FEI-31810288010.A4 31810288010	£20.80	£24.96
910 - INNER FLANGE FEI-63801182010.A102 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A106 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A90 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A56 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A149 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A505 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A258 34130054061	-
