Fein WSG 11-125 RT (C) / 72224500230 Spare Parts

Fein WSG 11-125 RT ʌ) / 72224500230 Spare Parts

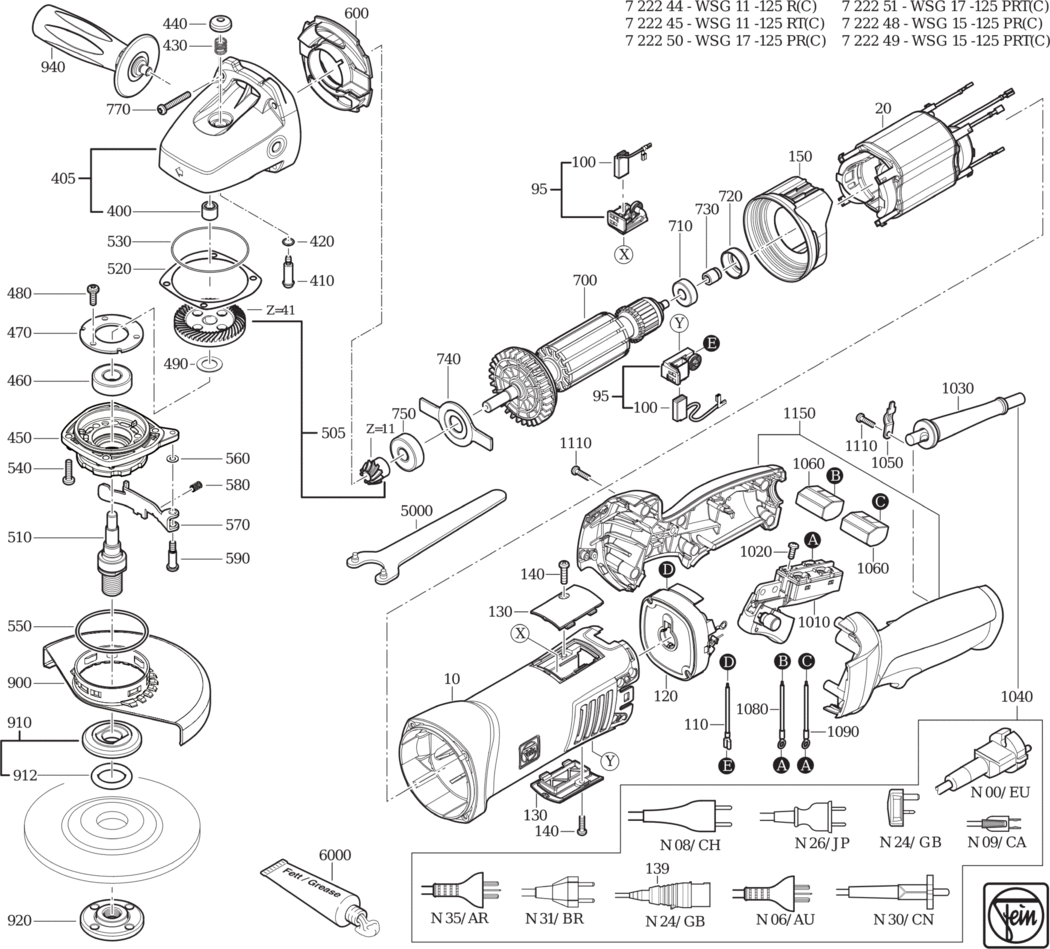

An exploded diagram and spare parts listing for the Fein WSG 11-125 RT (C) / 72224500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A39 31903225000	£40.71	£48.85
20 - STATOR 50HZ230V FEI-51279005230.A7 51279005230	£55.98	£67.18
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A59 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A29 30711158000	£8.15	£9.78
120 - ELECTRONICS FEI-30762496990.A1 30762496990	-
130 - COVER FEI-32427157000.A35 32427157000	£4.97	£5.96
140 - SCREW FEI-43072000000.A4 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A100 31428179000	£7.46	£8.95
400 - NEEDLE SLEEVE FEI-41705006006.A7 41705006006	£7.31	£8.77
405 - GEARBOX HOUSING FEI-31206165030.A6 31206165030	-
410 - BOLT FEI-30217335005.A7 30217335005	£7.39	£8.87
420 - SEALING RING FEI-40612137008.A77 40612137008	£1.60	£1.92
430 - SPIRAL SPRING FEI-30901357005.A108 30901357005	£2.38	£2.86
440 - PUSHBUTTON FEI-32805200008.A81 32805200008	£2.58	£3.09
450 - BEARING PLATE FEI-32419159000.A1 32419159000	-
460 - GROOVED BALL BEARING FEI-41701010054.A205 41701010054	£8.25	£9.90
470 - PLATE FEI-32416118000.A0 32416118000	-
480 - FILLISTER HEAD SCREW FEI-43064002043.A41 43064002043	£1.60	£1.92
490 - DISC FEI-32601280000.A5 32601280000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A45 33809238020	£40.91	£49.09
510 - SHAFT M14 FEI-33406347000.A12 33406347000	-
520 - WASHER 0.15 FEI-32624122060.A1 32624122060	-
520 - WASHER 0.1 FEI-32624122020.A75 32624122020	£1.60	£1.92
530 - SEALING RING FEI-40612000000.A7 40612000000	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A111 43064024043	-
550 - SEALING RING FEI-40612000003.A64 40612000003	£1.60	£1.92
560 - DISC FEI-32408450000.A29 32408450000	£1.60	£1.92
570 - LEVER FEI-30240331000.A23 30240331000	£7.99	£9.59
580 - SPRING FEI-30901403000.A29 30901403000	£1.60	£1.92
590 - SCREW FEI-33024077000.A44 33024077000	£1.60	£1.92
600 - AIR GUIDE RING FEI-31428180000.A42 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53279002230.A9 53279002230	£88.04	£105.65
710 - GROOVED BALL BEARING FEI-41701001260.A69 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A69 30507236000	£3.19	£3.83
740 - PLATE FEI-32416117000.A130 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A172 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A59 43074012000	£1.60	£1.92
900 - WHEEL GUARD FEI-31810300000.A1 31810300000	£19.05	£22.86
910 - INNER FLANGE FEI-63801182010.A153 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A151 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A149 63802052000	£14.88	£17.86
940 - HANDLE FEI-32119107016.A62 32119107016	£10.15	£12.18
1010 - SWITCH FEI-30701305010.A4 30701305010	£31.19	£37.43
1020 - FILLISTER HEAD SCREW FEI-43041039999.A98 43041039999	£1.60	£1.92
1030 - CABLE GROMMET FEI-31413282000.A0 31413282000	£2.55	£3.06
1040 - CABLE WITH PLUG FEI-30707544010.A49 30707544010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A119 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A47 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A18 30719886010	-
1110 - SCREW FEI-43072000000.A3 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A38 31204193010	-
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A100 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A468 32160003014	-
