Fein WSG 11-125 (50/60Hz 220/230V) / 72220324230 Spare Parts

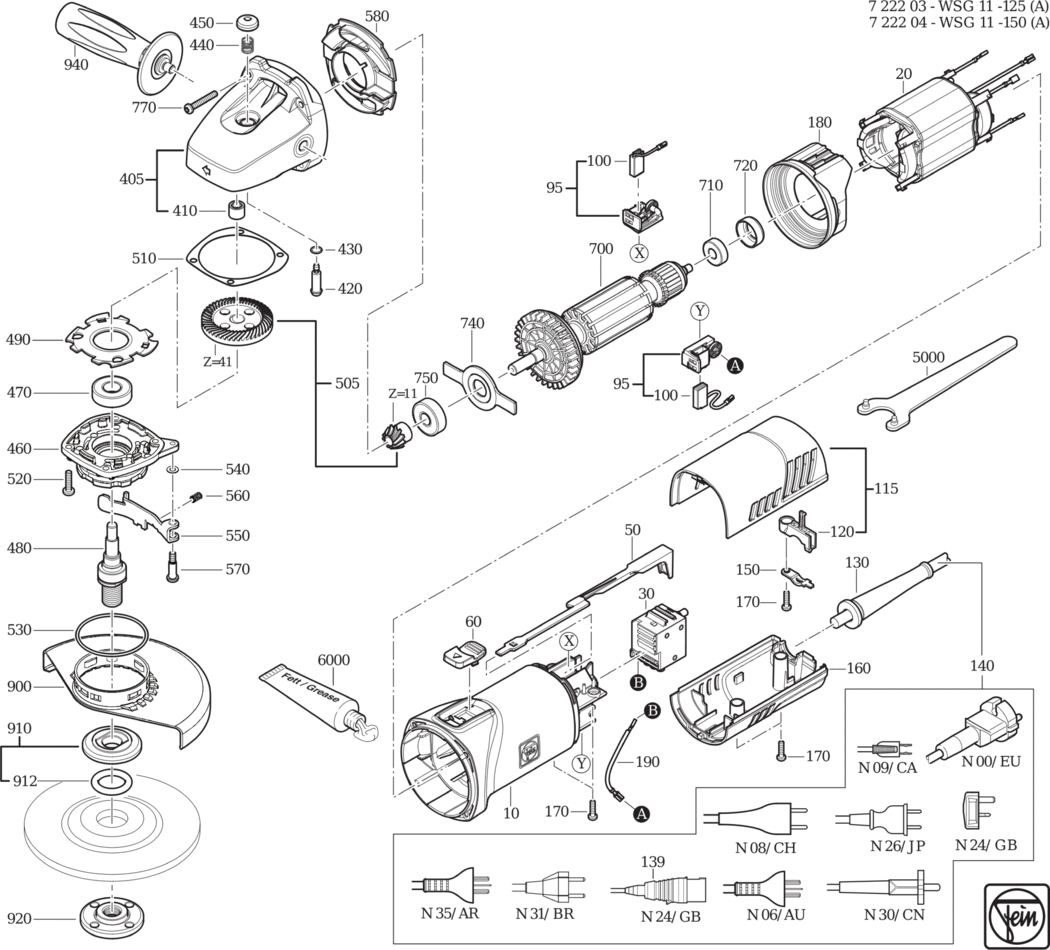

An exploded diagram and spare parts listing for the Fein WSG 11-125 (50/60Hz 220/230V) / 72220324230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A61 31901175000	£36.82	£44.19
20 - STATOR 50HZ230V FEI-51279005230.A8 51279005230	£55.98	£67.18
30 - SWITCH FEI-30701300000.A1 30701300000	£19.80	£23.76
50 - CONTROL ROD FEI-32816080000.A32 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A77 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A58 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A26 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427154010.A24 32427154010	£15.42	£18.51
120 - CABLE CLAMPING PIECE FEI-32431047000.A30 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A6 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707547010.A12 30707547010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A125 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427152000.A25 32427152000	£6.62	£7.95
170 - SCREW FEI-43072000000.A11 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A105 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206146030.A20 31206146030	-
410 - NEEDLE SLEEVE FEI-41705006006.A2 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A16 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A85 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A101 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A86 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419153000.A6 32419153000	£27.18	£32.61
470 - GROOVED BALL BEARING FEI-41701010054.A199 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A2 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A52 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A43 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A72 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A119 43064024043	-
530 - SEALING RING FEI-40612000003.A66 40612000003	£1.60	£1.92
540 - DISC FEI-32408450000.A27 32408450000	£1.60	£1.92
550 - LEVER FEI-30240331000.A20 30240331000	£7.99	£9.59
560 - SPRING FEI-30901403000.A28 30901403000	£1.60	£1.92
570 - SCREW FEI-33024077000.A41 33024077000	£1.60	£1.92
580 - AIR GUIDE RING FEI-31428180000.A41 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53279002230.A8 53279002230	£88.04	£105.65
710 - GROOVED BALL BEARING FEI-41701001260.A72 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A72 30507236000	£3.19	£3.83
740 - PLATE FEI-32416117000.A126 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A176 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A57 43074012000	£1.60	£1.92
910 - INNER FLANGE FEI-63801182010.A155 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A150 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A147 63802052000	£14.88	£17.86
940 - HANDLE FEI-32119107016.A64 32119107016	£10.15	£12.18
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A98 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A466 32160003014	-
