Fein WSG 10-115 (50Hz 110V) / 72216124110 Spare Parts

Fein WSG 10-115 ⡐Hz 110V) / 72216124110 Spare Parts

Home Details Reviews Delivery

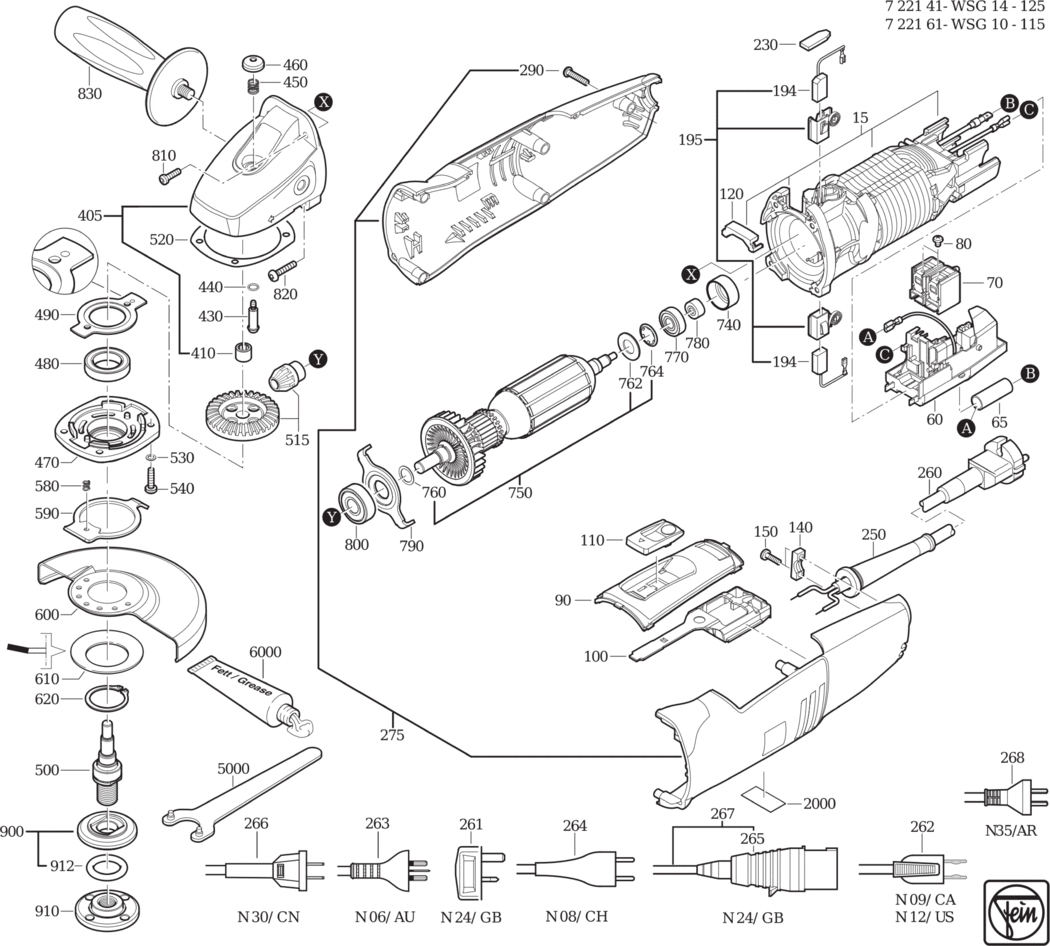

An exploded diagram and spare parts listing for the Fein WSG 10-115 (50Hz 110V) / 72216124110

	Ex VAT	Inc VAT
15 - STATOR UNIT 110-120V 50/60HZ FEI-52277030110.A0 52277030110	£98.04	£117.65
60 - ELECTRONICS 100-120V 50/60HZ FEI-30762392990.A11 30762392990	£98.72	£118.46
65 - INSULATING HOSE FEI-31413232000.A2 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A93 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A27 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427140000.A6 32427140000	-
100 - CONTROL ROD FEI-32816072000.A1 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A38 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A6 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A18 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A18 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 100-120V 50/60HZ FEI-30711168000.A6 30711168000	-
195 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712093080.A6 30712093080	£29.78	£35.73
230 - COVER FEI-31420124000.A13 31420124000	£1.60	£1.92
250 - PROTECTIVE HOSE FEI-31413237000.A105 31413237000	£2.74	£3.29
265 - PLUG CEE 16A/110V FEI-30728288004.A84 30728288004	£14.25	£17.10
267 - CABLE WITH PLUG N24 50HZ110V FEI-30707491010.A1 30707491010	£30.05	£36.06
275 - MOTOR HOUSING FEI-31912097010.A12 31912097010	-
290 - SCREW FEI-43074008000.A7 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206141020.A3 31206141020	£85.88	£103.05
410 - NEEDLE SLEEVE FEI-41705006006.A90 41705006006	£7.31	£8.77
430 - BOLT FEI-30217335005.A144 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A219 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901357005.A43 30901357005	£2.38	£2.86
460 - PUSHBUTTON FEI-32805200008.A35 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419127002.A11 32419127002	£28.80	£34.56
480 - GROOVED BALL BEARING FEI-41701010054.A99 41701010054	£8.25	£9.90
490 - PLATE FEI-32416110010.A15 32416110010	£10.02	£12.02
500 - SHAFT FEI-33406299001.A66 33406299001	£26.04	£31.25
515 - BEVEL GEAR Z=11/41 FEI-33809238017.A5 33809238017	£36.98	£44.37
520 - DISC FEI-32624120028.A9 32624120028	-
530 - CIRCLIP M4 FEI-42443003043.A106 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A56 43064024043	-
580 - SPIRAL SPRING FEI-30901340001.A70 30901340001	£1.60	£1.92
590 - LEVER FEI-32805230000.A3 32805230000	£6.12	£7.34
600 - SAFETY HOOD FEI-31810256000.A3 31810256000	£23.91	£28.69
610 - CUP SPRING FEI-30905070000.A7 30905070000	£1.60	£1.92
620 - CIRCLIP FEI-42616073005.A40 42616073005	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A197 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003360.A6 53277003360	£120.28	£144.33
760 - CIRCLIP FEI-42615081002.A6 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A10 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A15 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A297 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A75 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A53 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A154 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A55 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A67 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A93 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A58 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A59 63802052000	£14.88	£17.86
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A213 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A175 32160003014	-
9010 - LIST OF SPARE PARTS WSG10-115 / WSG14-125 FEI-34151088010.A0 34151088010	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A708 34130054061	-
