Fein MSfv 649-1 (50/60Hz 220/230V) / 72213100230 Spare Parts

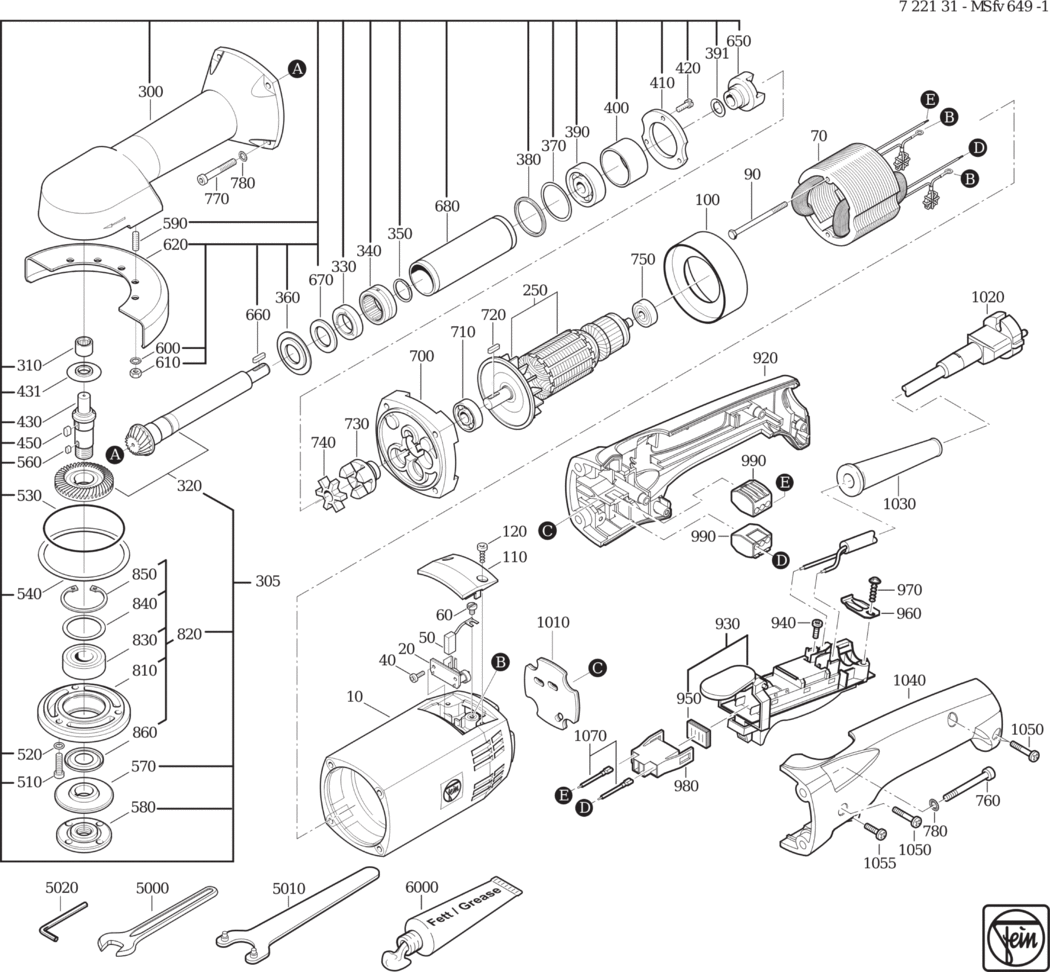

An exploded diagram and spare parts listing for the Fein MSfv 649-1 (50/60Hz 220/230V) / 72213100230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A0 31903099006	£150.31	£180.37
20 - BRUSH HOLDER FEI-30712067017.A18 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A87 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A38 30711067004	£7.87	£9.44
60 - FILLISTER HEAD SCREW FEI-43041016042.A36 43041016042	-
70 - STATOR FEI-51215022230.A1 51215022230	£119.80	£143.76
90 - HEXAGON SOCKET SCREW FEI-43001004042.A5 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A26 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A15 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A43 43046001002	-
250 - ARMATURE 50HZ220V FEI-53215006221.A1 53215006221	£176.47	£211.76
300 - GEARBOX HOUSING FEI-31206060002.A1 31206060002	£178.20	£213.84
305 - GEARBOX HOUSING FEI-31206060011.A0 31206060011	£741.09	£889.31
310 - NEEDLE SLEEVE FEI-41705007000.A16 41705007000	£5.66	£6.79
320 - BEVEL GEAR Z=20/41 FEI-33809116011.A1 33809116011	-
330 - SEALING RING FEI-30602006002.A0 30602006002	£11.63	£13.96
340 - NEEDLE BEARING FEI-41706007005.A0 41706007005	-
350 - CIRCLIP FEI-42643005006.A1 42643005006	-
360 - RING FEI-32619016008.A1 32619016008	-
370 - DISC FEI-32624067036.A1 32624067036	£5.58	£6.70
370 - DISC FEI-32624067014.A1 32624067014	£2.66	£3.19
370 - DISC FEI-32624067020.A0 32624067020	£5.54	£6.65
380 - RING FEI-32601158009.A0 32601158009	£8.42	£10.11
390 - GROOVED BALL BEARING FEI-41701301080.A0 41701301080	-
391 - DISC FEI-32624048036.A6 32624048036	£1.60	£1.92
400 - SLEEVE FEI-30501226002.A7 30501226002	£9.18	£11.02
410 - PLATE FEI-32410055007.A6 32410055007	£6.20	£7.44
420 - CYLINDER HEAD SCREW FEI-43050002049.A46 43050002049	£1.60	£1.92
430 - SHAFT FEI-33406086001.A1 33406086001	£72.59	£87.11
431 - RING FEI-32619017002.A0 32619017002	£14.52	£17.42
450 - FEATHER KEY FEI-40221013005.A7 40221013005	-
510 - CYLINDER HEAD SCREW FEI-43033011053.A0 43033011053	£1.60	£1.92
520 - SEALING RING FEI-40611001002.A26 40611001002	£1.60	£1.92
530 - SEALING RING FEI-40612010006.A10 40612010006	£4.18	£5.01
540 - DISC FEI-32624063037.A6 32624063037	£6.03	£7.24
540 - DISC FEI-32624063021.A1 32624063021	£10.89	£13.07
560 - FEATHER KEY FEI-40222001003.A0 40222001003	£1.60	£1.92
570 - INNER FLANGE FEI-63801079009.A1 63801079009	£14.60	£17.52
580 - THREADED FLANGE FEI-63802084009.A1 63802084009	£14.60	£17.52
590 - STUD BOLT FEI-43007055056.A6 43007055056	£1.60	£1.92
600 - CIRCLIP M5 FEI-42443004057.A216 42443004057	£1.60	£1.92
610 - HEX NUT FEI-42001007053.A4 42001007053	£1.60	£1.92
620 - WHEEL GUARD FEI-31810277000.A0 31810277000	£22.26	£26.71
650 - CLUTCH PART FEI-30102072001.A49 30102072001	£57.78	£69.34
660 - FEATHER KEY FEI-40223021002.A8 40223021002	£1.60	£1.92
670 - RING FEI-32601164009.A1 32601164009	£12.78	£15.34
680 - SLEEVE FEI-30501232002.A1 30501232002	£21.29	£25.55
700 - INTERMEDIATE GEAR BOX FEI-31506175005.A1 31506175005	£48.11	£57.73
710 - GROOVED BALL BEARING FEI-41701020130.A40 41701020130	£11.73	£14.08
720 - FEATHER KEY FEI-40221005008.A18 40221005008	£1.60	£1.92
730 - CLUTCH PART FEI-30102072001.A48 30102072001	£57.78	£69.34
740 - CLUTCH PART FEI-30102071008.A5 30102071008	£12.11	£14.53
750 - GROOVED BALL BEARING FEI-41701204131.A28 41701204131	£9.10	£10.92
760 - CYLINDER HEAD SCREW FEI-43033015052.A23 43033015052	£1.60	£1.92
770 - CYLINDER HEAD SCREW FEI-43033016055.A32 43033016055	£1.60	£1.92
780 - CIRCLIP M5 FEI-42443004057.A217 42443004057	£1.60	£1.92
810 - BEARING PLATE FEI-32419052007.A1 32419052007	£49.01	£58.81
820 - BEARING PLATE FEI-32419052016.A6 32419052016	£82.81	£99.37
830 - GROOVED BALL BEARING FEI-41701218024.A33 41701218024	£8.92	£10.70
840 - DISC FEI-32624046028.A7 32624046028	£1.60	£1.92
840 - DISC FEI-32624046034.A13 32624046034	£4.92	£5.90
850 - CIRCLIP FEI-42616018008.A25 42616018008	£1.60	£1.92
860 - SEALING RING FEI-42640012005.A1 42640012005	-
920 - HANDLE HALF SHELL FEI-31204179000.A11 31204179000	£22.62	£27.15
930 - SWITCH FEI-30701273020.A0 30701273020	-
940 - FILLISTER HEAD SCREW FEI-43041035047.A80 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A60 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A55 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A77 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A72 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A45 31412063000	£3.93	£4.72
1010 - PLATE FEI-30605041005.A4 30605041005	£4.80	£5.76
1020 - CABLE WITH PLUG FEI-30707373014.A31 30707373014	£19.11	£22.93
1030 - CABLE GROMMET FEI-31413094007.A43 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A55 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A68 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A96 43070038007	£1.60	£1.92
1070 - CONNECTING CABLE FEI-30719655010.A12 30719655010	£2.74	£3.29
1110 - CABLE FEI-30706249011.A0 30706249011	-
1120 - MOTOR PROTECTION PLUG FEI-30756004006.A0 30756004006	£43.88	£52.66
5000 - JAW SPANNER SW8 FEI-62901002004.A1 62901002004	£11.34	£13.61
5010 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A96 62910022002	£7.22	£8.67
5020 - ALLEN KEY SW6 FEI-62907004005.A30 62907004005	£3.35	£4.02
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A0 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101077060.A0 34101077060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A234 34130054061	-

Attribute Name	Value
Brand	Fein
