Fein WSB 20-180 (50Hz 230V) / 72210529232 Spare Parts

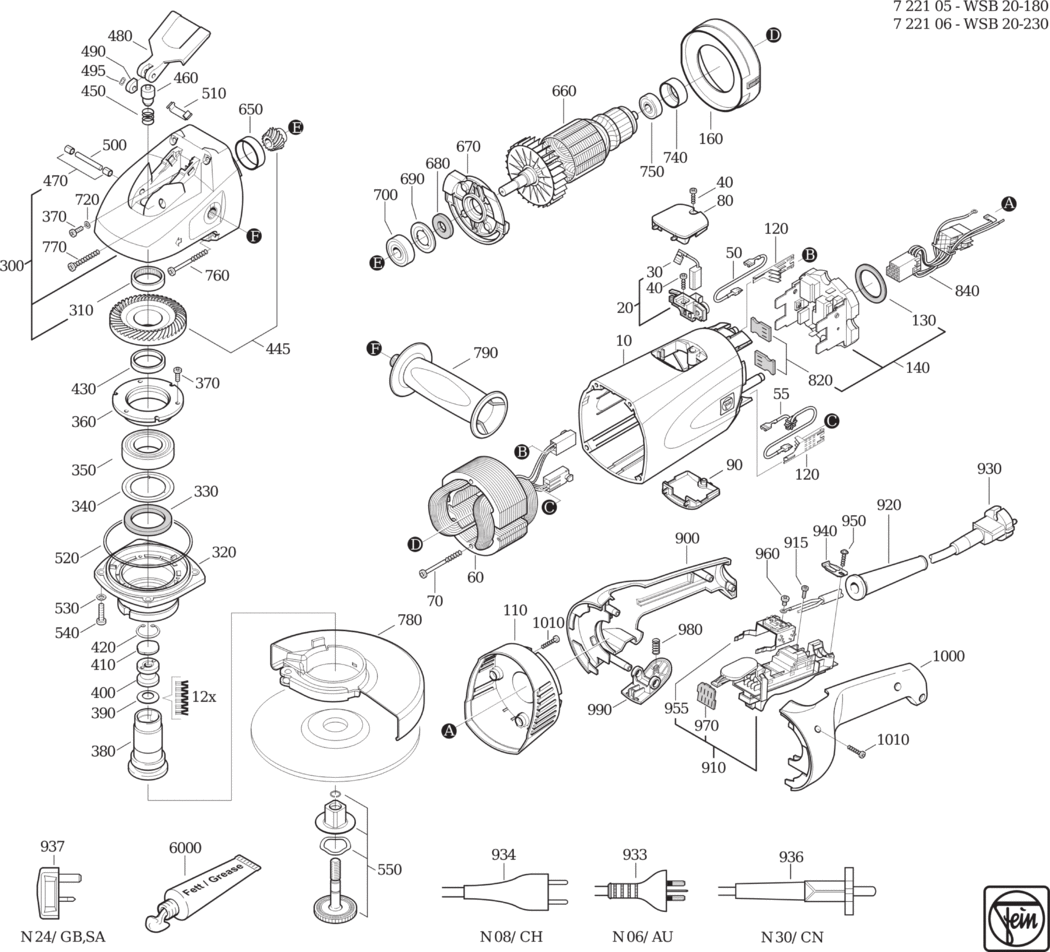

An exploded diagram and spare parts listing for the Fein WSB 20-180 (50Hz 230V) / 72210529232

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903214006.A1 31903214006	£37.81	£45.37
20 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A0 30712090019	£23.51	£28.21
30 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A11 30711137006	£14.48	£17.37
40 - SCREW FEI-43070027000.A12 43070027000	-
50 - CONNECTING CABLE FEI-30719556010.A1 30719556010	£1.60	£1.92
55 - RING CORE CHOKE FEI-30764122008.A2 30764122008	£8.28	£9.93
60 - STATOR 50HZ230V FEI-51275002232.A0 51275002232	-
70 - SCREW FEI-43072011008.A12 43072011008	-
80 - COVER FEI-32427117008.A12 32427117008	£4.37	£5.24
90 - COVER FEI-32427118006.A10 32427118006	£4.37	£5.24
110 - HOUSING FEI-31207251008.A10 31207251008	£16.16	£19.39
120 - BASE PLATE FEI-31428144005.A3 31428144005	£1.60	£1.92
140 - ELECTRONICS FEI-30762614990.A3 30762614990	-
160 - AIR GUIDE RING FEI-31428141000.A19 31428141000	£5.95	£7.14
300 - GEARBOX HOUSING FEI-31206113033.A0 31206113033	£93.13	£111.76
310 - NEEDLE SLEEVE FEI-41705036003.A5 41705036003	£9.94	£11.93
320 - BEARING PLATE FEI-32419139000.A1 32419139000	-
330 - FELT RING FEI-30601105004.A10 30601105004	£1.60	£1.92
340 - DISC FEI-32411080005.A9 32411080005	£1.60	£1.92
350 - GROOVED BALL BEARING FEI-41701025023.A20 41701025023	-
360 - PLATE FEI-32416102002.A3 32416102002	£9.73	£11.68
370 - FILLISTER HEAD SCREW FEI-43064002043.A45 43064002043	£1.60	£1.92
380 - SHAFT FEI-33406286006.A1 33406286006	£37.98	£45.58
390 - CUP SPRING PACKAGE FEI-30905073015.A3 30905073015	£15.72	£18.87
400 - PRESSURE PIECE FEI-30220059006.A1 30220059006	£11.40	£13.68
410 - DISC FEI-32414112005.A6 32414112005	£1.60	£1.92
420 - CIRCLIP FEI-42616066001.A13 42616066001	-
430 - RING FEI-32601270000.A8 32601270000	£4.62	£5.54
445 - BEVEL GEAR Z=15/52 FEI-33809231013.A2 33809231013	-
450 - SPIRAL SPRING FEI-30901342003.A3 30901342003	£1.60	£1.92
460 - BOLT FEI-30217336008.A9 30217336008	£8.93	£10.72
470 - BUSH FEI-30507200002.A8 30507200002	£2.55	£3.06
480 - LEVER FEI-32805179002.A0 32805179002	£24.87	£29.84
490 - ECCENTRIC RING FEI-32636040002.A9 32636040002	£4.76	£5.71
495 - DISC FEI-42446021000.A1 42446021000	£1.60	£1.92
500 - BOLT FEI-30216138007.A9 30216138007	£1.60	£1.92
510 - LOCKING SPRING FEI-30907055006.A2 30907055006	£4.55	£5.46
520 - DISC FEI-32624118022.A8 32624118022	£2.66	£3.19
530 - CIRCLIP M5 FEI-42443004057.A243 42443004057	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064009054.A9 43064009054	-
550 - CLAMPING UNIT FEI-63802183025.A5 63802183025	£60.72	£72.86
650 - BUSH FEI-30507169007.A1 30507169007	£2.74	£3.29
660 - ARMATURE 50/60H220/230V FEI-53275002234.A9 53275002234	£162.14	£194.57
670 - PLATE FEI-32416106001.A14 32416106001	£9.82	£11.78
680 - FELT RING FEI-30601050002.A30 30601050002	£1.60	£1.92
690 - DISC FEI-32411083001.A16 32411083001	£1.60	£1.92
700 - GROOVED BALL BEARING FEI-41701213096.A28 41701213096	£20.90	£25.08
720 - CIRCLIP M4 FEI-42443003043.A162 42443003043	£1.60	£1.92
740 - BUSH FEI-30507168003.A41 30507168003	£2.74	£3.29
750 - GROOVED BALL BEARING FEI-41701207033.A43 41701207033	£10.15	£12.18
760 - SCREW FEI-43070029002.A19 43070029002	-
770 - SCREW FEI-43070030004.A7 43070030004	-
780 - SAFETY HOOD FEI-31810245020.A7 31810245020	£48.24	£57.89
790 - SIDE HANDLE FEI-32119032002.A29 32119032002	£12.89	£15.47
840 - CONNECTING CABLE FEI-30719594019.A5 30719594019	£22.88	£27.45
900 - HANDLE HALF SHELL FEI-31204167000.A14 31204167000	£13.42	£16.11
910 - SWITCH FEI-30701232025.A3 30701232025	£83.68	£100.42
915 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A134 43041001994	£1.60	£1.92
920 - CABLE GROMMET FEI-31413094007.A51 31413094007	£3.04	£3.65
930 - CABLE WITH PLUG FEI-30707387012.A10 30707387012	£18.18	£21.81
940 - CABLE CLAMPING PIECE FEI-32431042008.A62 32431042008	£1.60	£1.92
950 - SCREW FEI-43070035002.A85 43070035002	£1.60	£1.92
955 - CONNECTING PIECE FEI-30717203014.A15 30717203014	£22.25	£26.70
960 - FILLISTER HEAD SCREW FEI-43041016042.A16 43041016042	-
970 - SEAL FEI-31415090001.A8 31415090001	£1.60	£1.92
980 - SPIRAL SPRING FEI-30901343007.A12 30901343007	-
990 - SWITCH PUSHBUTTON FEI-32816057007.A24 32816057007	£3.17	£3.80
1000 - HANDLE HALF SHELL FEI-31204168008.A15 31204168008	£13.42	£16.11
1010 - SCREW FEI-43070031003.A55 43070031003	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A533 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A303 34130054061	-
